ANENG PN103 AC/DC Current Clamp Meter 6000 Counts True RMS Digital Multimeter 600A Clamp Meter
Feature:

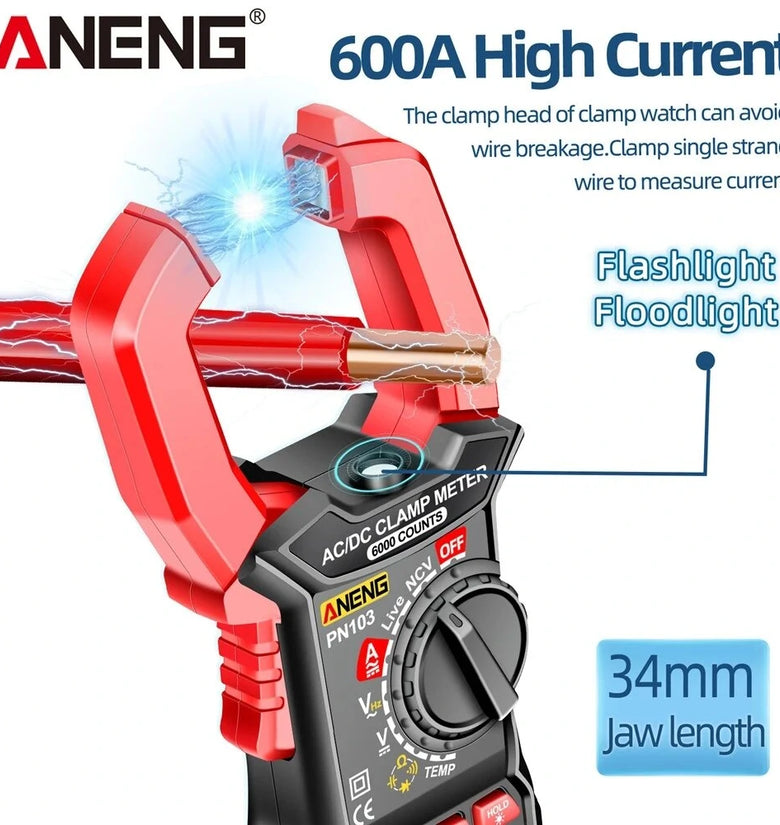

1-1. This series of clamp meters can automatically recognize the measurement range of AC current from 0.2 to 600A.
1-2. Overload protection throughout the range.
1-3. Max. voltage between measurement terminal and ground:700V DC or 600V AC
1-4. Max.display value:6000 digit.
1-5. Overrange display: The highest position shows'OL';
1-6. Low voltage display:'Low voltage symbol 'symbol appears;
1-7. Power: AAA 1.5V battery(not include)

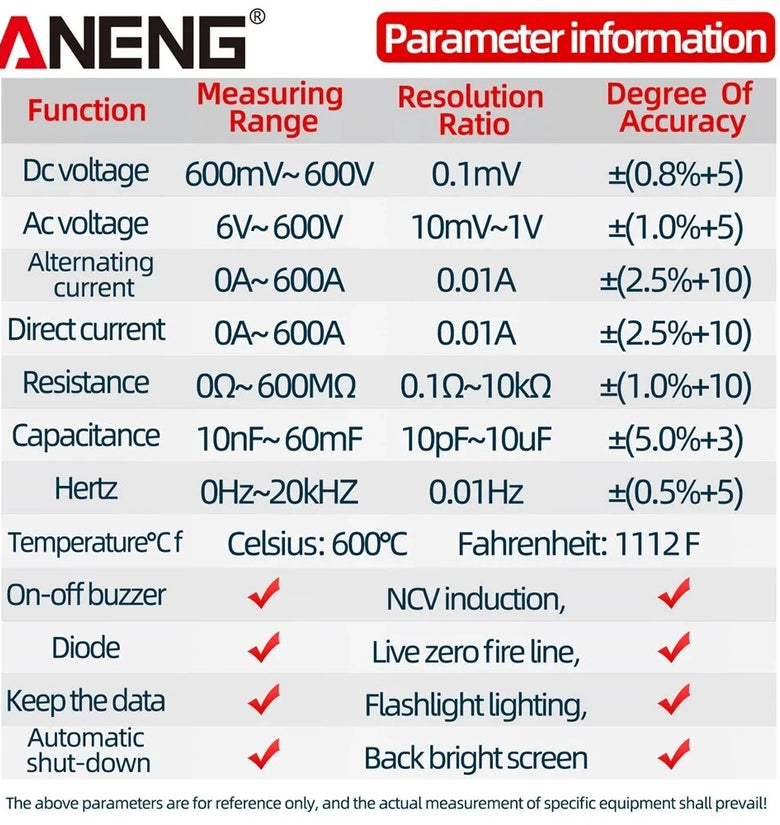

Specifications:
Function |
Range |
Accuracy |
AC/DC Current |
60A/600A |
+-(2.5%+10) |
DC voltage |
600mV/6V/60V/600V |
+-(0.8%+5) |
AC voltage |
6V/60V/600V |
+-(1.0%+5) |
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
+-(0.8%+3) |
Capacitor |
10nF/100nF/1uF/10uF/100uF/1mF/60mF |
+-(2.5%+20) |
Temperature |
(0~250)℃ |
- |
Frequency |
10Hz/100Hz/1kHz/20kHz |
+-(1%+5) |
Diode:yes |
NCV:yes |
Line on/off:yes |
date:yes |
Auto:yes |
|
Package included:
1 x PN103 Clamp meter
1 x Test pen
1 x Temperature probe
1 x Instruction manual
