Specifications:
| Model | ASMC-04A |
| Working voltage | 12V to 24V (DC) |
| No-load rotation current | <500mA |
| Maximum torque | 110kg.cm (24V) |
| 1078N.cm(24V) | |
| 55kg.cm(12V) | |
| 539N.cm(12V) | |
| Angular velorcity | 0.12s/60° at 24V; 0.24s/60° at 12V; |
| Rotation angle | 300°MAX (0 to 300° electronic limit adjustable) |
| Input mode | Pulse signal (remote control, multi-channel steering gear controller, microcontroller) or analog voltage signal (potentiometer) |
| Pulse signal input range | 0.5ms-2.5ms suitable for all 'multi-channel steering gear controllers', '1ms-2ms model aircraft remote controls', 'microcontroller programmingArduino', etc. |
| Voltage signal input range | 0V to +5V |
| Control accuracy | 0.32° |
| Weight | 530g |
| Gear material | Steel |
| Overall dimensions | 95.5mm x 60.5mm x 102.6mm |
Features:
1. High power and high torque control suitable for medium and large-sized robots.2. Wide working voltage range from 12V to 24V with a no-load rotary current of less than 500mA.
3. Superior maximum torque output of up to 110kg.cm at 24V.
4. Adjustable electro limit rotation angle from 0 to 300°MAX.
5. Built with robust, high-quality steel gear and optimized for control accuracy of 0.32°.
Package Include:

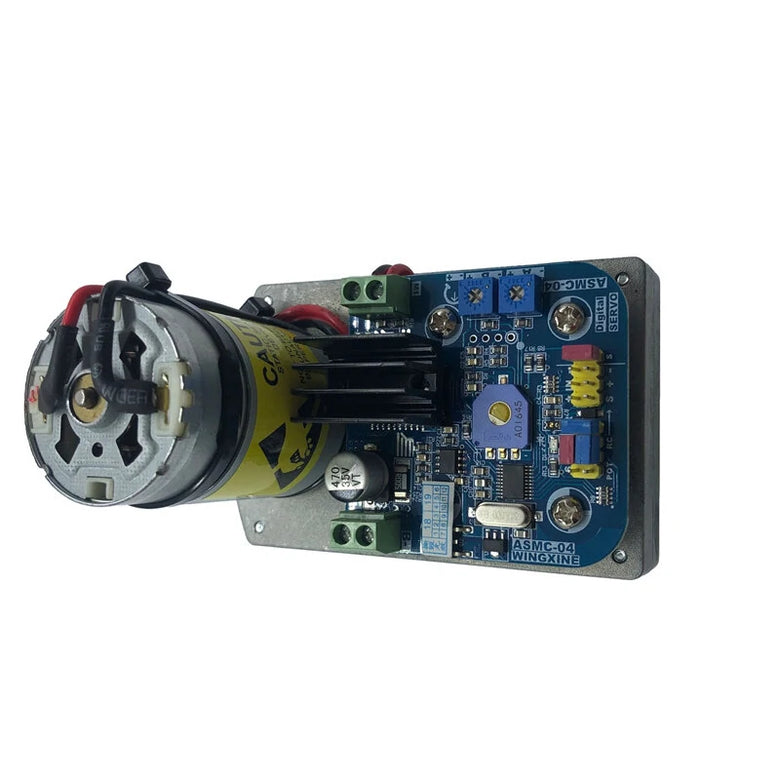

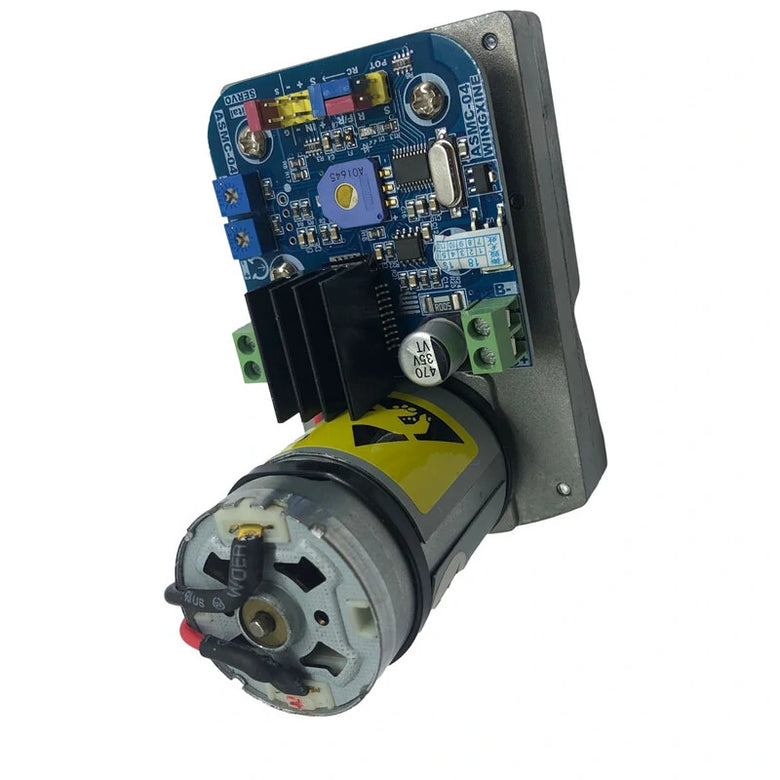

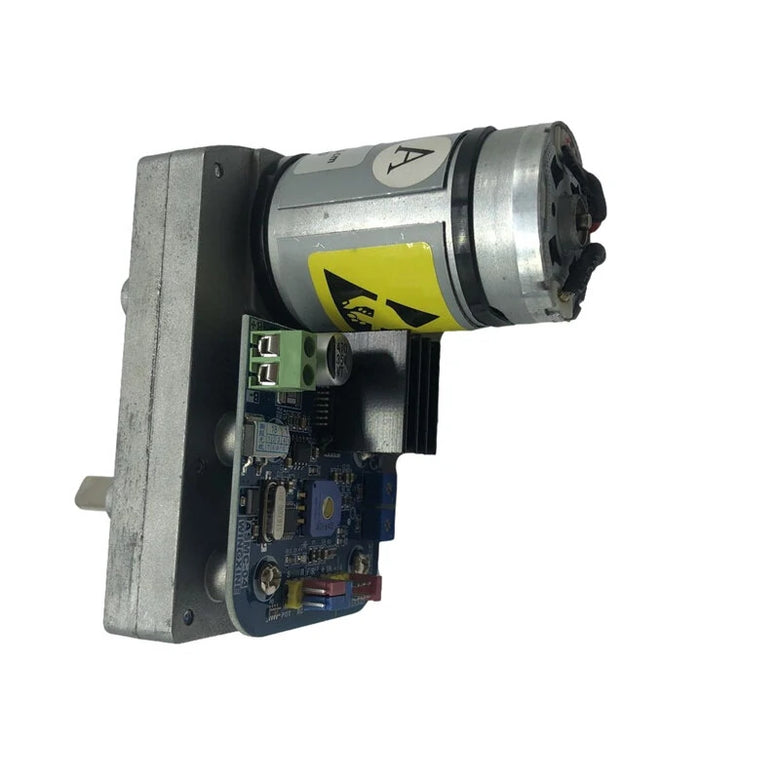

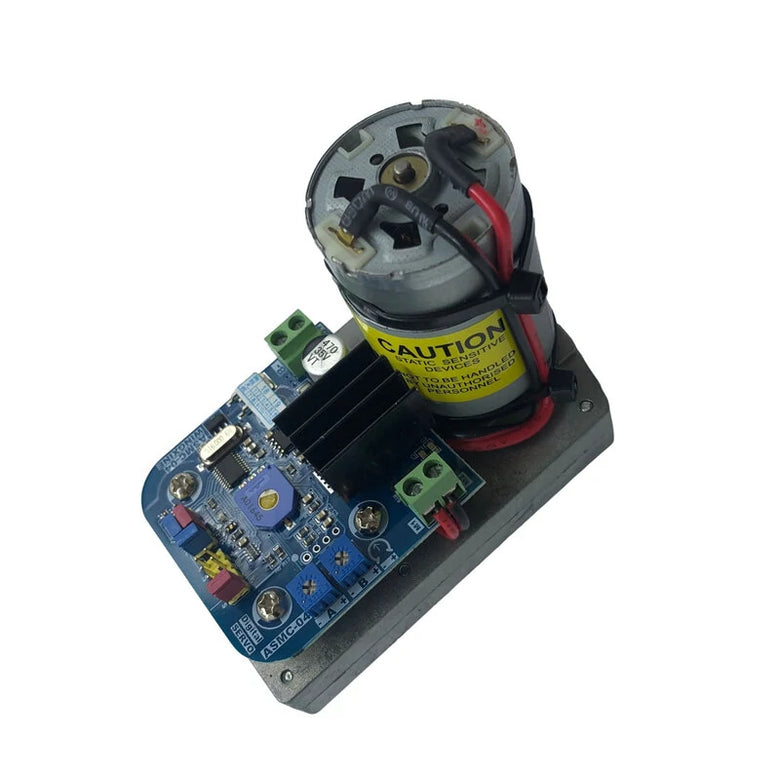

1x ASMC-04A Steering Gear
1x 20cm Signal Cable
