Features:

>>>Manual: Click here to open<<<

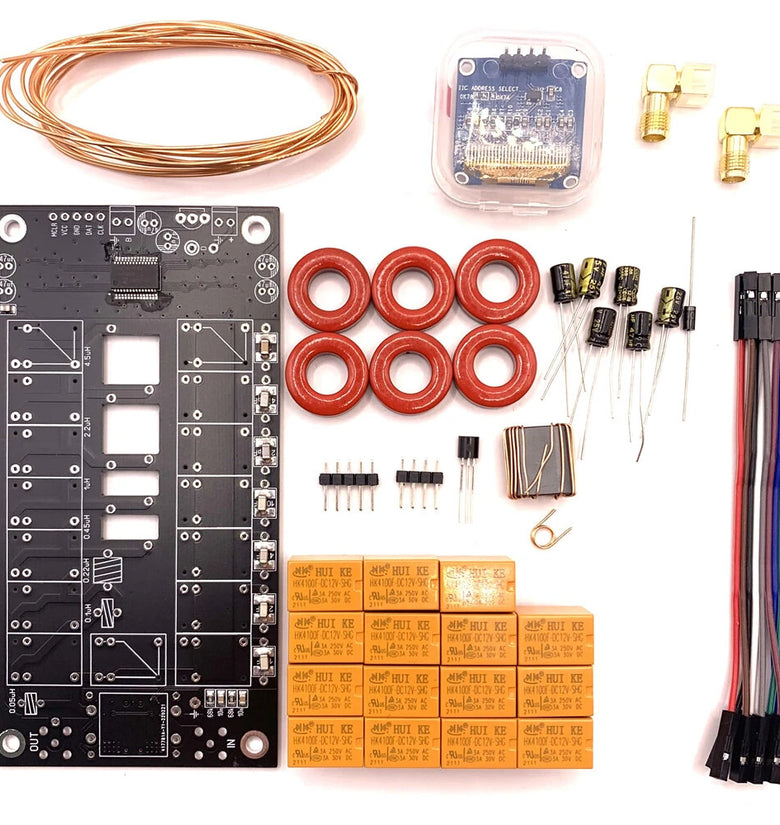

1. This link has both soldered and unsoldered versions to choose from. The unsoldered version requires you to solder and assemble it. Please confirm clearly before placing an order.

2. It can work effectively in broadband, overlapping radio amateur HF bands from 1.8mhz to 50MHz.

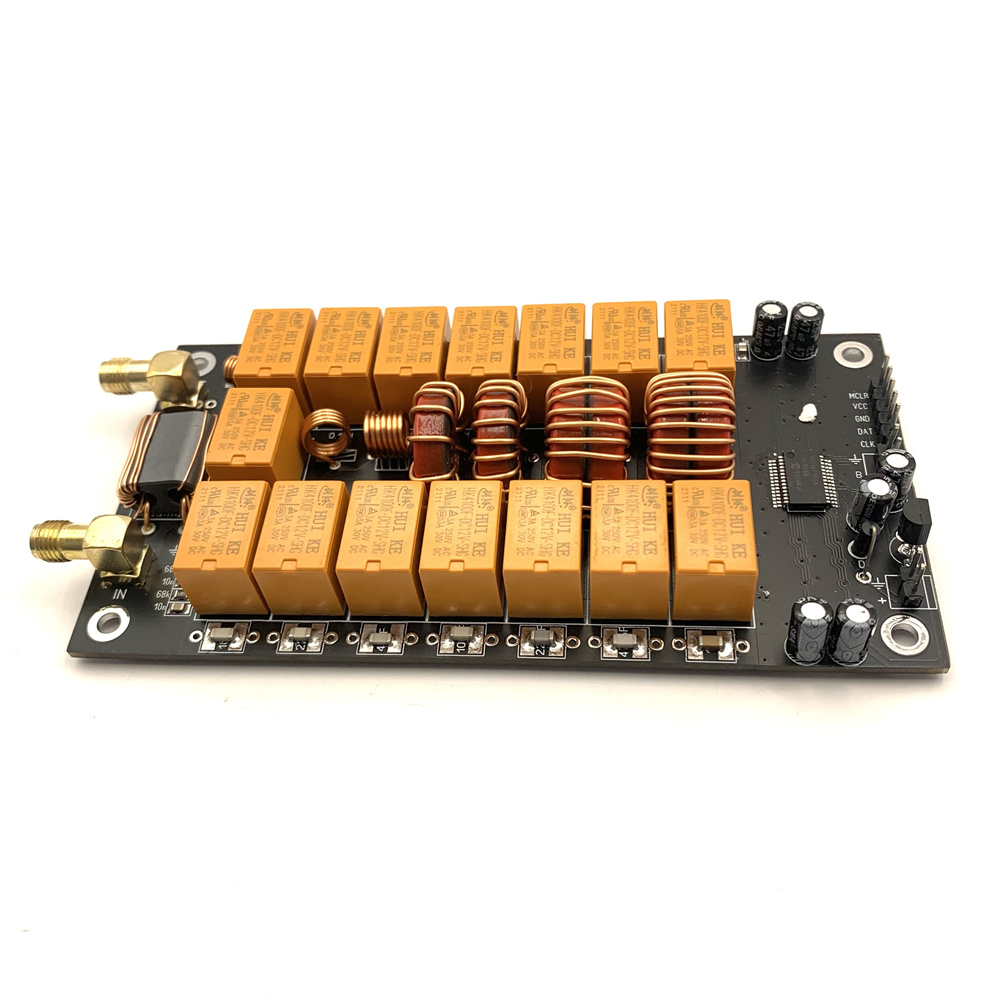

3. The max current consumption is 400mAh, and it with 7 inductance and 7  capacitance.

4. It is easy for you to carry, so you can take it with you to anywhere you want to use it.

5. With the OLED screen, which can let you see clearly the data, give you a better using experience.

Specifications:

Material: PCB

Max current consumption: 400mAh

Step for measurement on powers under 10 watts: 0.1 watt

Step for measurement on powers above 10 watts : 1 watt

Power measurement accuracy : 10%

Maximum inductance set: 8.53uH

Minimal step for setting inductance: 0.05uH

Maximum installed capacitance: 1869pF

Minimal installed capacitance: 10pF

Item size: 128 * 62 * 20mm / 5.0 * 2.4 * 0.8in

OLED size: 28 * 27mm / 1.1 * 1.1in

Item weight: 129g / 4.6ounce

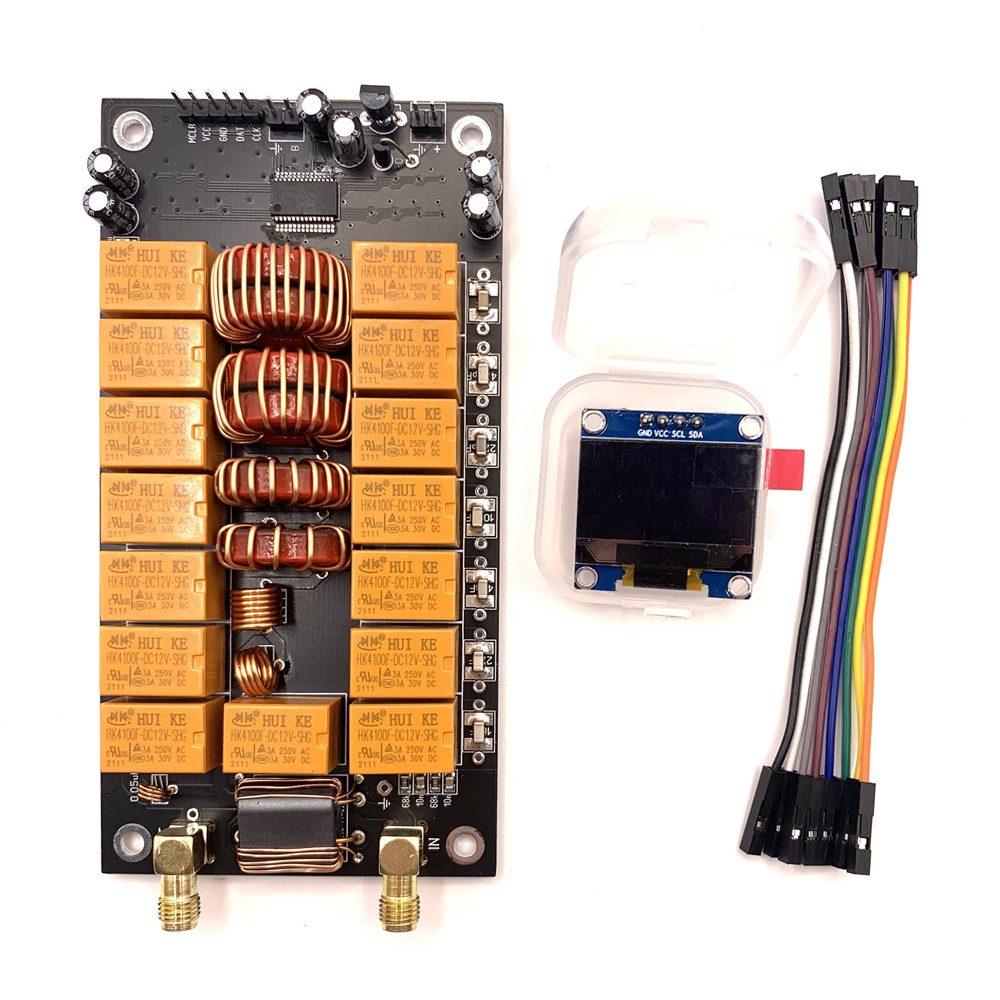

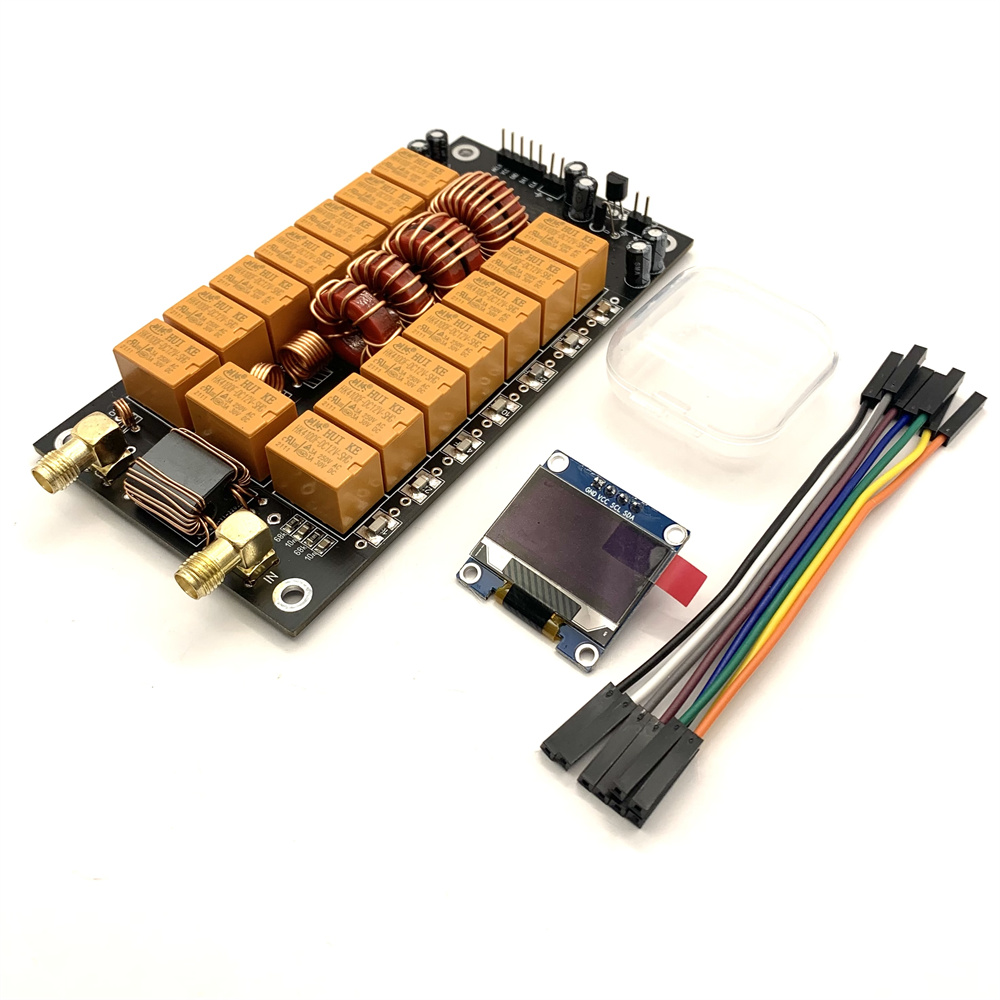

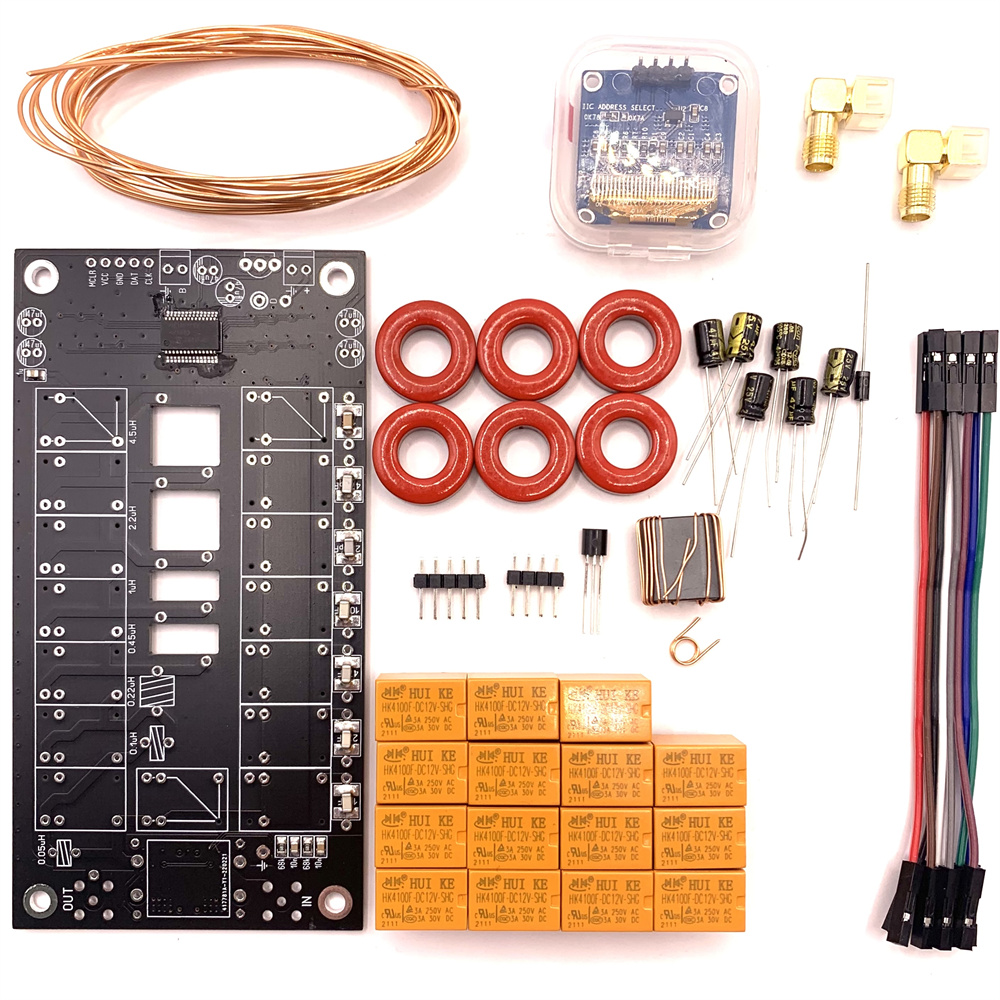

Package Included:

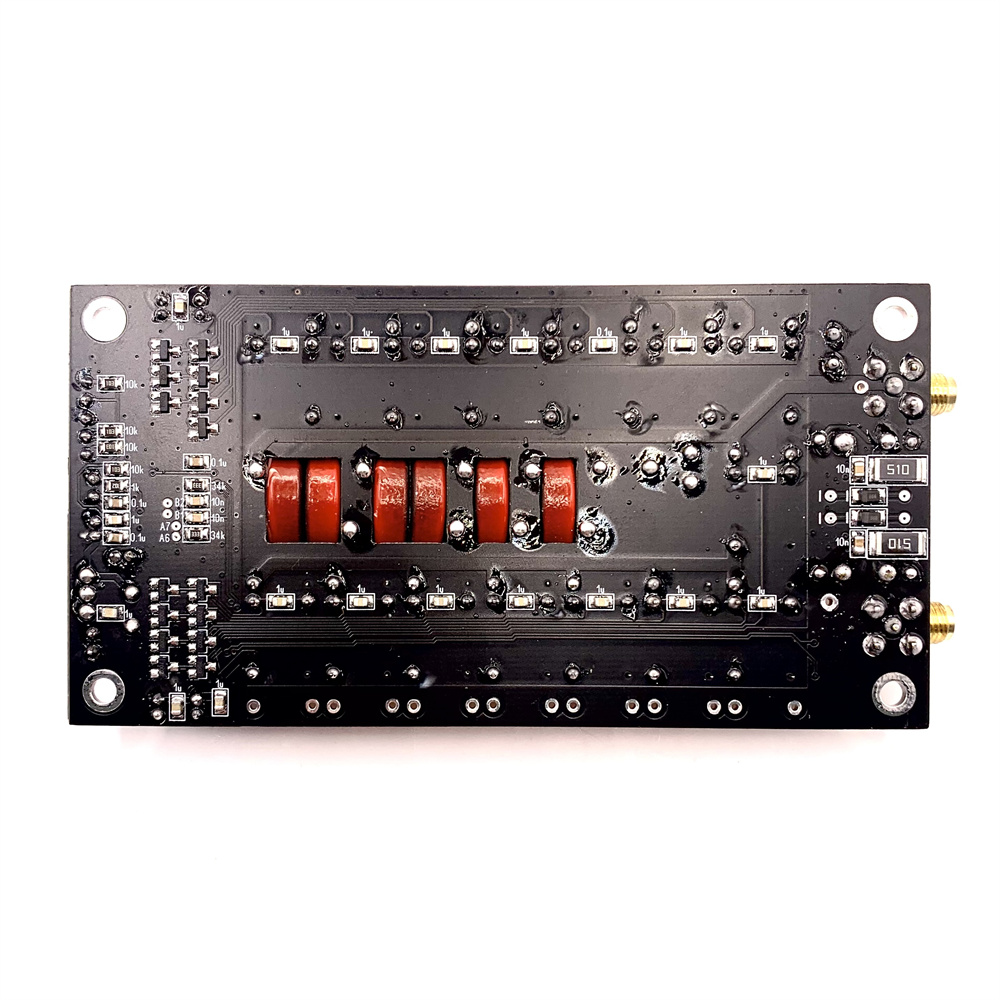

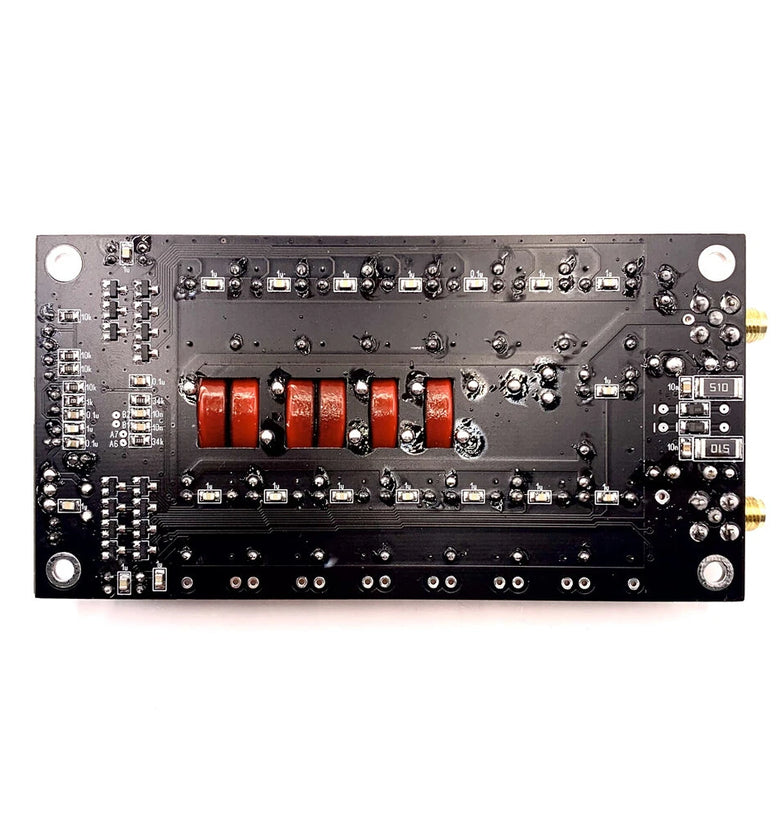

1 x PCB

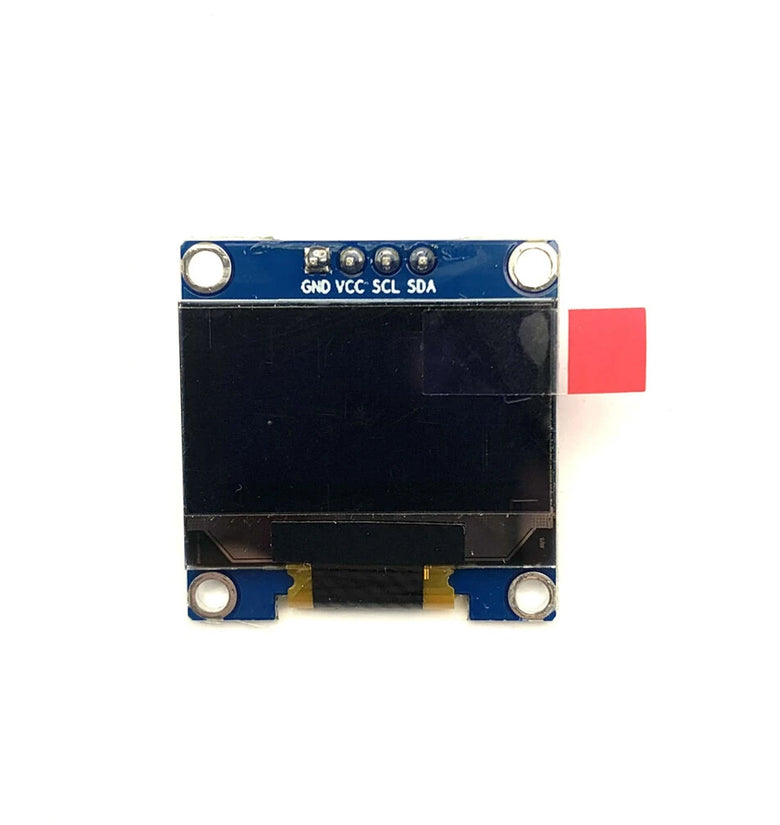

1 x OLED screen

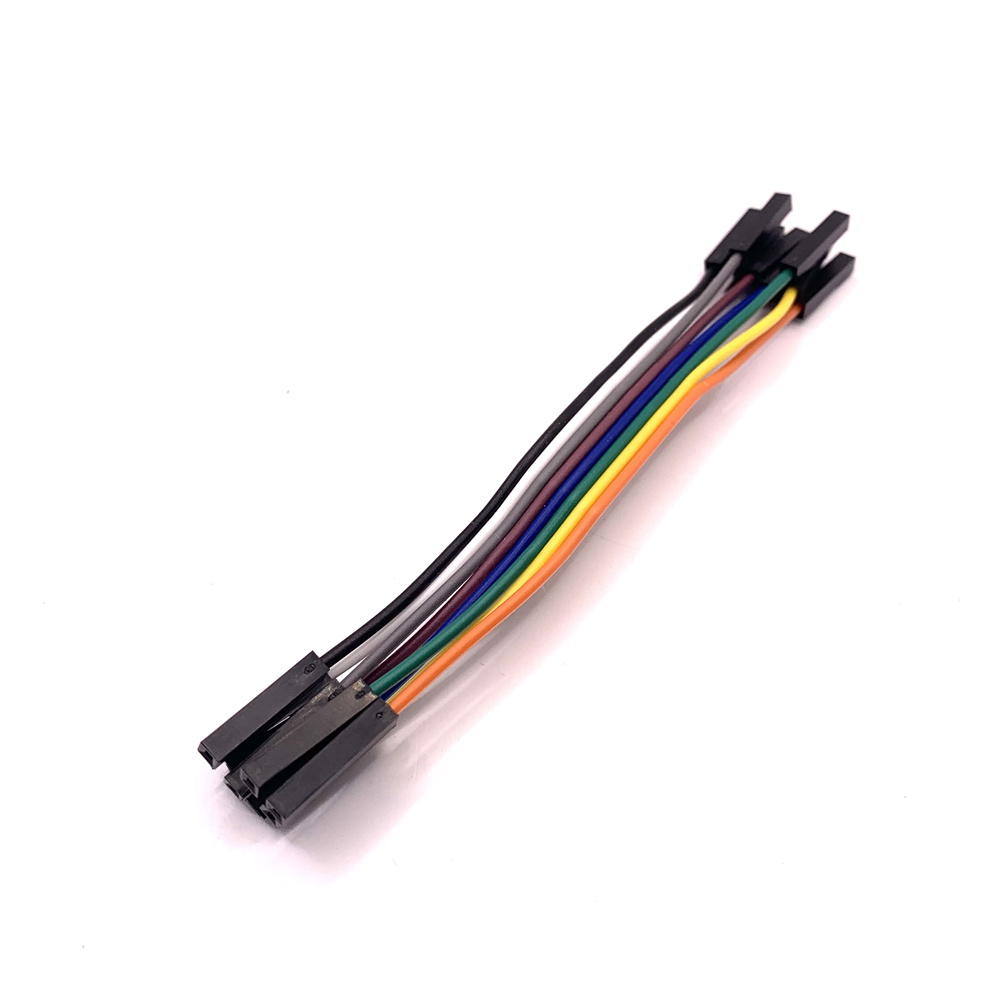

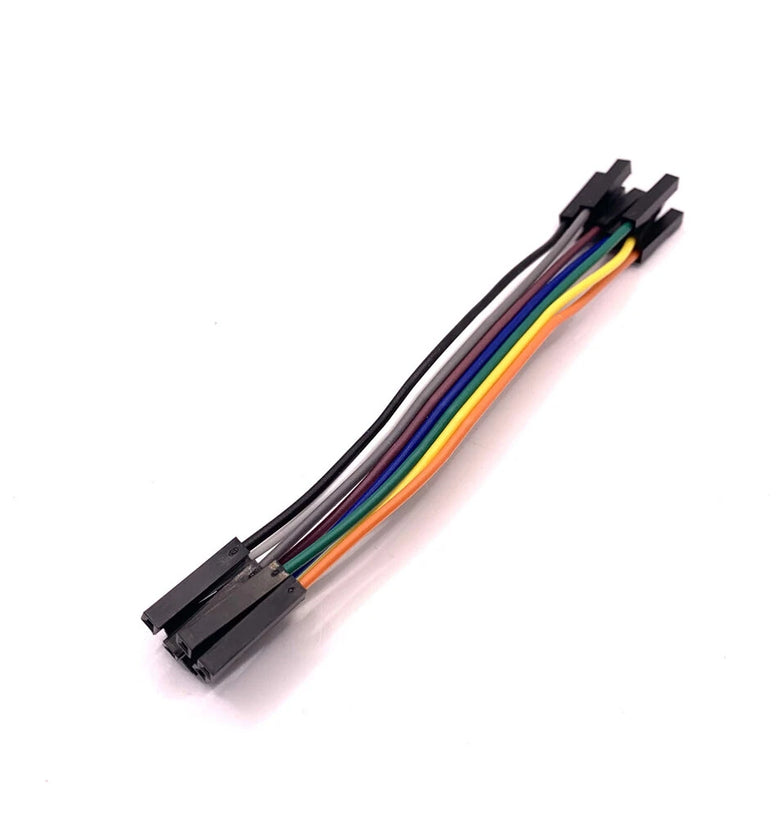

1 x Set of Accessory
