Specifications:
Optional Model: ET938 / ET938PRO
Output Signal: 125kHz/35V
Signal Encoding: AC.E.F.H.L
Signal Level: 4
Cable Voltage: AC/DC 10~400V
Tracking Depth: Depends on medium and application
Unipolar Application: Approx. 0~1m
Bipolar Application: Approx. 0~0.5m
Single Pole Application: Approx. 0~2m
LCD Size: 50x67mm Color Screen
Overload Voltage: DC1000V / AC750V
Flashlight: Dual
Work Range: 0~40°C, Max 80% relative humidity (non-condensing)
NCV Testing Range: Approx. 0~0.4m
Battery Type: Rechargeable Lithium Battery, 1500mAh
Auto Power-Off Function: Yes
Multimeter:
Fuse: 2A/300V
Size: Main Body: 175*85*36mm, Receiver: 255*85*36mm
Weight: Approx.1180g
Battery: 1500mAh Rechargeable Lithium Battery
DC Voltage: 600.0mV–1000V (±0.5%+0.3)
AC Voltage: 600.0mV–750V (±0.8%+0.5)
DC Current: 600.0mA–10A (±1%+0.4)
AC Current: 600.0mA–10A (±1.5%+0.4)
Resistance: 600.0Ω–60MΩ (±1%+0.3)
Capacitance: 6.000nF–60mF (±2%+0.6)
Frequency: 6.0000Hz–60MHz (±1%+0.1)
Continuity: <10Ω
Diode Testing: ✔
Thermal Imaging (ET938PRO only):
Resolution: ISR 240x240
Test Distance: 0.2–3m (±0.1m)
Temperature Range: -20~550°C (Low: H; High: Auto)
Spatial Resolution: 8.8mrad
Storage: 60 Data Sets
Frame Rate: 25Hz
Accuracy: ±2°C or ±2% (greater of the two). Error ±3°C for temperature <5°C
Features:

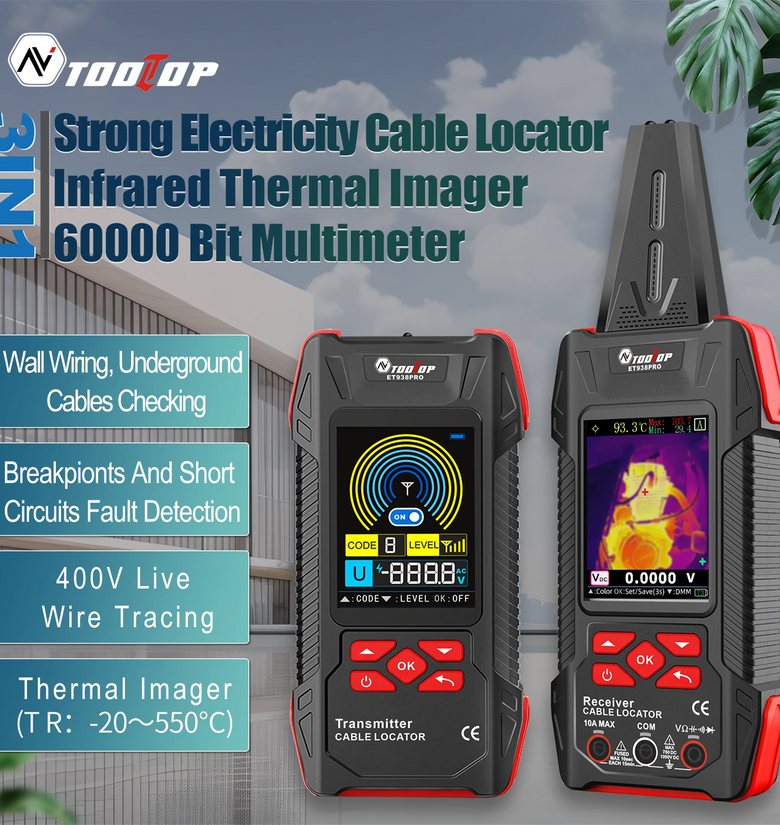

1.Multifunction Capabilities
Combines a multimeter, cable locator, and infrared imaging functionality in one device, simplifying complex tasks and reducing the need for multiple tools.

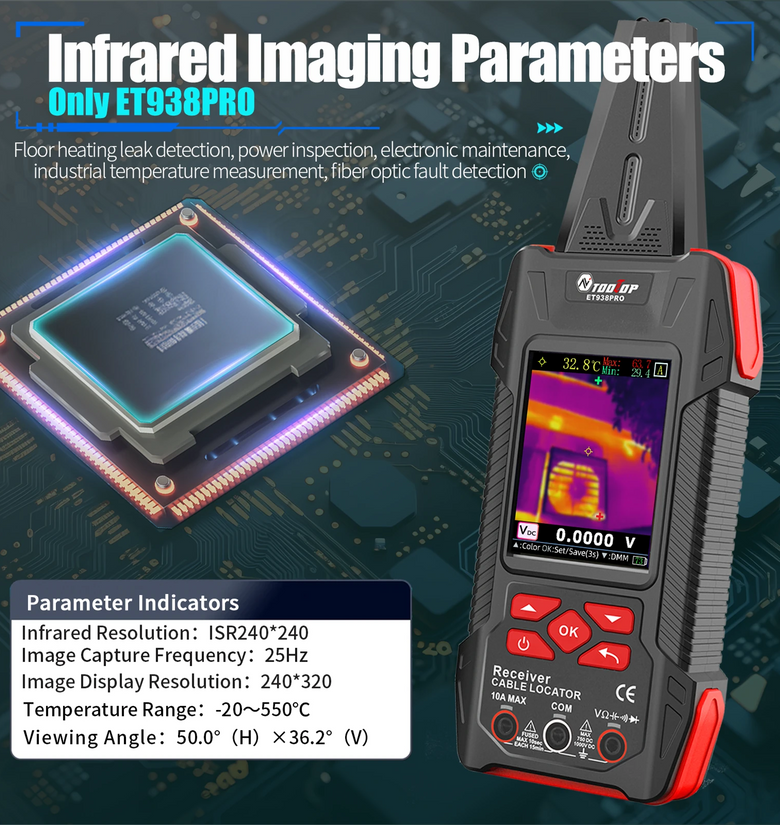

2.Advanced Thermal Imaging (ET938PRO only)
Equipped with a high-resolution ISR 240x240 infrared camera for precise temperature measurement, capable of operating within a wide range of -20°C to 550°C.

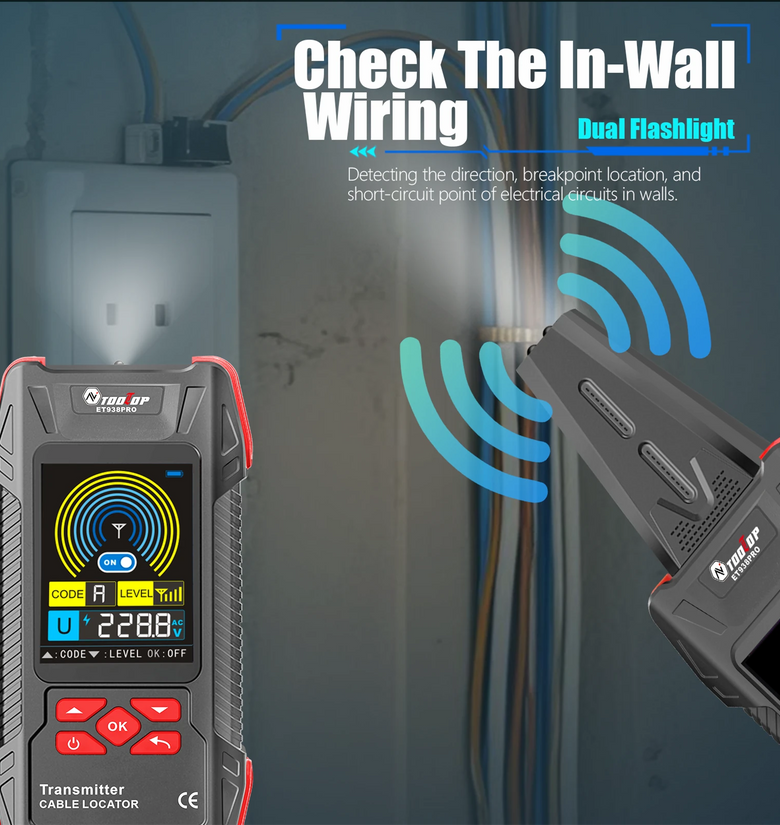

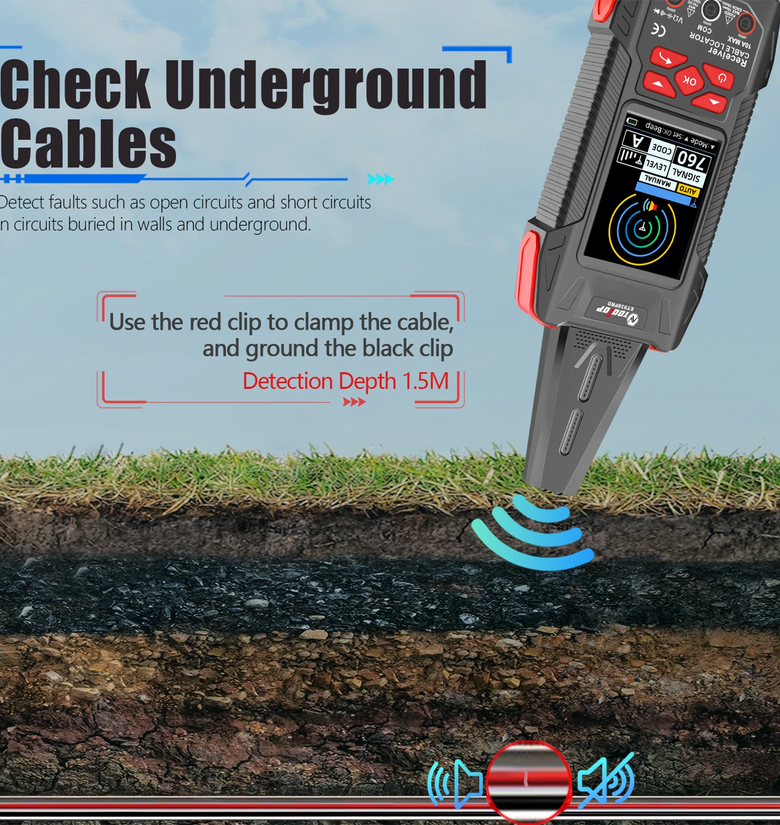

3.Efficient Cable Location Technology
Supports unipolar, bipolar, and single-pole applications with a signal level of 4, enabling precise tracking of cables up to 2 meters deep in various environments.
4.User-Friendly Display and Operation
Features a 50mm x 67mm color LCD screen for easy viewing and dual flashlight functionality for safe operation in low-light conditions.
5.Compact and Rechargeable Design
Lightweight at approximately 1180g, powered by a 1500mAh rechargeable lithium battery for portability and long-lasting performance.

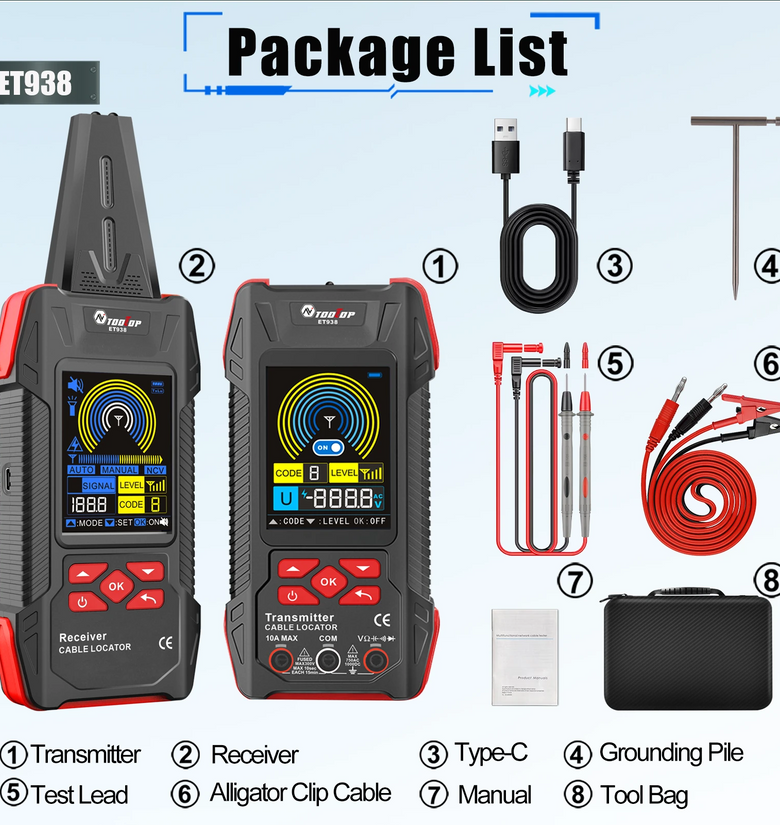

Package Included:
1 x Transmitter
1 x Receiver
2 x Test Leads
2 x Alligator Clip Cable
1 x Type-C USB Cable
1 x Grounding Pile
1 x Manual
