Specifications:
Screen: 4.3-inch IPS display, resolution 480*272
Channels: 5
Bandwidth: 1MHz
Maximum Sampling Rate: 3MHz for 3 channels / 1.5MHz for 4-5 channels
Input Impedance: 1MΩ/20pF
Input Mode: AC/DC
Maximum Measured Voltage: ±10V (X10: ±100V)
Maximum Peak-to-Peak Voltage: 20V (X10: 200V)
Voltage Range:
PC Software/Mobile App: 2mV/div to 2V/div
Screen: 4mV/div to 4V/div
Time Base Range:
PC Software/Mobile App: 1µs/div to 10800s/div
Screen: 1µs/div to 4s/div
Recording Depth: 8M * 5 channels / Up to 90 hours

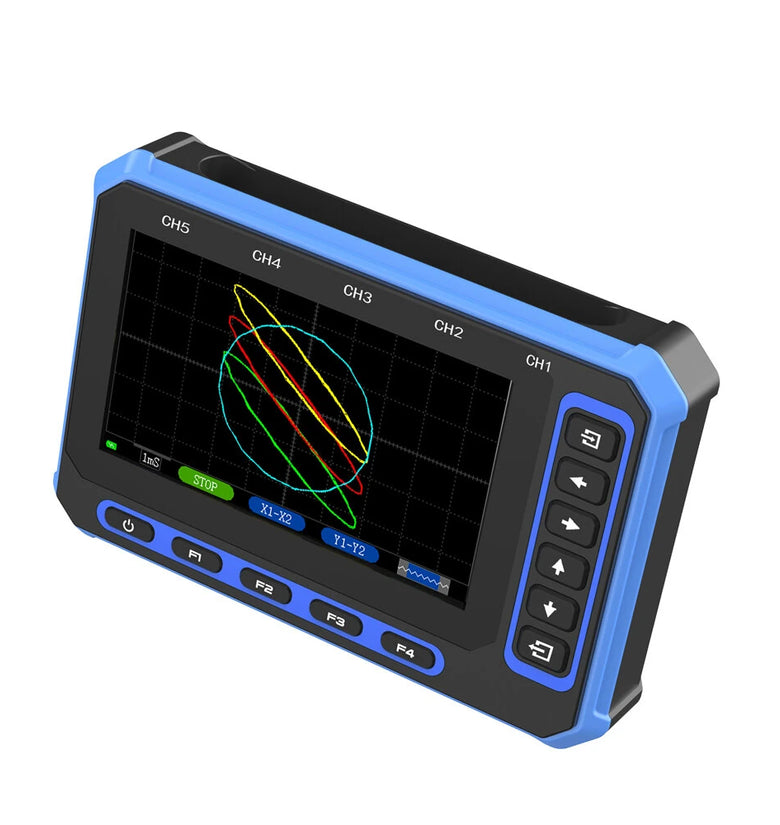

Waveform Modes: YT / XY / Roll
Vertical Resolution: 8 bits
Trigger Type: Rising Edge / Falling Edge
Data Display: Frequency, period, Vp-p, maximum, minimum, average, RMS, amplitude, duty cycle, pulse width
Languages: English / 中文 / Português / Español
Port Type: USB Type-C
Operating Voltage: 5V
Current Consumption: <2A
Battery: 3.7V/18650 / 2000mAh / Removable
Battery Standby Time: <3 hours
Signal Output Frequency: 1kHz
Wireless Support: Wi-Fi 2.4GHz or 5GHz (optional Wi-Fi version required)
Main Unit Dimensions: 150mm x 100mm x 32mm
Net Weight: 350g

Features:
1.Five Independent Channels: With five independent channels, the OS-5C enhances signal versatility and allows synchronized data recording on multiple sources, meeting the requirements of professionals and advanced learners.
2.High Sampling Rate of 3MHz: Supports high-resolution waveforms with sampling rates of up to 3MHz for three channels. Perfect for precise measurements in various projects.
3.Compact and Portable Design: Measuring only 150mm x 100mm x 32mm and weighing 350g, this oscilloscope offers a space-saving format ideal for on-the-go applications.
4.Multi-Platform Compatibility: Seamlessly connects via USB Type-C or optional Wi-Fi to PC software or mobile apps, offering real-time control and data analysis.
5.Removable Rechargeable Battery: Features a 2000mAh removable battery, enabling up to 3 hours of usage. Suited for tasks that demand reliable handheld operation.

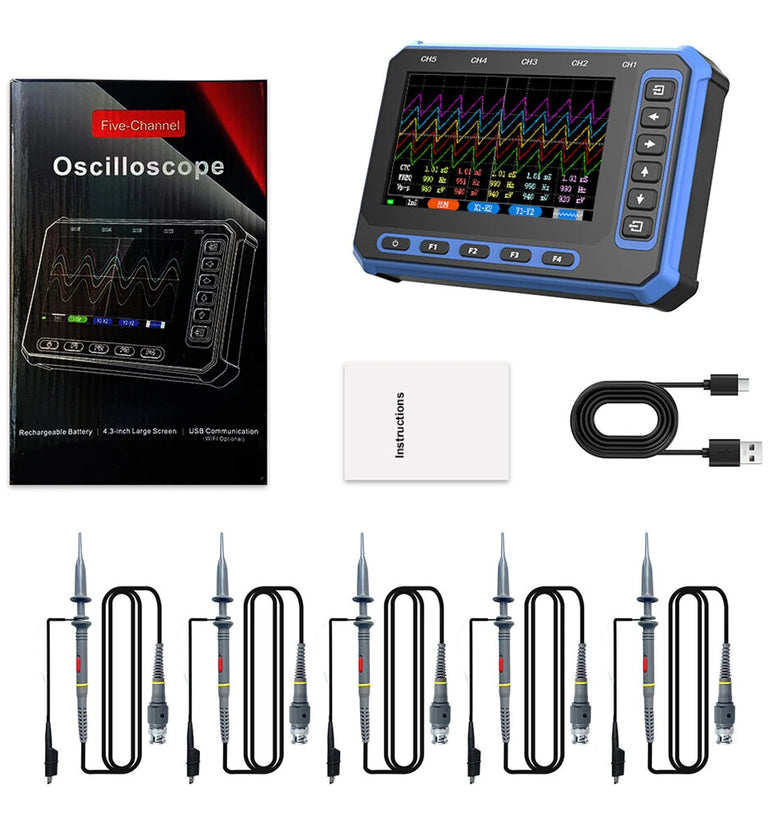

Package Included:
1 x Host Oscilloscope
1 x USB Data Cable
1 x User Manual
1 x Packaging Box

Optional:
5 x Oscilloscope Probes
