Specifications:
Display: 320x240, 3.2-inch TFT color screen
Backlight Brightness: Adjustable (1–8 levels)
Battery Capacity: 3000mAh
Auto Power-off: Configurable (5–60 minutes) or disabled
Sampling Rate: 200MSa/s (high-speed)
Analog Bandwidth: 80MHz (single channel), 40MHz (dual channel)
Vertical Resolution: 8 bits
Thermal Imaging Resolution: 256x192
Temperature Range: -20°C to +550°C
Dimensions: 173mm x 89mm x 38mm
Weight: 296g (10.4 oz)
Features:

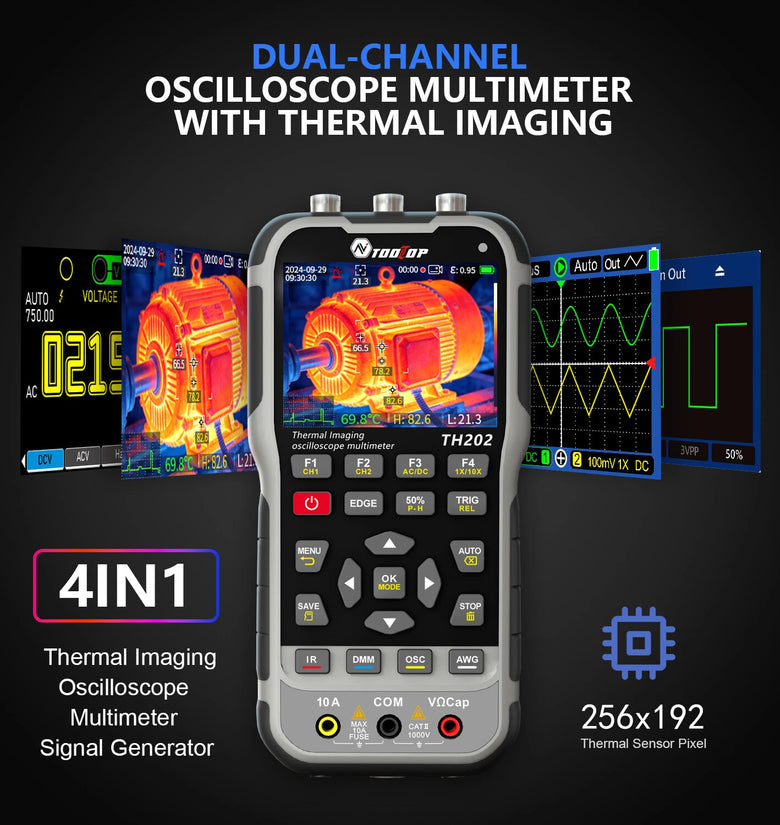

1.High-speed waveform sampling: 200MSa/s and up to 80MHz analog bandwidth for precise waveform measurements.

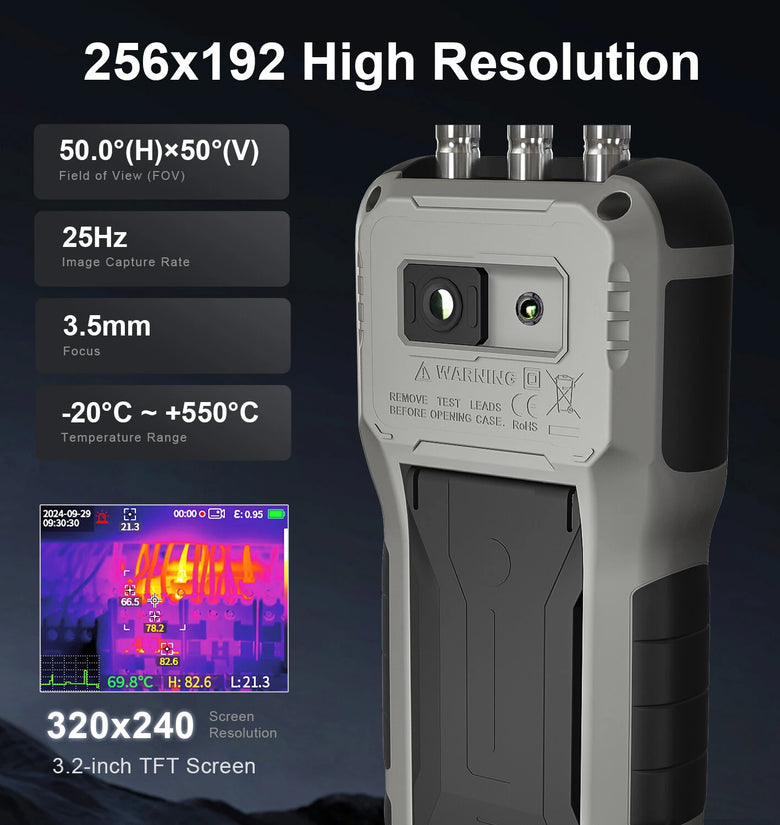

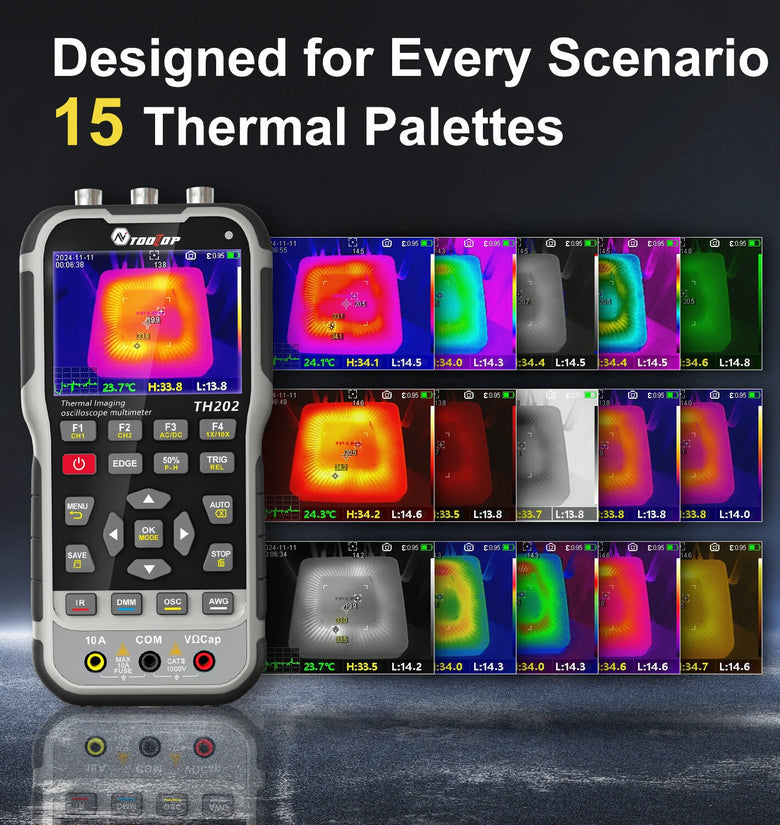

2.Advanced thermal imaging: 256x192 resolution with 15 color palettes for real-time temperature analysis.

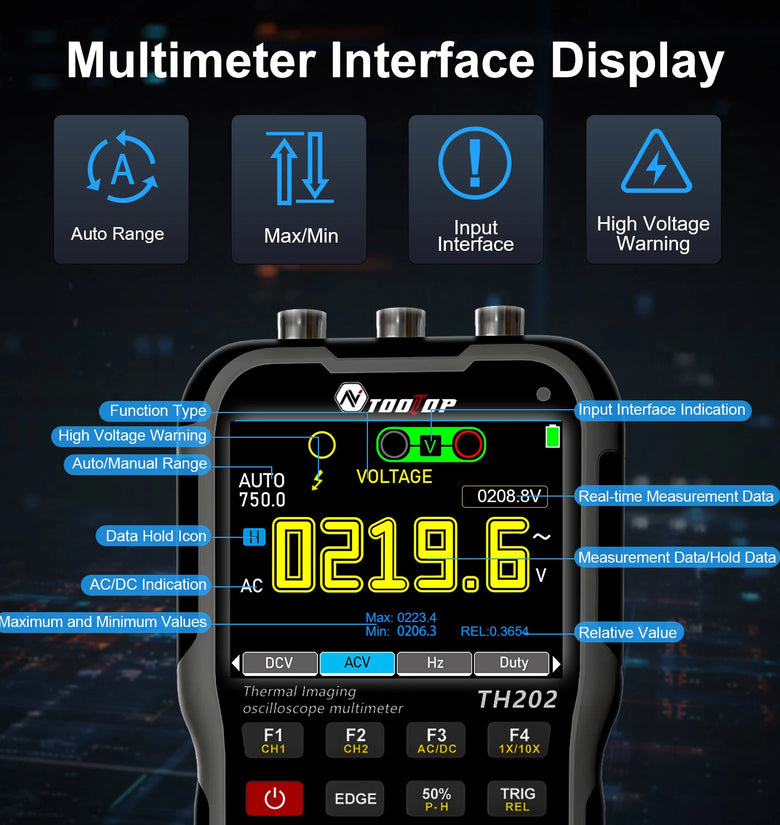

3.Comprehensive measurement capabilities: Supports DC/AC voltage, current, resistance, frequency, capacitance, and more.
4.Data storage and playback: Store up to 2,000 waveform records and 2,000 multimeter readings, with adjustable playback options.
5.Compact design: Integrated 3.2-inch TFT color display and ultra-sensitive touch controls for enhanced usability.

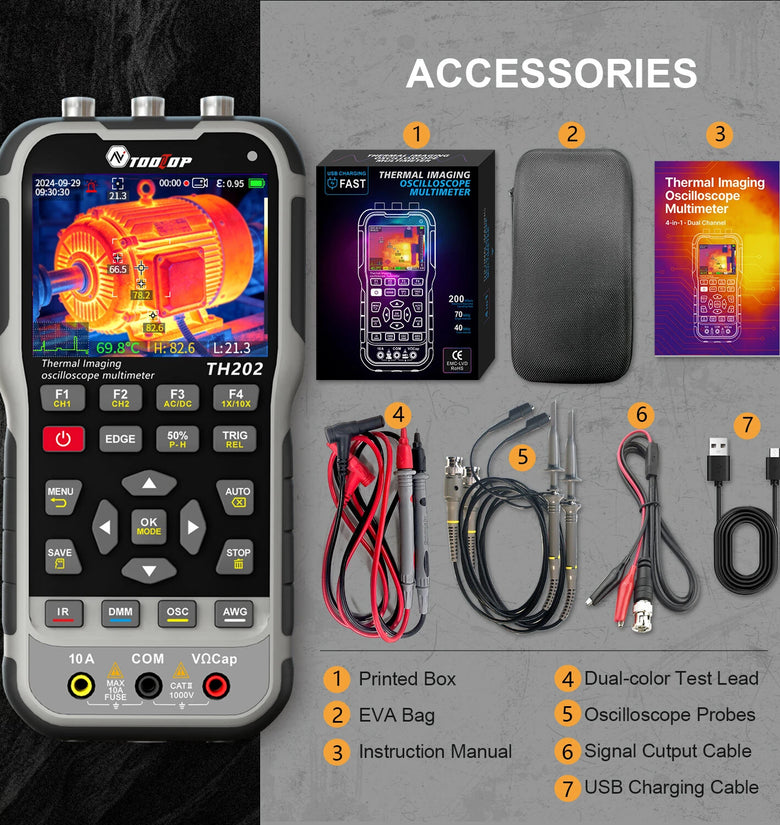

Package Included:
1 x Printed Box
1 x EVA Bag
1 x Instruction Manual
1 x Dual-color Test Lead
2 x Oscilloscope Probes
1 x Signal Output Cable
1 x USB Charging Cable
