Features:
1. Waterproof Upgraded: The added silicone ring at the opening can significantly shrink the gap between the cable and the shell, preventing the intrusion of water. Accompanied with high-quality sealing glue, it promises top-tier protection against water damage.
2. Ready-to-use: The product comes pre-equipped with a waterproof ring. There's no need for the user to install it manually, saving both time and effort.
3. Compact Size: Provided with a compact sampler, the device is easy to install in narrow battery compartments.
4. Comprehensive Measurement: The device is capable of measuring a wide range of values including voltage, current, capacity, and power within specific ranges, allowing for a more accurate and detailed understanding of your battery's health and performance.
5. Bluetooth Communication: Wireless communication at a maximum unblocked distance of 10 meters, making it easier to monitor the readings without continuously being present near the device.
Specifications:

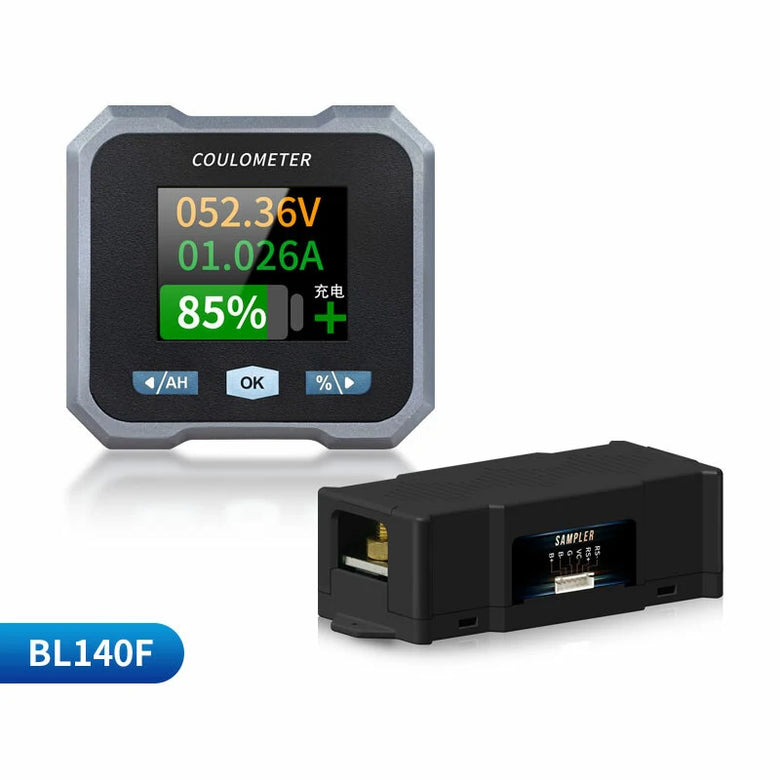

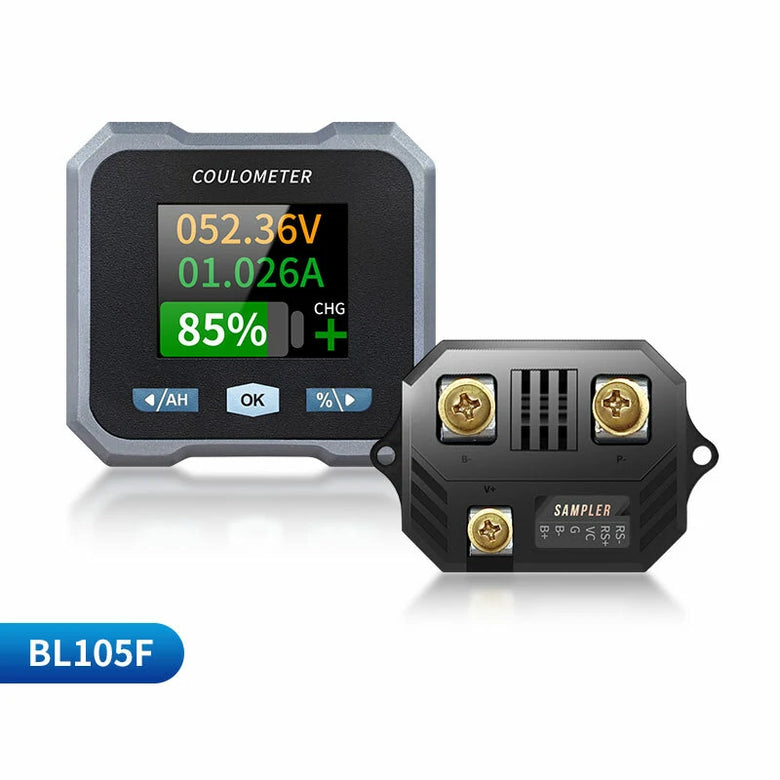

Optional Model: BL105F/ BL110F/ BL140F

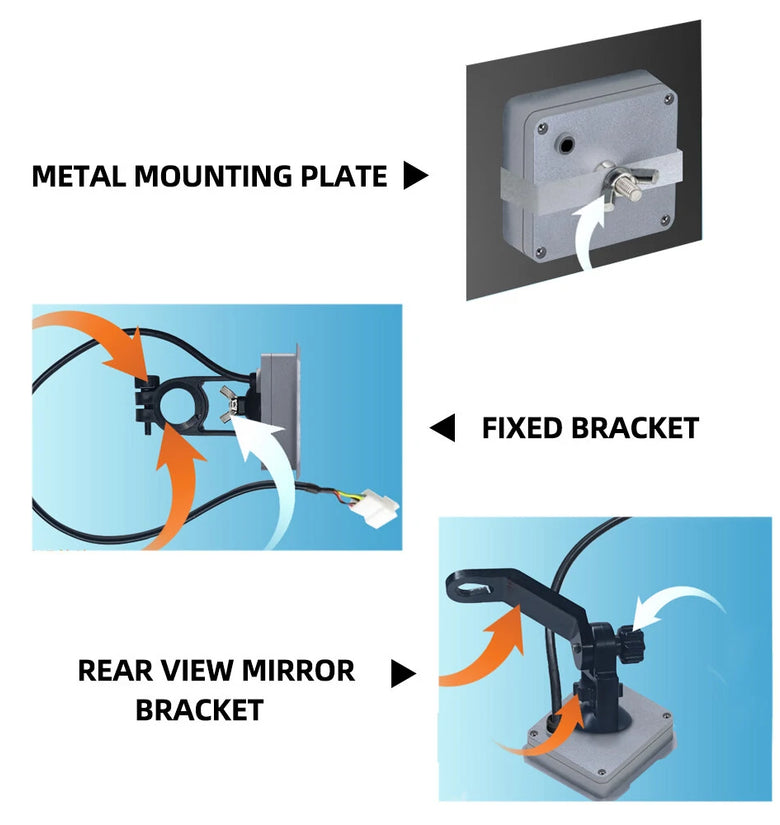

Optional Bracket Type: Metal Mounting Plate/Fixed Bracket/Rear View Mirror Bracket
Model |
BL105F |
BL110F |
BL140F |
Sampling method |
Shunt |
Shunt |
Shunt |
Voltage measurement range |
10-100V |
10-100V |
10-100V |
Voltage resolution |
0.01V |
0.01V |
0.01V |
Current measurement range |
0~50A |
0~100A |
0~400A |
Current resolution |
0.001A |
0.01A |
0.01A |
Capacity display range |
0 %~100% |
||
Power measurement range |
0~5KW |
0~10KW |
0~40KW |
Power resolution |
0.01W |
||
Ampere-hour measurement range |
0~9999.9AH |
||
capacity resolution |
0.1AH |
||
Bluetooth communication distance |
barrier-free maximum of 10 meters |
||
Voltage accuracy |
±1% + 2 Character |
||
Current accuracy |
±2%o + 0.002A |
± 1% + 0.1A |
± 1%+ 0.1A |
The display power consumption is about 0.75W | |||
When charging, the screen will turn off after 20 seconds. When discharging, the screen will turn on l>15ma; l<15ma and time>20s screen off | |||

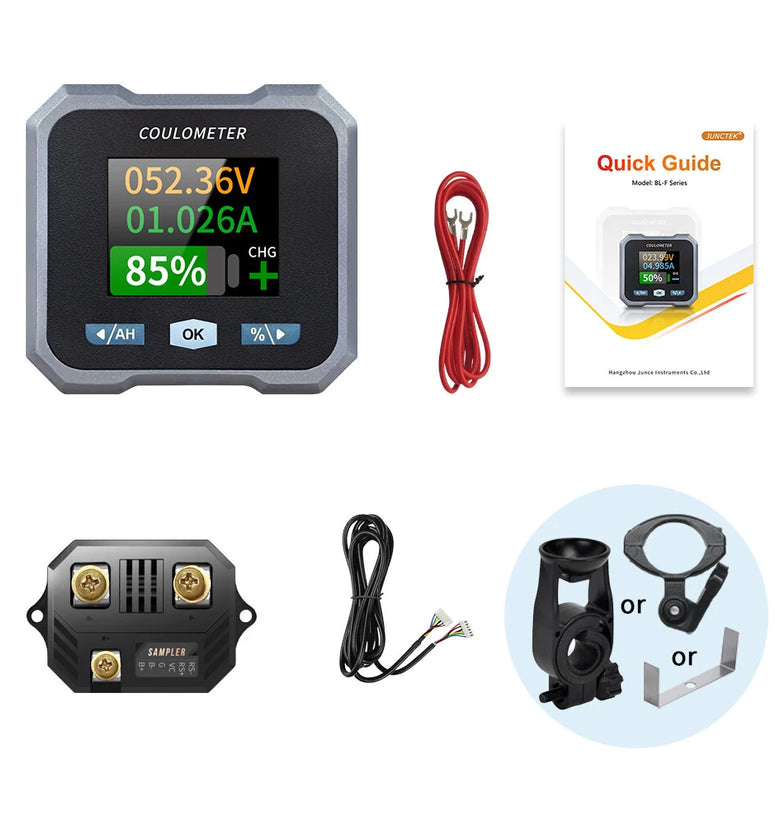

Package Included:
Type A:
1 x BL110F Electric Meter
1 * Metal Mounting Plate
Type B:
1 x BL110F Electric Meter
1 x Fixed Bracket
Type C:
1 x BL105F Electric Meter
1 * Metal Mounting Plate
Type D:
1 x BL105F Electric Meter
1 x Rear View Mirror Bracket
Type E:
1 x BL105F Electric Meter
1 x Fixed Bracket
Type F:
1 x BL140F Electric Meter
1 x Rear View Mirror Bracket
Type G:
1 x BL140F Electric Meter
1 * Metal Mounting Plate
Type H:
1 x BL105F Electric Meter
1 x Rear View Mirror Bracket
Type I:
1 x BL140F Electric Meter
1 x Fixed Bracket
