Specifications:

- Sensor Type: Vanadium oxide microbolometer

- Response Band: 8–14 μm

- Thermal Image Resolution: 240x240 Pixels

- Noise Equivalent Temperature Difference (NETD): ≤60 mK (@25°C, F#1.0)

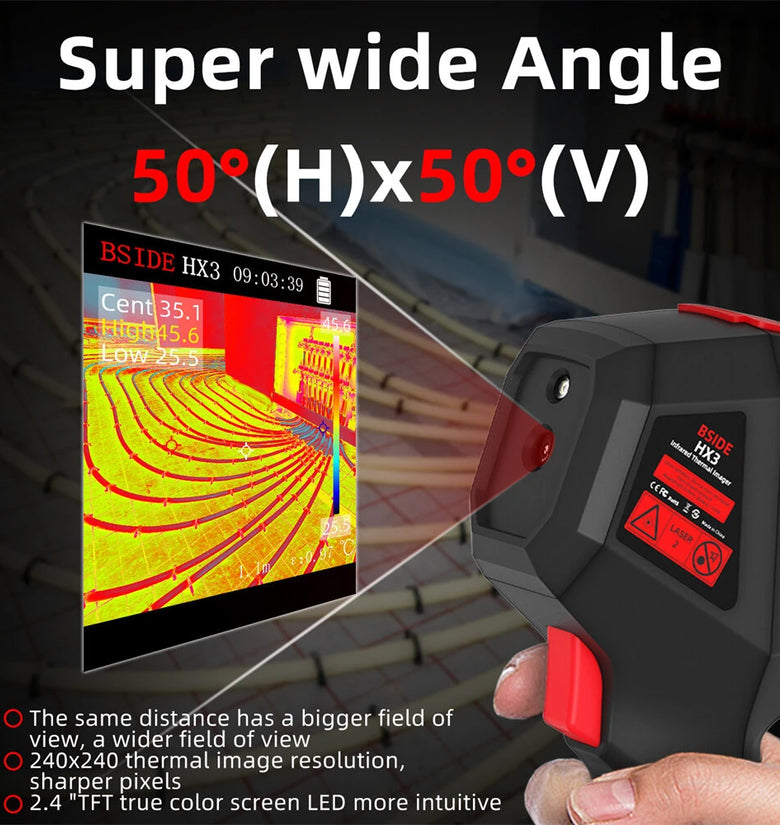

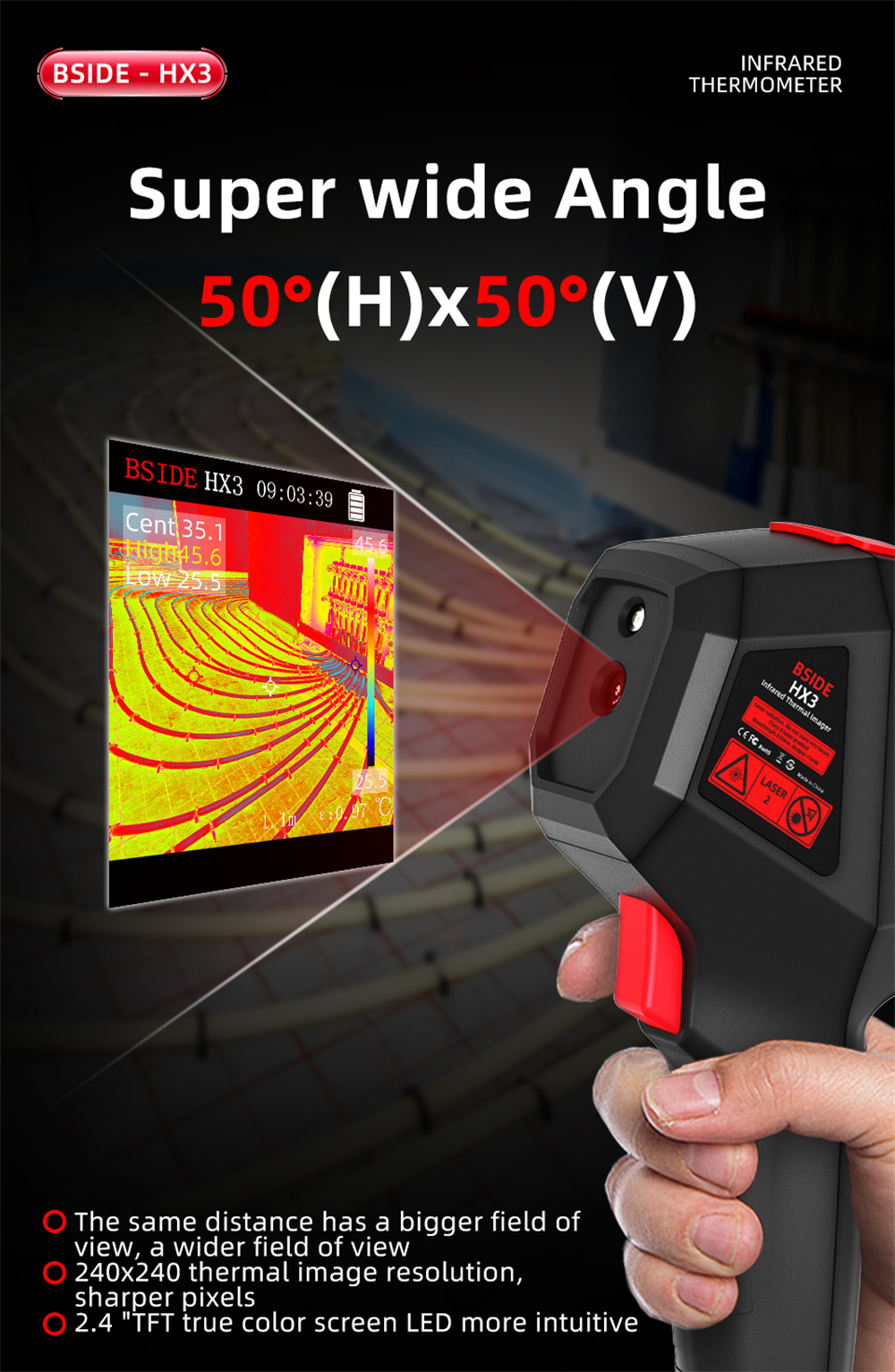

- Angle of View (FOV): 50.0° (H) x 50° (V) / 72.1° (D)

- Spatial Resolution (IFOV): 8.89 mrad

- Frame Rate: 25Hz

- Imaging Lens Focal Length: 1.35 mm

- Temperature Measuring Focal Length: 0.3m–3m Adjustable

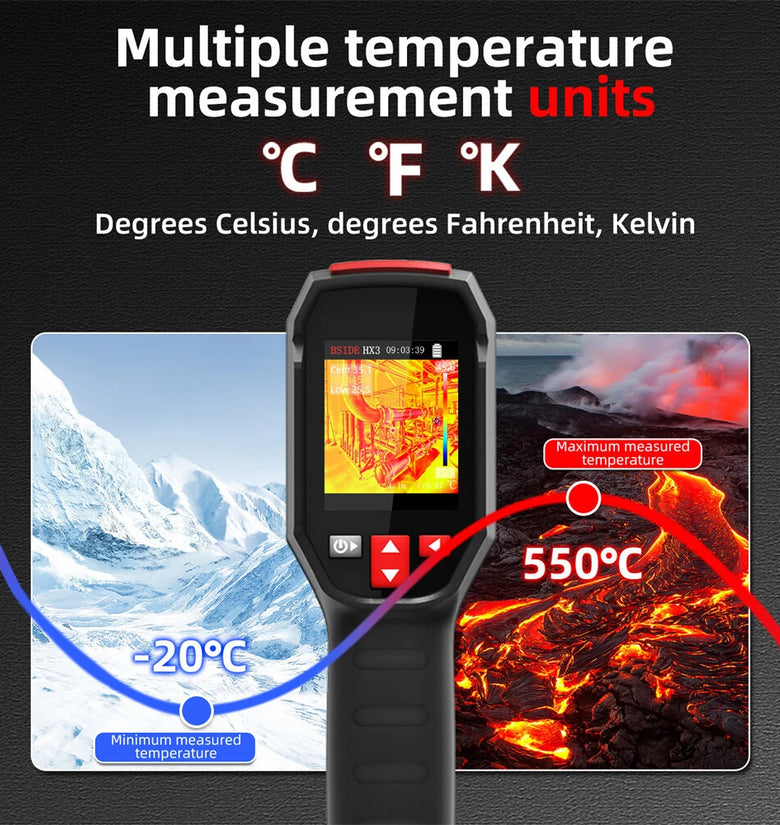

- Temperature Range: -20°C–550°C

- Temperature Measurement Accuracy: ±2°C or ±2% of the reading (whichever is larger)

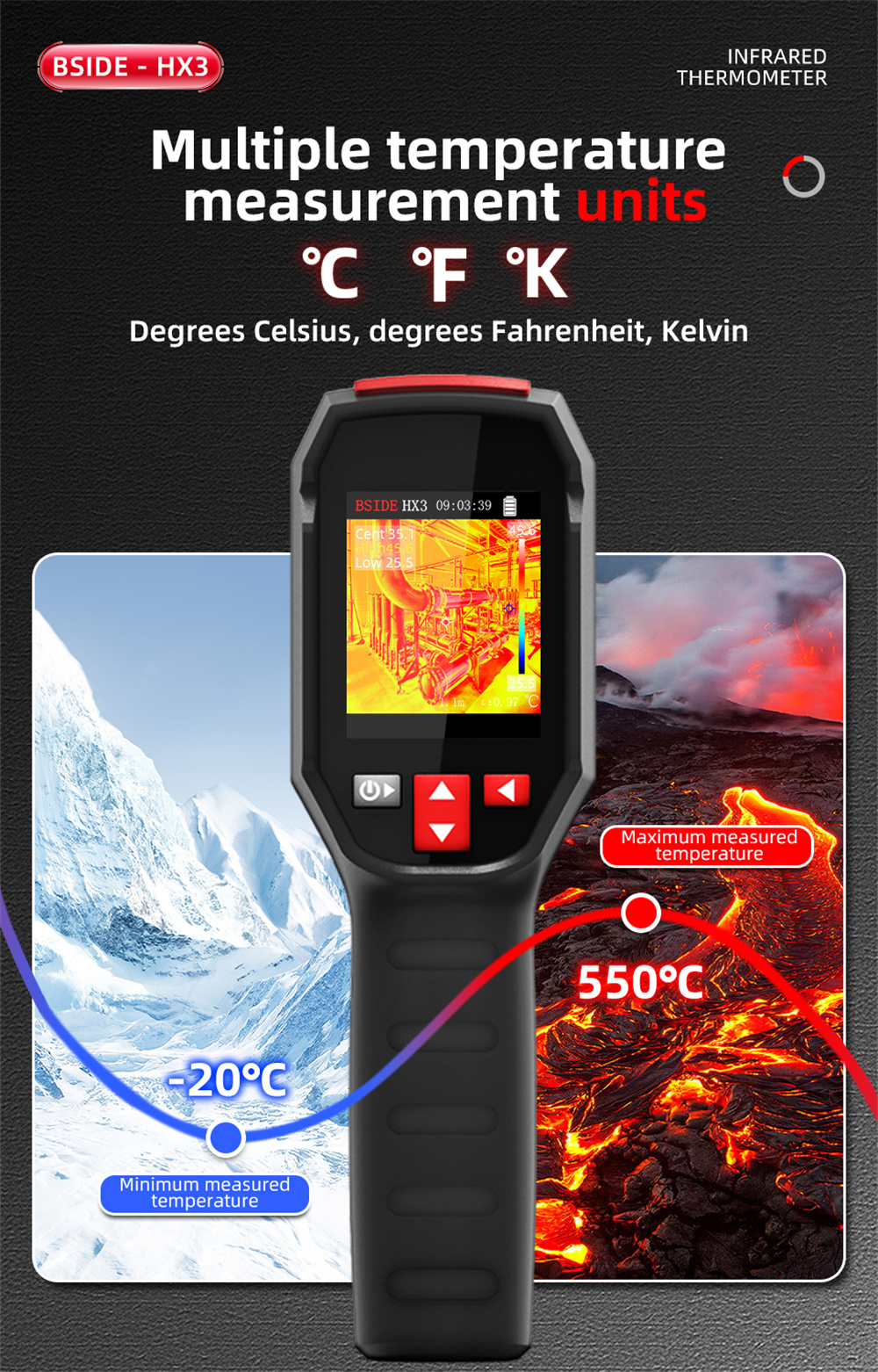

- Temperature Units: Celsius, Fahrenheit, Kelvin

- Temperature Resolution: 0.1°C

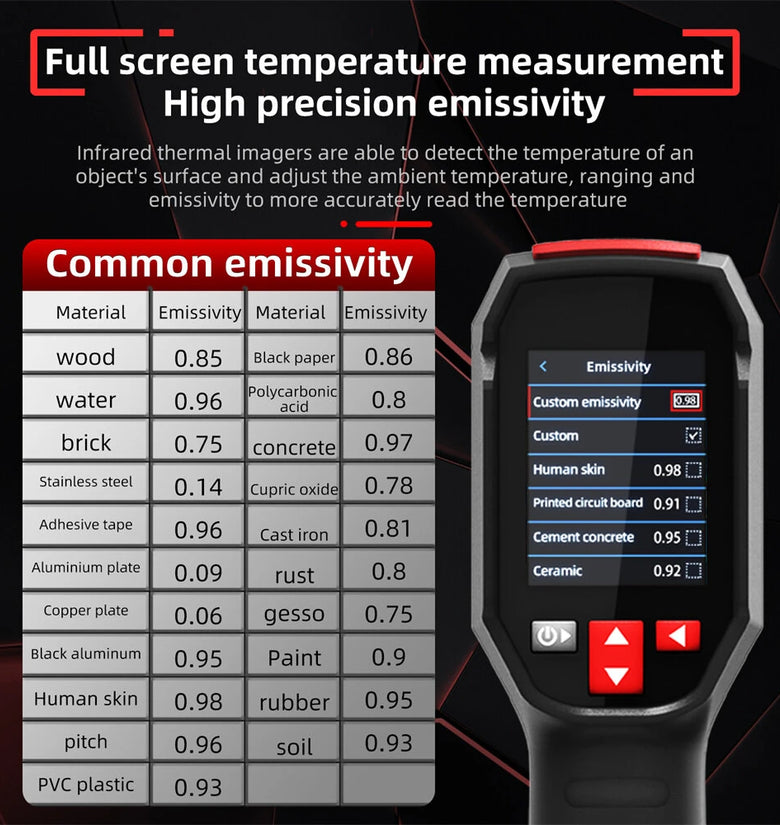

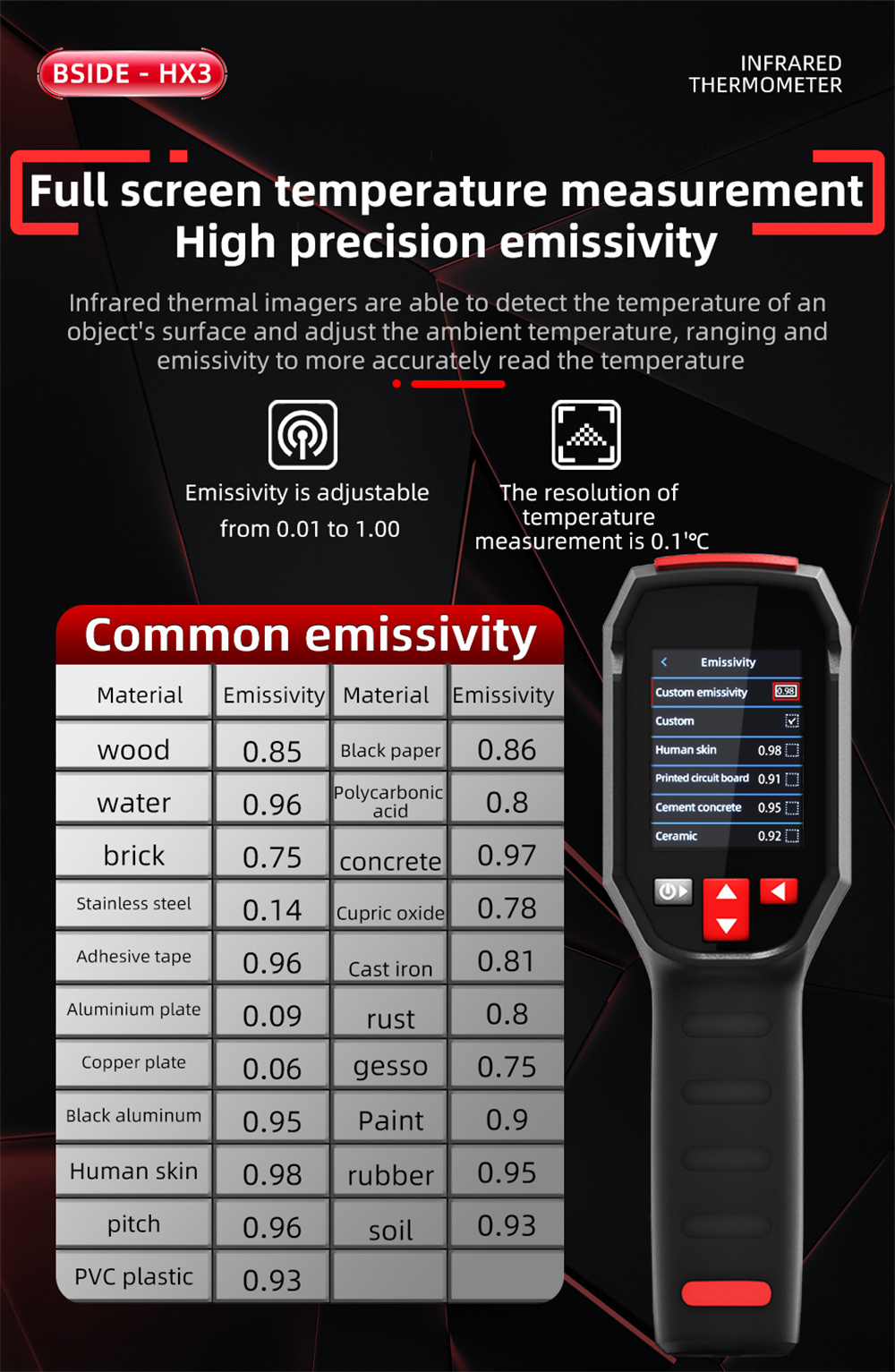

- Emissivity: 0.01–1.00 Adjustable

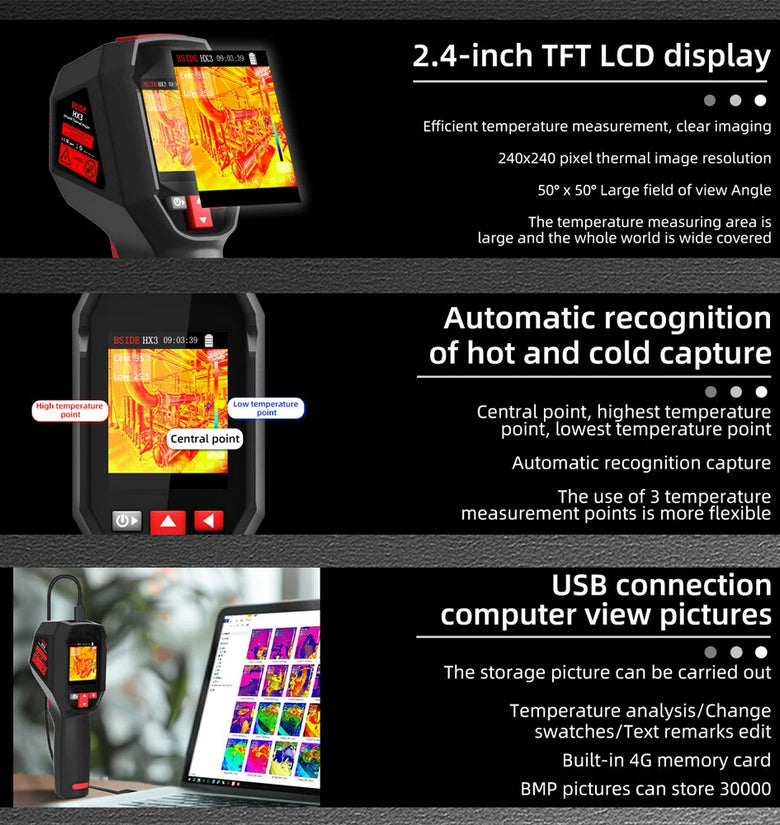

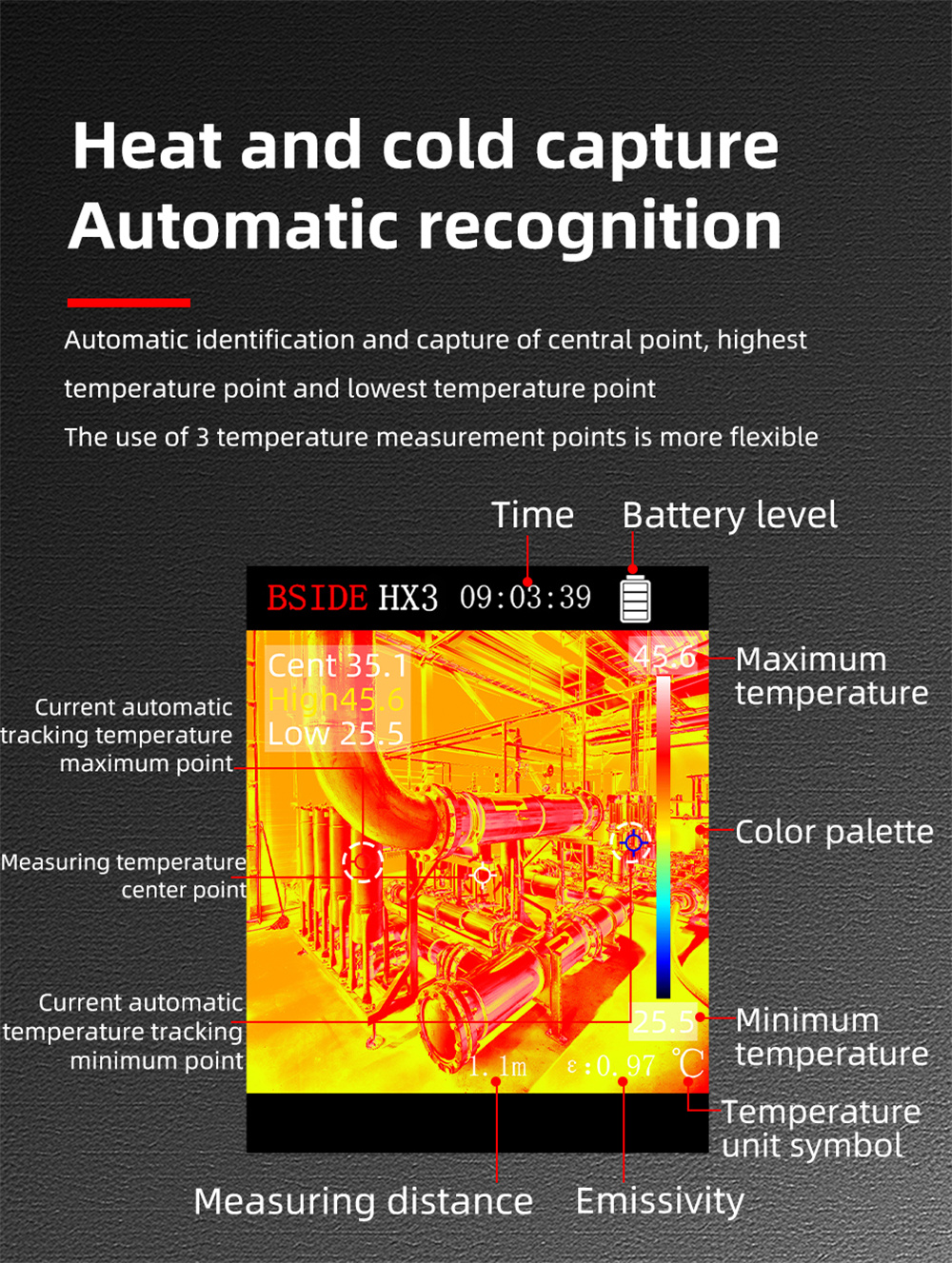

- Temperature Measurement Displays: Center point temperature measurement, high and low temperature tracking

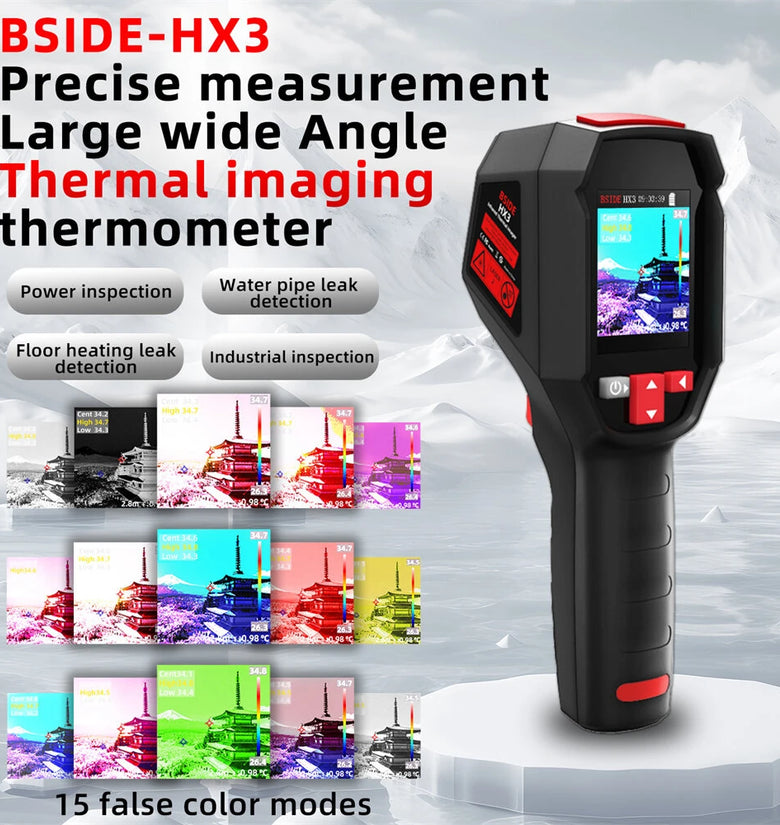

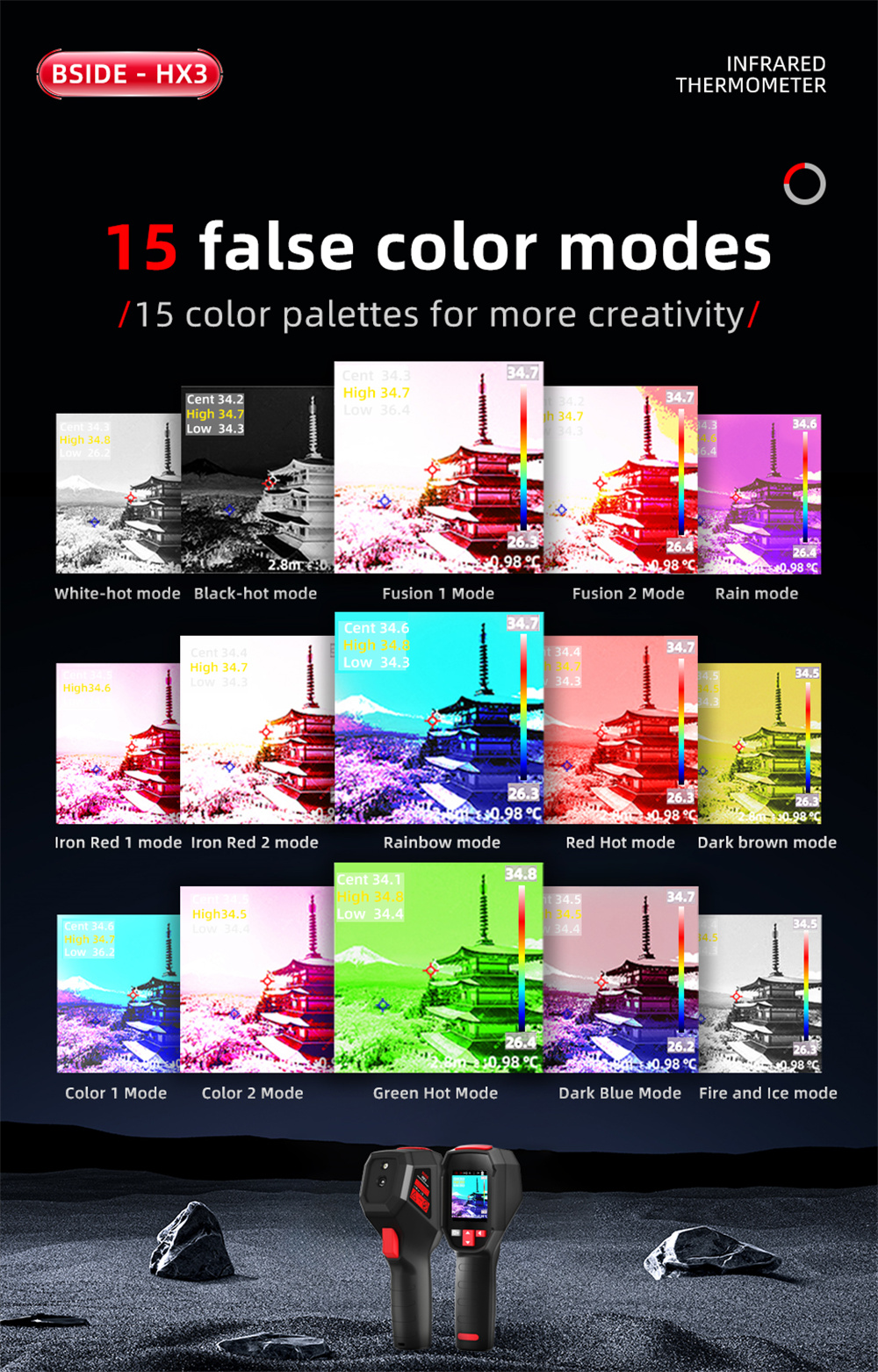

- Swatches: White Hot, Black hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Bark brown, Color 1, Color 2, Ice, Fire, Rain, Green hot, Red hot, Dark blue

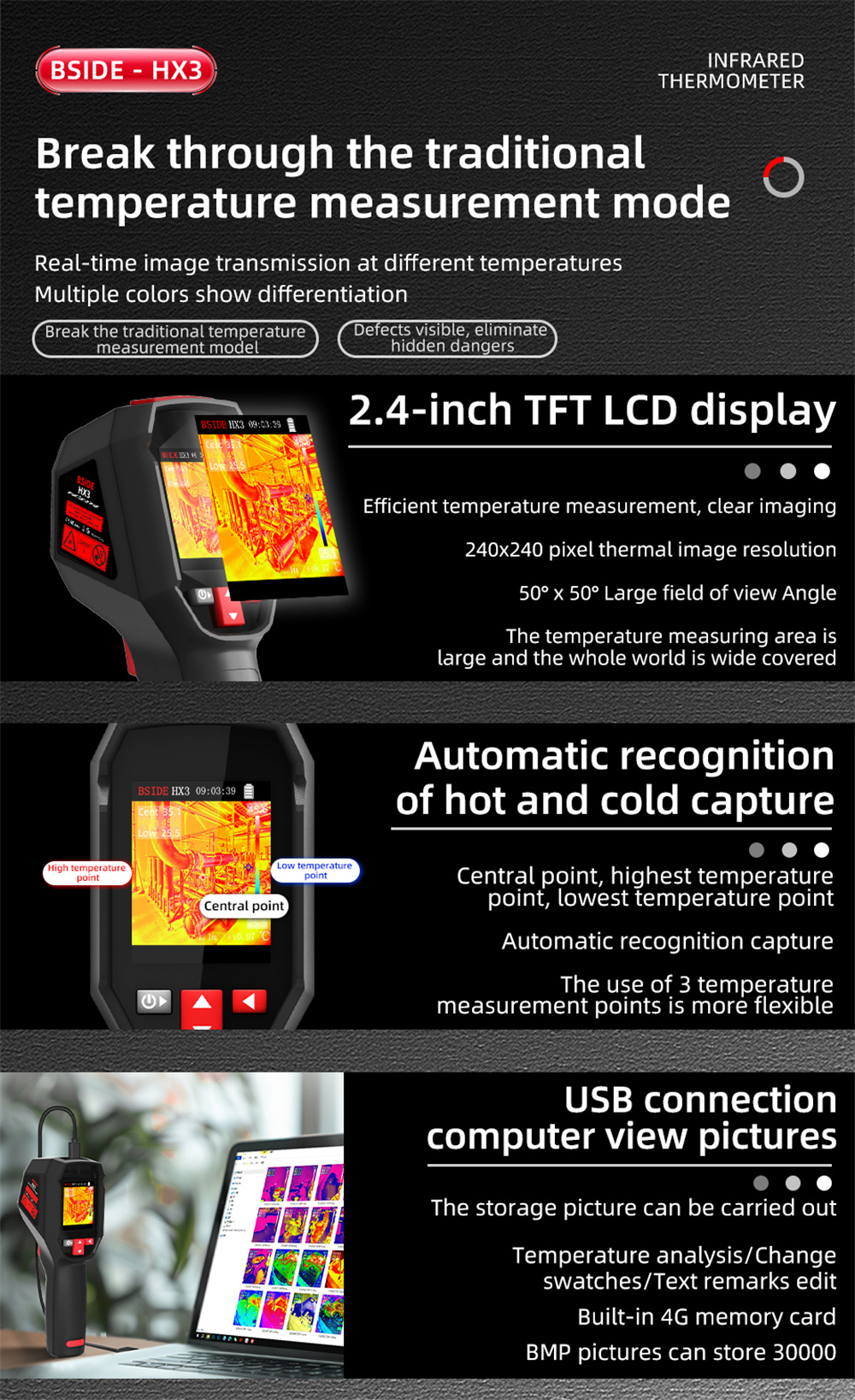

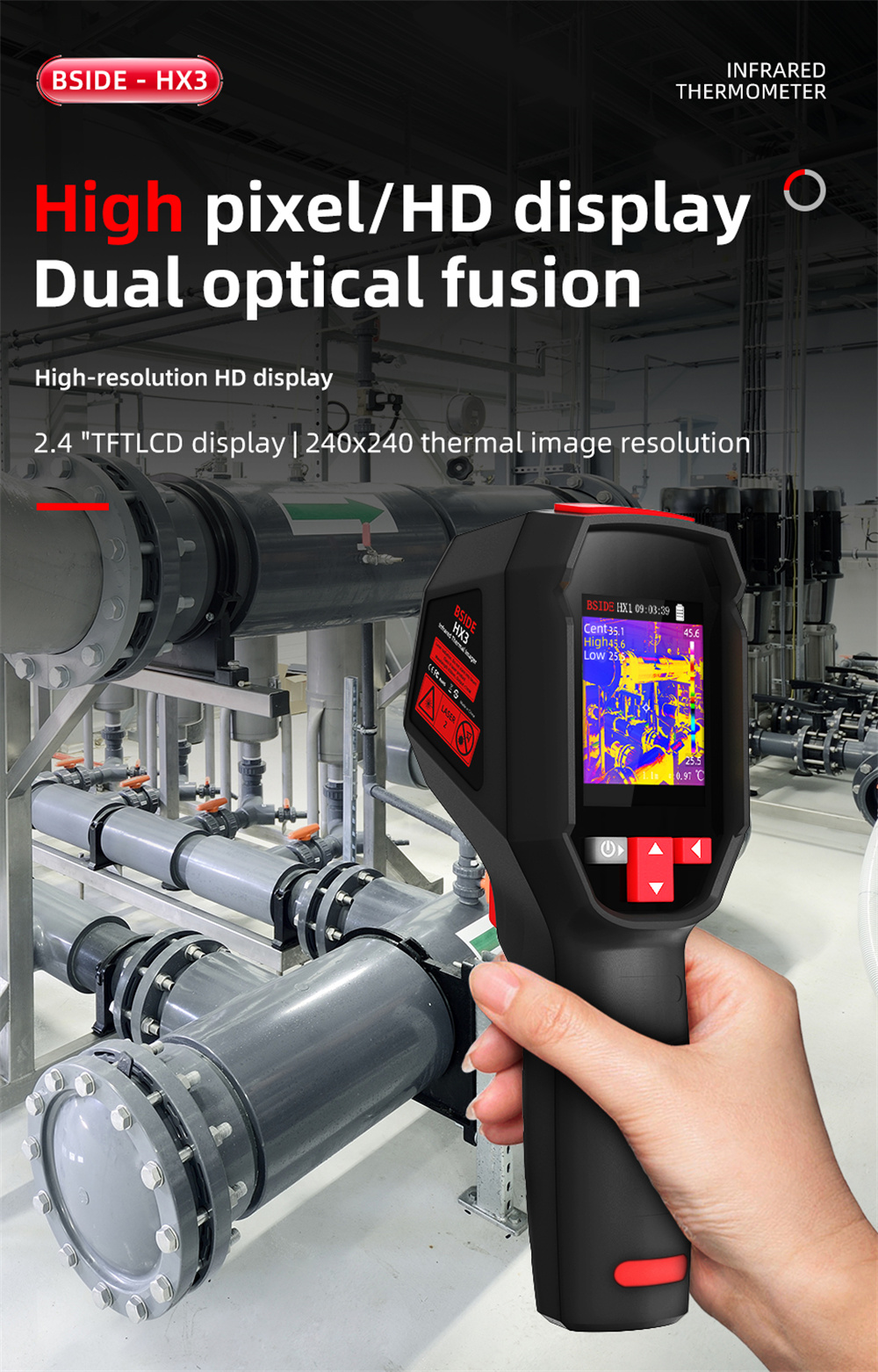

- Display Screen: 2.4 inches TFT LCD

- Display Resolution: 320 x 240

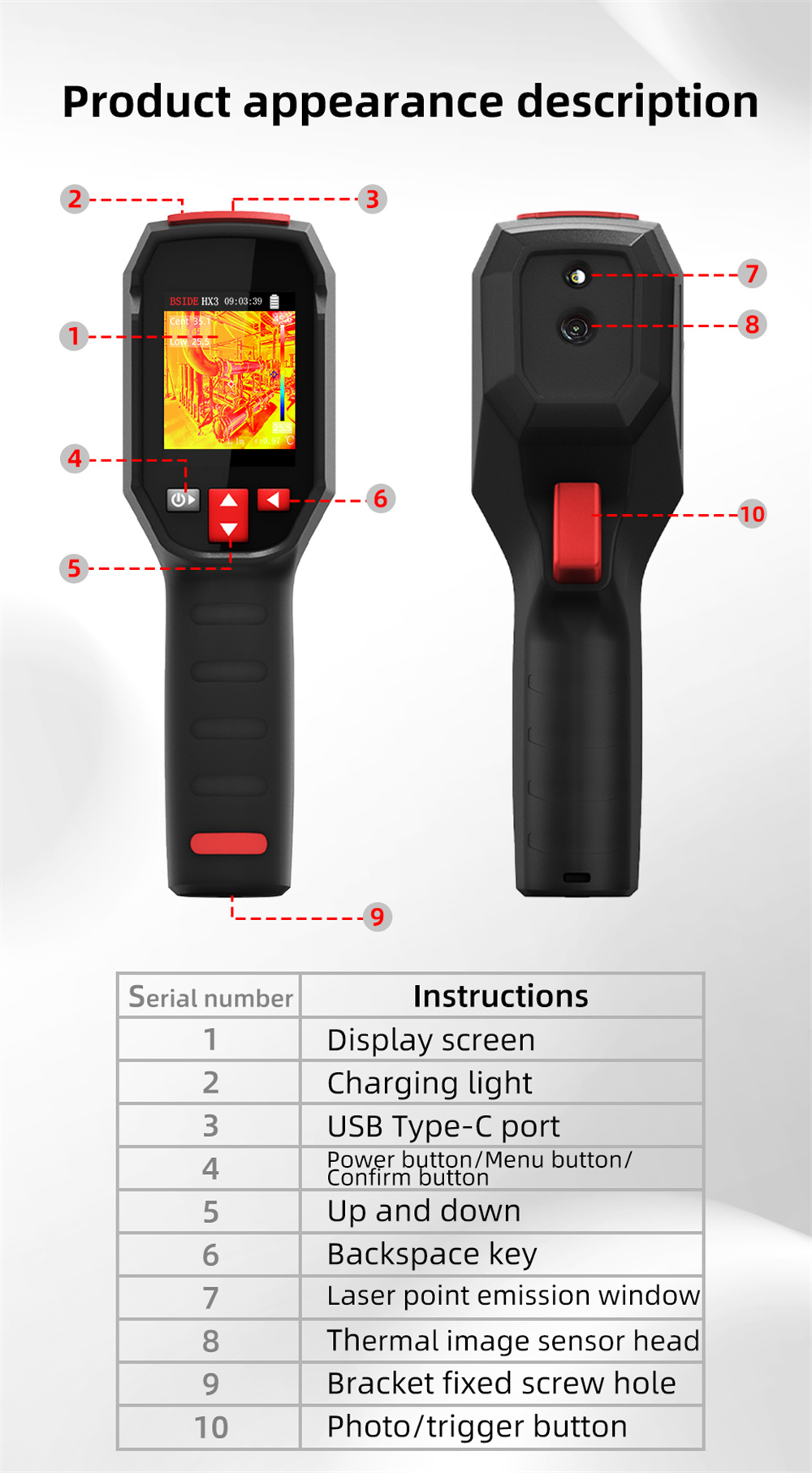

- Keys: Power Key, Up key, Down Key, Return key, Trigger key

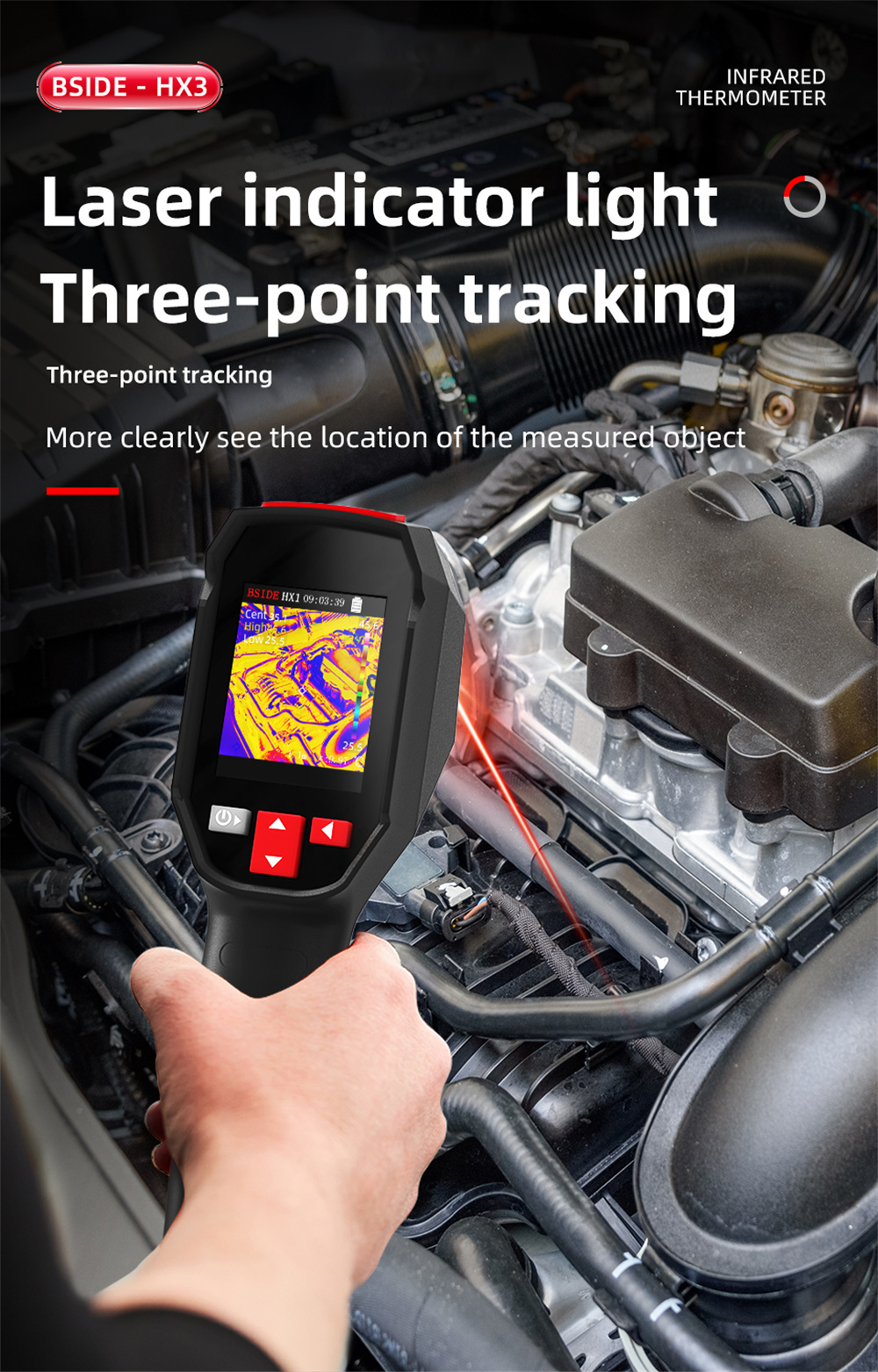

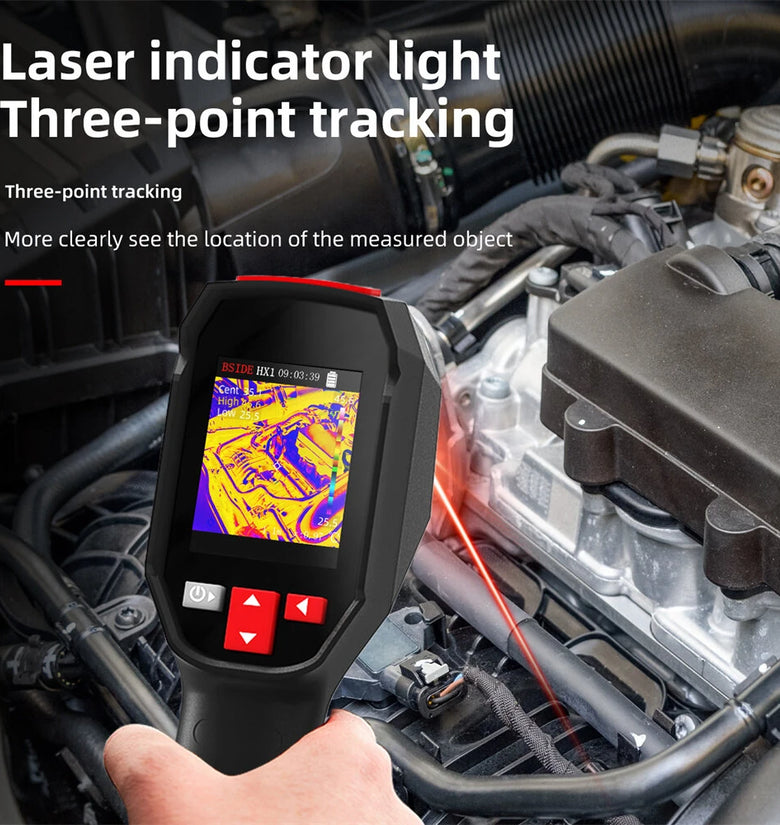

- Laser Pointer: Yes

- Temperature Alarm: Screen font color alarm

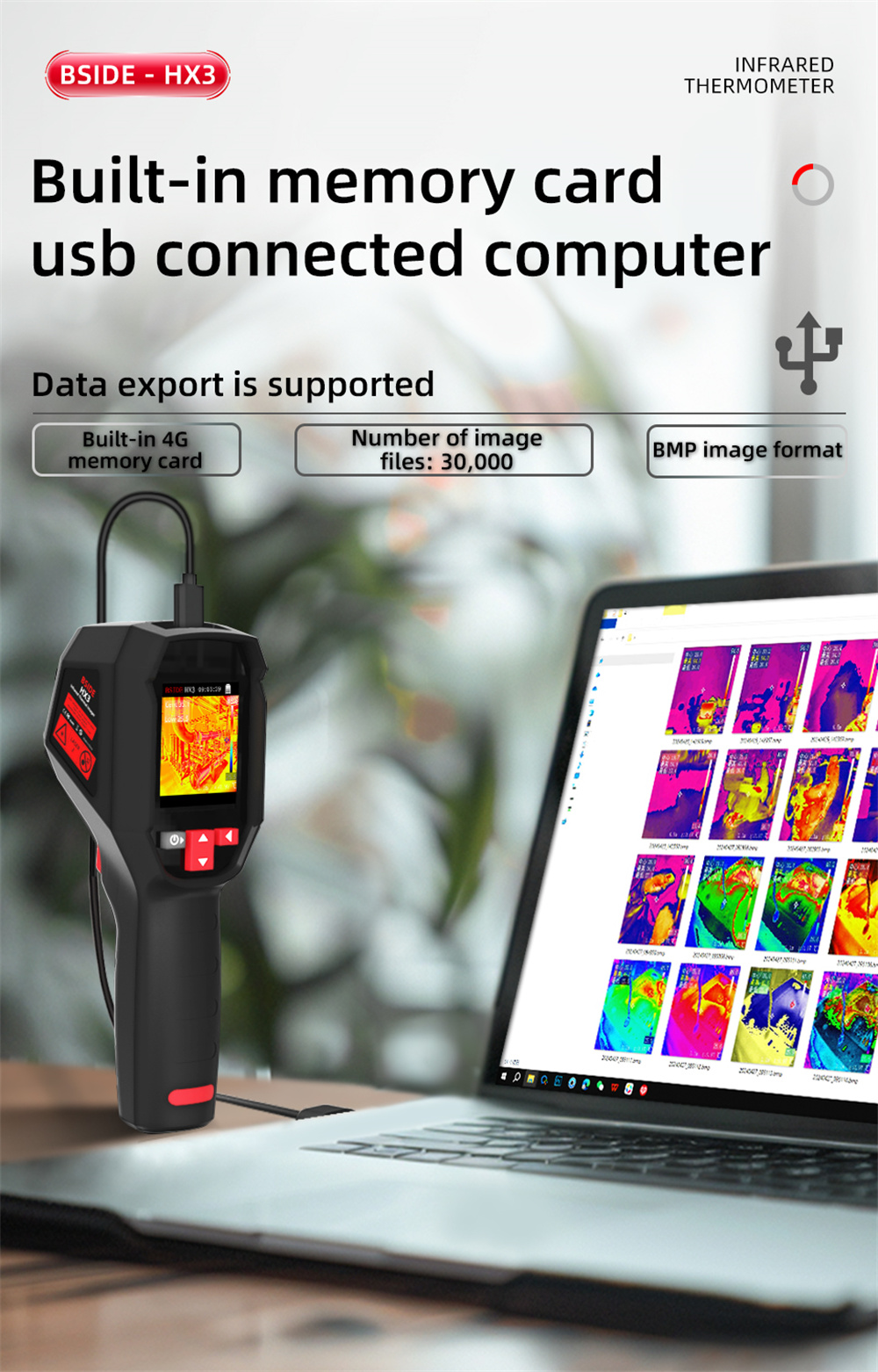

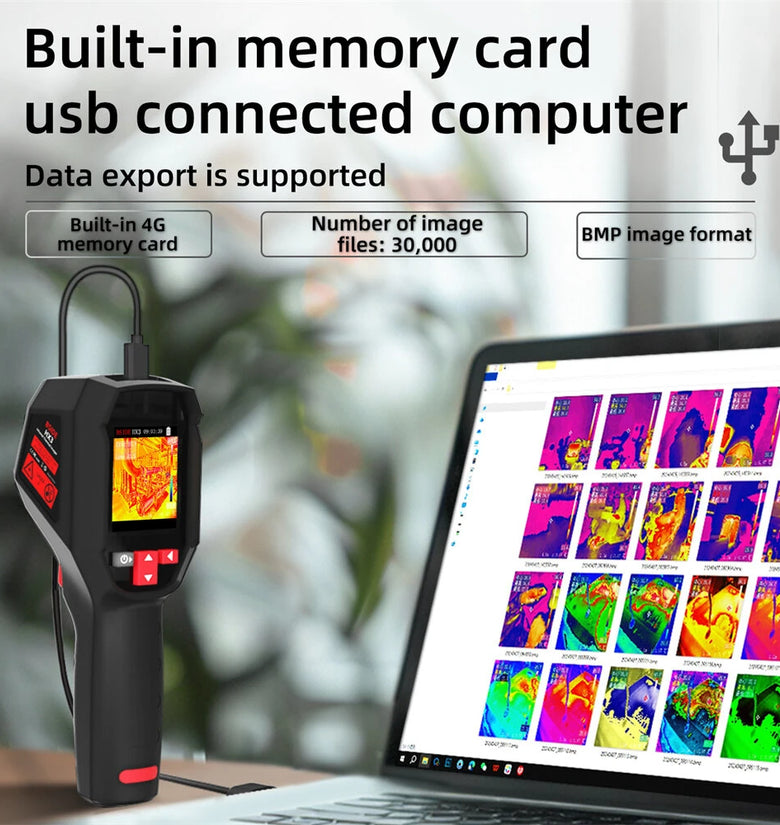

- Image Storage: Built-in memory card

- Number of Image Files: 30000

- Image Format: BMP

- Shock/Vibration: GB/T 2423.5-2019; GB/T 2423.10-2008

- Electromagnetic Compatibility (EMC): GB/T17799.2, GB17799.3-2012

- Protection Level: IP54

- Installation Mode: Tripod mount UNC-20

- Focus Mode: Auto focusing

- Hardware Interface: Type-C USB

- Battery Type: Rechargeable lithium battery (3.7V/2500mAh)

- Battery Working Hours: >7h@25°C

- Charging Time: <3h @ 25°C

- Charging Voltage/Current: 5V/2A

- Boot Speed: ~3 seconds

- Automatic Shutdown: Diable (default); optional 10, 20, 30, 40, 50, 60 minutes; disable

- Operating Temperature: -10°C–50°C

- Storage Temperature: -40°C–70°C

- Working Humidity: ≤85%RH (Non-condensing)

- Drop Test: 1.5m

- Dimensions: 194.8*60.3*79.5mm

- Weight: 263.5g

Features:

1. High-Precision Temperature Analysis:

   The HX3 thermal imager offers precise temperature readings ranging from -20°C to 550°C with an impressive accuracy of ±2°C or ±2% of the reading, ensuring reliable data for critical tasks.

2. Dynamic Display and Visual Clarity:

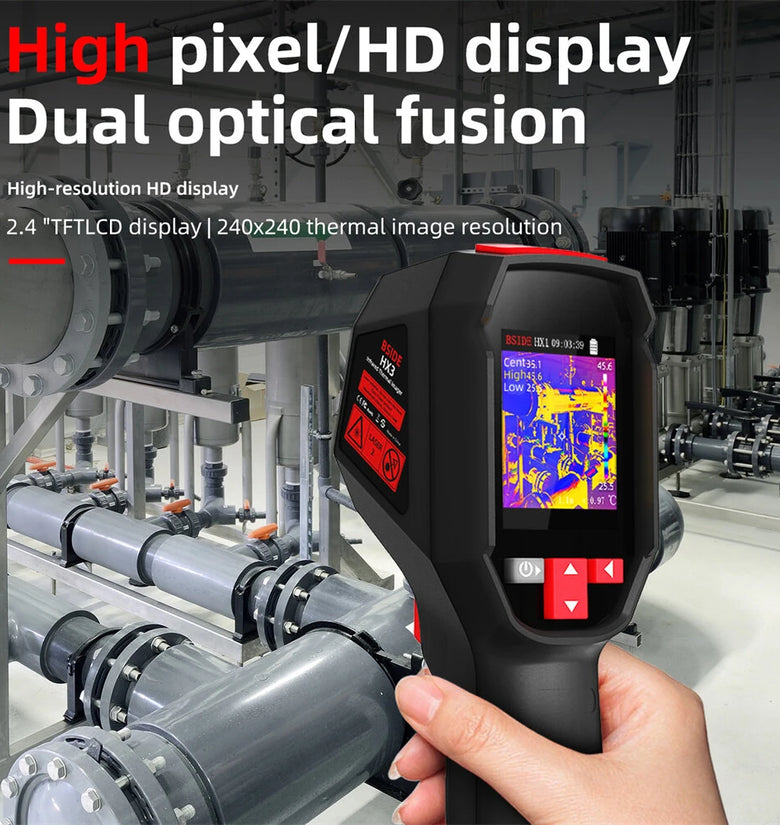

   Equipped with a 2.4-inch TFT LCD screen and a resolution of 320 x 240, the HX3 delivers sharp and clear visuals, making it easier to identify and analyze the thermal images effectively.

3. Versatile Measurement Modes:

   The device provides multiple temperature measurement displays, including center point, high, and low-temperature tracking. This functionality offers flexibility and depth in temperature analysis.

4. Robust and User-Friendly Design:

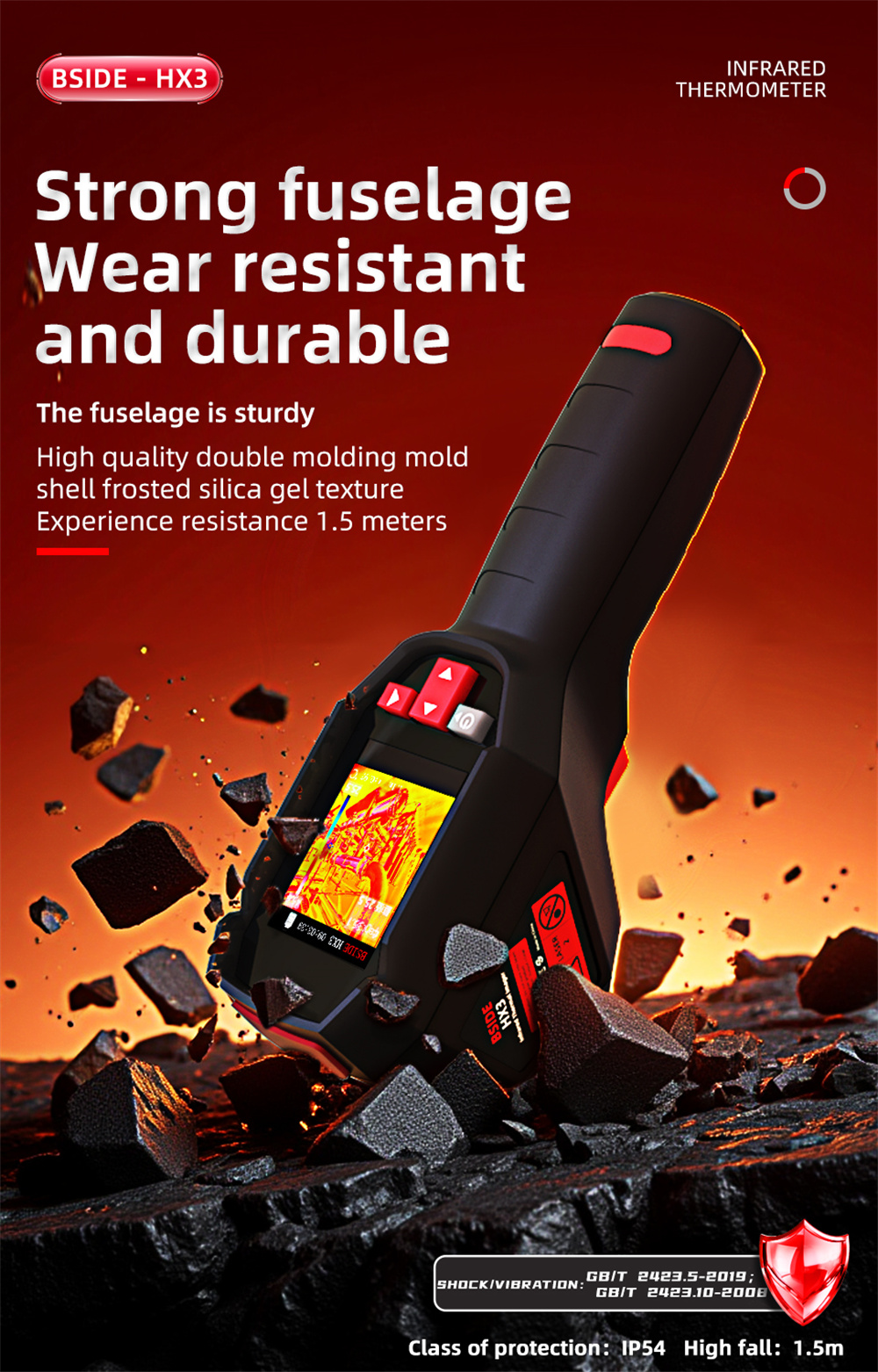

   The HX3 comes with IP54 protection level and can withstand drops of up to 1.5 meters, making it durabl for field use. The device also features easy-to-use keys and an auto-focusing mode for seamless operation.

5. Long-lasting Battery Life:

   With a rechargeable lithium battery providing over 7 hours of continuous usage, and a fast charging time of under 3 hours, the HX3 ensures prolonged and uninterrupted performance during your thermal inspections.

Package Included:

 1 x HX3 Infrared Thermal Imager

 1 x USB Cable

 1 x User Manual

 1 x Carrying Lanyard
