Specifications:

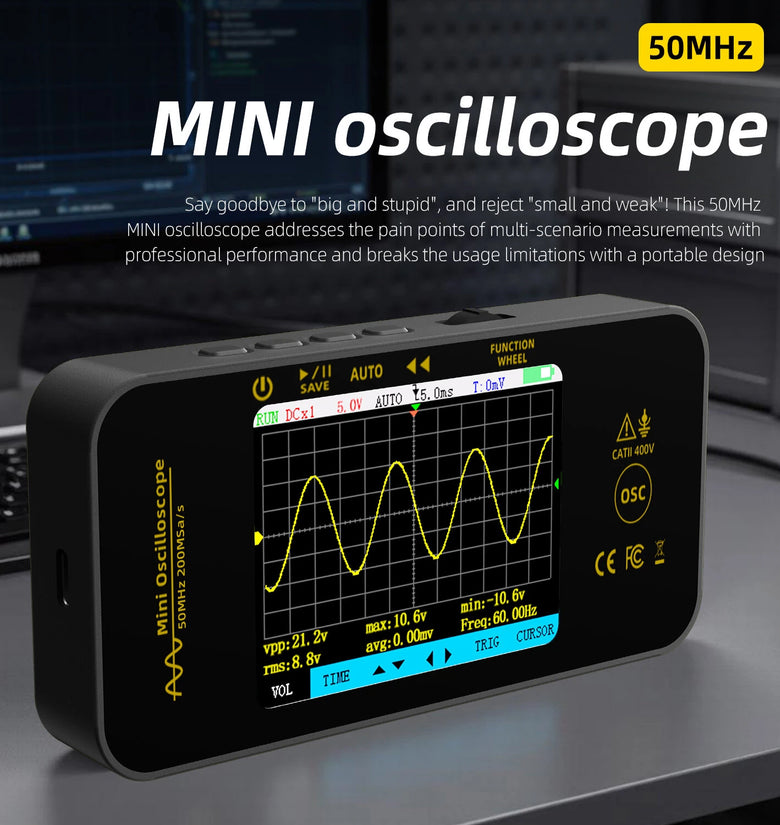

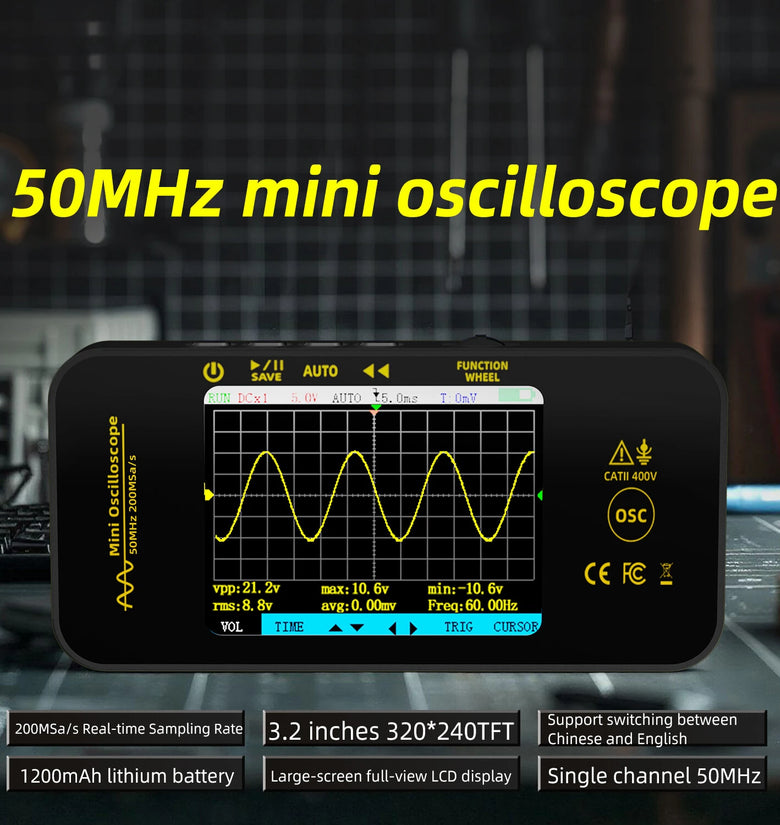

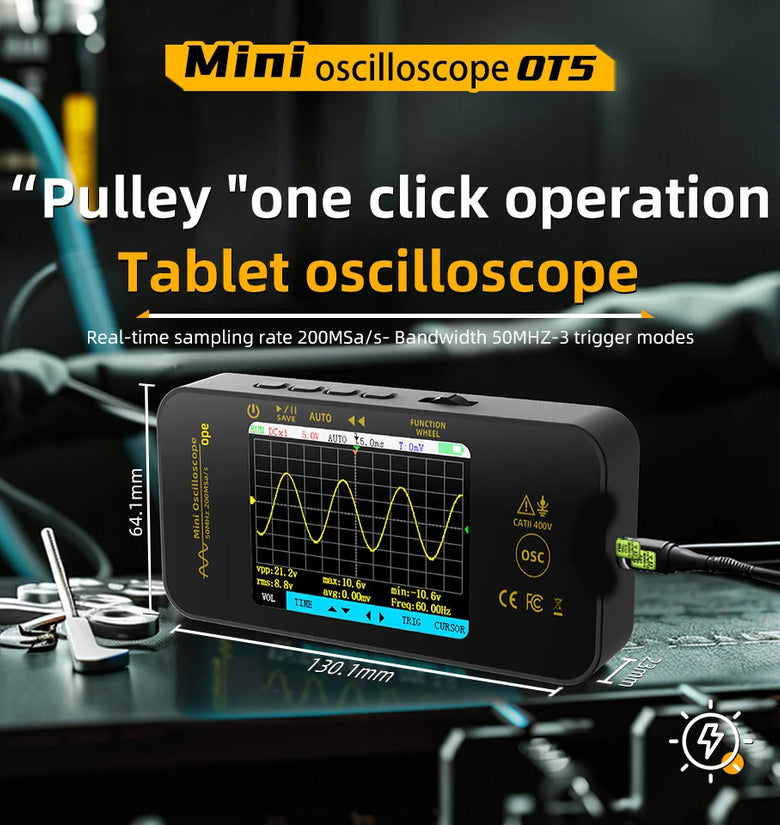

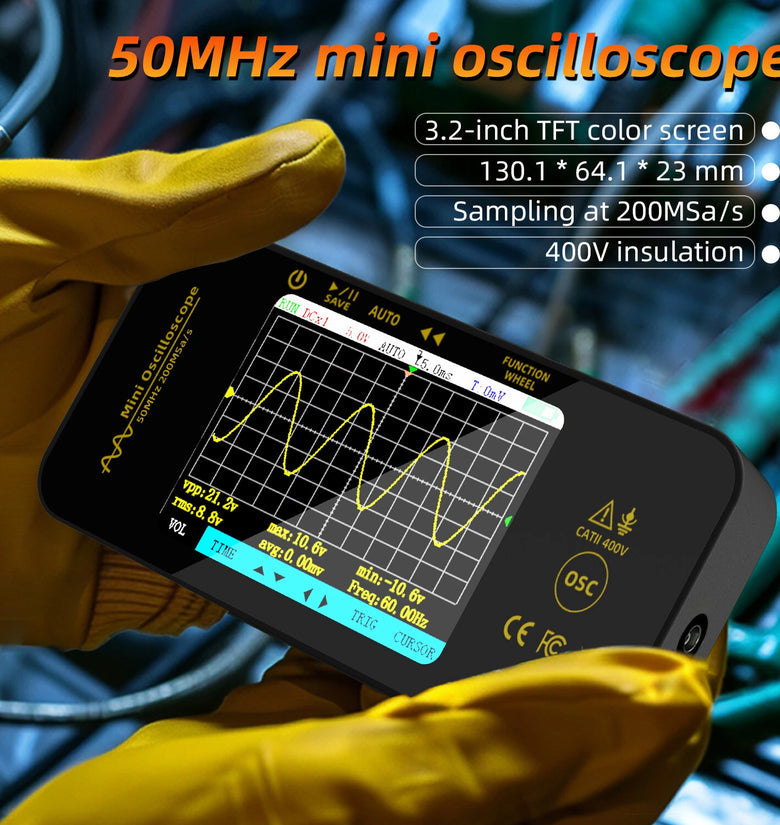

Model: BSIDE OT5
Bandwidth: 50MHz
Sampling Rate: 200MSa/s
Input Voltage: X1 +40V, X10 ±400V (DC+AC peak)
Channel: Single channel (DC, AC)
Sampling Rate Range: 1.5Sa/s – 200MSa/s
Waveform Interpolation: (sinx)x
Sweep Range: 10ns/Div – 20s/Div
Sensitivity: 20mV/Div – 10V/Div
Frequency Response: >10Hz
Rise Time: <10ns
Afterglow Time: Minimum, 500ms, 1s, 10s, Unlimited
Measurement Functions: Period, Frequency, Peak-to-Peak Value, Maximum Value, Minimum Value, Duty Cycle, Root Mean Square, Average Value
Measurement Cursor: Available
Features:
1.High Sampling Rate: Delivers precise waveform capture with up to 200MSa/s sampling capability.
2.Wide Bandwidth: Supports signal analysis across a broad 50MHz range.
3.Enhanced Measurement Options: Includes period, frequency, peak-to-peak, and RMS analysis, accessible with a user-friendly interface.

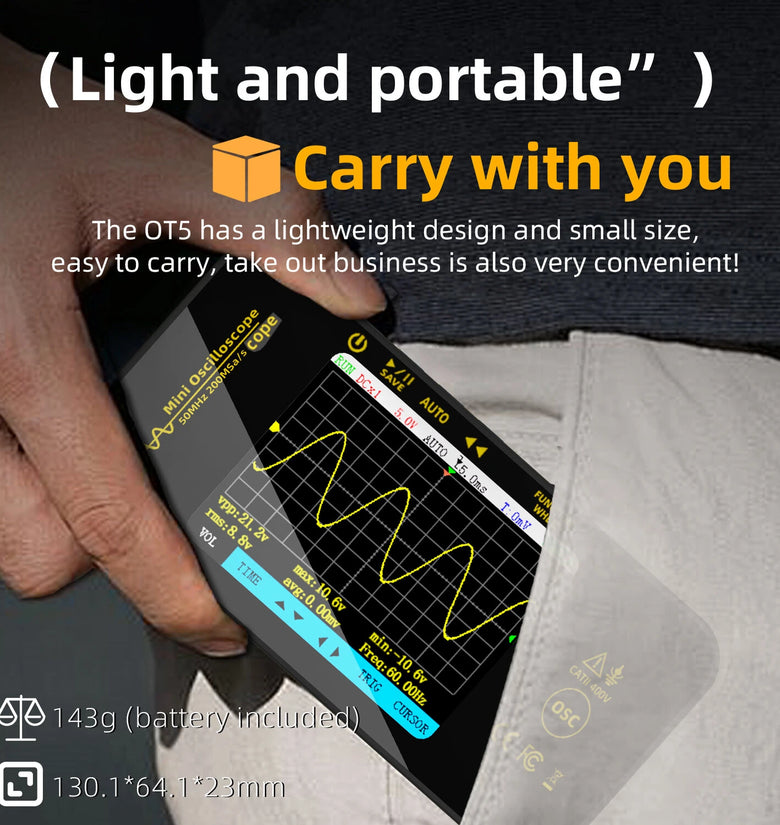

4.Compact Design: Lightweight and portable structure ideal for on-the-go signal testing.
5.Full Interpolation Capability: Ensures smooth waveform display using advanced (sinx)x interpolation.

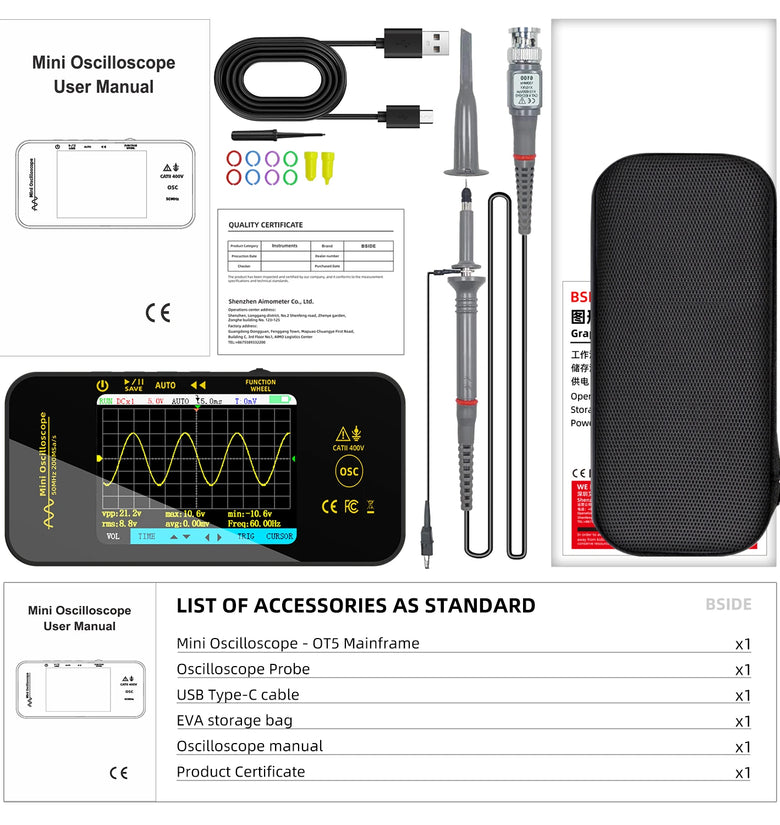

Package Included:
1 x Mini Oscilloscope (OT5 Mainframe)
1 x Oscilloscope Probe

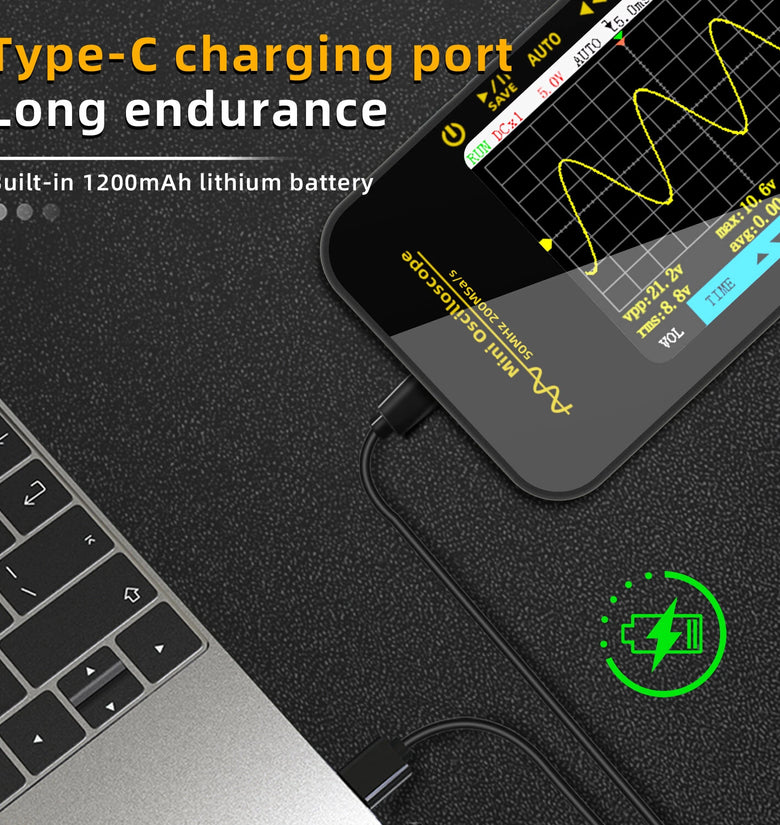

1 x USB Type-C Cable
1 x EVA Storage Bag
1 x Oscilloscope Manual
1 x Product Certificate
