bullet points:

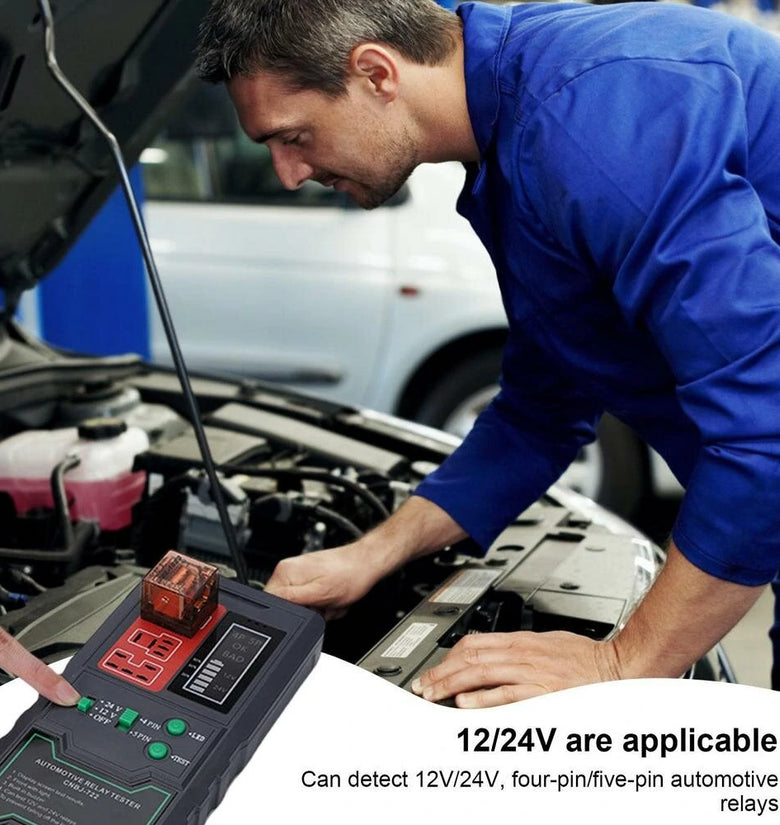

1、[universal application] automotive relay tester is suitable for 12/24v voltage and detectable 4pin/5pin automotive relay, make your life more convenient.

2、[Keep Working Continuously] Car Relay Tester has 2 large capacity 18650 mode batteries and can be used continuously without an external power supply. It is a good helper to overtake the car.

3、[Work Quickly] Relay Tester Automotive Kit can work quickly and provide you with accurate measurement, making your car repair work smoother.

4、[Easy to carry] Relay tester tool is small and easy to carry or store, suitable for being placed in briefcases or school bags. It can be recommended for drivers.

5、[Easy to Use] Auto Circuit Tester is easy to use. It can automatically detect relay conformance during each test phase, pin positions and action release times.

Characteristics:

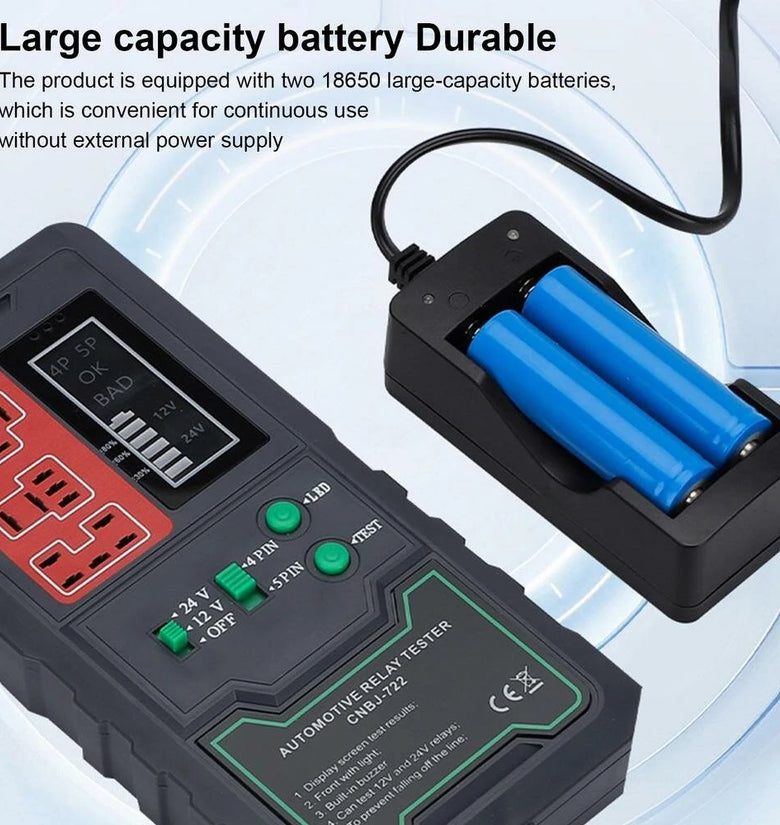

1. With 2 large capacity 18650 mode batteries and can be used continuously without an external power supply.

2. Small and easy to carry or store, it can be placed in briefcases or school bags.

3. Provide with accurate measurement and can work quickly.

Specification:

Name: Car Relay Tester

Material: abs

Weight: about 550g

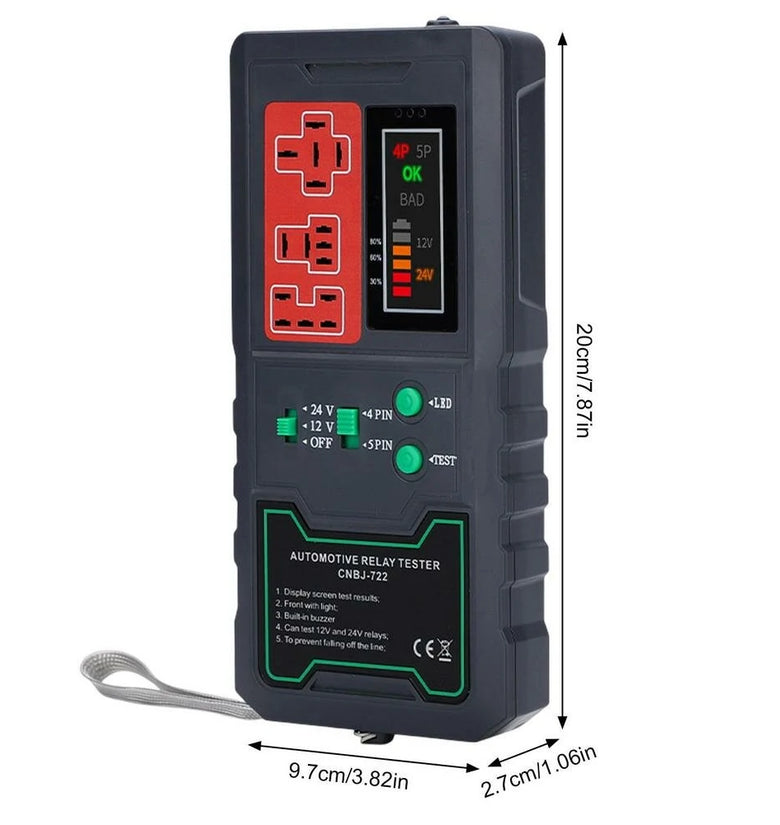

Size: about 9.7*2.7*20cm (3.82*1.06*7.87 inch)

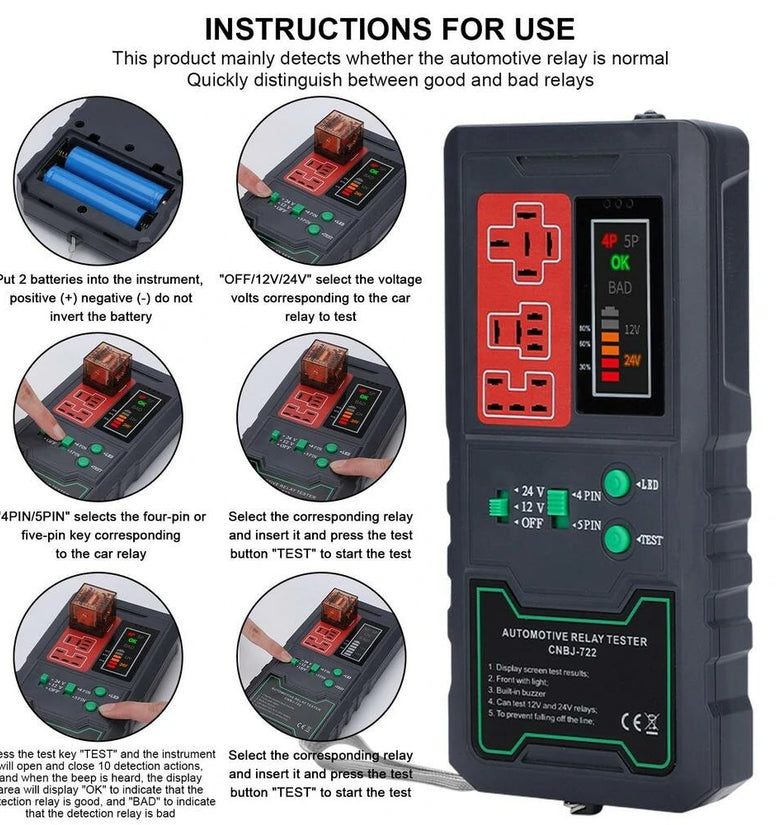

Instructions:

1. Load 2 batteries into the instrument. Do not invert the positive (+) and negative (-) poles of the battery.

2. 'off/12v/24v': Select the voltage of the corresponding automotive relay to test.

3. '4pin/5pin': Choose the corresponding four or five pin button of automotive relay

4. Select the relevant relay and press the 'Test' button to start the test.

5 · Press the test key 'Test' and the instrument will open and close the test action for 10 times. After hearing the buzzer, the display area shows 'ok' indicating the test relay is good and 'bad' indicating the test relay is bad.

6. After using the instrument, switch to the 'off' button to turn off the power, and the test is complete.

Pack list: 1 * Relay Tester Tool

Notice:

The charging plug is national standard, please prepare the conversion plug by yourself.

Due to the lighting effects and camera angles, there is a color difference in the product, please understand.

Due to manual measurement, there is a tolerance in the product size.
