74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for
use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features
three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a
common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are
turned off. Inputs include clamp diodes. This enables the use of current limiting resistors
to interface inputs to voltages in excess of VCC.
Features:
Wide analog input voltage range from -5 V to +5 V
Complies with JEDEC standard no. 7A
Low ON resistance:
80 ohm (typical) at VCC - VEE = 4.5 V
70 ohm(typical) at VCC - VEE = 6.0 V
60 ohm(typical) at VCC - VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with±5 V analog signals
Typical ‘break before make’ built-in
ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
Multiple package options
Specified from -40℃ to +85℃ and -40℃ to +125℃
Package included:

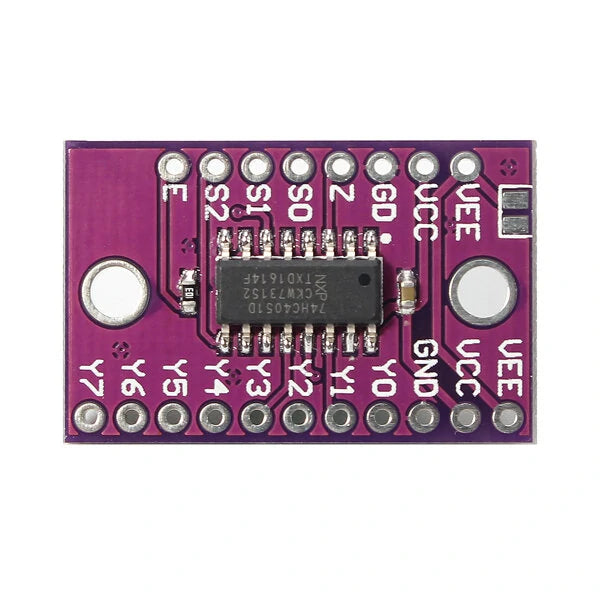

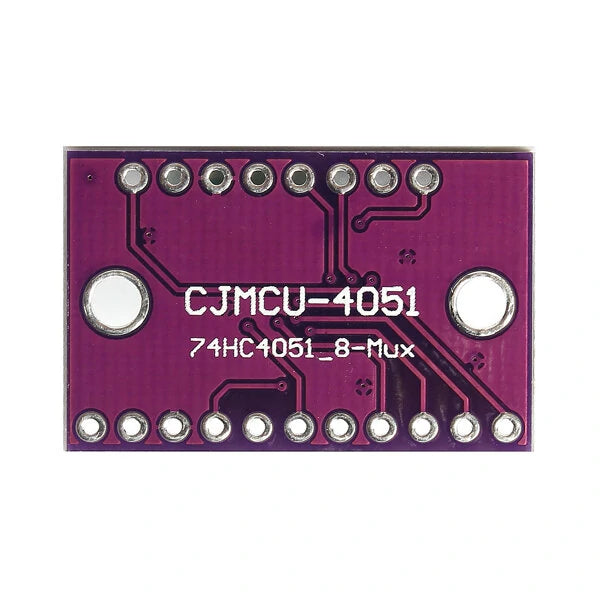

1 x CJMCU-4051 74HC4051 8 Channel Analog Multiplexer Module
,
,
,
,
