Specifications:
Brand |
Convoy |
Material |
Aluminum Alloy |
LED |
SST20 |
Low Voltage Warning |
Yes(14500) / No (AA) |
Lens Type |
Light-Green Coated Glass Lens |
Reflector |
Orange Peel |
Mode Memory |
Yes |
Tailstand |
Yes |
|
Required Battery Type Not include any batteries |
2 * AA (1.5V Alkaline Battery Or 1.2v Nimh Battery) |
Or 2 * 14500 Button-Top 3.7V Lithium-Ion Rechargeable Battery | |
Or 2 * 1.6V-1.8V Lithium Metal Primary Disposable Batteries | |
Driver |
13 Groups, Max Current Output 3000ma(2*14500) / 1000mA(2*AA) |
Max Flux (@3000mA) |
1000LM |
Tube Diameter |
153.3mm / 27mm / 21mm(Length / Head Diameter ) |
Net Weight |
98g |
Gross Weight |
110g |
Rich Operation UI
13 groups:
if flashlight is turned on,tap the switch 10 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and 'tap the switch in the flashing process' means to select the option.)
Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (1%、10%、30%、100%)
-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (1% 10%、35%、100%、strobe、biking、batcheck)
-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (1%, 10%, 35%, 100% ,this group is the same as the first group, in the next batch this group will be deleted)
-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (100%、35%、10%、1%)
-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%、20%、100%、strobe、biking、batcheck、sos)
-------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (1%、20%、100%)
-------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (100%、20%、1%)
-------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(1%、10%、50%、strobe、biking、batcheck、sos)
-------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (1%、10%、50%)
-------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (50%、10%、1%)
-------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (20%、100%)
-------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100%、20%)
-------------sub-option 1.13 (normal-flash 12 times) : tap the switch to select mode group 13(100%)
Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.
14500 battery-check instructions:
<2.95V*2 1 flash,
2.95-3.25V*2 2 flashes,
3.25-3.55V*2 3 flashes,
3.55-3.85V*2 4 flashes,
>3.85V*2 5 flashes
Notice that there is no battery-check function if flashlight is powered by the 1.5V battery
Package Includes:

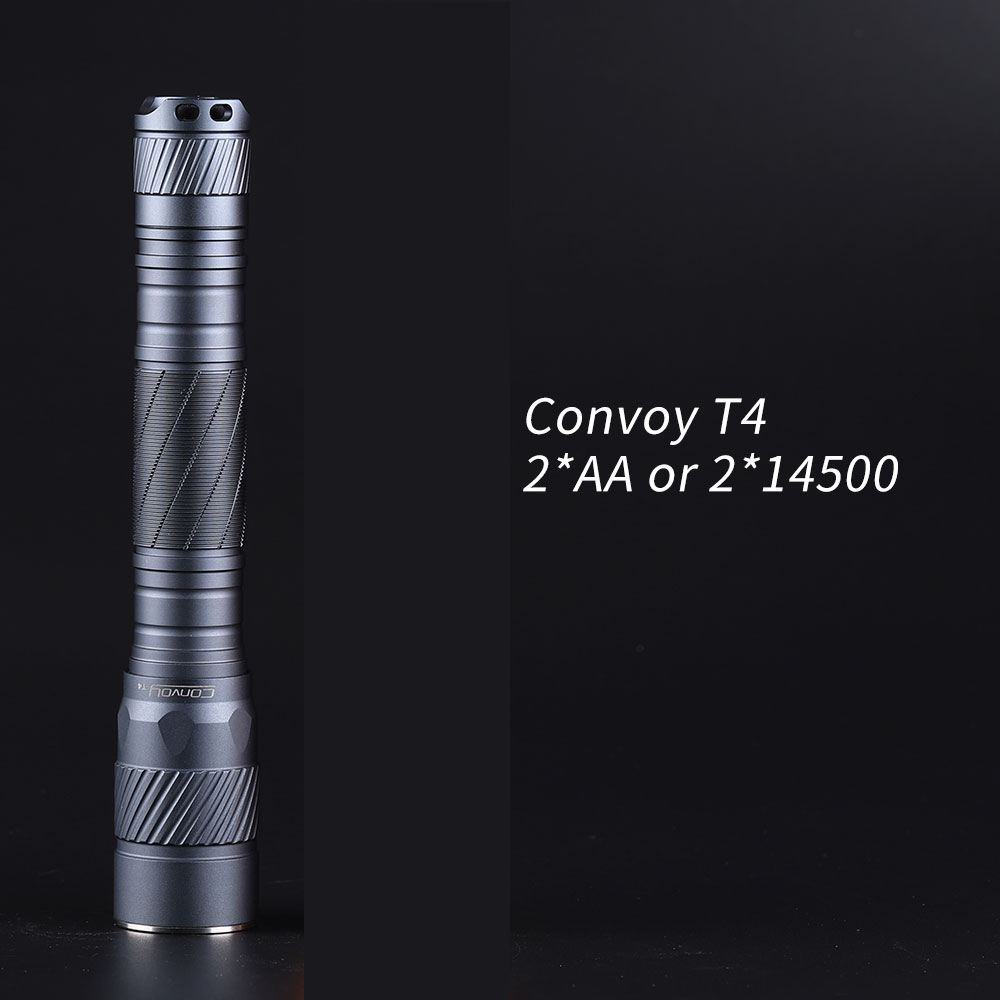

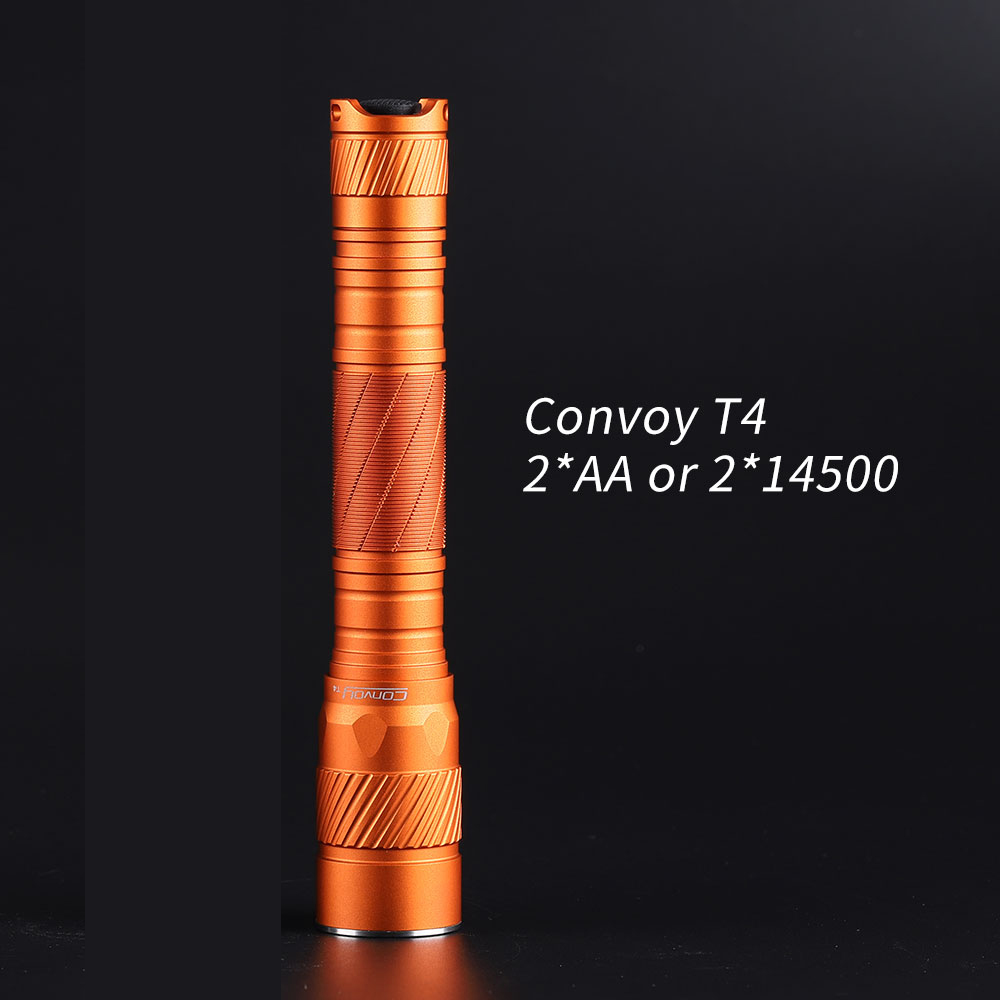

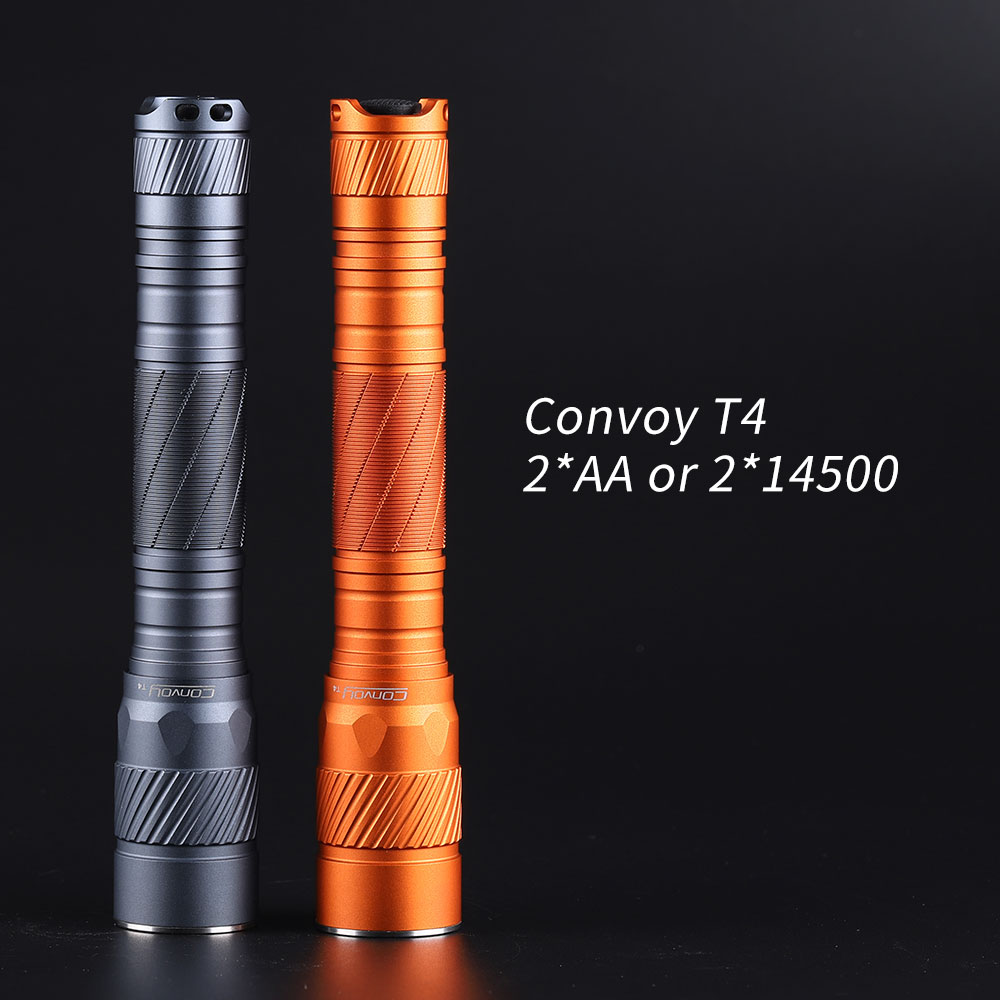

1 x Convoy T4 Flashlight
(Package does Not include any batteries)
