Specification:

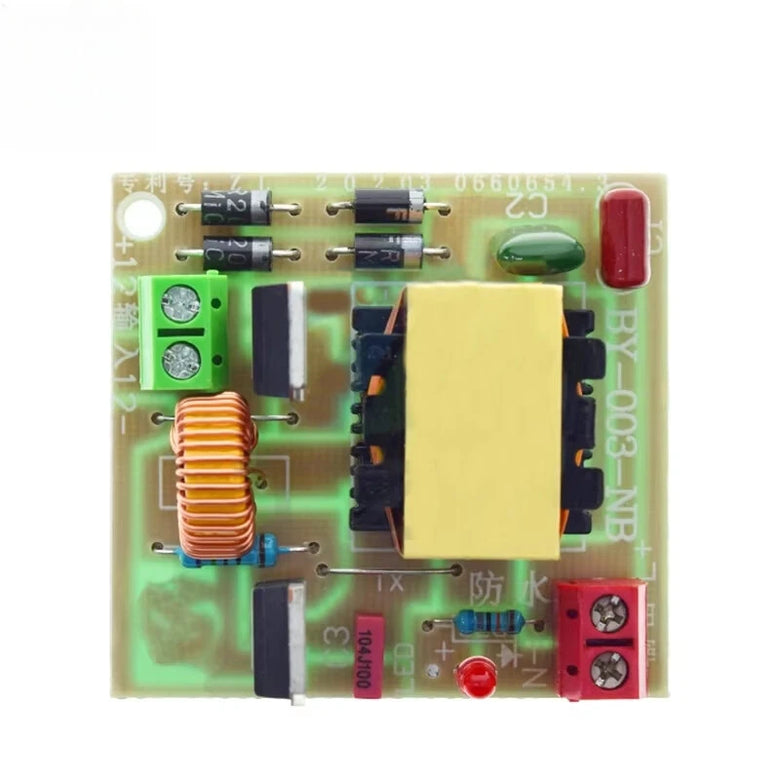

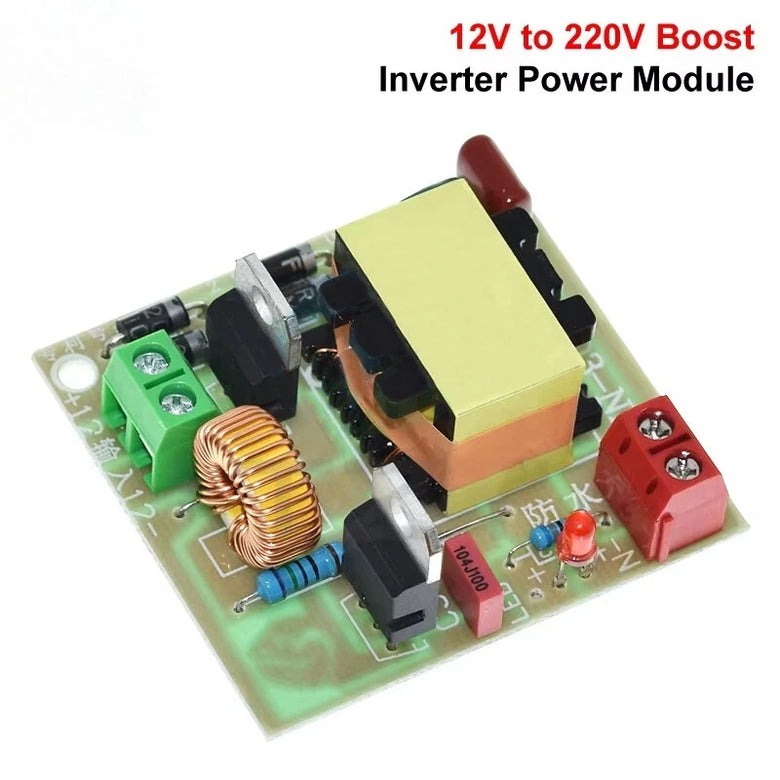

Product Name: 12V to 220V Boost Inverter Power Module

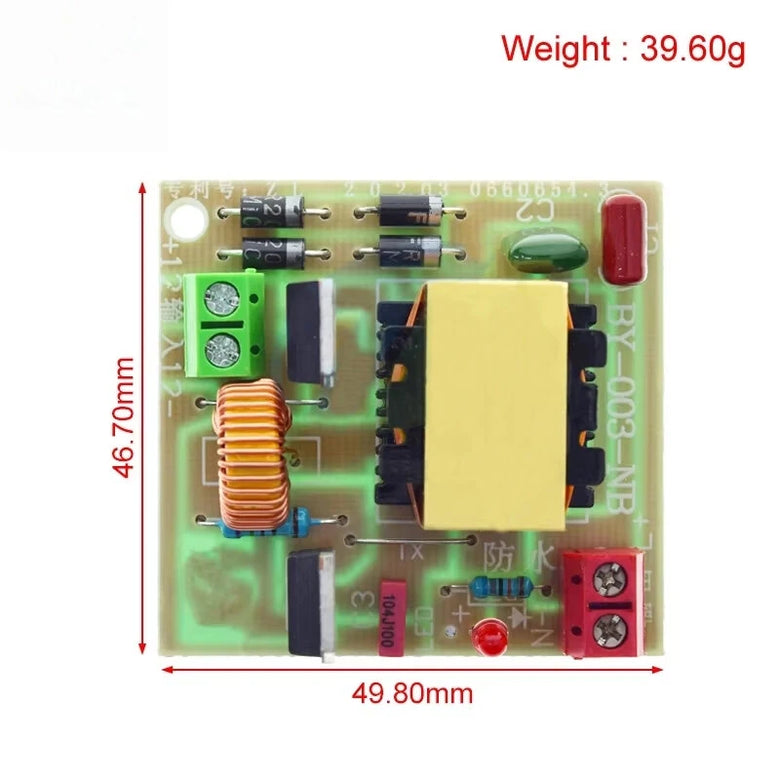

Product Dimensions: 49.80mm x 46.70mm
Weight: 39.60g
Input Voltage: 12V (recommended 13V-15V for optimal use)
Output Voltage: 220V
Maximum Output Power: 120W (Rated 60W, peak 120W)

Features:
1. Converts 12V battery power supply to a 220V output for various applications.

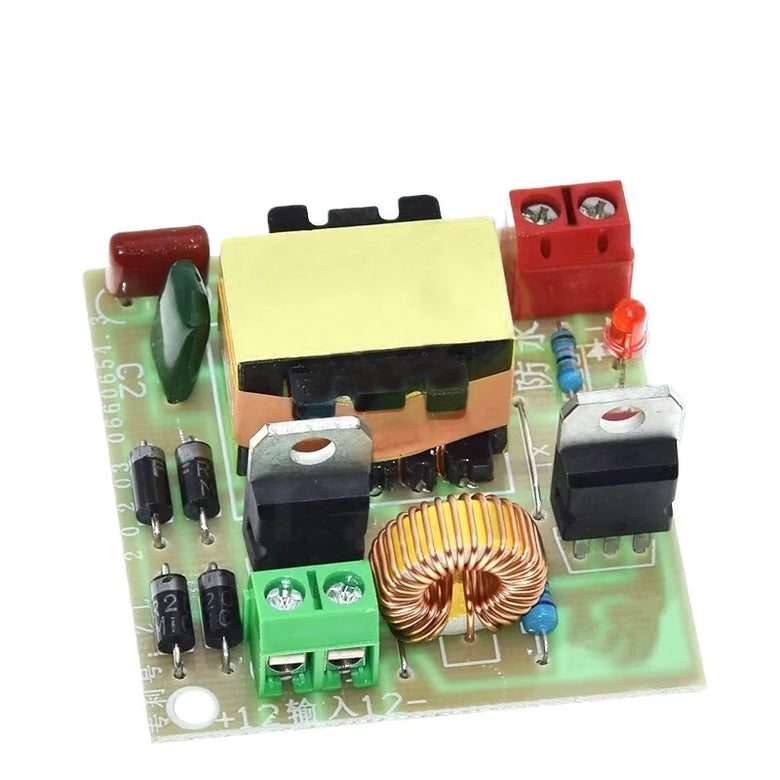

2. Designed with green input terminals (+/-) and red output terminals for easy connections.
3. Supports low-power electrical devices such as energy-saving lamps, LED lights, routers, monitors, etc.
4. Includes a flashing indicator light for battery or input voltage issues.
5. Allows multiple parallel connections to increase power output by 80%.
6. Lightweight and compact design suitable for applications in tight spaces.

Package Includes:
1x 12V to 220V Boost Inverter Power Module

Function Introduction:Ordinary batteries require a voltage of 12V 20A or higher, while power batteries require a voltage of 12V 10A or higher. The battery voltage should between 13V-15V to achieve a maximum of 120W.For example, the power battery 12Vx6Ax1C has an output power of 72W, which means that the maximum output can only reach 72W and cannot reach the maximum power of 120W. (Rated 60W, peak 120W)The same applies to ordinary batteries (12VxAxO.5C output power), and the wear and tear of old and new batteries also has a slight impact.Operation Connection Method:The green port is for 12V input +pair+, -pair-, and the red port is for output. The terminal can be used by unscrewing the screw and inserting the wire. The wire for 12V input should not be less than 0.75 square meters.Can be used for:Red output: energy-saving lamps, fluorescent lamps, LED lighting, tungsten filament lamps, and other light bulbs, as well as low-power products such as mobile phone chargers, routers, speakers, tablets, monitors, ferroelectrics, relays, solenoid valves, capacitors, etc.Prohibited for use:Not suitable for: electric vehicle chargers, water pumps, motors, electric saws, products containing iron core transformer, fans, angle grinders, hair dryers, air conditioners, refrigerators, washing machines, rice cookers, power amplifiers, and other high-power products.Precautions:1. This product is used to reverse the 12V battery power supply to 220V power supply.2. The positive and negative poles of 12V should not be reversed. The input and output should be connected first and checked for accuracy before connecting the battery to power on (damage caused by human error will not be returned or exchanged).3. This product can increase power by multiple parallel connections. Only two parallel inputs and outputs are needed to increase power by 80%. If the output power is high, a cooling fan can be used for heat dissipation.4. The output end of this product cannot be tested with a regular multimeter, it needs to be tested with an oscilloscope.5. This product is updated irregularly. If there are slight differences in appearance or if the pictures have not been updated, please refer to the actual product.Indicator light function:Indicator light flashing: Insufficient battery capacity.The indicator light flashes rapidly: mainly due to the excessive current used and the low input voltage.The indicator light is not on: the battery is dead, there is no power input, the positive and negative poles are connected incorrectly, and the maximum load has been exceeded.Kind reminder: This product is a high-frequency inverter module. Please pay attention to self-protection when using it and operate it in a standardized manner while ensuring safety. The circuit board is just an accessory, and we are only responsible for its functionality. Any losses outside of the product are borne by the buyer. Please do not take any orders if you cannot accept it.
