Description:

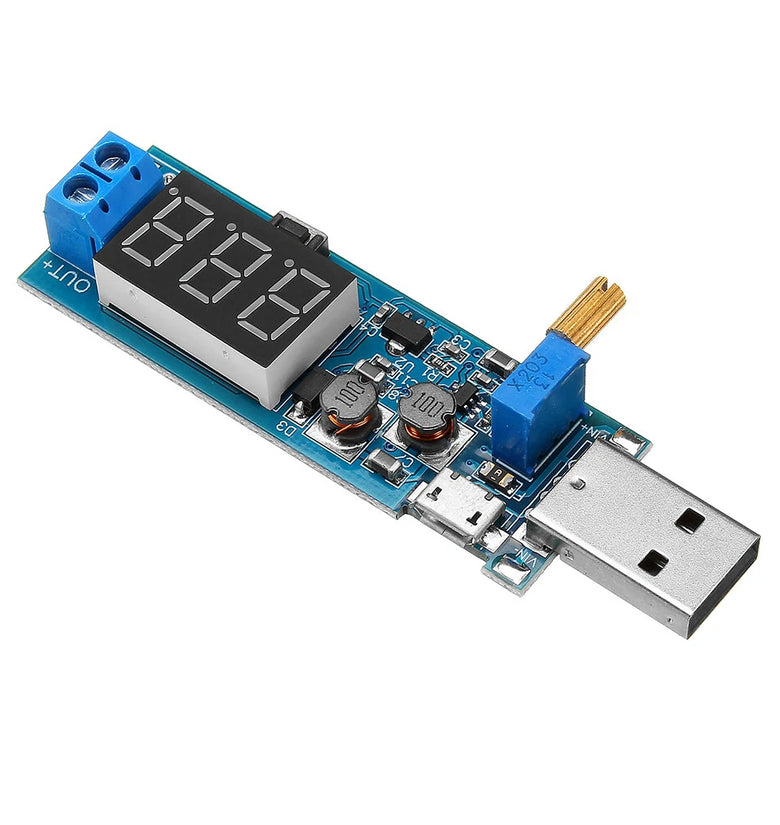

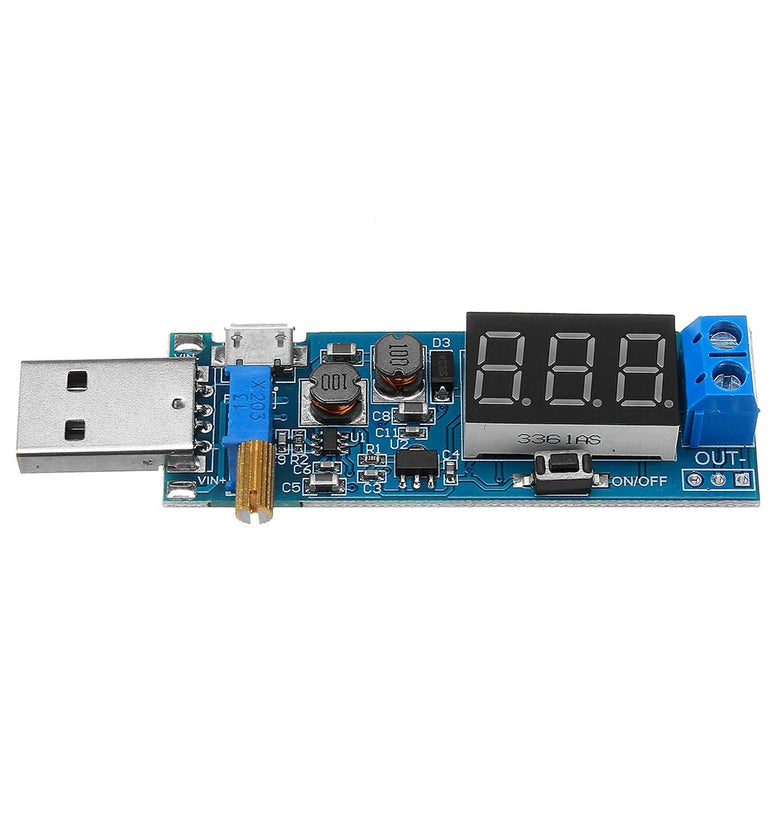

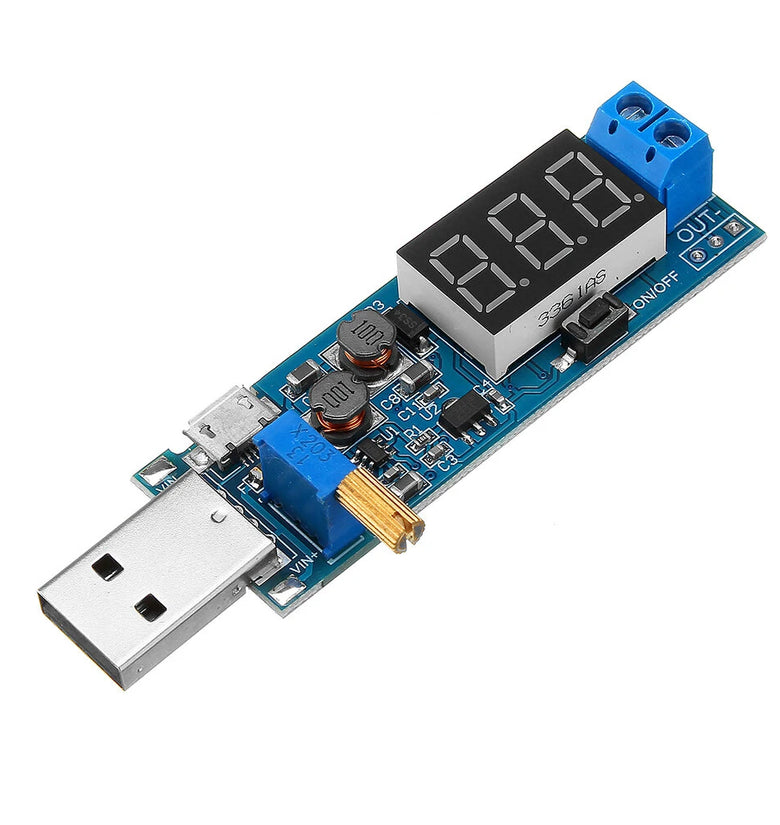

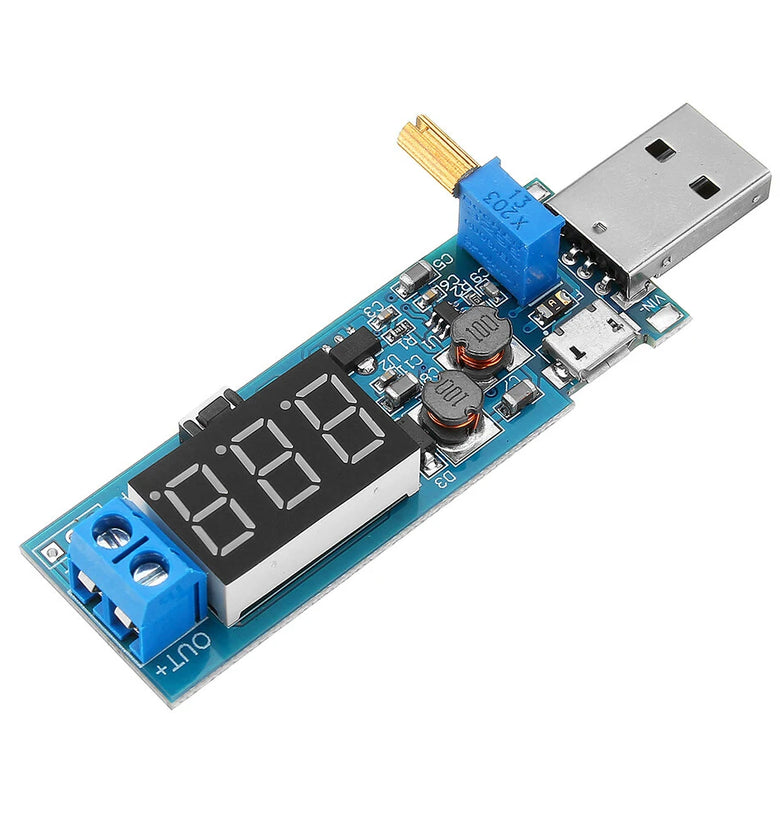

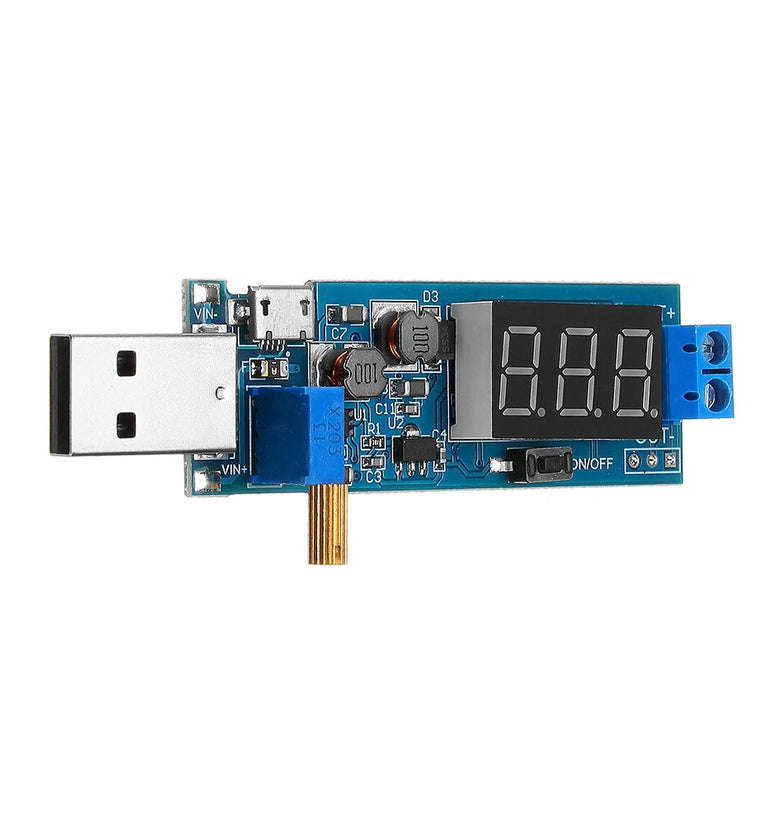

    USB boost/buck power supply module, powered by USB, adjust potentiometer to get the required voltage.

Features:

    1>.One button to turn off the output;

    2>.Supply ON/OFF display screen;

    3>.Support low power mode;

    4>.Support sleep mode;

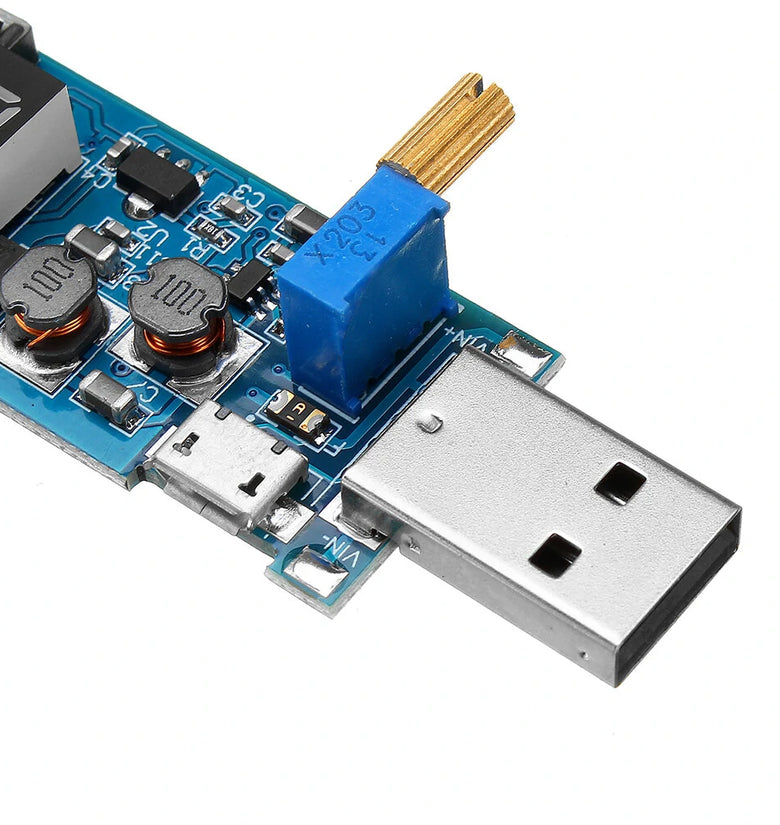

    5>.Support both standard USB and Micro USB and pads input voltage;

    6>.Potentiometer with rotating handle.

Parameters:

    1>.Input voltage: DC 3.5-12V;

    2>.Output voltage:DC 1.2-24V;

    3>.Output power:

        Input 1.2-2V,output power within 2W;

        Input 2V-20V,output power within 3W;

        Input 20V-24V,output power with in 2.5W;

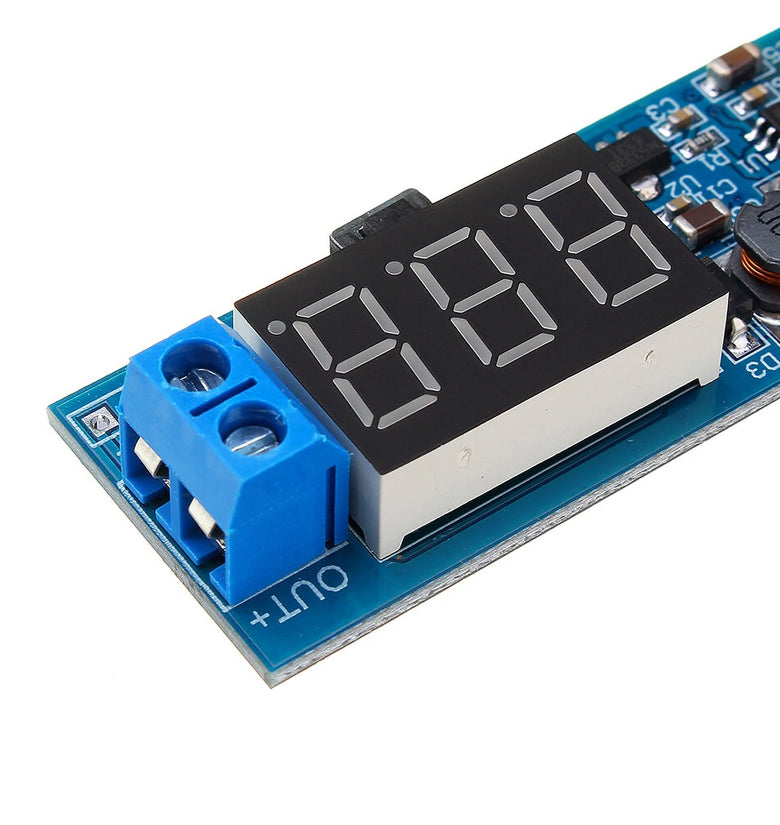

    4>.Display:3Bit digital tube display;

    5>.Size:80*20*14mm.

Use steps:

    1>.Input voltage from Standard USB or Micro USB or ‘VIN+’ and ‘VIN-’;

    2>.Turn ON display screen;

    3>.Adjust potentiometer to get the required voltage;

    4>.Connect load.

Application:

    1>.Ordinary power supply;

    2>.Battery charger;

    3>.LED drive power;

    4>.Instrument voltage display;

    5>.Test meter;

    6>.Circuit test;

    7>.Power conversion.

Please Note:

  It is not a high power supply, please use it within the power range.

Package Included:

    1 x USB Boost/Buck Power Supply Module
