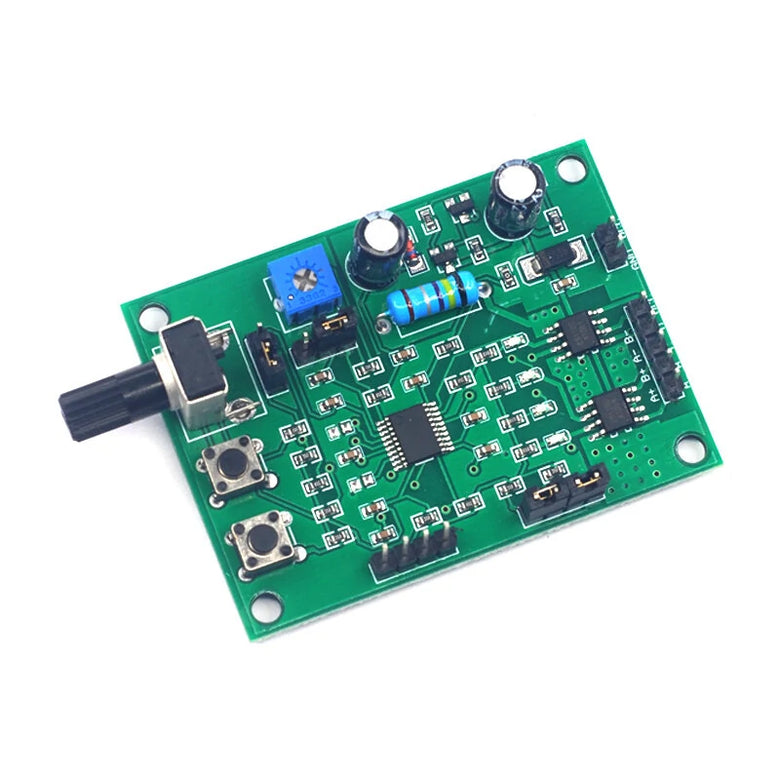

Basic parameters:
Size: 59.5mm*44mm
Voltage range: DC5V-12V
Rated current: ≤ 800mA
Power reverse connection protection: yes
Overcurrent protection: yes
Overheat protection: yes

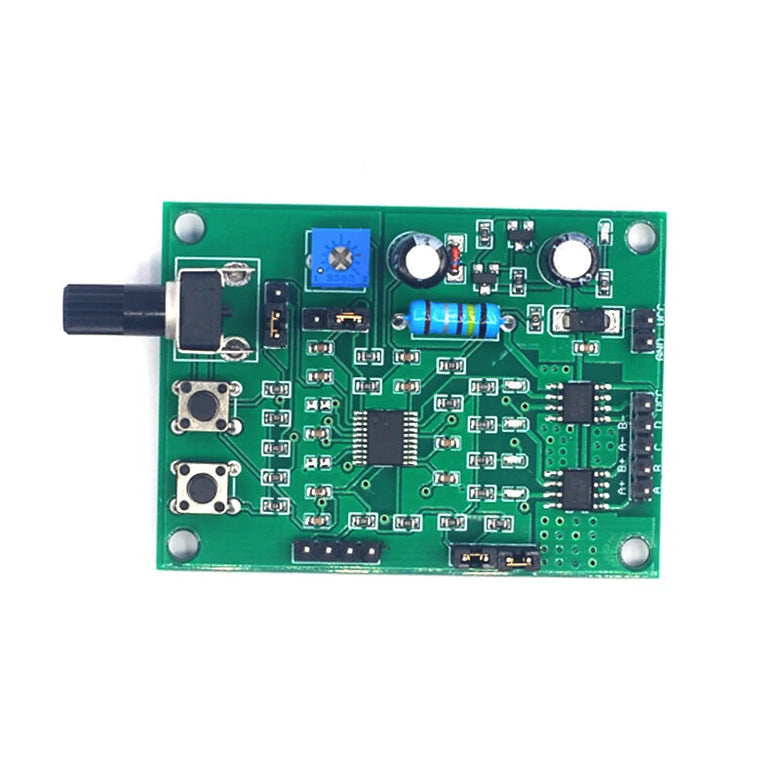

Working mode:
[1] Normal mode 1: S1 start/stop button, S2 forward/backward button, W2 potentiometer speed control. If limit reversal is required, two limit switches can be connected to the P3 pin, and the motor motion shaft is mounted with contacts, so that the motor will reciprocate within the stroke between the two limit switches.
[2] Normal mode 2: Click S1 button to start forwards, S2 backwards, click any button again to stop. W2 potentiometer speed regulation. If the limit stop is required, two limit switches can be connected to the P3 pin, so that the motor will stop moving when it touches the limit switch, and the motor will reverse after the opposite button is clicked.
[3] Jog mode: S1 presses the forward rotation, releases the stop, S2 presses the reverse rotation, releases the stop, and the W2 potentiometer adjusts the speed. If a limit stop is required, the upper limit switch can be connected to P3.
[4] Automatic round-trip mode: S1 starts and stops, S2 is reversed, W2 potentiometer speeds, and W1 potentiometer adjusts the automatic round-trip steps. After starting, the motor automatically runs back and forth within the number of steps adjusted by W1.
Package Include:

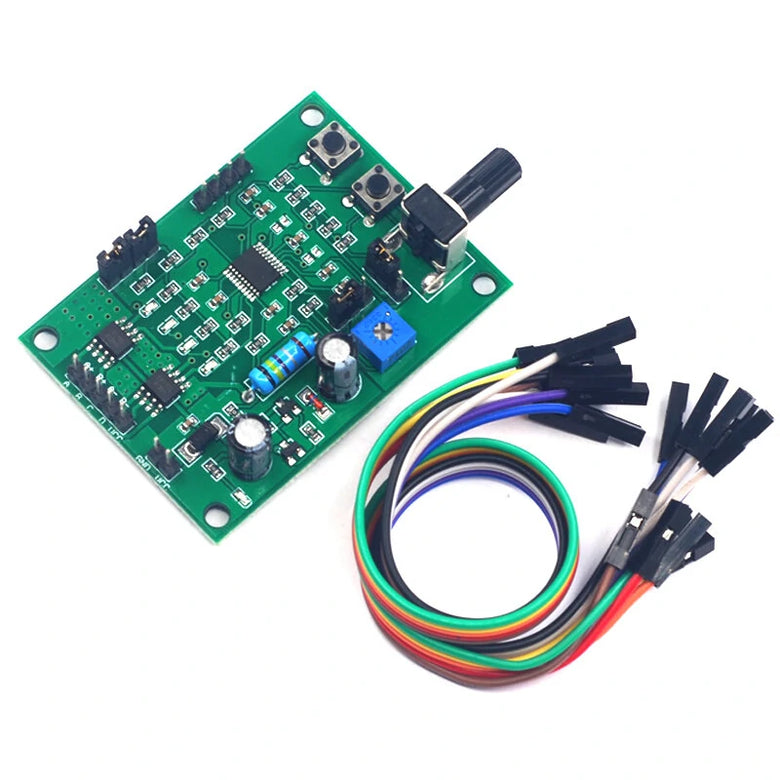

1× Driver Module Board
1× Cable
