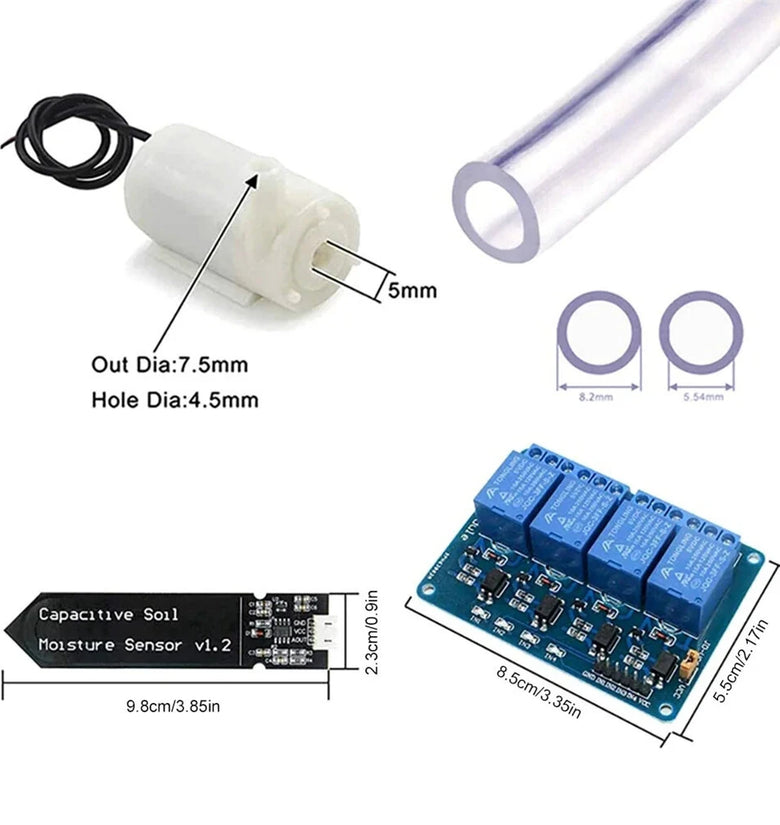

Specifications:

Capacitive Soil Moisture Sensor:

Working voltage: 3.3~5.5 VDC

Output voltage: 0~3.0 VDC

Interface: PH2.54-3P

Dimensions: 98mm x 2mm (LxW)

Pin: Analog signal output, GND, VCC

1 Channel 5V Relay Module:

VCC: Connect to 5V positive power supply

GND: Connect to 5V negative power supply

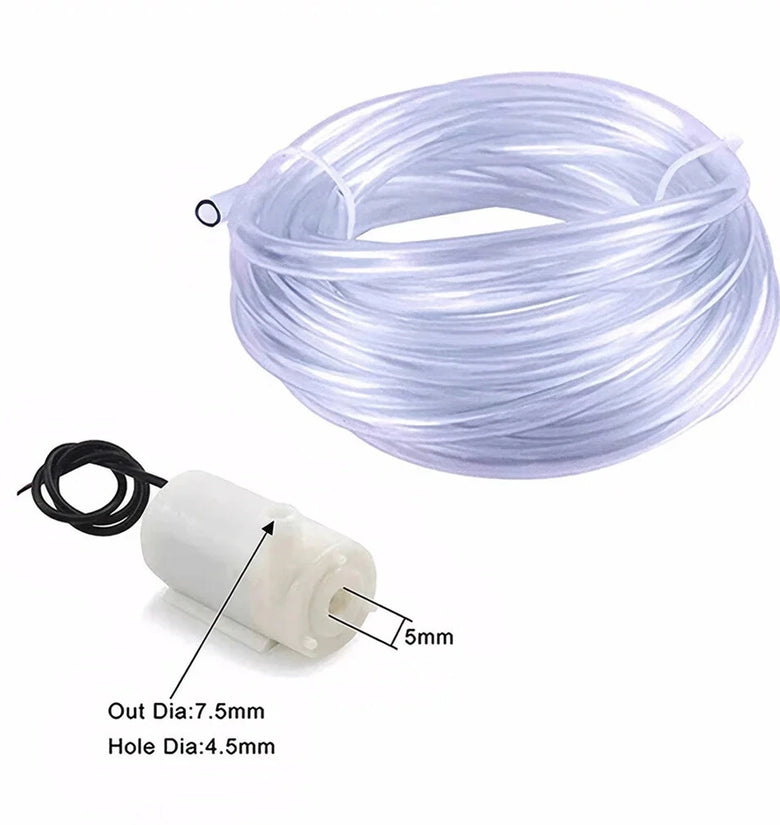

Water Pump:

DC voltage: 3-5V

Outlet diameter: 0.29 inches/7.5mm

Outlet inner diameter: 0.17 inches/4.5mm

Water inlet diameter: 0.19 inches/5mm

Drive mode: Brushless DC design, mesh drive

Continuous working life: 300 hours

Vinyl Tubing:

Material: PVC

Length: 400cm

Material: ABS, Electronic Components

Features:

1.User-Friendly Operation

The Soil Moisture Sensor Kit makes monitoring and maintaining plant hydration simple and effective. The system automatically waters your plants based on soil moisture levels, providing a hassle-free gardening experience for all users, regardless of their technical skill level.

2.Fully Automated System

The DIY kit includes a pump, pipes, soil moisture sen
