Specifications:

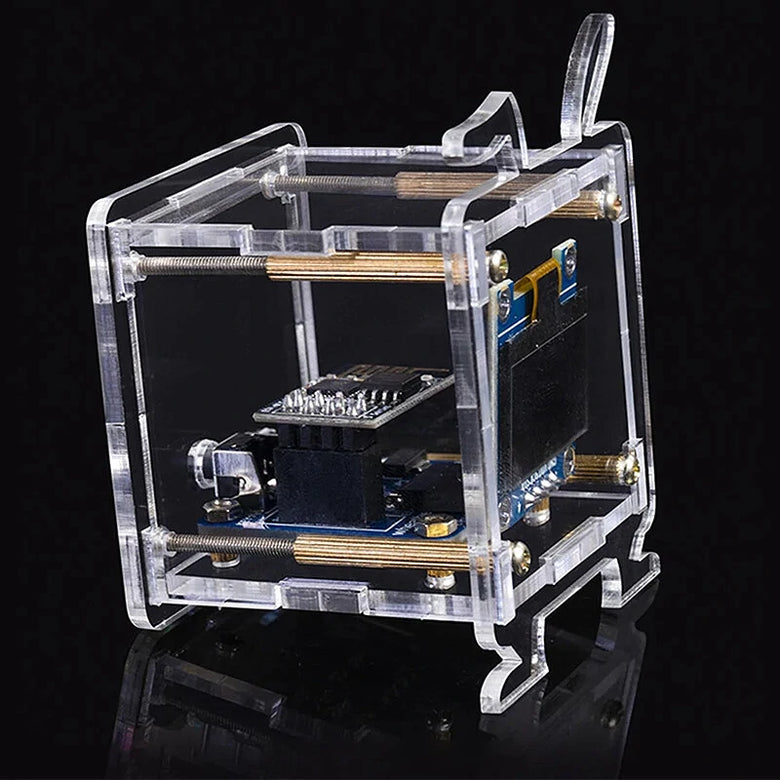

Product name: ESP8266 mini clock kit
Product number: HU-061
Product weight: 76.6g
Power supply mode: DC5V (Android USB interface)
Note: City ID may not be available in some areas, not support Weather Forecast function
NOTE: This is a DIY kit, you need to solder.
>>>Manual: Click here to open<<<
Features:

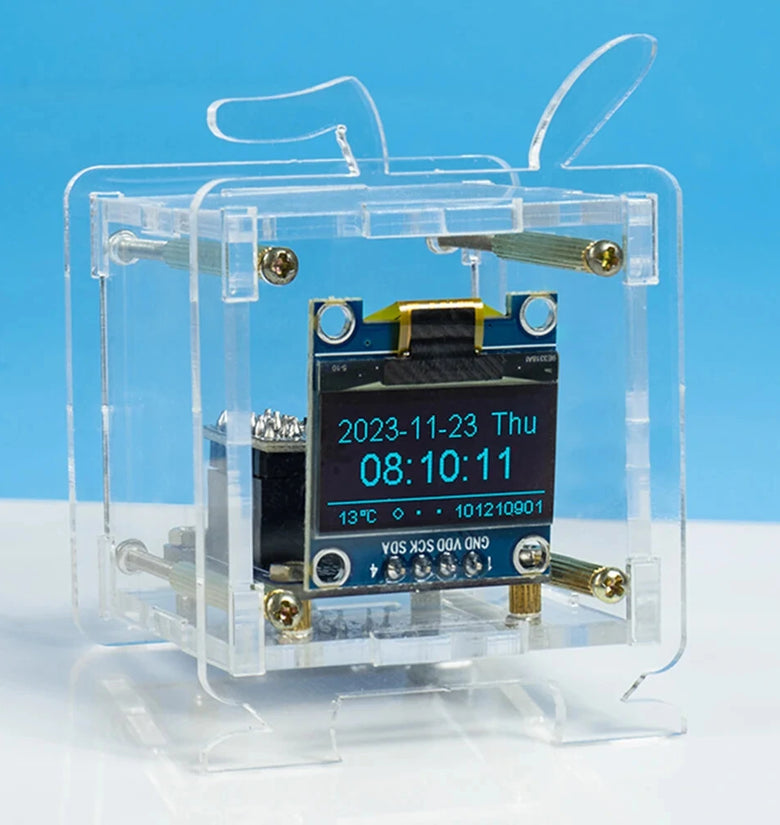

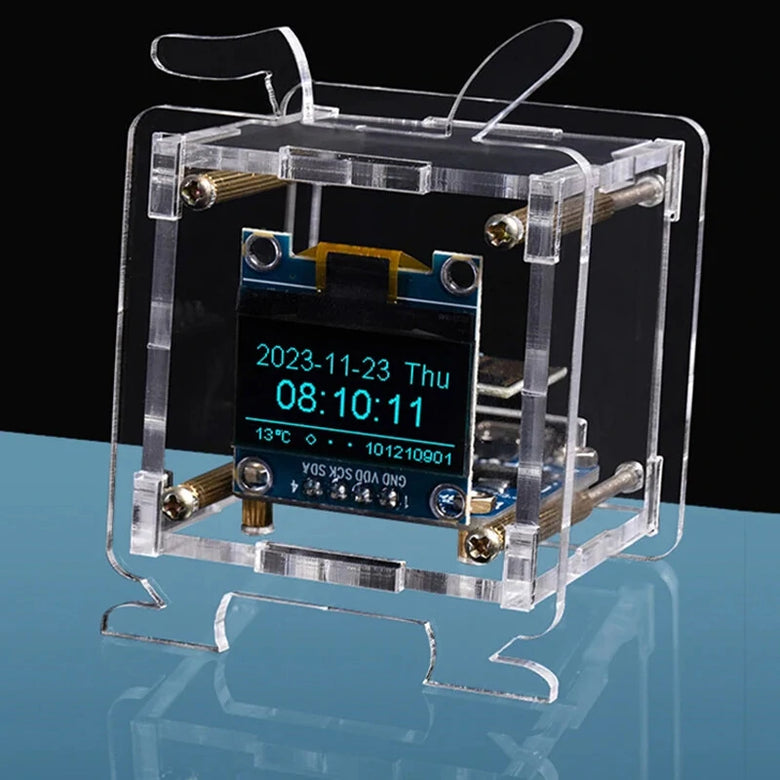

1. The three interfaces switch in turn to display real-time time, temperature, humidity, and date, week
2. Equipped with OLED high-definition display screen, the display is brighter and the fonts are clear
3. Equipped with WIFI time synchronization module, supports WIFI networking and real-time updates
4. Use the setting button to connect to WIFI anytime and anywhere for city positioning settings
5. Cute shape, mini and lightweight, easy to carry

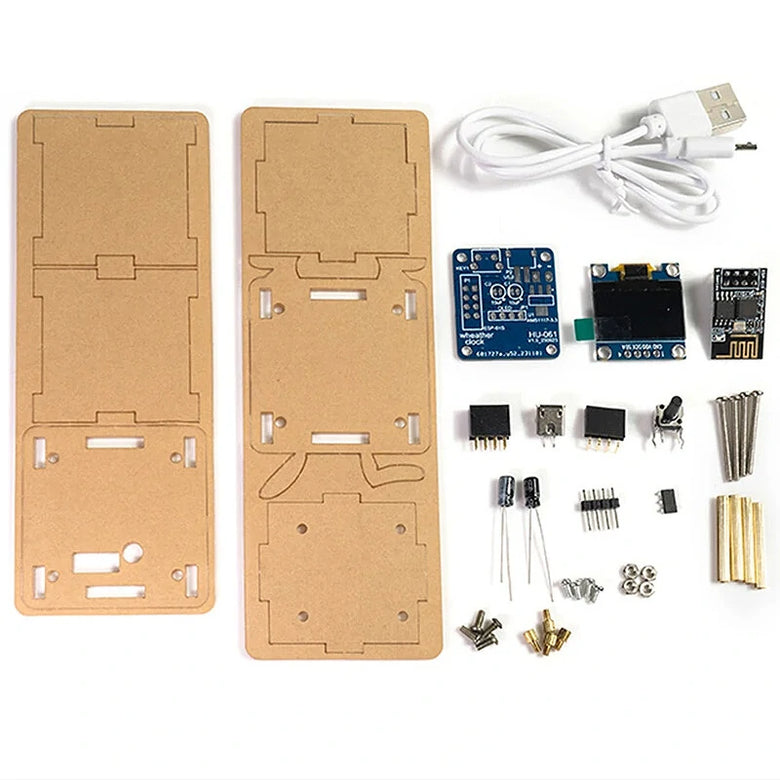

Package Includes:
1x DIY Clock Part Kit
| Serial number | Component Name | Component Symbol | Quantity |
| 1 | 10uf inline electrolytic capacitor | C1, C2 | 2 |
| 2 | 4-pin blue OLED module | JP1 | 1 |
| 3 | 1X4P Horizontal Bent Pin Header | JP1 | 1 |
| 4 | Side position flick switch | KEY1 | 1 |
| 5 | ESP8266 Serial WIFI Module | P1 | 1 |
| 6 | Straight pin dual row female chassis connector 2X4P | P1 | 1 |
| 7 | MICRO USB Android Charging Port | P2 | 1 |
| 8 | AMS1117-3.3V Regulated Chip | U1 | 1 |
| 9 | Android Power Cord | 1 | |
| 10 | Circuit Board | 1 | |
| 12 | Screw Pack | 1 | |
| 13 | Acrylic Case | 1 |
