Features：

1. Choose from seven lighting modes at will

2. Button switching mode

3. Press the button to switch the light speed

4. Low power sleep mode achieves super standby capability

5. Key wake-up function

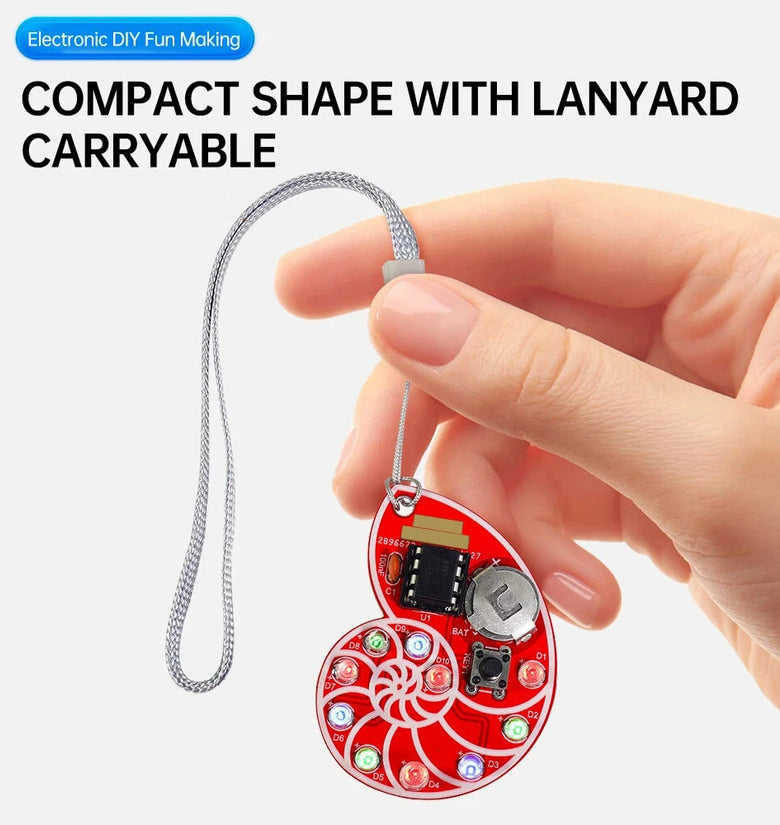

6. Exquisite and compact, paired with button batteries, can be carried around

7. Seven lighting modes and six lighting speeds, short press the button once to change the lighting speed, short press the button twice to change the lighting mode

Specification：

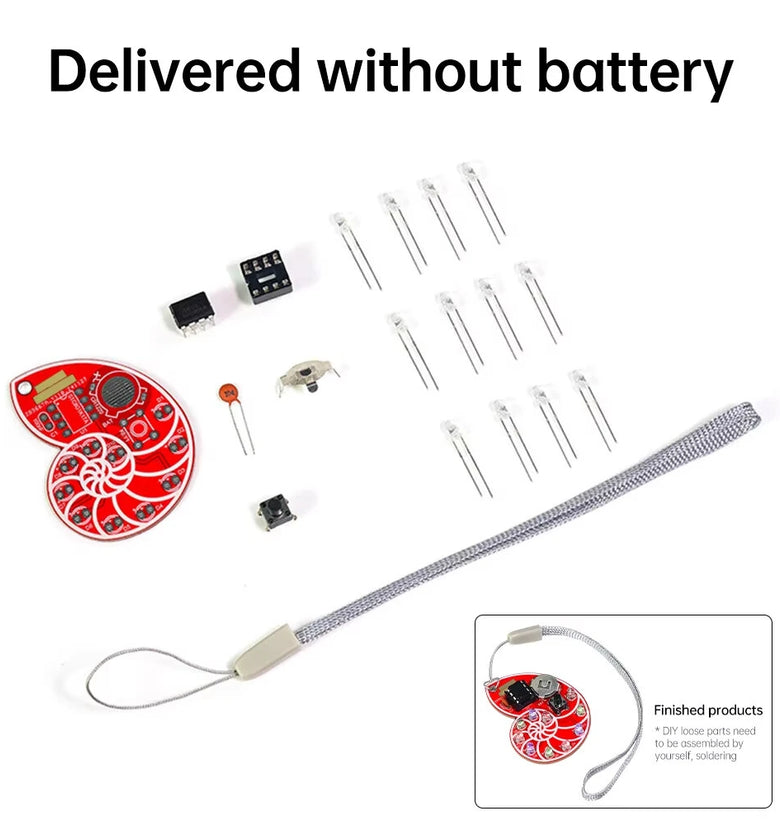

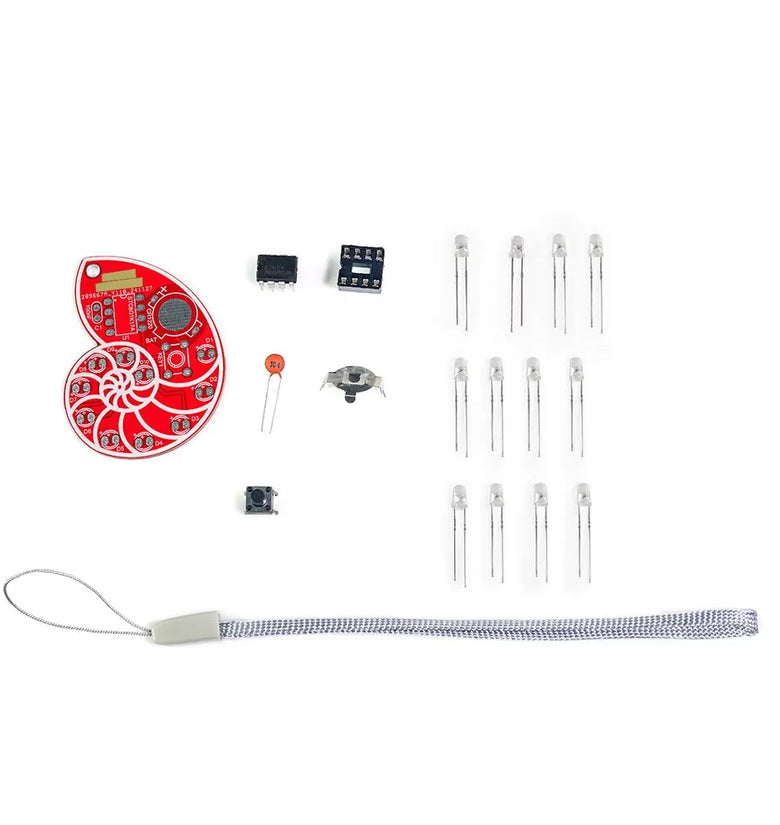

Kit Name: LED Shell Flow Light Production Kit

Power supply mode: 3V button battery

Working current: 0.5mA@3V (All lights are on) 0.19mA@3V (One light is on)

Maximum current: 1.5mA@3V (At startup)

Sleep mode current: 0.4uA@3V

LED display refresh rate: around 245Hz

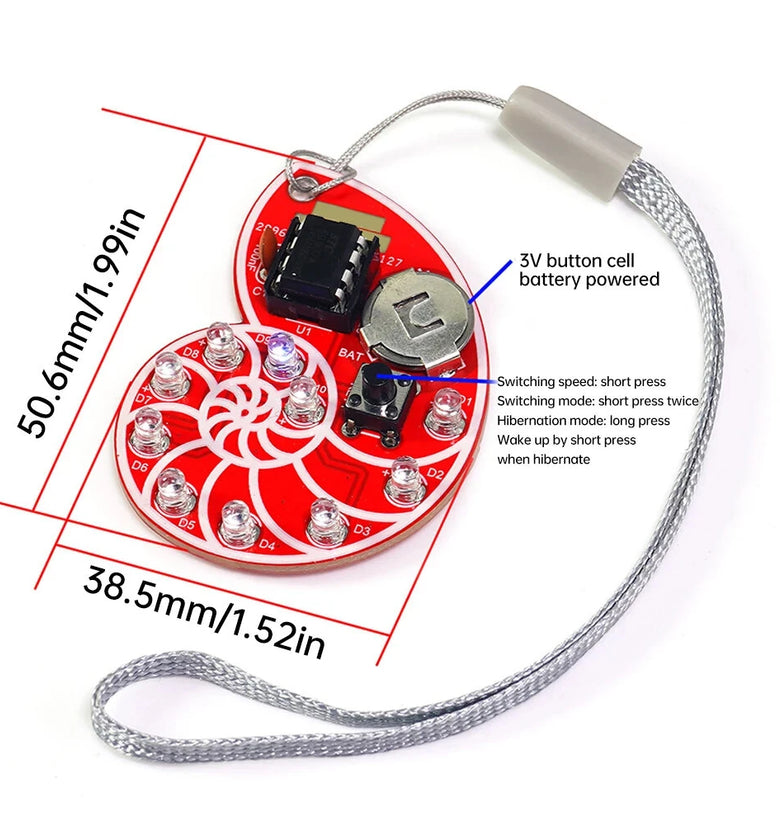

PCB size: 38.5mm * 50.6mm

Six types of light speeds

Short press KEY1 to switch the speed of the light change. There are six gears for the speed change, which are:

1000ms, 500ms, 100ms, 50ms, 20ms, 10ms

The speed changes from high to low with each press of the button, and there is a power down saving function

Display of seven lighting modes:
