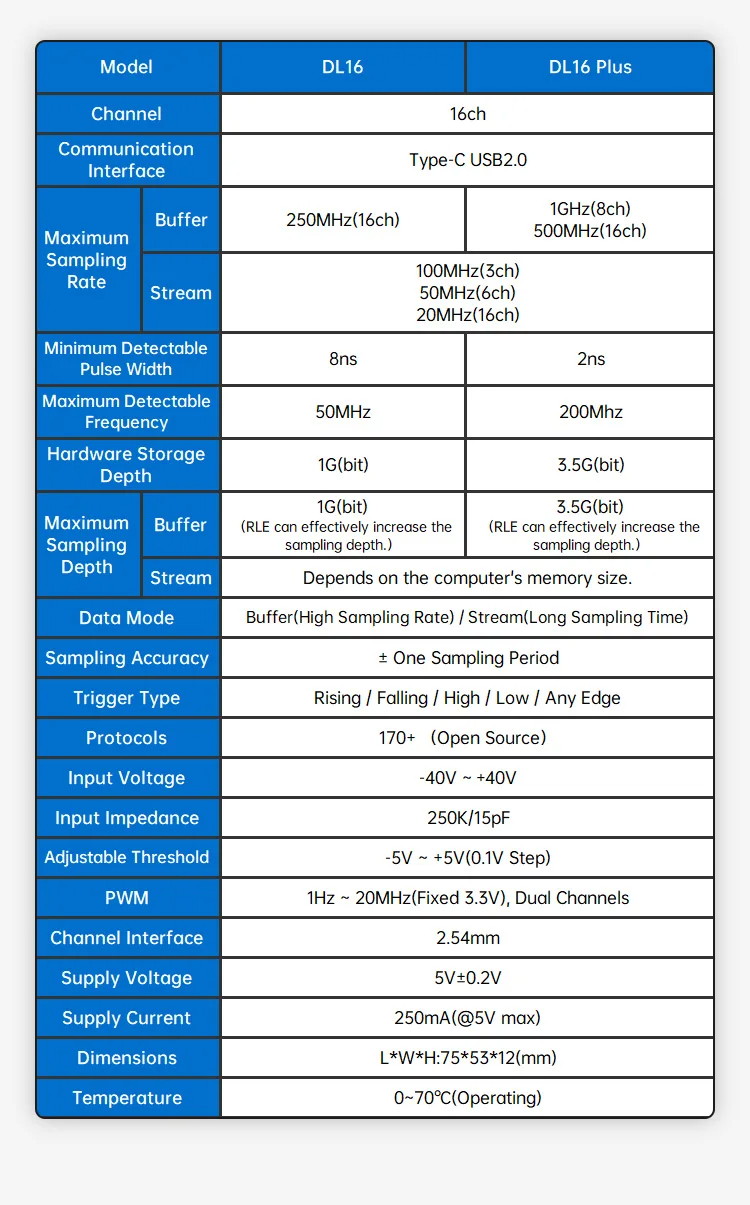

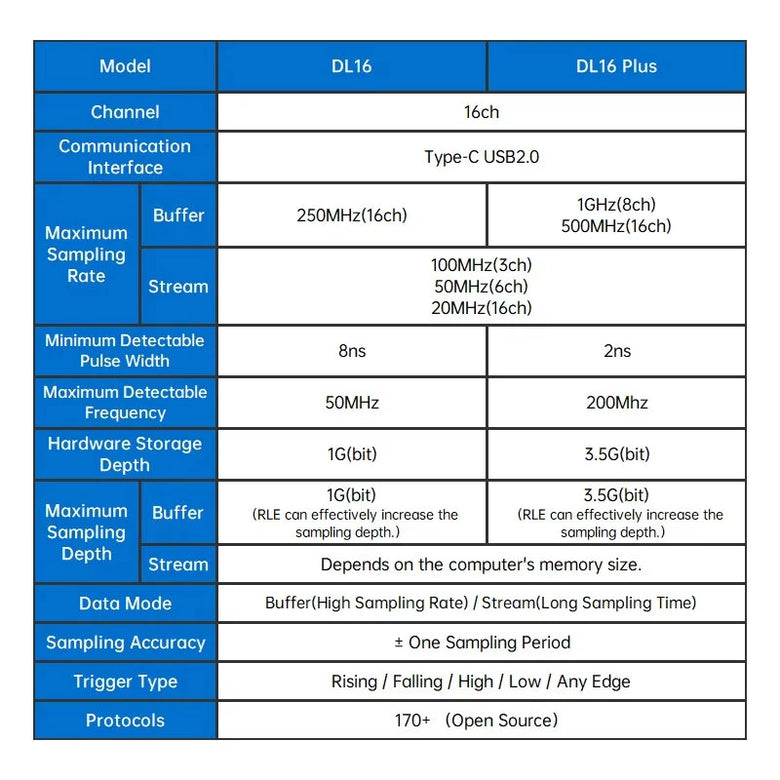

Specifications:
Model: DL16 / DL16 Plus
Channels: 16 channels
Communication Interface: Type-C USB 2.0

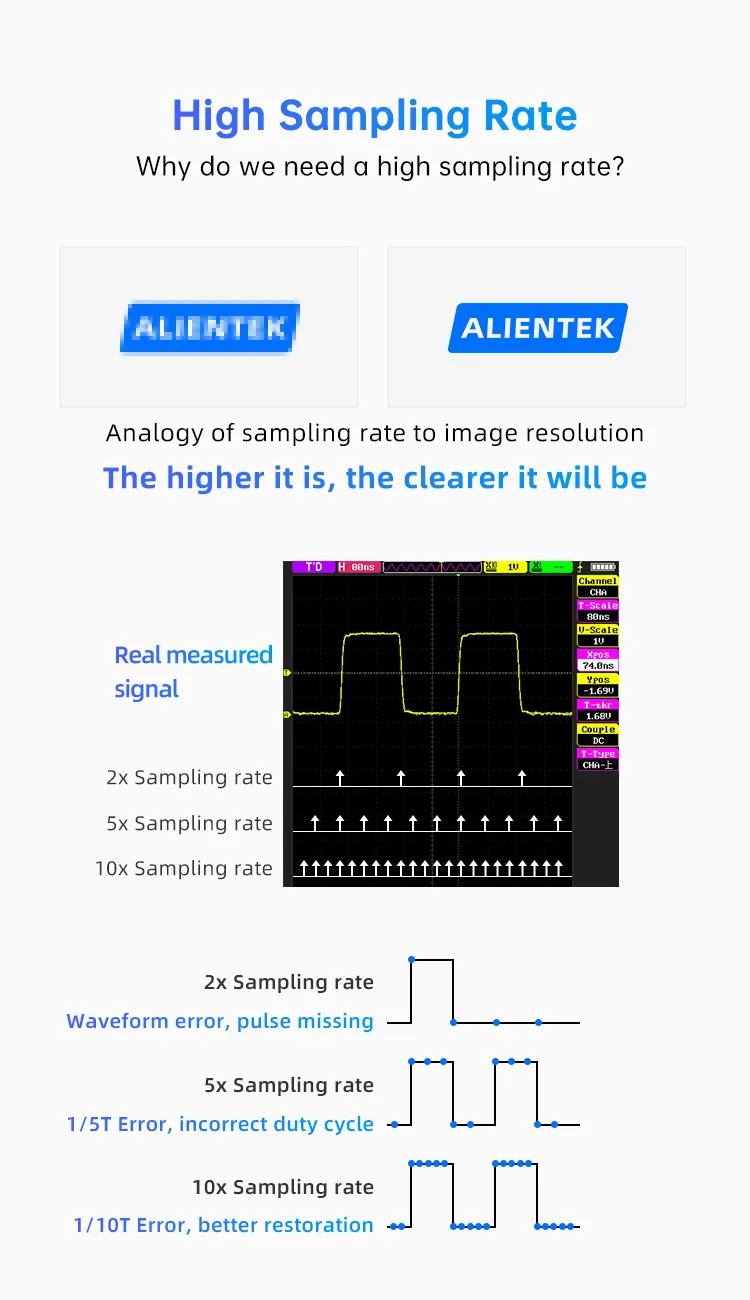

Maximum Sampling Rate:
DL16: 250MHz (16 channels)
DL16 Plus: 1GHz (8 channels), 500MHz (16 channels)
Minimum Detectable Pulse Width:
DL16: 8ns
DL16 Plus: 2ns
Maximum Detectable Frequency:
DL16: 50MHz
DL16 Plus: 200MHz

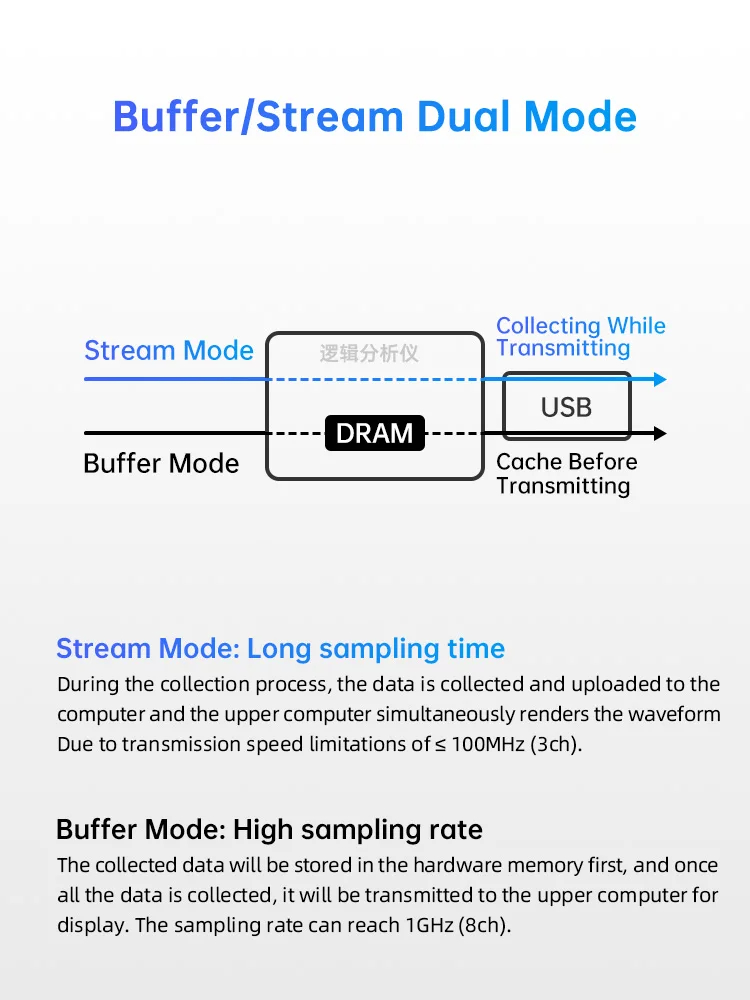

Hardware Storage Depth:
DL16: 1Gbit
DL16 Plus: 3.5Gbit

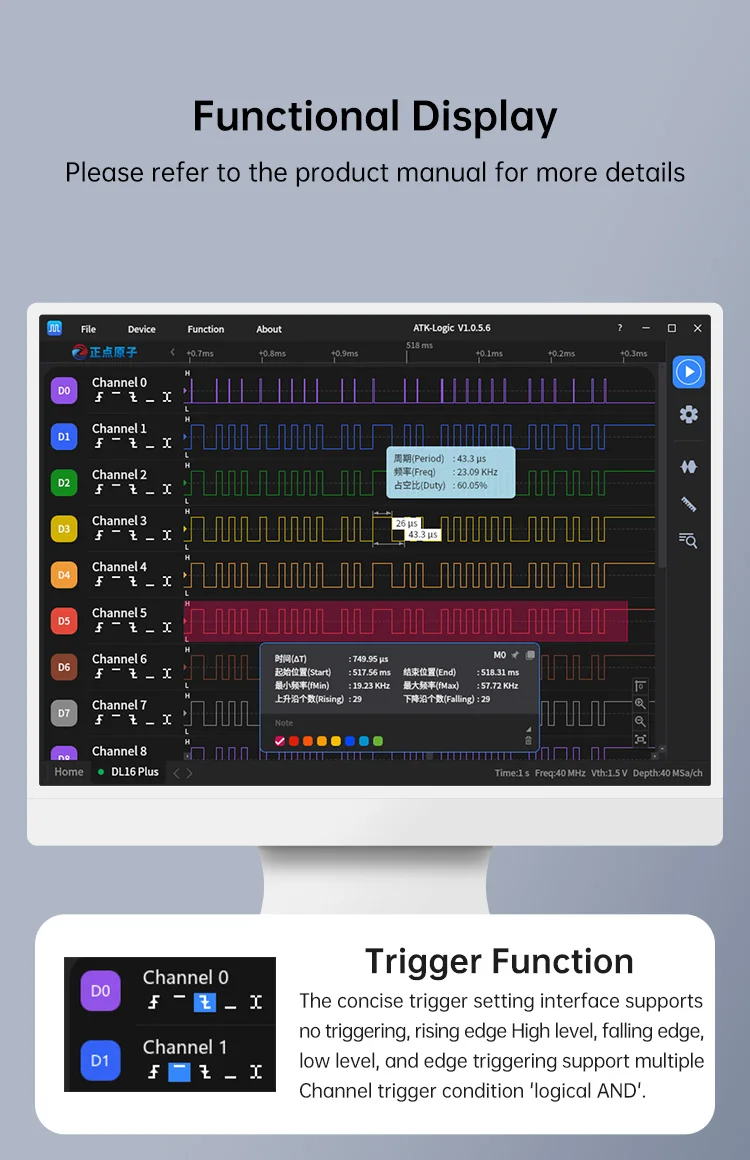

Trigger Type: Rising / Falling / High / Low / Any Edge

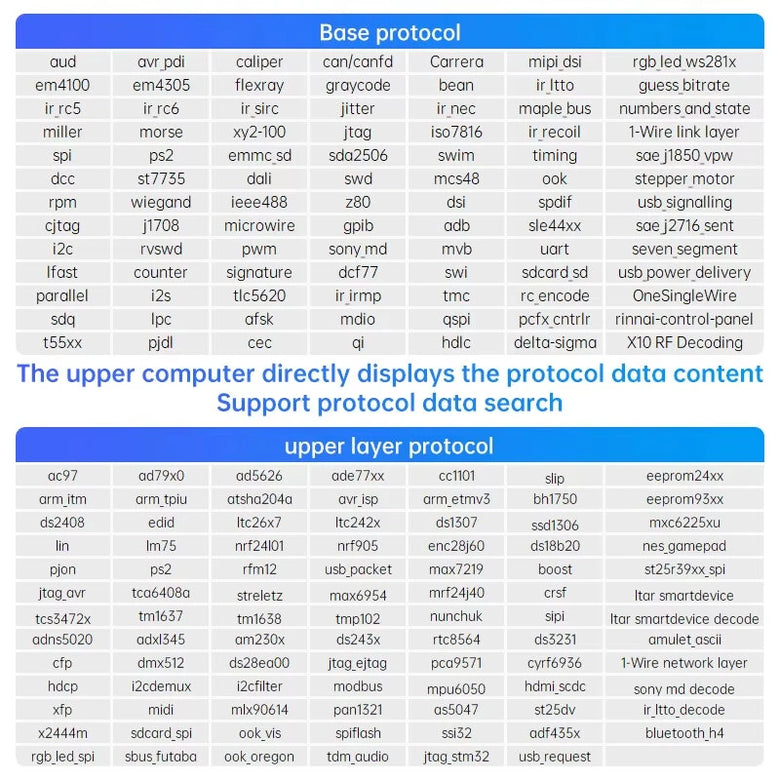

Protocols Supported: Over 170 (Open Source)
Input Voltage Range: -40V to +40V
Input Impedance: 250KΩ / 15pF

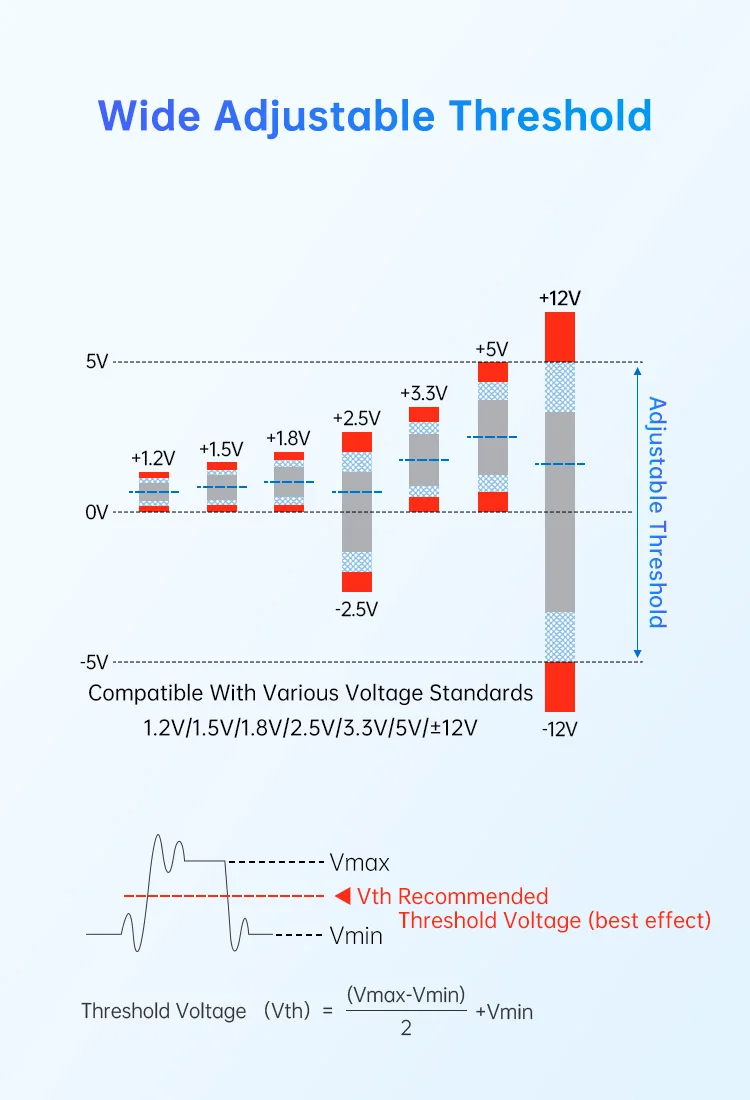

Adjustable Threshold: -5V to +5V (0.1V step)
PWM Frequency Range: 1Hz to 20MHz (Fixed 3.3V) Dual Channels
Channel Interface: 2.54mm
Power Supply Voltage: 5V ± 0.2V
Power Supply Current: 250mA (@ 5V max)

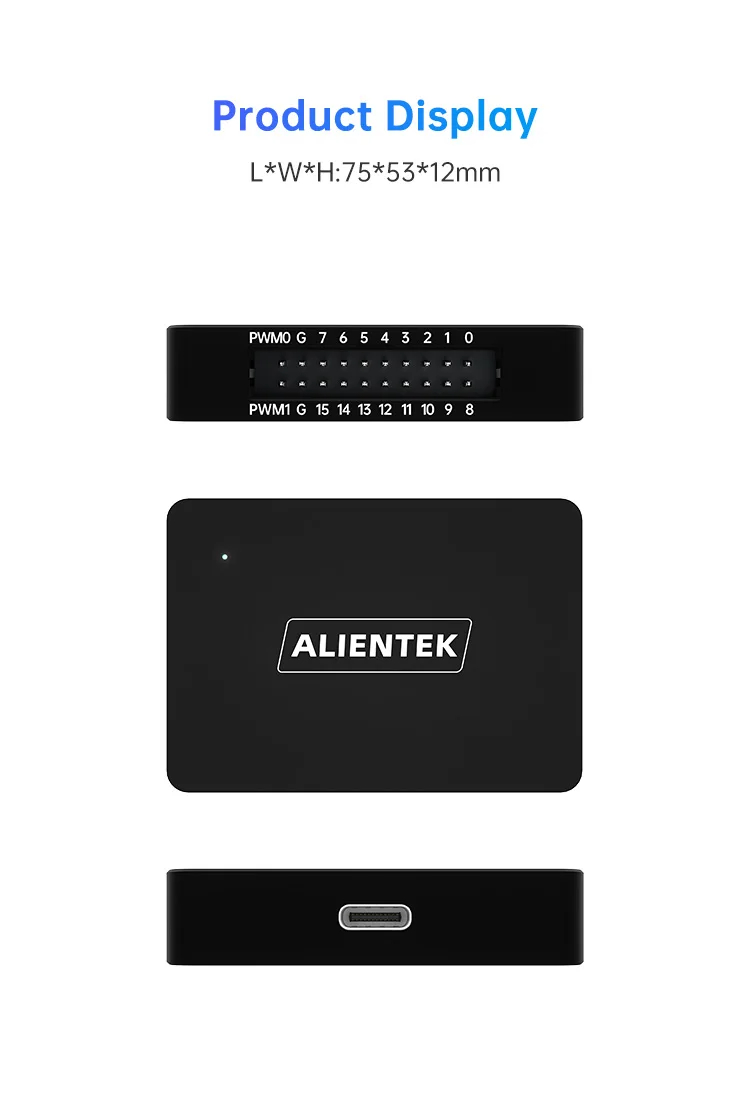

Dimensions: 75mm x 53mm x 12mm
Operating Temperature: 0°C to 70°C

Features:
1.High Speed Data Acquisition:
DL16 Plus achieves an impressive maximum sampling rate of 1GHz, ensuring precise signal capture even in high-frequency applications.

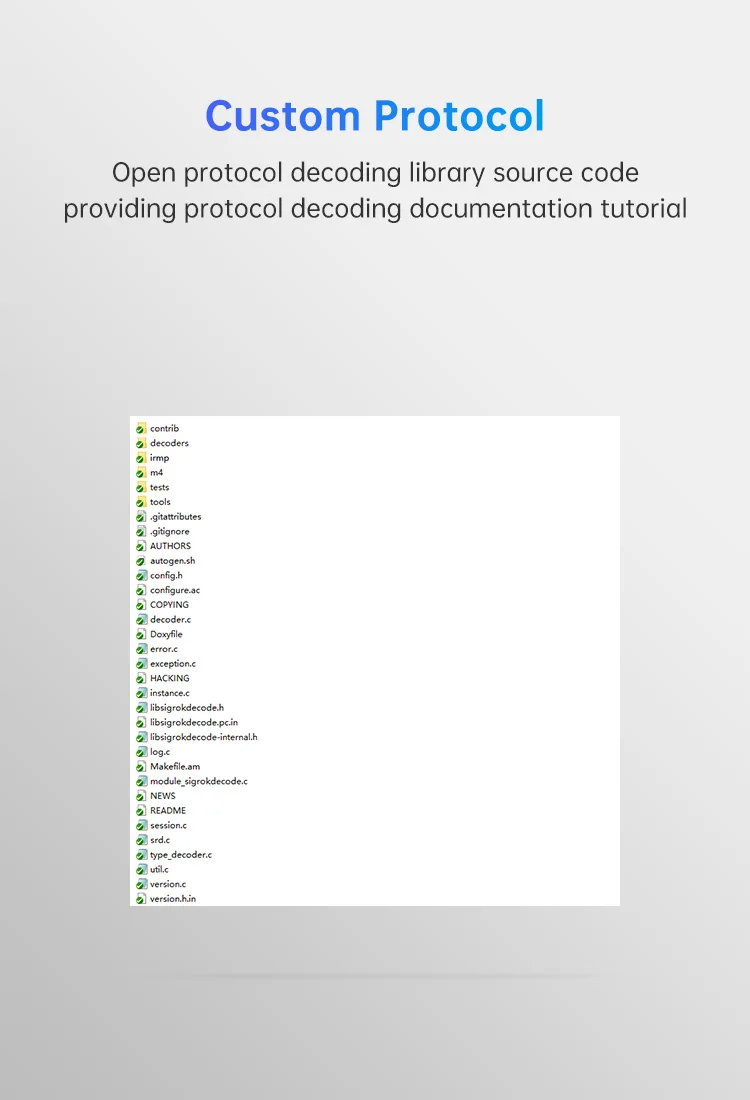

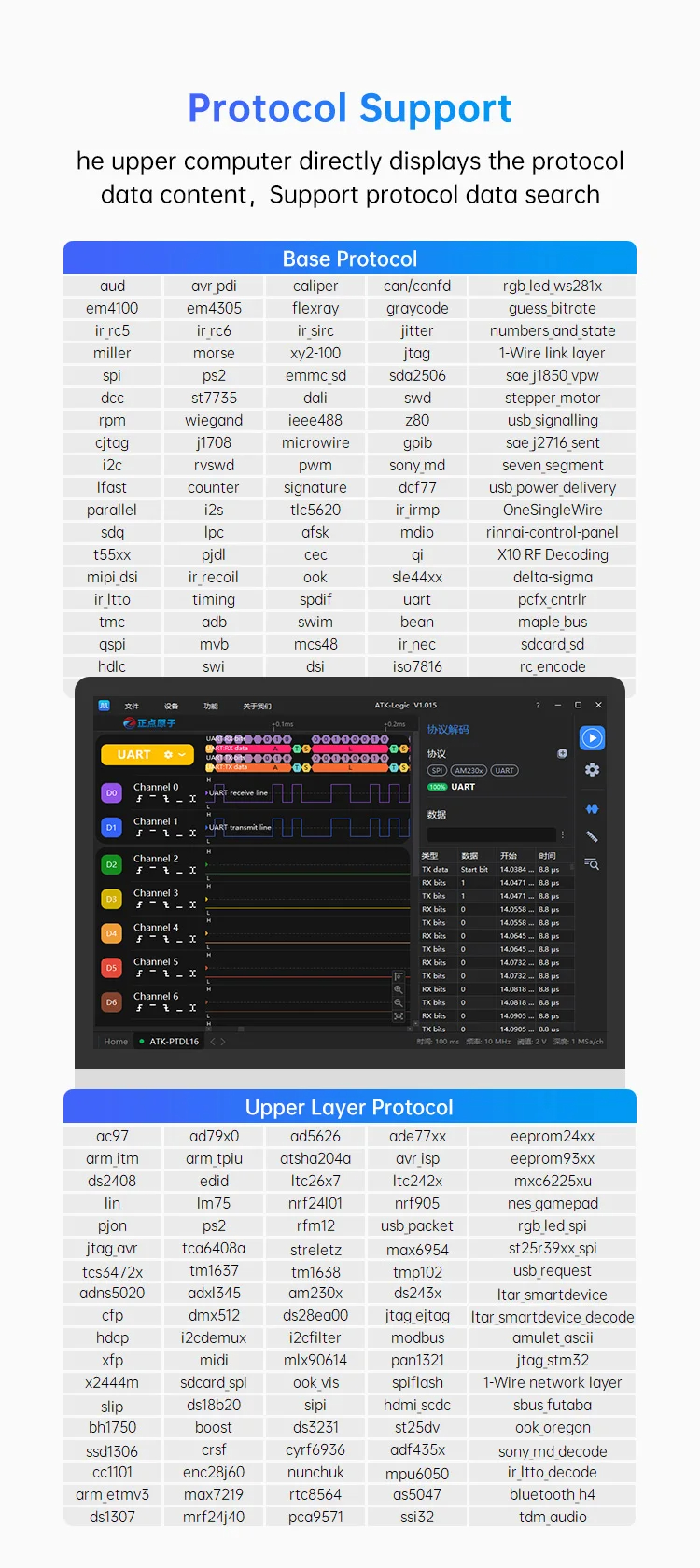

2.Extensive Protocol Support:
Compatible with over 170 open-source protocols, it supports a wide range of decoding needs for ARM, FPGA, and other debugging tasks.
3.Enhanced Storage Capacity:
Equipped with 3.5Gbit onboard storage in the DL16 Plus model for improved data handling, allowing extended and accurate sampling sessions.
4.Wide Voltage Range Input:
The analyzer accommodates input voltage from -40V to +40V, making it suitable for various testing environments and devices.
5.Compact and Portable Design:
Lightweight (12mm thick) and easy to transport, yet robust enough to handle intensive debugging in both laboratory and field setups.

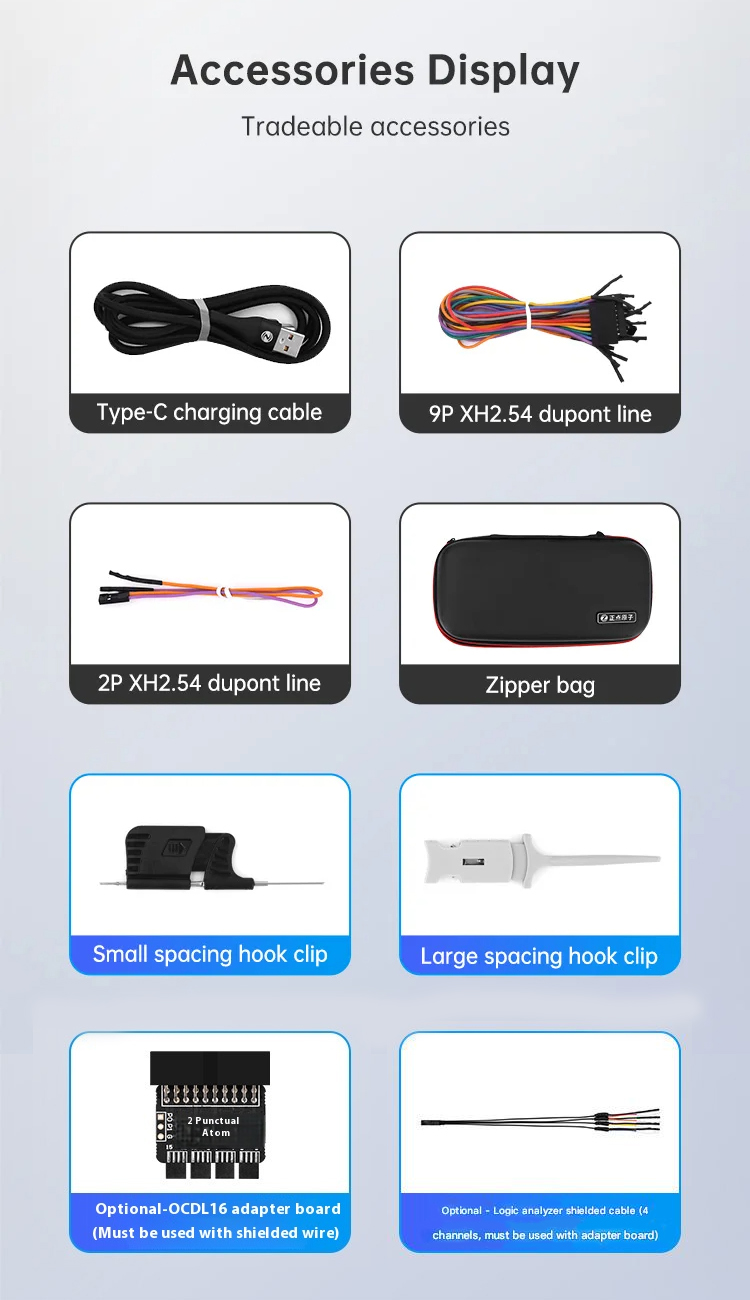

Package Included:
Type A:
1 x DL16 Analyzer
2 x 9P XH2.54 Dupont Line
1 x 2P XH2.54 Dupont Line
1 x Charging Cable
1 x Zipper Case
1 x User Manual

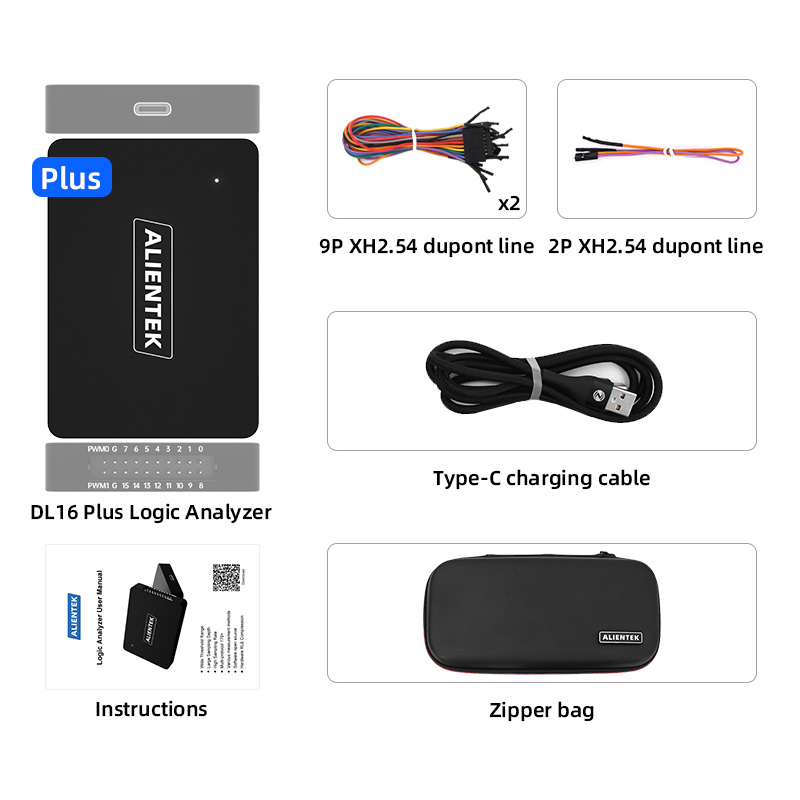

Type B:
1 x DL16 Plus Analyzer
2 x 9P XH2.54 Dupont Line
1 x 2P XH2.54 Dupont Line
1 x Charging Cable
1 x Zipper Case
1 x User Manual

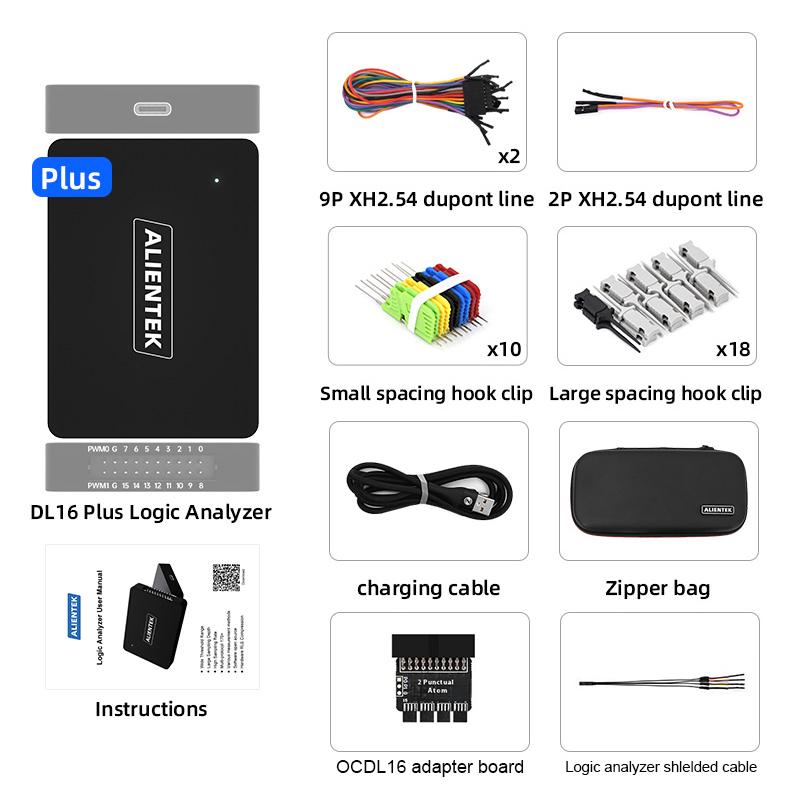

Type C:
1 x DL16 Plus Analyzer
2 x 9P XH2.54 Dupont Line
1 x 2P XH2.54 Dupont Line
10 x Small Spacing Hook Clip
18 x Large Spacing Hook Clip
1 x Charging Cable
1 x Analyzer Shielded Cable
1 x OCDL16 Adapter Board
1 x Zipper Case
1 x User Manual
