Description:

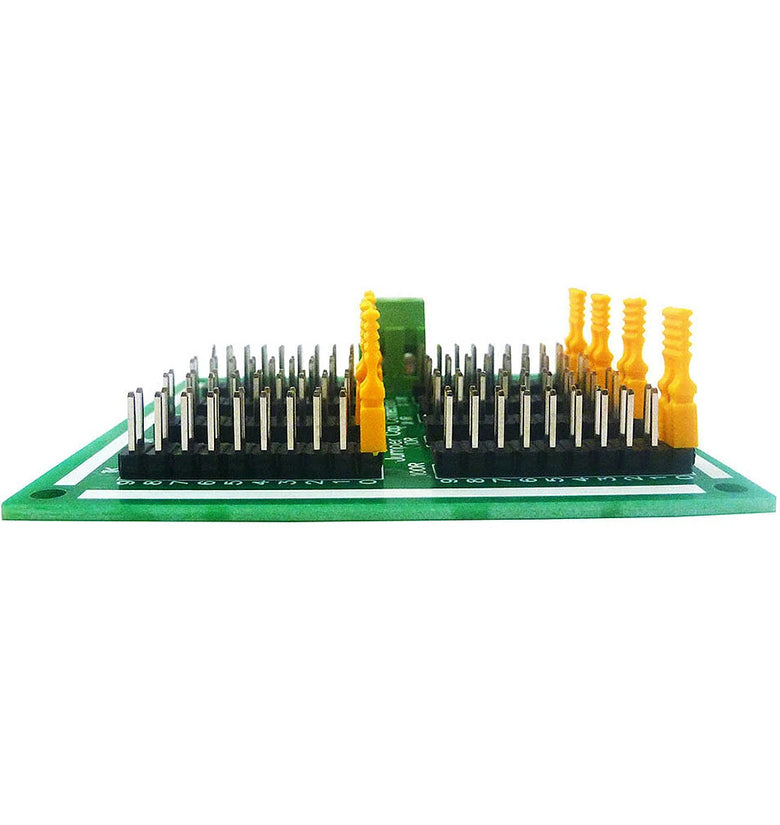

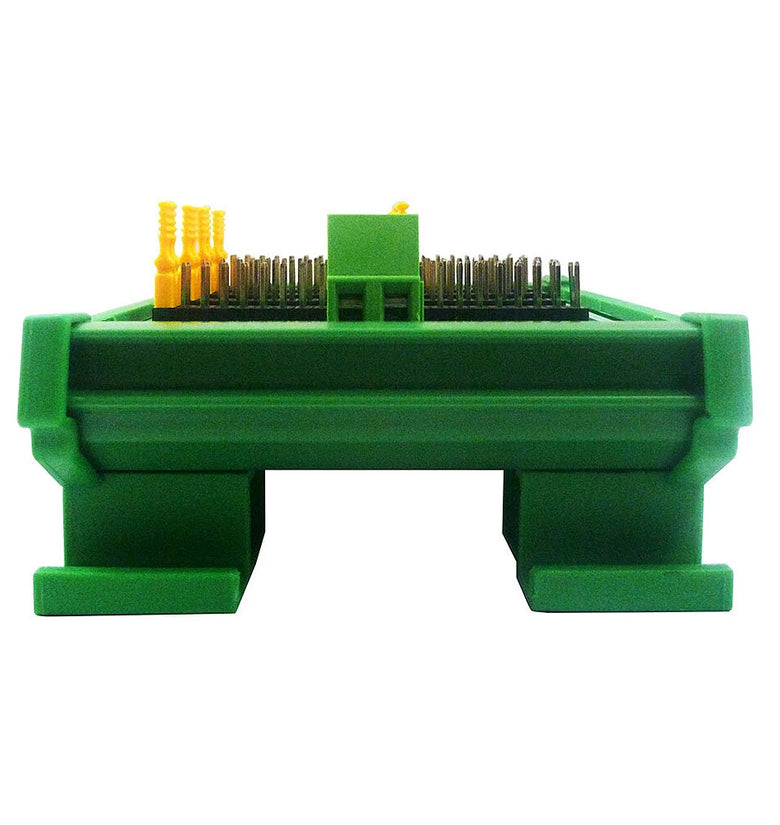

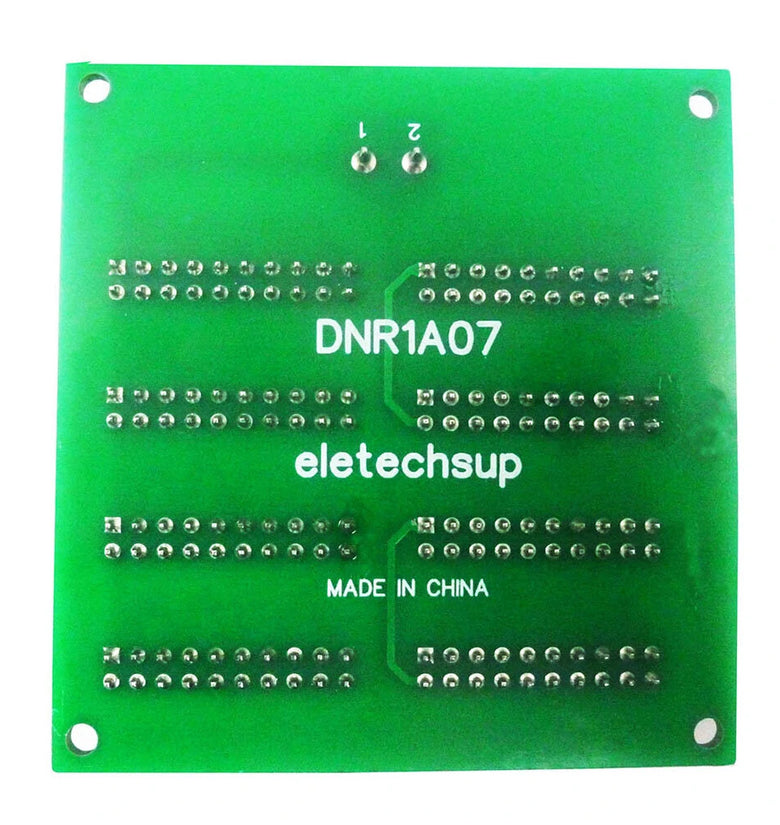

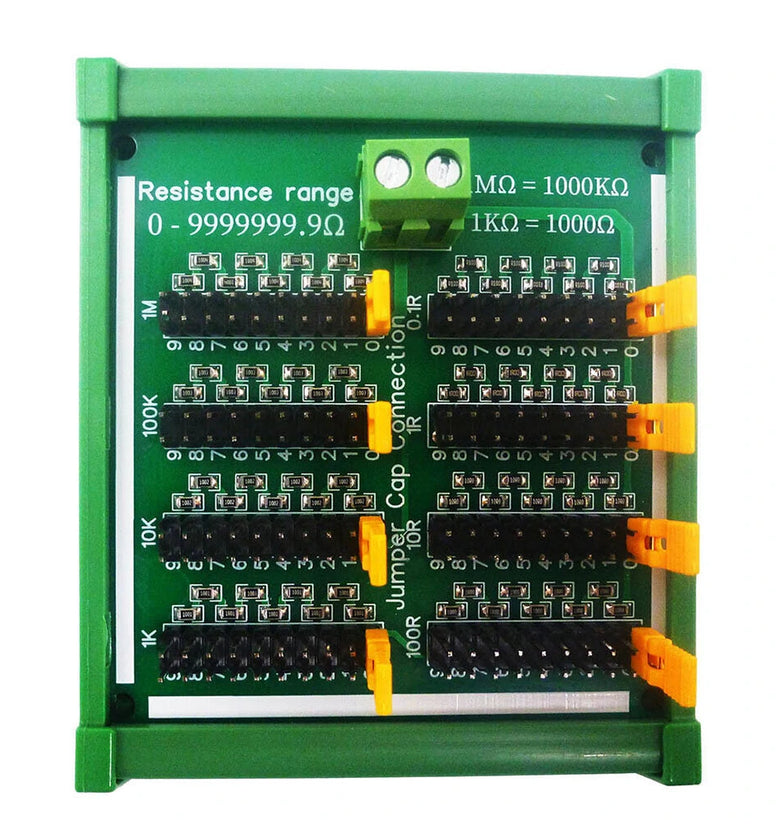

This is a low-cost and good alternative to ''resistor replacement box'', which can flexibly and quickly set the resistance range you need. This module has an adjustable resistance range of 0~9999999.9Ω, eight decimal programmable resistance modules, step 0.1R, resistance accuracy 1%, the resistance value of the resistor can be adjusted with a jumper cap. It can be used in education, experiment, testing, electronic engineering design and other fields.
Specification:
Stepping: 0.1R
8 decimal modules
Resistance accuracy: 1%
Resistance tolerance: ±1%
Maximum working voltage: 220V
Adjustable resistance range: 0~9999999.9Ω
Tolerance: 1/8 watt tolerance ±1% SMD resistor.
Resistance adjustment: You can use the jumper cap to adjust the resistance value you need
Terminals: screw terminals are used to connect wires quickly and easily
Weight with shell: 84.9g
Weight without shell: 27.5g
With shell size: 82*71*47mm
Size without shell: 72*68*18mm
Package Include:
1×Adjustable Programmable Resistance Module
