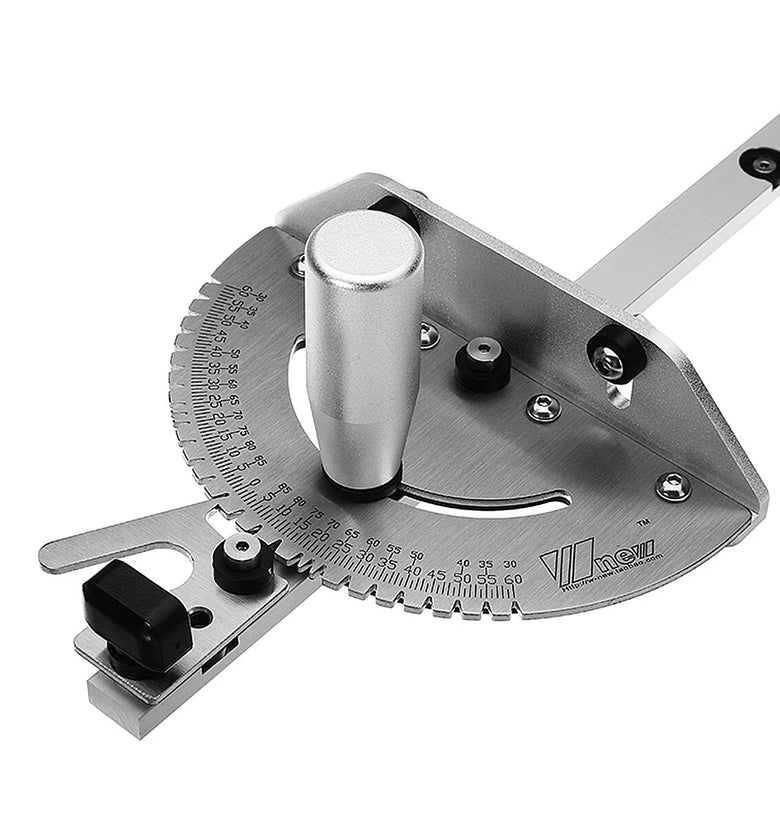

450mm Angle Miter Gauge Sawing Assembly Ruler Woodworking Tool for Dewei 744, 745, Haiwei, steel table saws, band saws, Makita 2705 table saw.
Description:
- A miter gauge consists of a long thin guide, which rides in the miter slot of your table saw (some band saws also have miter slots),
and guides the miter gauge parallel to the blade.
and guides the miter gauge parallel to the blade.

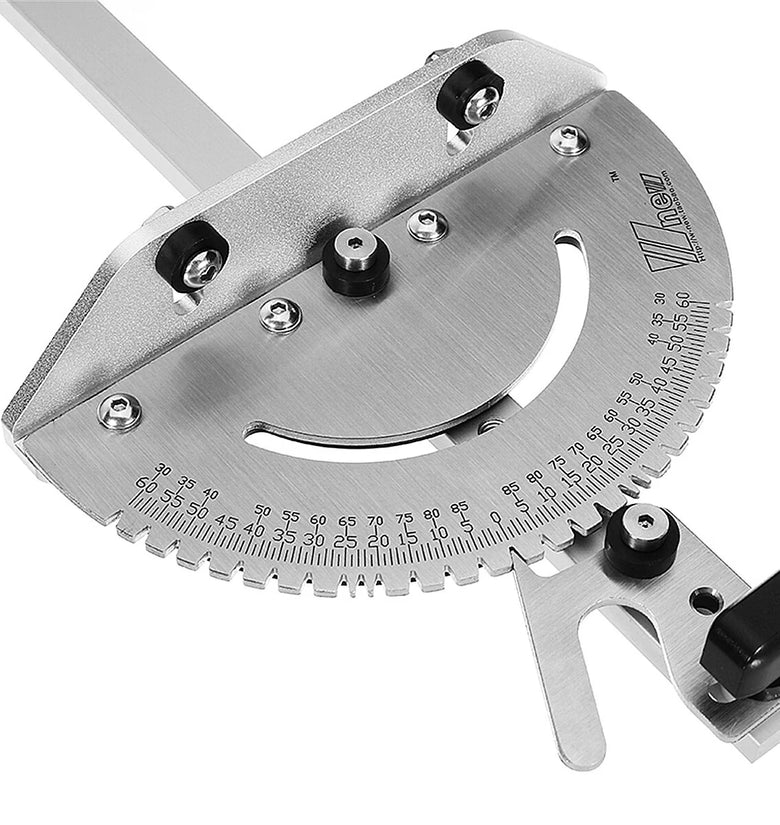

- Attached to this guide is a half-moon shaped piece that pivots on its connection point to the guide.
- A locking mechanism then allows this pivoting section to be locked into any angle.
- A board is placed against the flat section of the gauge and the entire assembly (miter gauge and board) is slid forward,
allowing the saw blade to cut the end of the board at the prescribed angle.
allowing the saw blade to cut the end of the board at the prescribed angle.
Specification:
Material: Aluminum + Plastic
Application: Wood Working Tool
Screw size: about 6mm (M6)
Standard Slot Size: Width 3/4'(19 mm), Thick 3/8'(9.5 mm)
Suitable for Dewei 744, 745, Haiwei, steel table saws, band saws, Makita 2705 table saw
Suitable for Dewei 744, 745, Haiwei, steel table saws, band saws, Makita 2705 table saw
Overall Size: as picture shown
Features:
1. For professional use. Delivers extreme miter cutting accuracy.
2. Miter Gauge featuring 27 angle stops for precise incremental control.

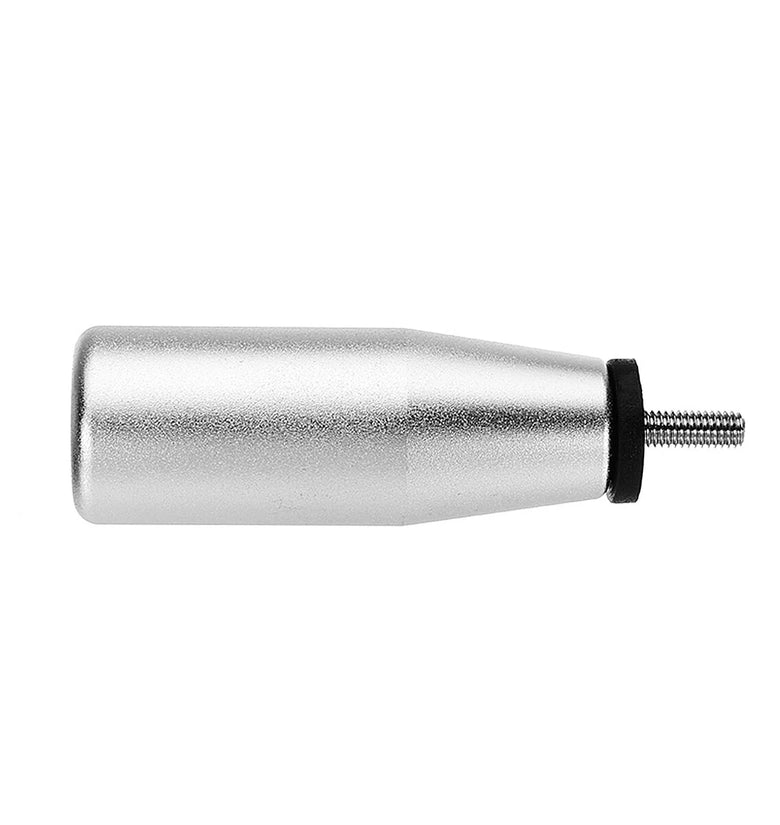

3. Large grip for comfort and strength.
4. Tip resistant washer to keep gauge steady when extended over work surface.
5. The Miter Gauge is with standard miter bar dimension 3/8' by 3/4' (approximately 9.5mm by 19mm) and 450mm long.
6. It can be used on most table saws and router tables with standard slots.
7. Fit your table saw, band saw, router table, disk sander, or belt sander like a glove that has 3/8 x 3/4 inch slot, such as Dewalt 744, Dewalt 745, Makita 2705 and so on.

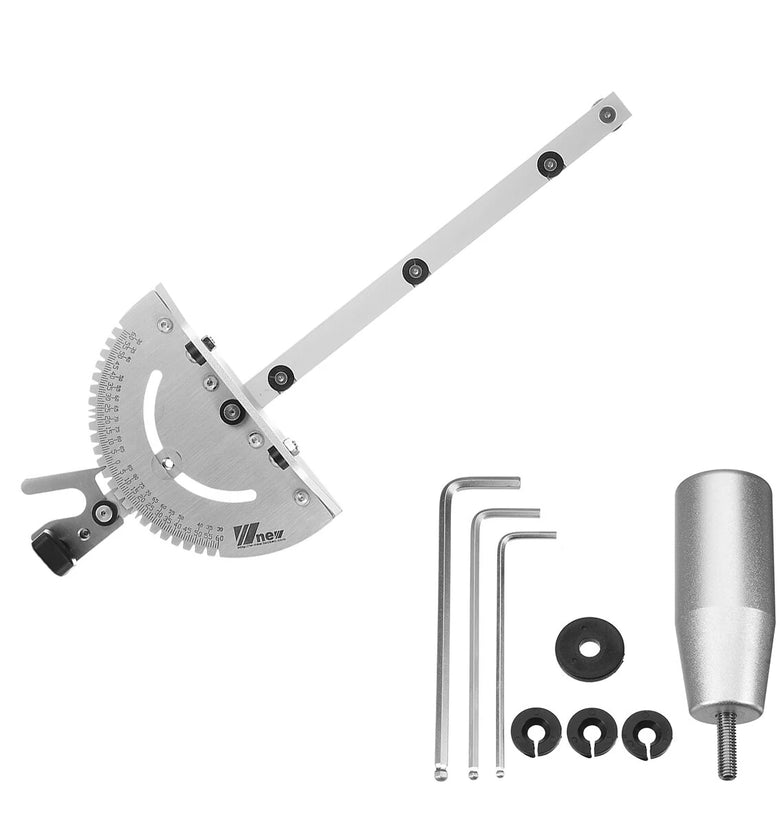

Package Included:
1pc x Miter Gauge
Notice:
1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.
2. The color may have different as the difference display, pls understand.
More Details:
This Miter Gauge works with the T-tracks and the T-tracks is not included in this package,
If you want the T-tracks, please click here: 800mm T-track.
This Miter Gauge works with the T-tracks and the T-tracks is not included in this package,
If you want the T-tracks, please click here: 800mm T-track.
