Specifications:
Bandwidth: 500kHz
ADC Resolution: 12-bit
Real-time Sampling Rate: 1.5Msps
Waveform Buffer Length: 1024 points
Vertical Sensitivity Range: 10mV/div - 5V/div
Input Impedance: 1MΩ
Maximum Input Voltage: 50Vpk
Coupling Modes: DC, AC, GND
Horizontal Time Base Range: 1μs/div - 500s/div
Trigger Modes: Auto, Normal, Single
Trigger Edge: 1μs/div - 500s/div
Power Supply: DC 5V (via USB Type-C interface)
Current Consumption: <100mA
Product Dimensions: 118 x 76 x 12mm
Features:

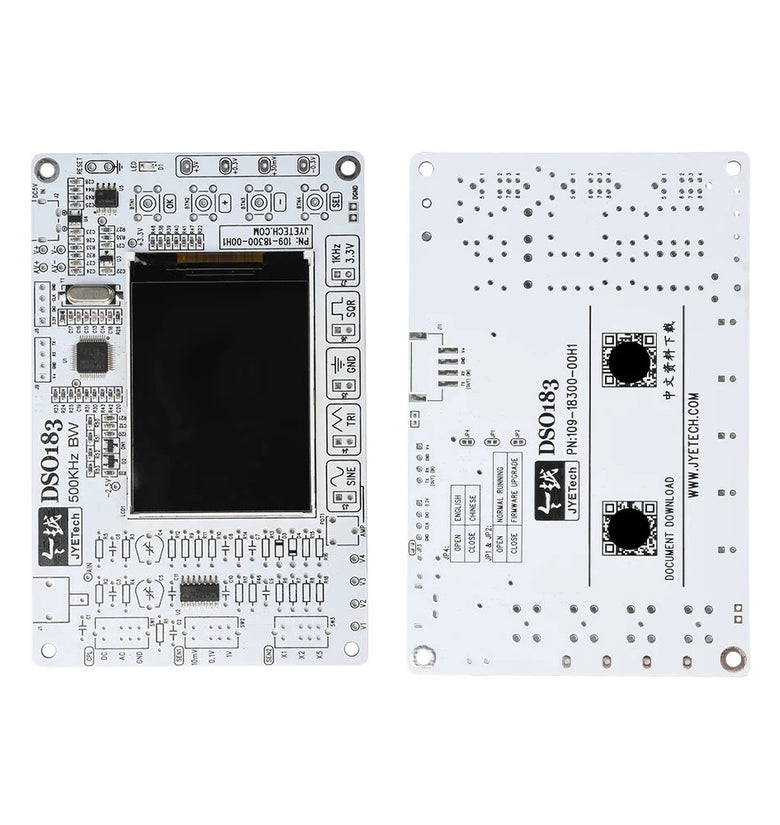

1. Compact Single-Board Design: Features an integrated structure for straightforward installation and high stability. Its compact form factor is perfectly suited for a wide range of experimental environments and educational projects.

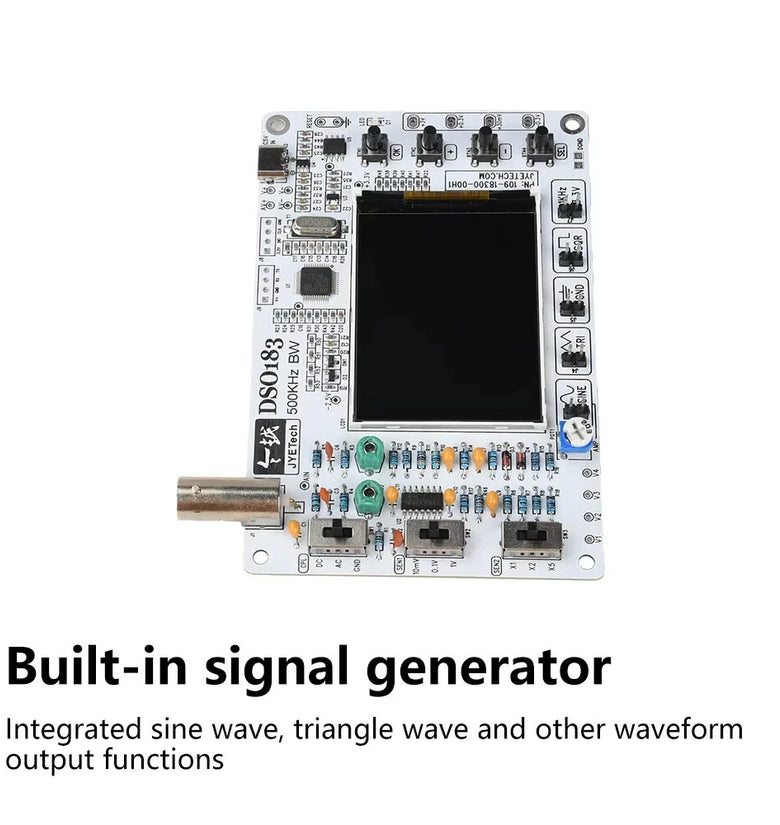

2. Built-in Signal Generator: Integrates a versatile signal generator that provides multiple waveform outputs, including sine and triangle waves. This feature meets varied testing requirements without the need for external equipment.

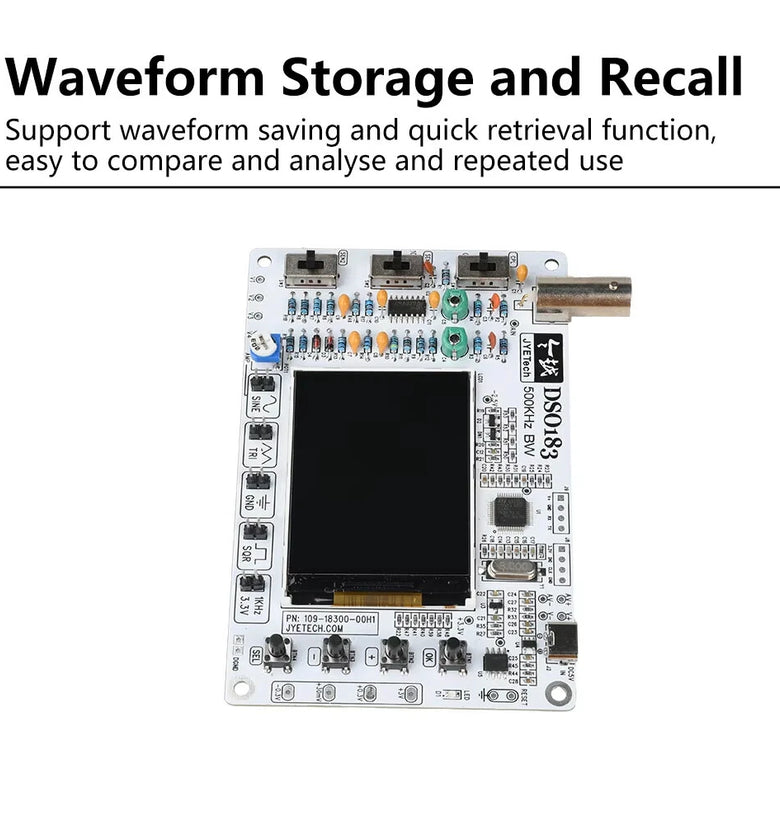

3. Waveform Storage and Recall: Supports convenient waveform saving and rapid retrieval. This function is essential for comparative analysis, allowing you to easily access and reuse previously captured signal data for further study.

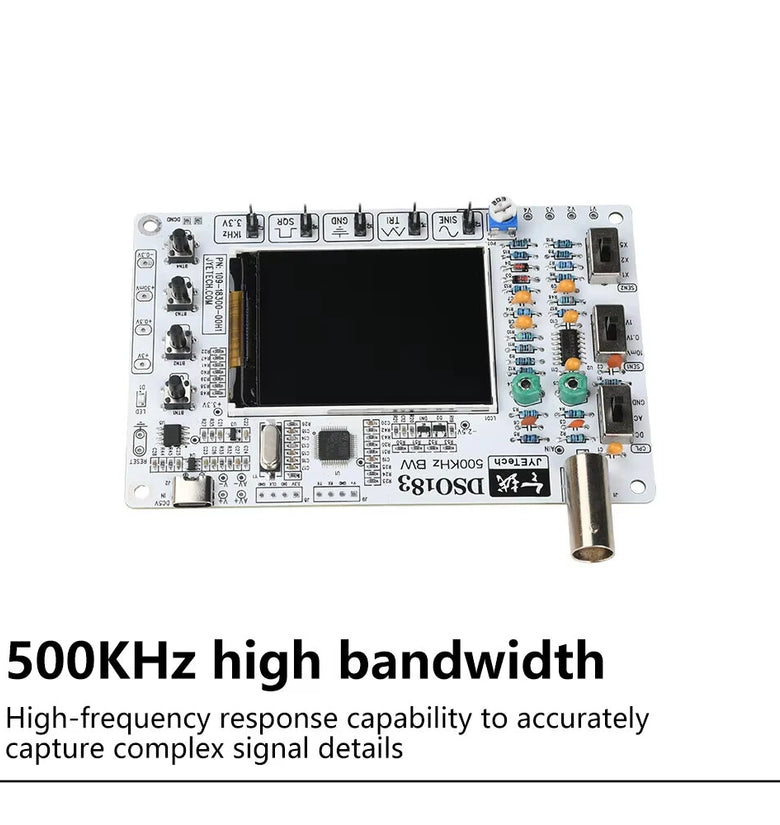

4. 500kHz High Bandwidth: Delivers a high-frequency response with its 500kHz bandwidth and 1.5Msps real-time sampling rate. It is engineered to accurately capture intricate signal details for a variety of electronic applications.

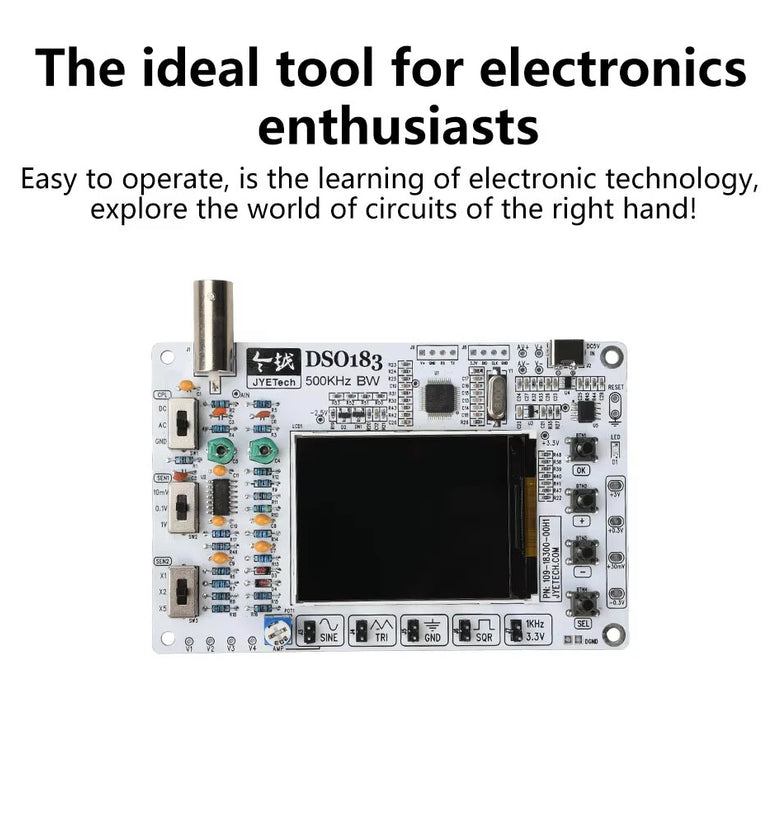

5. Ideal Tool for Electronics Enthusiasts: Combines simple operation with robust functionality, making it a capable assistant for students and hobbyists. It is an excellent educational tool for learning electronics and exploring circuitry.
Package Included:

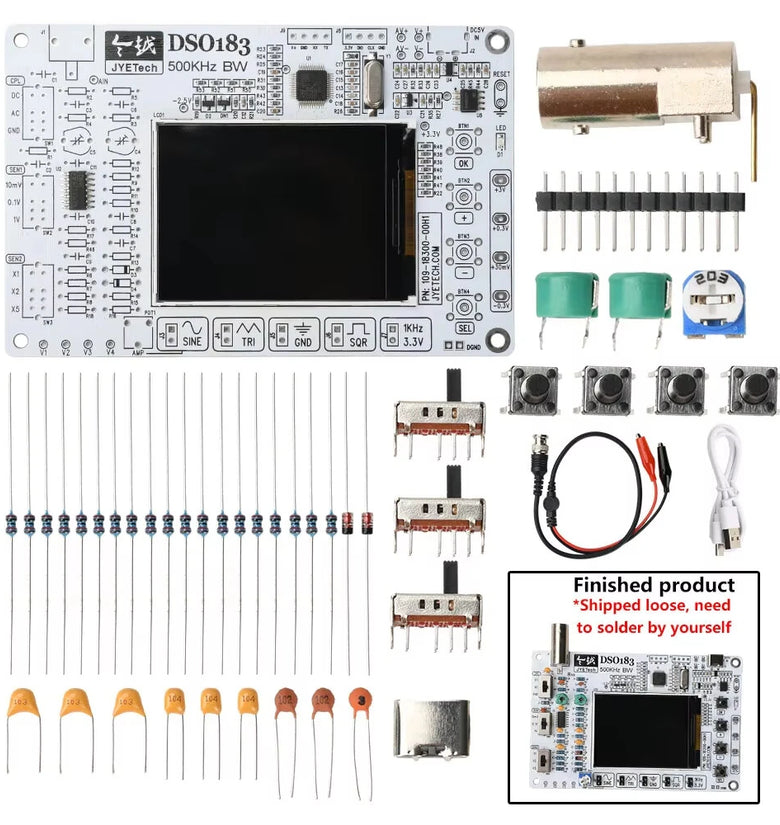

1 x DIY Digital Oscilloscope Kit Components
