Features:
- 2.4-inch 320X240 TFT LCD with clear graphic interface
- Chinese / English menu available
- Both channels are independent of each other and have phase synchronization function.
- Sampling rate: 200MSa/S, vertical resolution: 13bit and storage depth: 8k
- 5 basic waveforms and 32 arbitrary waveforms in-built
- Waveform storage: Support internal storage of 50 groups of user-defined edited waveforms;
- Pulsewave output set in edge time
- InternalAM, FM, PMmodulation function（External AM, FM, PM modulation is optional）
- Internal/external ASK, FSK, PSK modulation function;
- Dual channel output, maximum output frequency 60M;
- Output of linear/logarithmic sweep and burst (pulse train) waveforms;
- With 100MHz high precision frequency meter and 32 bit counter;

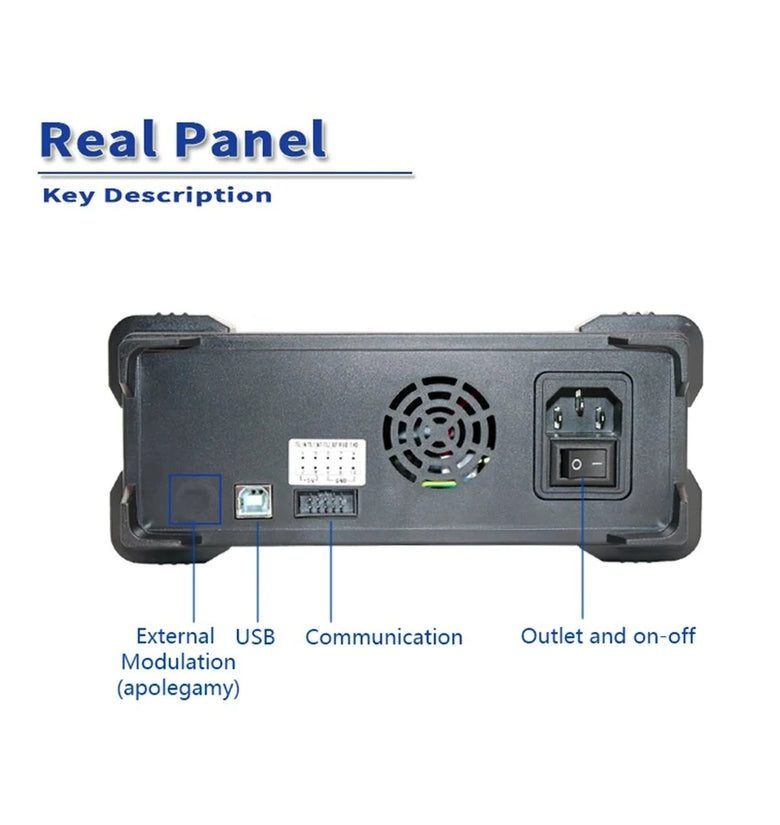

- Standard USB Device interface; Optional external analog modulation interface;
- Equipped with multifunctional arbitrary waveform editing software.
Specification:
Power | |
Power voltage |
AC 110~240V，50~60Hz |
Power consumer |
<15W |
Display | |
Type |
2.4-inch TFT LED |
Resolution |
320×240 |
Color |
16M color |
Condition | |
Temperature range |
Operation：10℃~+40℃；Non-operation：-10℃~+60℃ |
Cooling method |
Natural cooling |
Humidity range |
+35℃ below：≤90％relative humidity；+35℃ ~ +40℃：≤60％relative humidity |
Interface |
USB Device |
Packing included:
1 x Waveform Generator
1 x Three-core power cable
2 x BNC coaxial cables
1 x USB data cable
1 x Straight signal cable
1 x Instruction Manual
