  • ESP32-C6 Development Board ESP32-C6 Series module WiFi6 ESP32 Board Microcontroller Module Board

SKU:

ESP32-C6 Development Board ESP32-C6 Series module WiFi6 ESP32 Board Microcontroller Module Board

R 428.70



Product type: Electronic Components & Supplies

Weight:

Isaiah 55:8-9 John 3:16 Philippians 4:19
Trust_Badges
Payment_Icons
Buyer Protection and Guarantees Privacy Policy




Description:

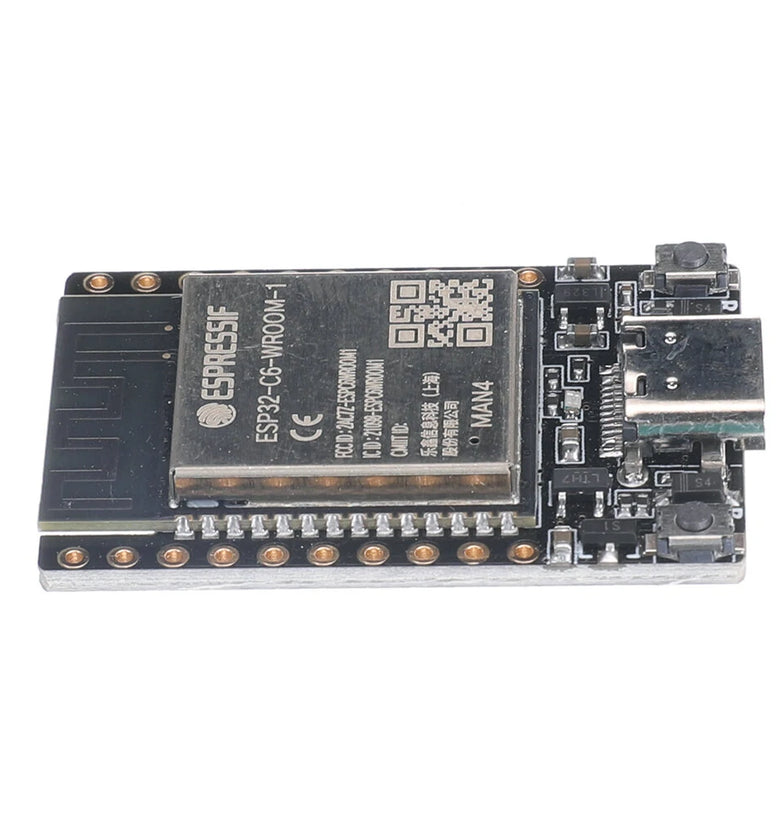

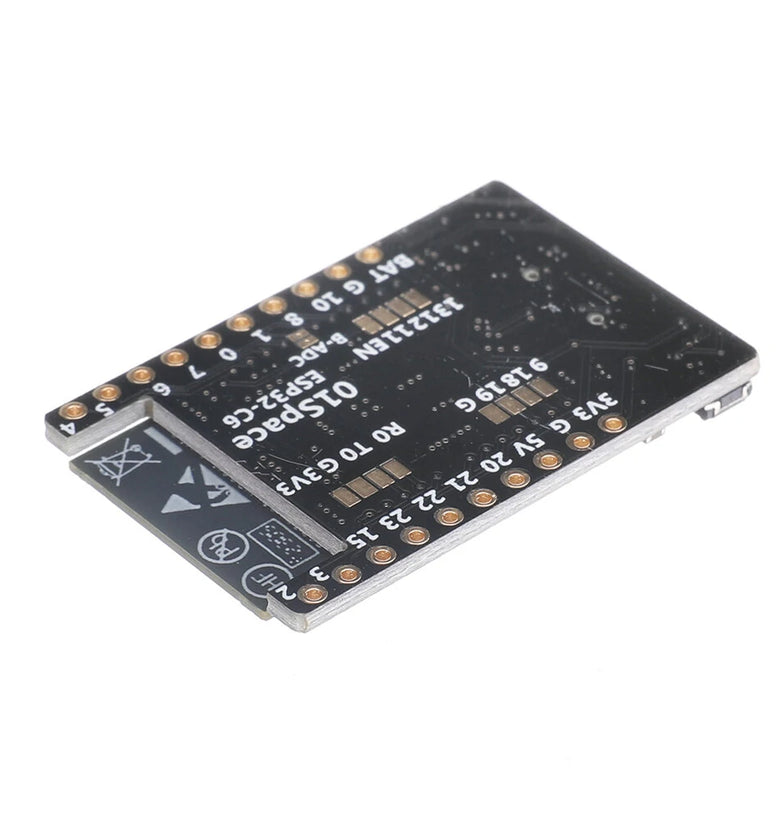

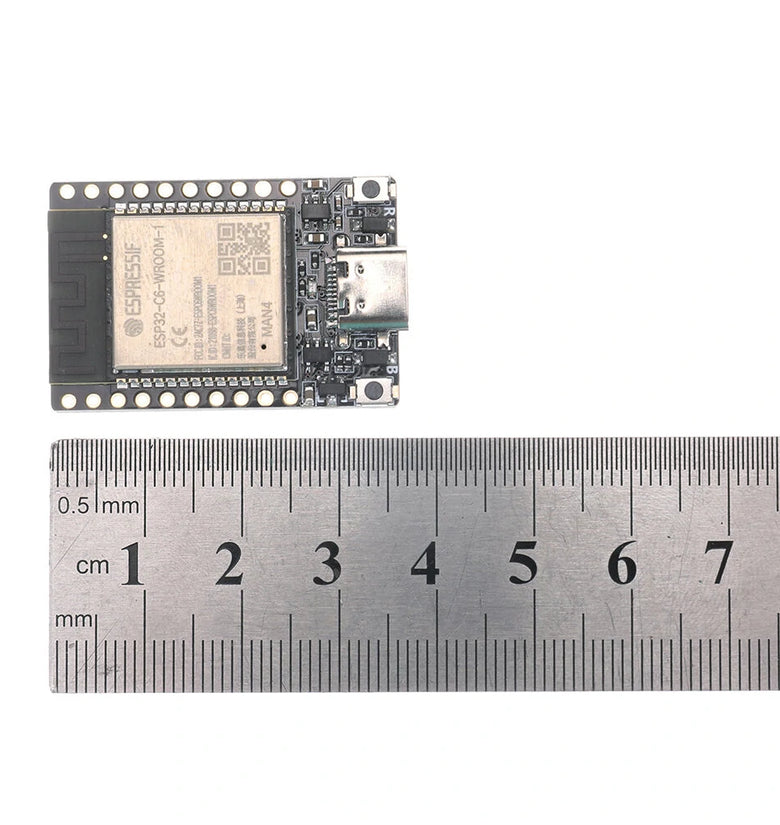

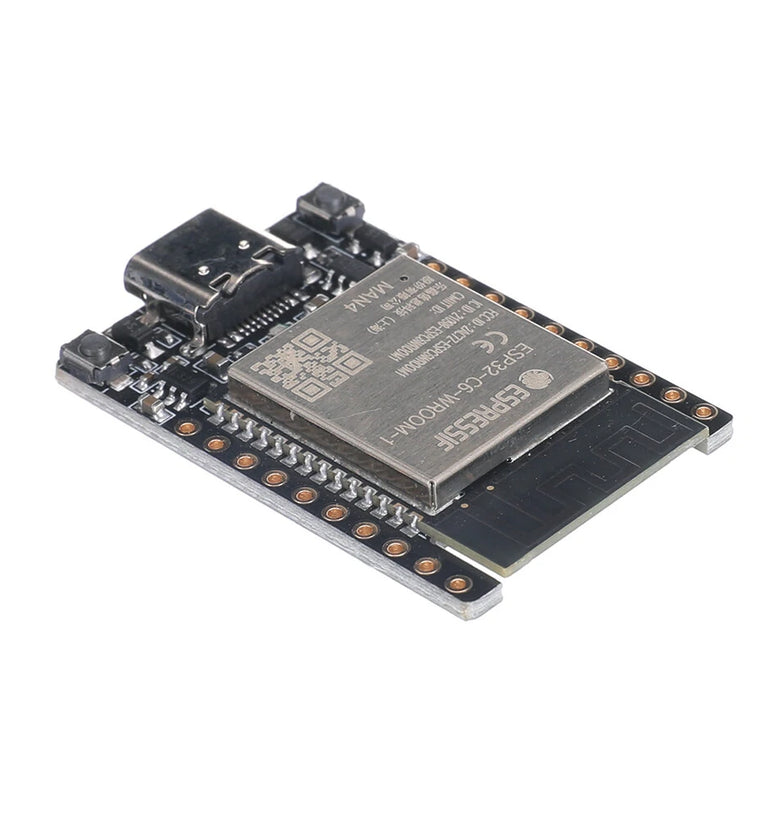

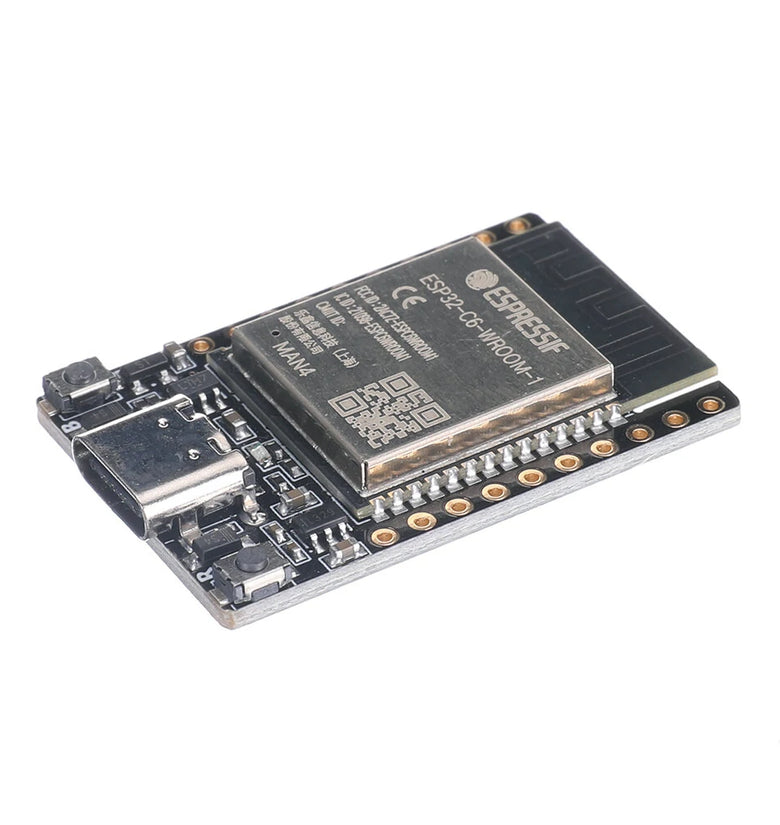

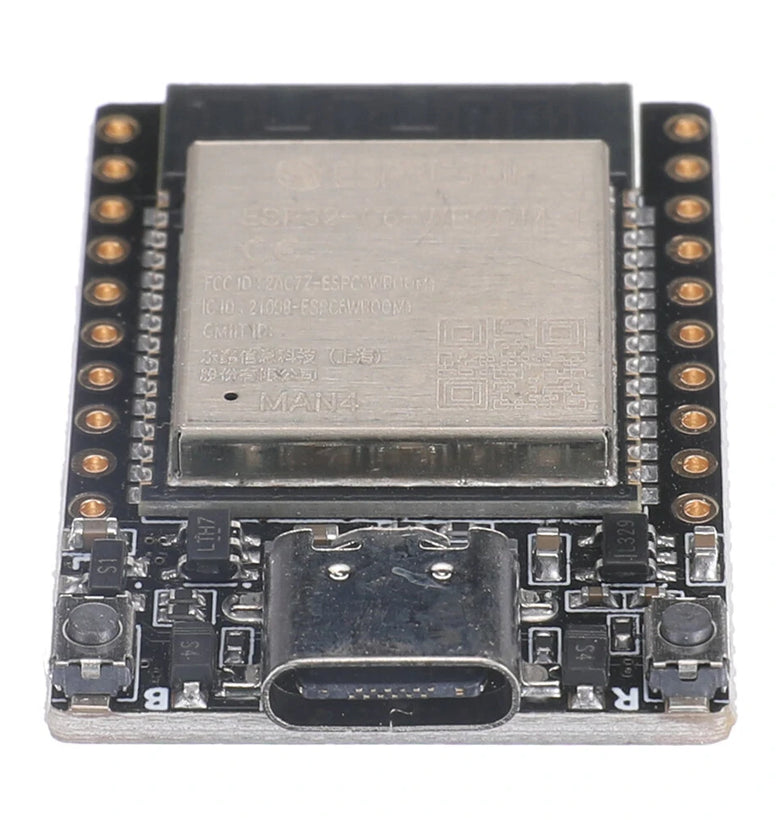

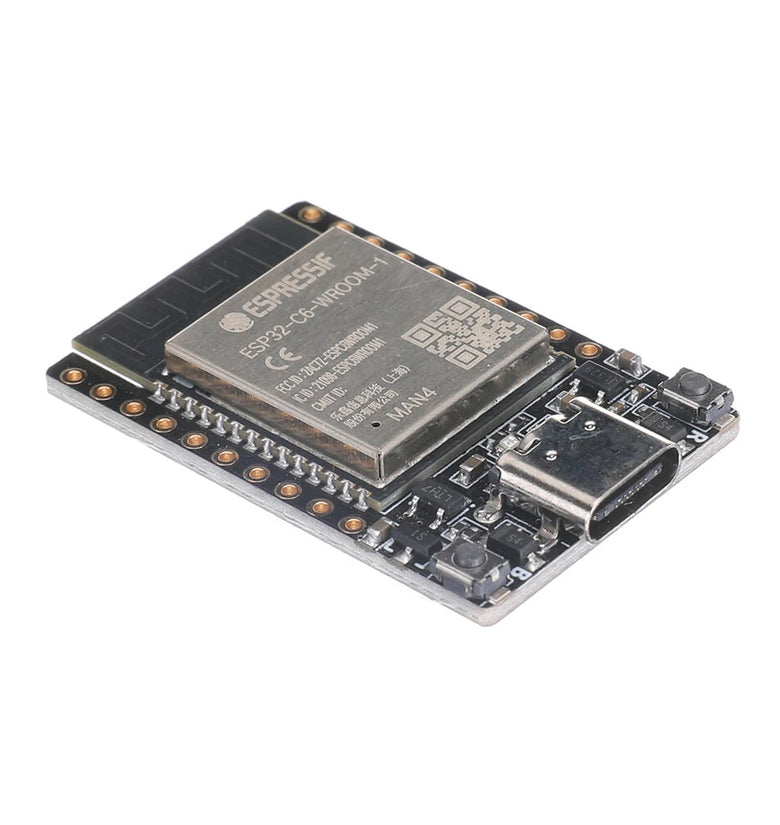

The ESP32-C6 Development board is a versatile Wi-Fi, IEEE 802.15.4, and Bluetooth LE module with powerful features. It uses the ESP32-C6 chip, equipped with RISC-V 32-bit single-core processor, has 4 MB external SPI flash memory, and integrates rich peripherals, including SPI, UART, I2C, on-board antenna, and up to 23 GPIO and other interfaces. Integrated lithium battery charging chip. Rich peripherals and high performance make this module ideal for smart homes, industrial automation, healthcare, consumer electronics, and more.Features:Equipped with RISC-V 32-bit single-core processor, the operating frequency is up to 160 MHz with 320 KB ROM,512 KB SRAM,16 KB Low-power (LP) SRAMSupport IEEE 802.11ax protocol, IEEE 802.11 b/g/n-compliantSupport Bluetooth BLE 5Integrated lithium battery charging chipRich peripheral interfaces, including 23 GPIOs, UART, I2C, I2S, RMT (TX/RX),LED PWM, etc.Specification:


Model: ESP32-C6-WROOM-1-N4 ModuleChip: ESP32-C6 chip, RISC-V 32-bit single-core processor, supports clock frequency up to 160 MHzWorks in 2.4 GHz frequency band, 1T1RSupports Bluetooth Low Energy 5.04 x virtual Wi-Fi interfacesSupport IEEE 802.11ax protocol,Compatible with IEEE 802.11b/g/n protocols, supporting 20 MHz and 40 MHz bandwidth-data rates up to 150 MbpsCompatible with IEEE 802.15.4-2015 protocol, working in 2.4 GHz frequency band, supporting OQPSK PHY/Thread 1.3/Zigbee 3.0Antenna form: onboard PCB antennaSupport interface: UART, I2C, I2S, RMT (TX/RX), LED PWM, USB Serial/JTAG controller, etc.Operating temperature: -40℃~85℃Power supply range: 0~3.6VIntegrated lithium battery charging chipSPI Flash: 4MBSize: 37 x 24mmWeight: 5gPackage Included:1 x ESP32-C6 Development board
