  • ESP32-C6 GEEK Development Board With 1.14inch 65K Color IPS LCD 240x135 Supports 2.4GHz Wi-Fi 6 & BLE 5 USB-A Port

SKU:

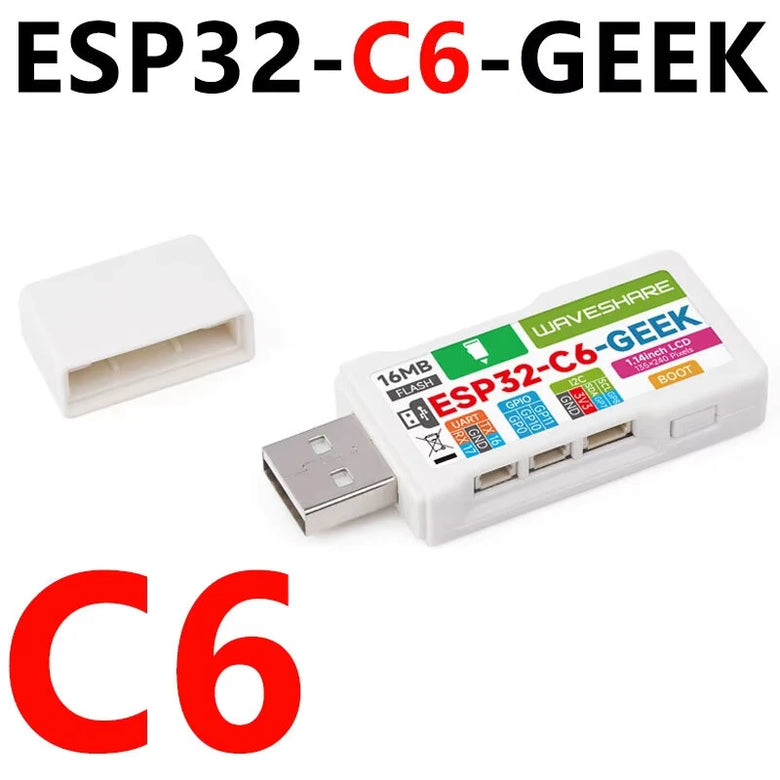

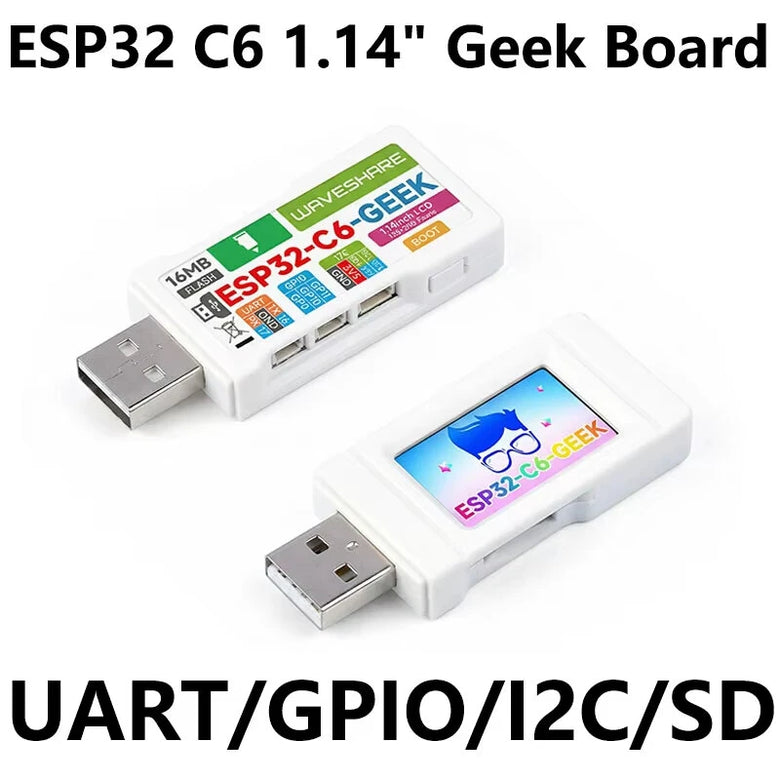

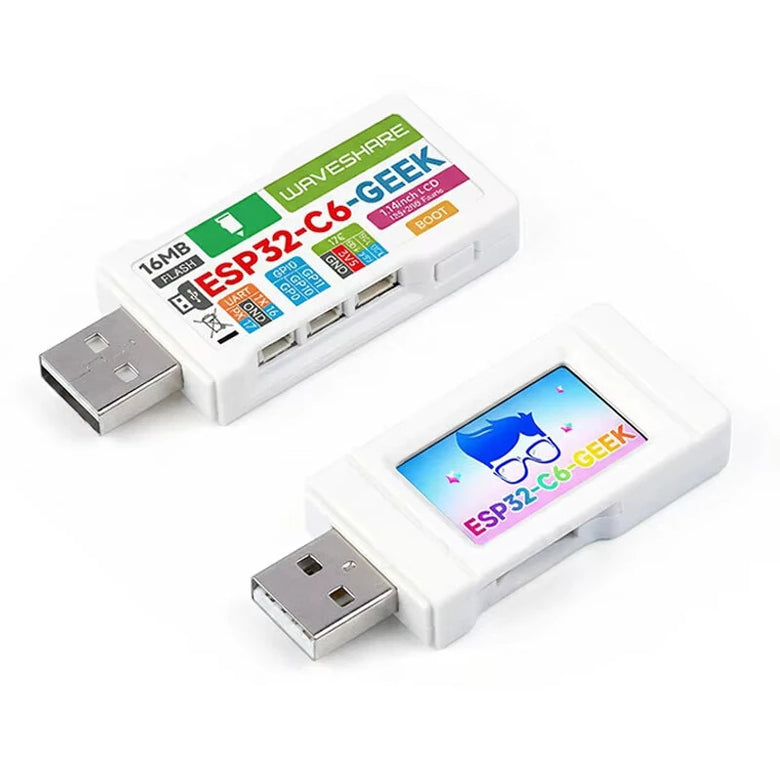

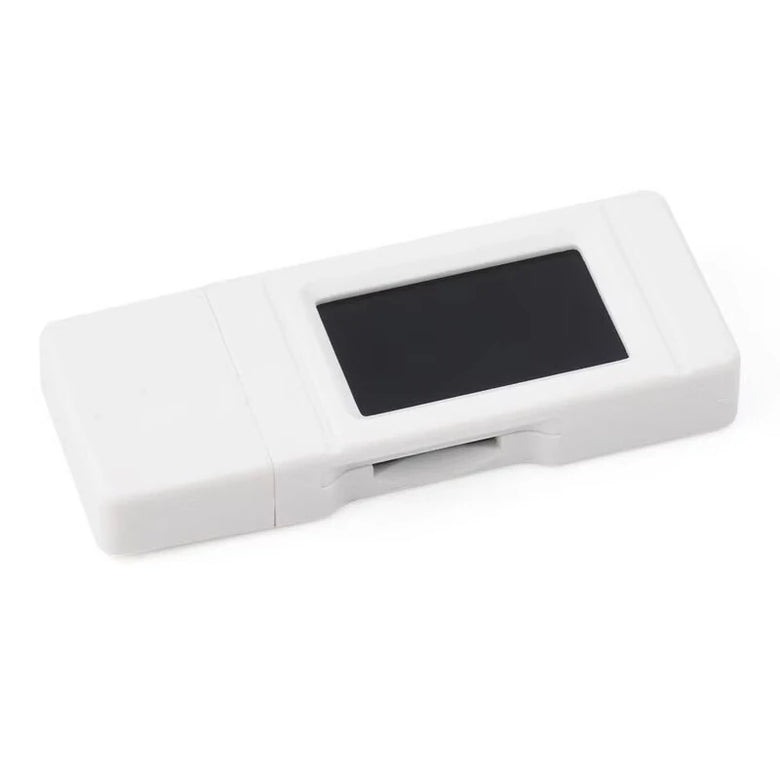

ESP32-C6 GEEK Development Board With 1.14inch 65K Color IPS LCD 240x135 Supports 2.4GHz Wi-Fi 6 & BLE 5 USB-A Port

R 614.70



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy





    Specifications:
    Processor: 32-bit RISC-V, up to 160 MHz main frequency
    Memory: 512 KB Static RAM, 320 KB ROM, onboard 16 MB Flash
    Wireless: 2.4 GHz Wi‑Fi 6 and Bluetooth 5 (LE), onboard antenna
    Display: 1.14-inch 65K color IPS LCD, 240 × 135 resolution

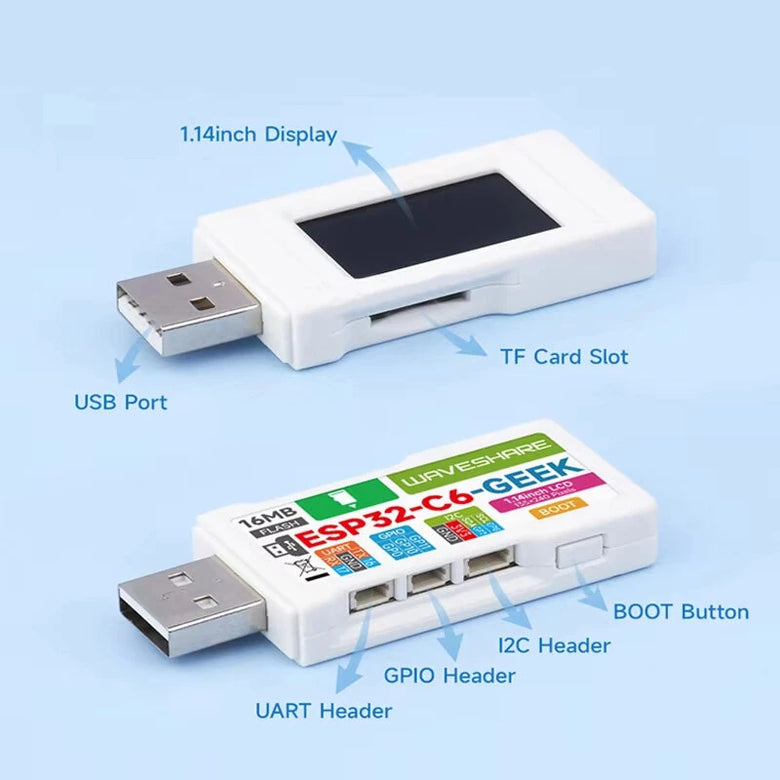

    Interfaces: USB‑A male port, TF card slot, 3‑pin UART header, 3‑pin GPIO header, 4‑pin I2C header
    Button: BOOT button
    Enclosure: Plastic case
    Accessories: Cables included

    LCD
    Operating Voltage: 3.3 V / 5 V
    Communication Interface: 4‑wire SPI
    Display Panel: IPS
    Driver IC: ST7789
    Resolution: 240 × 135 pixels
    Display Size: 24.91 × 14.86 mm
    Pixel Size: 0.1101 × 0.1035 mm
    Outline Dimensions: 61.00 × 24.50 mm

    Features:
    1. ESP32‑C6 RISC‑V core up to 160 MHz with 512 KB SRAM, 320 KB ROM, and 16 MB Flash.
    2. Integrated 1.14' IPS LCD (65K color) with 240 × 135 resolution for clear UI and status.
    3. Dual‑mode wireless: 2.4 GHz Wi‑Fi 6 and Bluetooth 5 (LE) with onboard antenna.
    4. TF card slot for adding storage to save images and files.
    5. USB‑A male port, BOOT button, UART/GPIO/I2C headers, plus open‑source demos and resources.

    Package Included:
    1 x ESP32‑C6 GEEK Development Board
