Specifications:

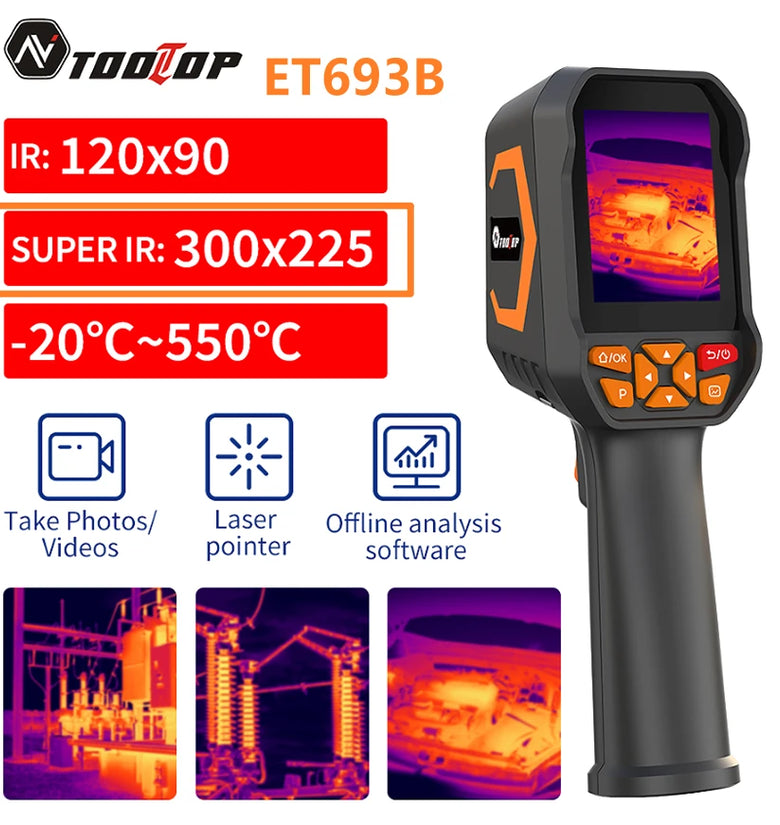

ET693B:
Resolution: 120 x 90
SUPER IR Resolution: 300 x 225
Working Band: 8~14μm
Pixel Size: 17μm
Frame Rate: 25Hz
NETD: 60mk@25℃
Field of View: 38° x 50°
Lens: 2.3mmF1.1
Temperature Measurement Range: -20°C~550°C
Temperature Measurement Accuracy: ±2°C or ±2% of reading
Temperature Measurement Modes: Full-screen hotspot, cold spot center point, regional temperature measurement
Temperature Compensation: Supports distance compensation within 2 meters
Color Palette Options: Iron, white hot, black hot, rainbow, red hot, high contrast, coldest
Screen Size: 2.8 inches
Image Mode: Thermal image
Languages Supported: English, French, Spanish, Portuguese, German, Polish, Russian, Arabic, Japanese, Korean, Chinese
Interface: USB Type-C (supports charging and data transfer)
Laser Pointer: Supported
LED Lighting: Supported
Storage Capacity: 8G built-in memory, usable storage of 6.19G, capable of saving over 20,000 pictures

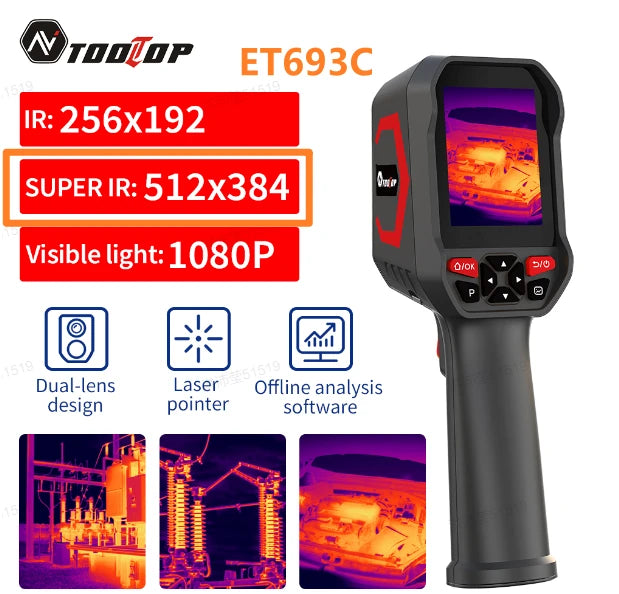

ET693C:

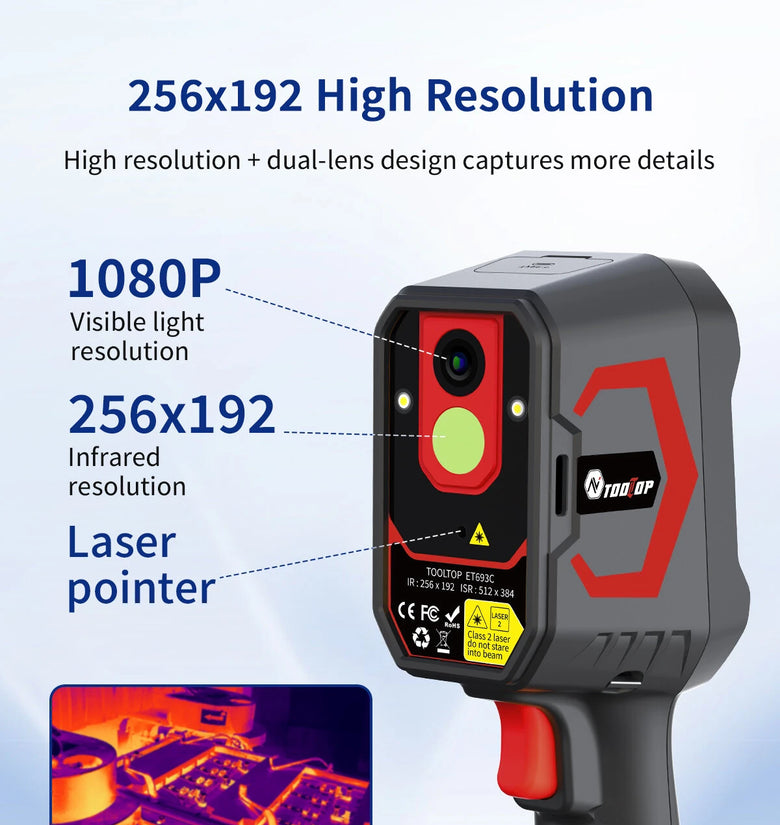

Infrared Resolution: 256x192 (SUPER IR: 512x384)
Working Band: 8~14µm
Pixel Size: 12µm
Frame Rate: 25Hz
NETD: 50mk@25°C
Field of View (FOV): 42° x 56°
Lens: 3.2mm F1.1
Temperature Measurement Range: -20°C~550°C
Temperature Measurement Accuracy: ±2°C or ±2% of reading
Measurement Modes: Full-screen hotspot, cold spot, center point, regional temperature measurement
Temperature Compensation: Supported for distances within 5 meters
Visible Light Resolution: 1080P
Visible Light Field of View: 55° x 83°
Screen Size: 2.8 inches
Color Palettes: Iron, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Coldest
Image Modes: Outline fusion, overlay fusion, picture-in-picture, single infrared, single visible light
Languages Supported: English, French, Spanish, Portuguese, German, Polish, Russian, Arabic, Japanese, Korean, Chinese
Interface: USB Type-C (Charging and Data Transfer)
Built-in Storage: 8GB, actual usable storage 6.19GB (stores more than 20,000 images)
Laser Pointer and LED: Supported

Features:
1.High Resolution Imaging
With a SUPER IR resolution of 300 x 225 and a NETD sensitivity of 60mk@25°C, this thermal camera captures clear and precise heat patterns, making it ideal for detailed diagnostics.
2.Wide Temperature Measurement Range
Measures temperatures as low as -20°C and as high as 550°C, offering versatility across industrial inspections, home diagnostics, and professional applications.
3.Customizable Color Palettes
Choose from nine color palette modes like iron, black hot, and rainbow to match varying environmental conditions and enhance visual analysis during inspections.
4.Multi-Language Support
Equipped with 12 language options, including English, Spanish, and Chinese, to facilitate global usability and user-friendly operations across different regions.
5.Built-in Storage for Efficiency
Features 8GB of built-in storage with an actual capacity of 6.19GB, enabling the device to save over 20,000 thermal images, ensuring ample storage during field work.

Package Included:
1 x AV TOOLTOP Thermal Camera
1 x USB Type-C Cable
1 x Lanyard
1 x User Manual
