Description:

This filter can guarantee a passband bandwidth of 30MHz, low insertion loss, and a steep cut-off characteristic.

Performance optimization of ADS-B receivers for 1090MHz to effectively filter out-of-band signals, reduce noise, and increase dynamic range.

The device is ultra-small and easy to use.

Specifications:

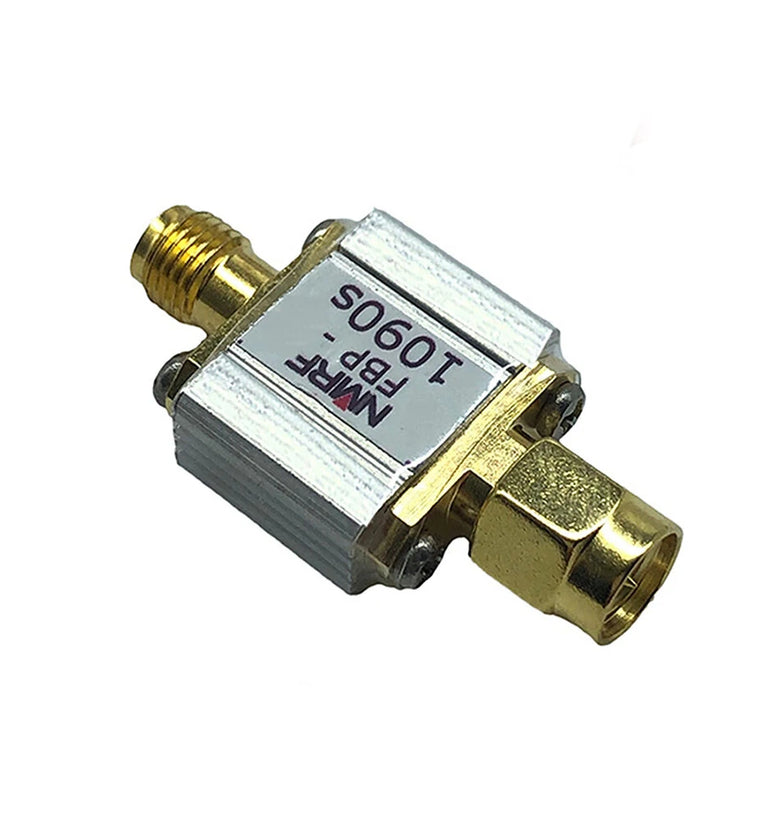

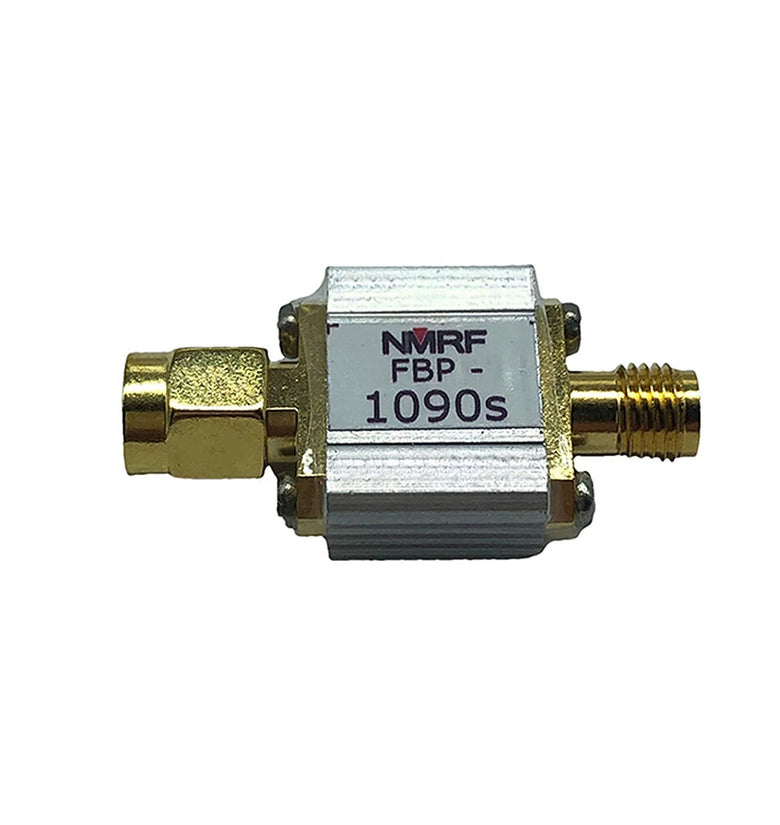

Model: FBP-1090s

Impedance: 50 Ohms

Center frequency: 1090 MHz

Passband (1 dB bandwidth): 30 MHz

30 dB bandwidth: Less than 80 MHz

In-band insertion loss: 1.7 to 2.2 dB

Maximum Carrying Power: 100 mW (20 dBm)

Interface: SMA-M, SMA-F

Material: Metal

Package Include:

1×FBP-1090s Bandpass Filter
