Specifications:

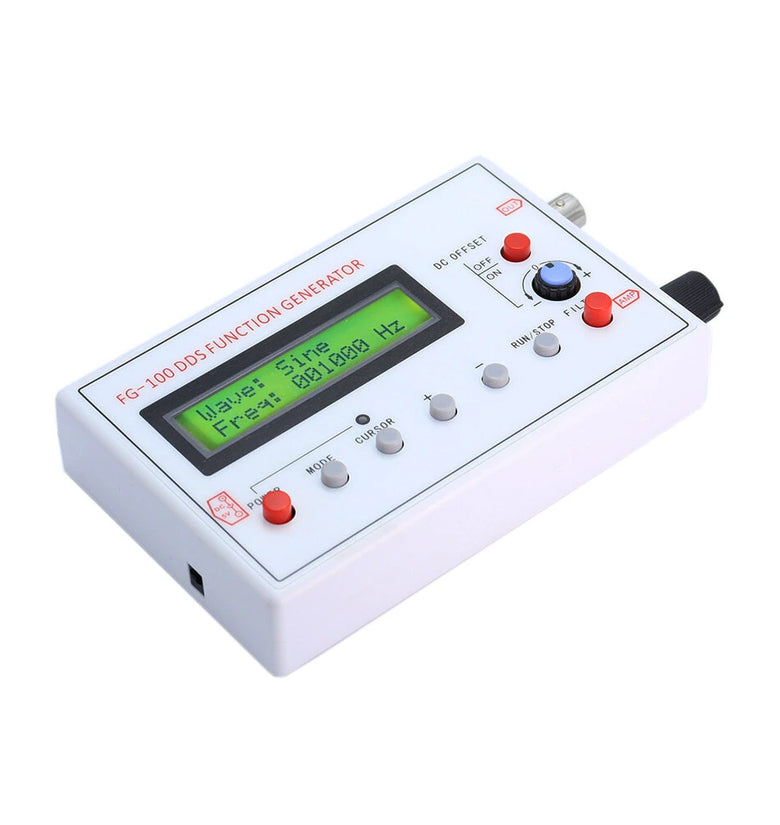

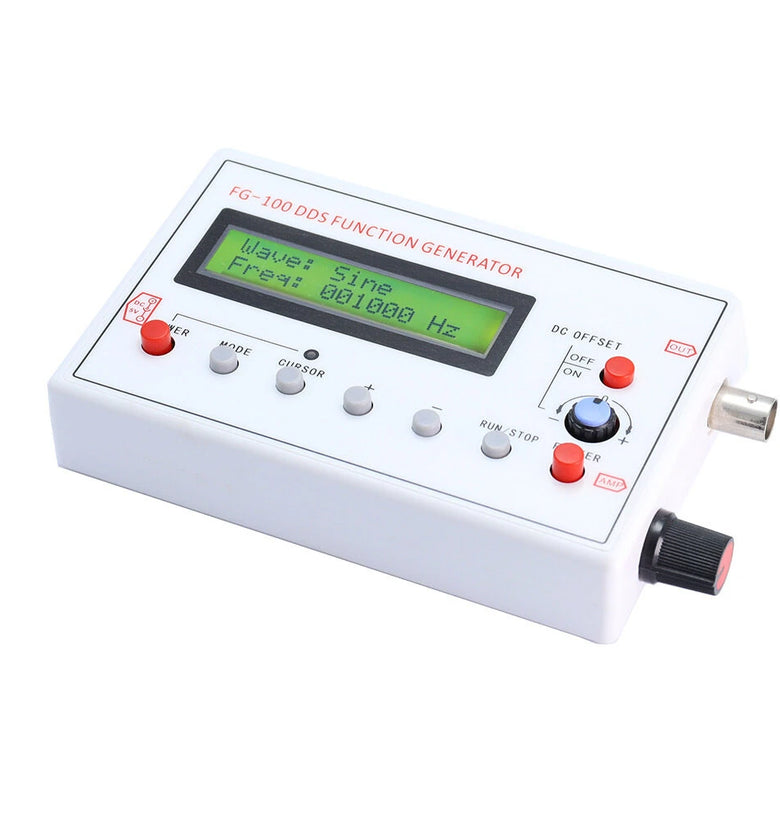

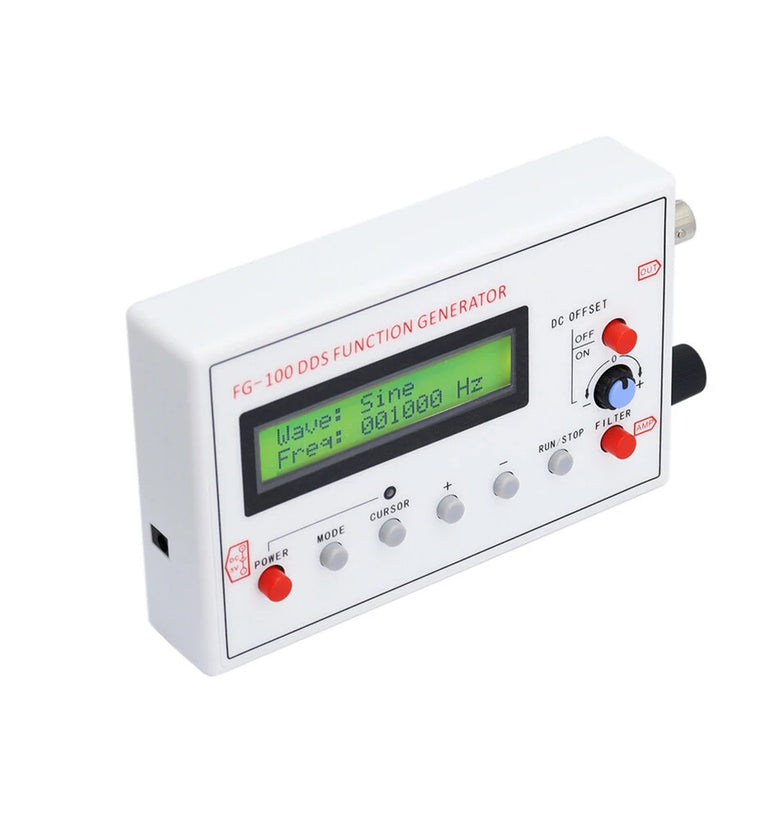

Model: FG-100

Frequency Range:

Sine Wave: 1Hz-500kHz (Flat up to 200kHz, reduced amplitude beyond)

Other Waveforms: 1Hz-20kHz

Resolution: 1Hz

Output Waveforms: Sine wave, square waves, triangle wave, forward sawtooth wave, reverse sawtooth wave, noise wave, ECG

Sine Wave Distortion:

<1% below 1kHz

<0.5% above 1kHz

Output Amplitude: Max ±10V (P-P)

Output Impedance: 50 ohms

DC Offsets: Max ±10V, with shutdown function

Power Supply:

DC 3.5-10V

Recommended: Adapter DC 5V, 3.7V lithium battery

External Dimensions: 125 x 80 x 32 mm

Weight: 0.2kg (including accessories)

Features:

1.Versatile Output Waveforms: The FG-100 function signal generator offers a variety of output waveforms including sine wave, square waves, triangle wave, forward sawtooth wave, reverse sawtooth wave, noise wave, and ECG. This versatility makes it suitable for testing and debugging various electronic circuits and audio amplifiers.

2.Compact and Portable Design: Designed to be compact and lightweight, the FG-100 is easy to carry and handle. Despite its small size, it is feature-rich and includes everything necessary for effective testing, making it an ideal tool for both field and lab environments.
