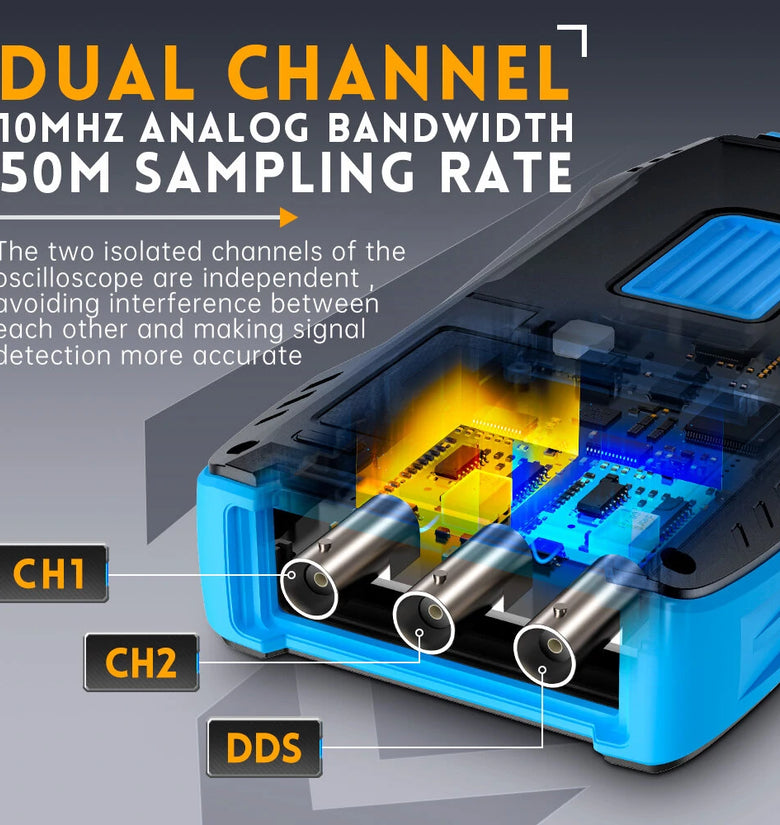

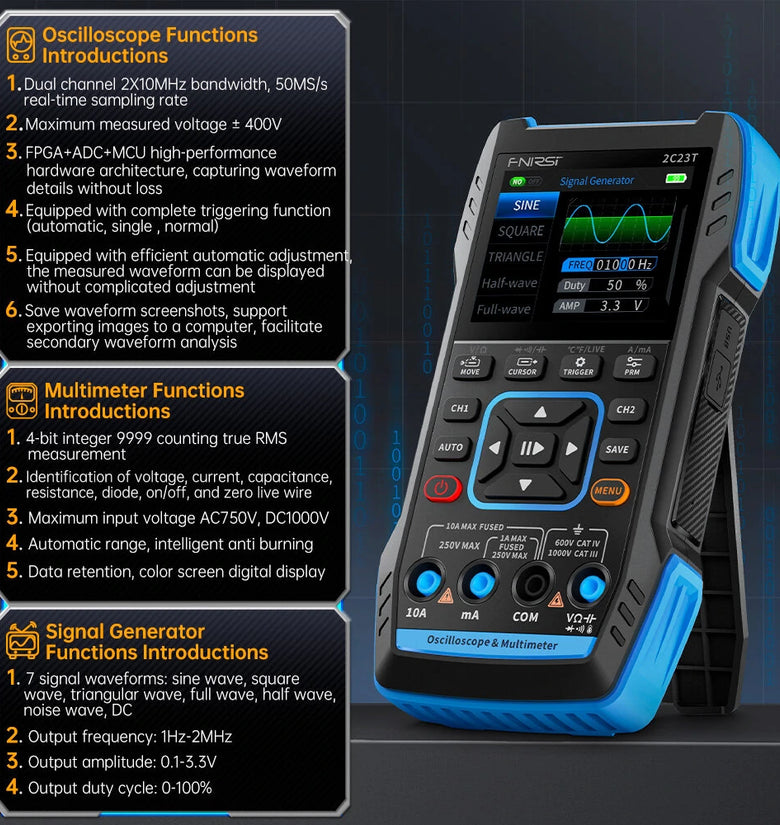

FNIRSI handheld digital oscilloscope multimeter boasts a dual-channel 2X10MHz bandwidth and a 50MS/s real-time sampling rate. This precise oscilloscope promises a detailed, stutter-free waveform capture.
The maximum voltage measurement of this device is ±400V. Suitable for a multitude of electrical applications.
Implements a high-performance FPGA+ADC+MCU hardware architecture, guaranteeing exceptional detail capture in waveform analysis.
Furnished with a full set of trigger functions including auto, single, and normal mode. It allows users to capture specific events or isolates an individual cycle from a train of pulses.

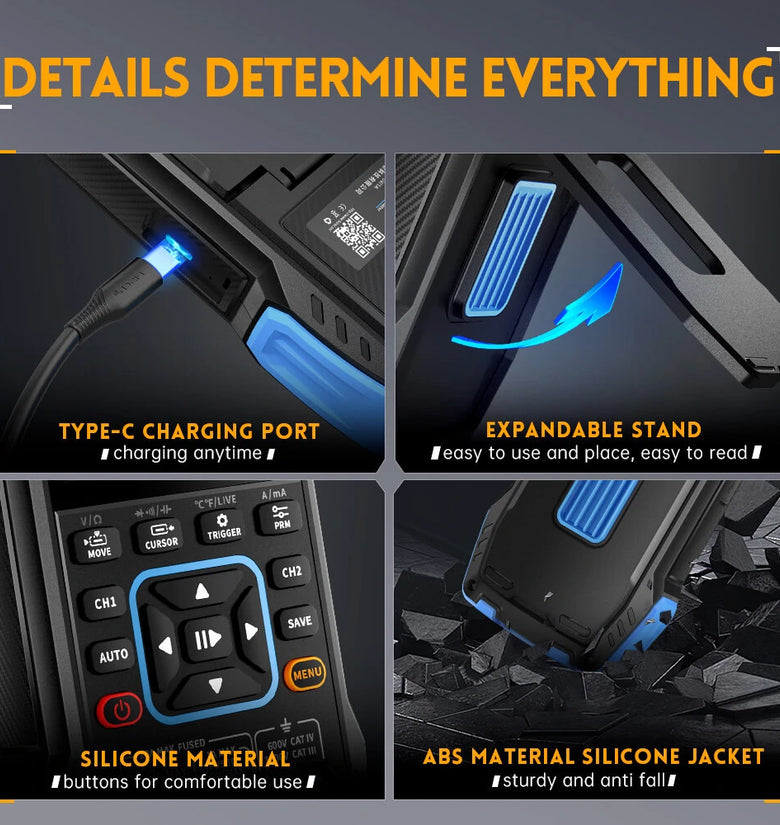

Designed with a one-click self-tuning and a waveform screenshot saving feature. Enables convenient waveform export for subsequent analysis.font-size:9.0000pt;mso-font-kerning:1.0000pt;'>
font-size:9.0000pt;mso-font-kerning:1.0000pt;'>
Specifications:

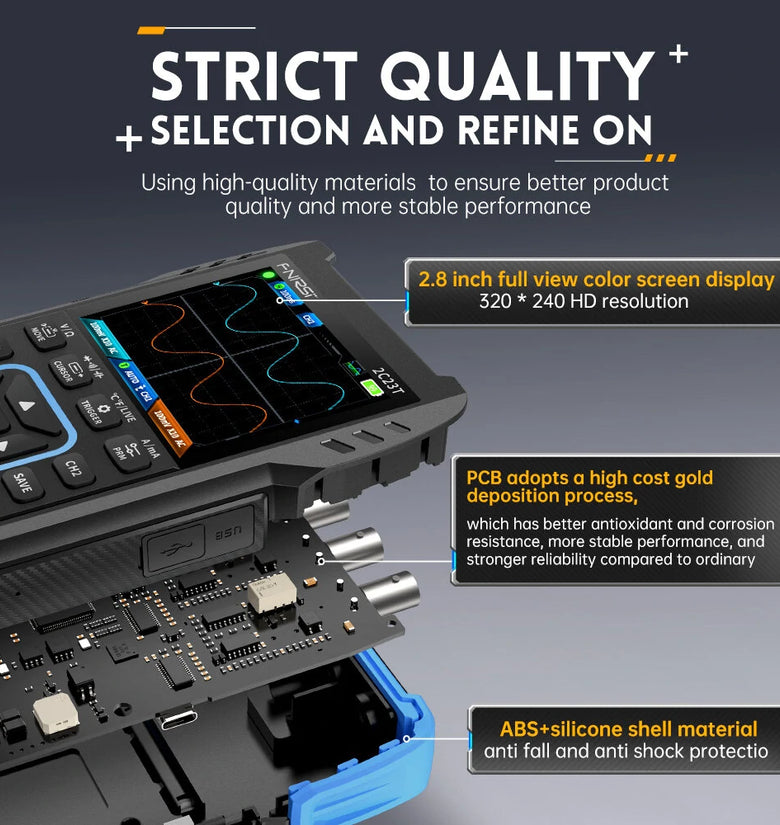

Display screen |
2.8 inch HD color screen |
|
Resolution ratio |
320*240 |
|
Charging specifications |
TYPE-C (5V/1A) |
|

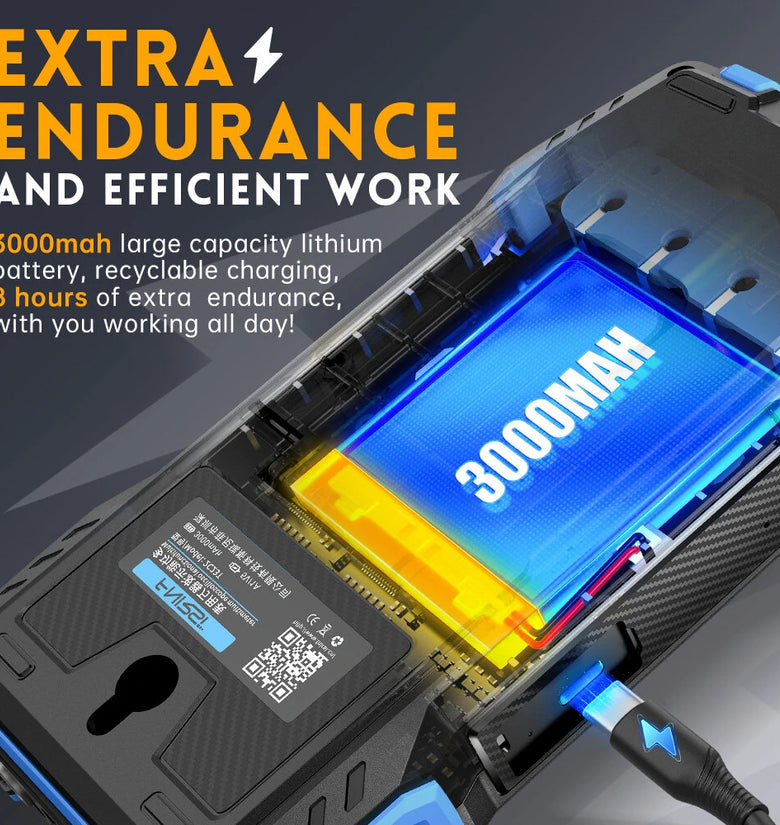

Battery |
3000mAh lithium battery |
|
Support functions |
Oscilloscope, Signal generator, Multime (view functional parameters for detail! |
|
Standby time |
6h (laboratory theoretical maximum) |
|
Language |
English |
|
Product volume |
167*89*35mm |
|
Weight |
300g |
|
Channel |
Dual channel |
|
Sample rate |
50M |
|
Analog bandwidth |
10M(dual channel independent 10M) |
|
Storage depth |
32kb |
|
Impedance |
1MQ |
|
Time Base Range |
50ns-10s |
|
Vertical sensitivity |
20mV/div-10V/div (×1) |
|
Maximum measured voltage |
±400V |
|
Trigger mode |
AUTO/Normal/Single |
|
Trigger type |
Rising edge, Falling edge |
|
Display mode |
YT/Scroll/XY |
|
Coupling method |
AC/DC |
|
Save waveform screenshot |
Yes |
|
Computer viewing waveform |
Yes |
|
Channel |
Single channel |
|
Frequency |
1Hz-2MHz |
|
Amplitude |
0.1-3.3V |
|
Function |
Range |
Accuracy |
DC Voltage |
9.999V/99.99V/999.9V |
±(0.5%+3) |
DC current |
9.999V/99.99V/750.0V |
±(1%+3) |
AC current |
||
