Specifications:

- Display: 3.5-inch IPS high-definition color screen

- Backlight: Brightness Adjustable

- Power Supply: TYPE-C (5V/1A)

- Battery: 1500mAh

- Channels: Dual Channel

- Bandwidth: 50 MHz

- Real-time Sampling Rate: 250 MSa/s

- Storage Space: 14M

- Time Base Range: 20ns/div - 20s/div

- Vertical Sensitivity: 10mV/div - 10V/div

- Waveform Display Mode: Scroll

- Vertical Resolution: 8 bits

- Input Impedance: 1ΜΩ

- Measurement Data: Cycle, Frequency, Vpp, Max, Min, RMS, Amplitude, Duty Cycle, Pulse Width

- Probe Attenuation Factor: 1x / 10x

- Input Coupling: AC / DC

- Trigger Type: Rising Edge / Falling Edge

- Peak Voltage: ±400V

- Trigger Level Range: 8 Grids (Positive and Negative)

- Trigger Mode: Auto / Normal / Single

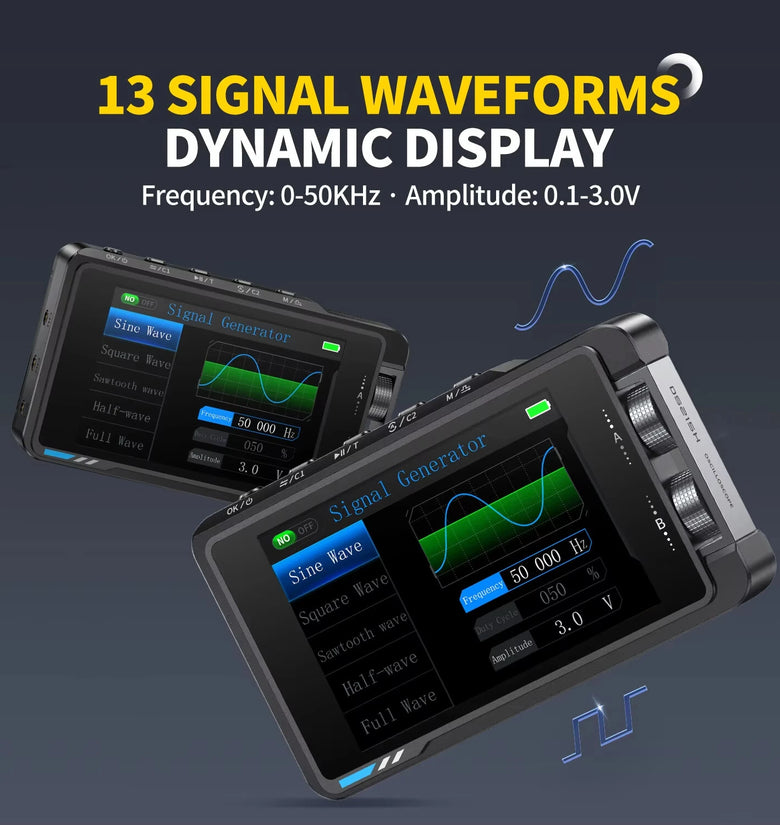

- Output Waveform: Supports Multiple Waveform Outputs

- Waveform Frequency: 0-50 KHz

- Wave Duty Cycle: 0-100%

- Waveform Amplitude: 0.1V - 3.0V

Features:

1. High Precision Measurement:

   - With a sampling rate of up to 250MS/s and a 50MHz analog bandwidth, the FNIRSI-DS215H ens
