Specifications:

- Color: Black

- Material: Printed Circuit Board (PCB)

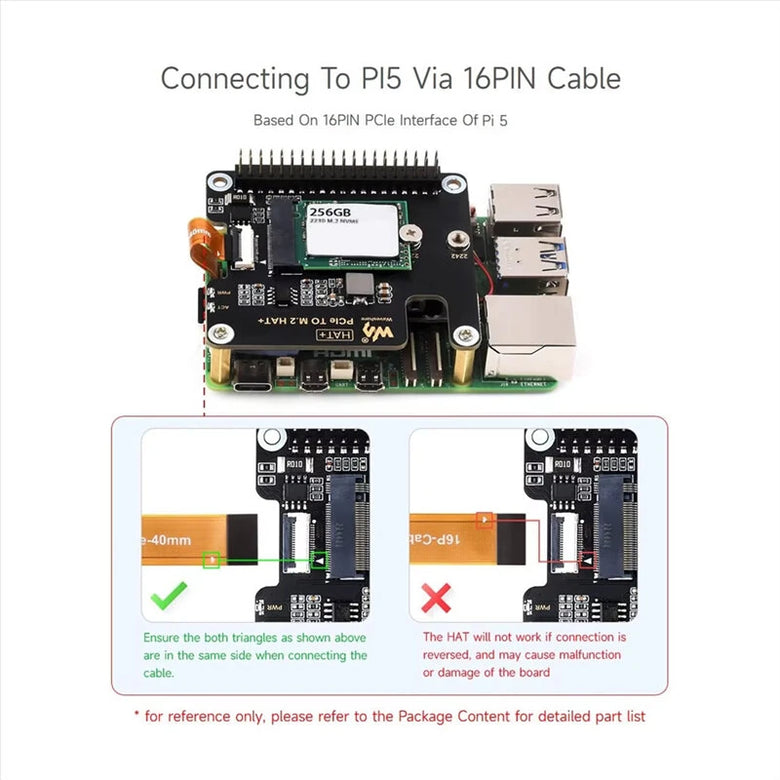

- Pin Connection: 16PIN FFC to Raspberry Pi 5

- Interface: 16PIN PCIe interface, designed specifically for Raspberry Pi 5

- NVMe Protocol Support: Yes

- M.2 SSD Compatibility: Size 2230/2242

- PCIe Modes: Gen2 and Gen3

- Boot Support: Yes, booting from SSD

- LED Indicators: Dual indicators for easy status monitoring

- Onboard Components: Power monitoring chip and EEPROM

- Ventilation: Reserved holes for fan ventilation

Features:

1. Seamless Integration with Raspberry Pi 5:

   Effortlessly connect to your Raspberry Pi 5 via the 16PIN FFC, designed for smooth and efficient connectivity.

2. Enhanced Storage Expansion:

   Supports NVMe hard disk protocol and is compatible with M.2 SSDs of sizes 2230 and 2242, providing high-speed storage solution.

3. Versatile PCIe Modes:

   Compatible with Gen2 and Gen3 modes, this expansion board allows for booting from SSD on Raspberry Pi 5, enhancing system performance and flexibility.

4. Real-Time Monitoring and Status Indication:

   Equipped with dual LED indicators and an onboard power monitoring chip with EEPROM, providing clear and convenient monitoring of device status.

5. Optimal Cooling Design:

   Features reserved ventilation holes for fans, ensuring better cooling for both Raspberry Pi 5 and the attached hard drive, enhancing overall system stability.

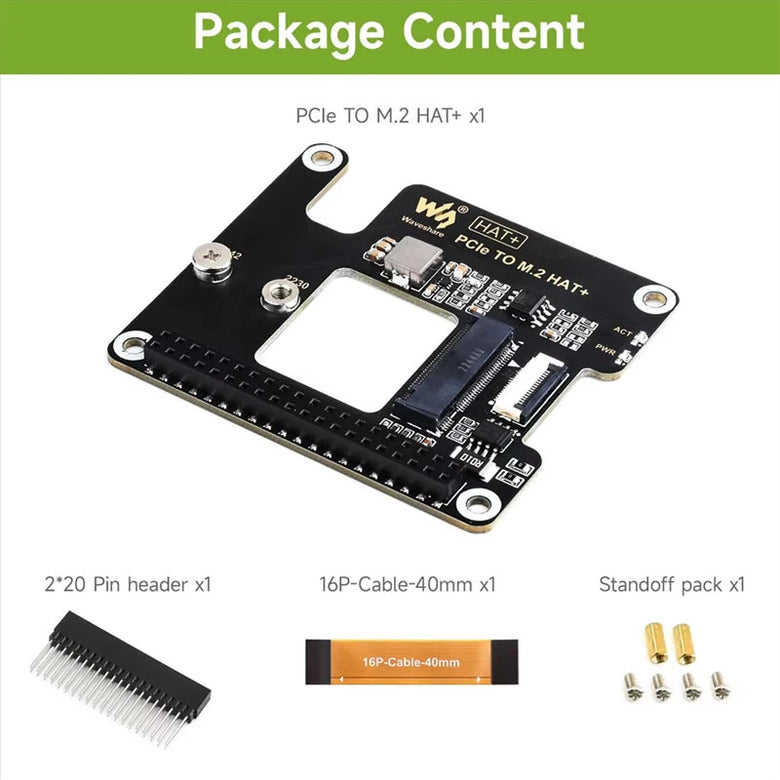

Package Included:

 1 x Expansion Board
