Specifications:
Pulse Adjustment Precision: 20ns
Frequency Resolution: 1µHz (high-precision signal generation)
Frequency Accuracy: ±20ppm
Frequency Stability: ±1ppm per 3 hours
Display Type: 3.2-inch TFT LCD (320x240 Resolution)

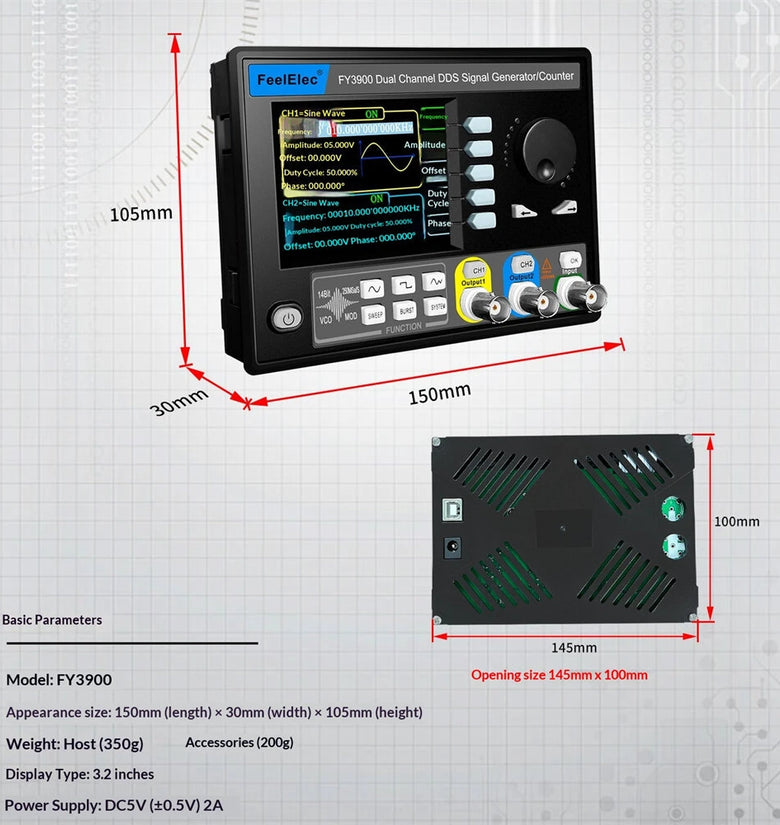

Dimensions: 150mm x 105mm x 30mm
Weight: Main Unit (350g), Accessories (200g)
Power Supply: DC 5V (±0.5V), 2A
Model: FY3900-10M
Sine Wave: 0–10MHz
SqW: 0–10MHz
Triangle Wave: 0–10MHz
Pulse Wave: 0-10MHz
Arbitrary Wave: 0–10MHz
TTL/CMOS Range: 0–10MHz
Model: FY3900-15M
Sine Wave: 0–15MHz
SqW: 0–10MHz
Triangle Wave: 0–10MHz
Pulse Wave: 0-10MHz
Arbitrary Wave: 0–10MHz
TTL/CMOS Range: 0–10MHz
Model: FY3900-20M
Sine Wave: 0–20MHz
SqW: 0–10MHz
Triangle Wave: 0–10MHz
Pulse Wave: 0-10MHz
Arbitrary Wave: 0–10MHz
TTL/CMOS Range: 0–10MHz
Model: FY3900-30M
Sine Wave: 0–30MHz
SqW: 0–15MHz
Triangle Wave: 0–10MHz
Pulse Wave: 0-10MHz
Arbitrary Wave: 0–10MHz
TTL/CMOS Range: 0–15MHz
Features:
1.Dual-Channel Output: Provides independent dual-channel signal generation for versatile applications.
2.High-Resolution Display: Equipped with a 3.2-inch TFT LCD screen, offering clear and detailed menu information.
3.Adjustable Controls: Integrated 360° rotary knob for precision parameter adjustments.
4.Time-Efficient Operations: Features shortcut buttons for simplified settings and faster workflow execution.
5.Compact and Lightweight: Portable design ideal for laboratories, research, and on-site usage.
Package Included:
1 x FY3900 Dual-Channel Signal Generator
1 x Power Adapter(EU Plug)
1 x USB Data Cable
2 x Q9 Test Lead
