Description:

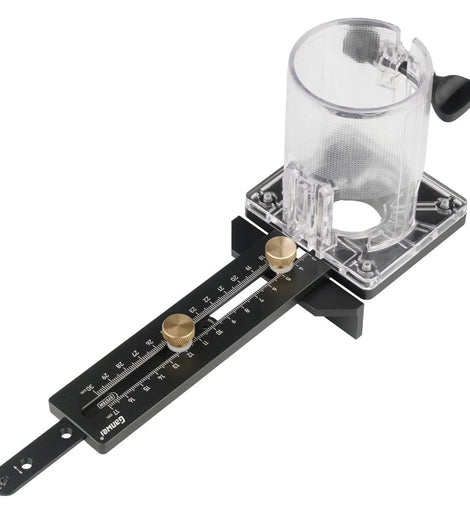

GANWEI Woodworking Circle Cutting Jig for Electric Trimming Machine Wood Router Milling Circle Slotting Base DIY Tools with Scale Fence
Specification:
| Material |
aluminum alloy + plastic transparent cover |
| Adjustable scale range |
37-172mm (fast adjustment) |
| Minimum milling radiu |
30mm |
| Maximum milling radiu |
300mm |
| Compatible router diameter | 65mm |
| Size | 242x90x135mm |
Feature:
[Cuttable material] - Applicable to all kinds of wooden boards (such as solid wood boards, MDF, etc.), plastic boards (such as acrylic boards, etc.).
[Installable machines] - Can be installed Dongcheng FF04-6, FF02-6, suitable for 65mm trimmer.
[Two positioning methods] - Can be milled in diameter 60mm-600mm. 8mm locating pin, drill hole, can be backfilled with log tenon. 2.5mm nail hole, straight nail method, can be backfilled with repair paste. The moving range of the backer from the center is 37-172mm.
Package Included:
1 x GANWEI Woodworking Circle Cutting Jig
