Size: 0.96 Inch
Material: New IPS color screen, the color is more vivid than ordinary TFT LCD screen
Resolution: 80*160 display, direction can adjust horizontal screen vertical screen
Control chip: ST7735
Display area: 10.8 x 21.696mm
Physical size: 24 x 30mm
Interface type: SPI interface
Number of pins: 7
Display color: 65K full color
Working temperature: -20~70°C
Working voltage: 3.3V
Net weight: 5g

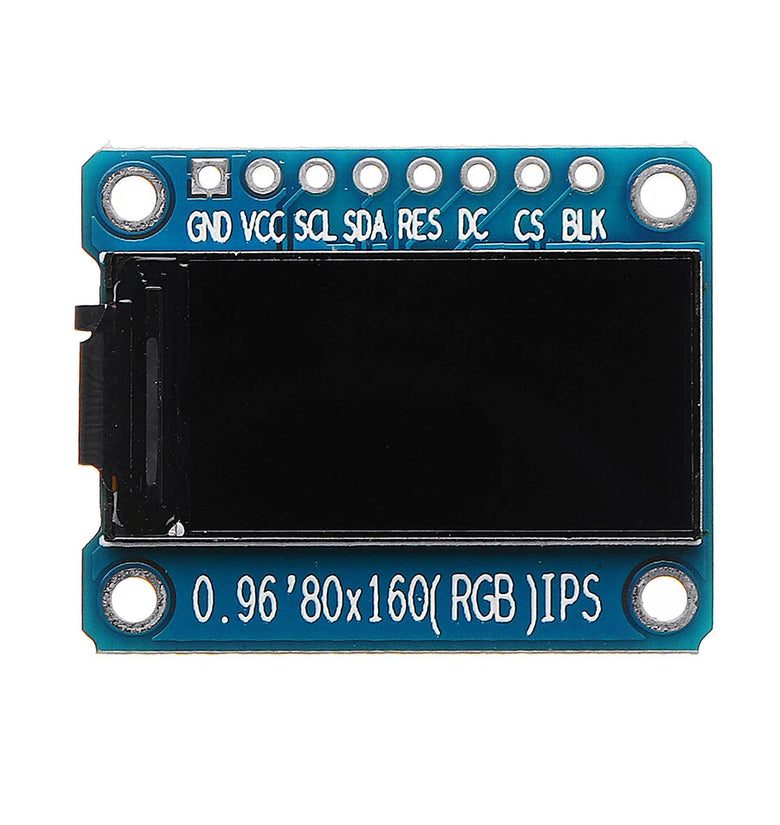

Interface definition:
1> GND (Power ground)
2> VCC (Power +3.3)
3> SCL (SPI clock line)
4> SDA (SPI data line)
5> RES (LCD reset, LCD needs to be reset once after power-on)
6> DC (SPI data/command selection pin)
7> BLK (LCD backlight control, default can be left floating, low level to turn off the backlight)
Package includes:

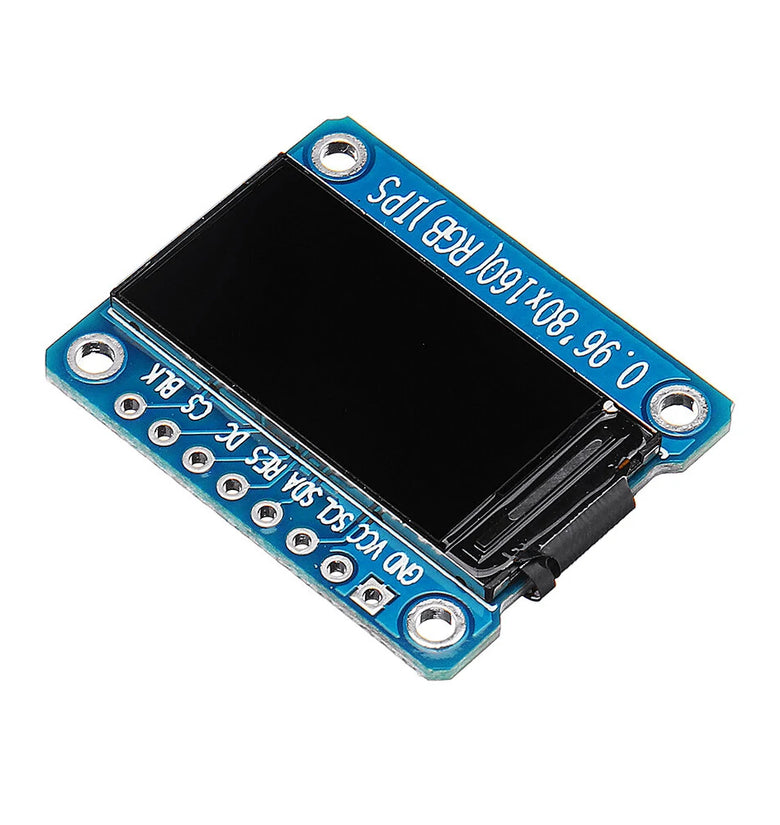

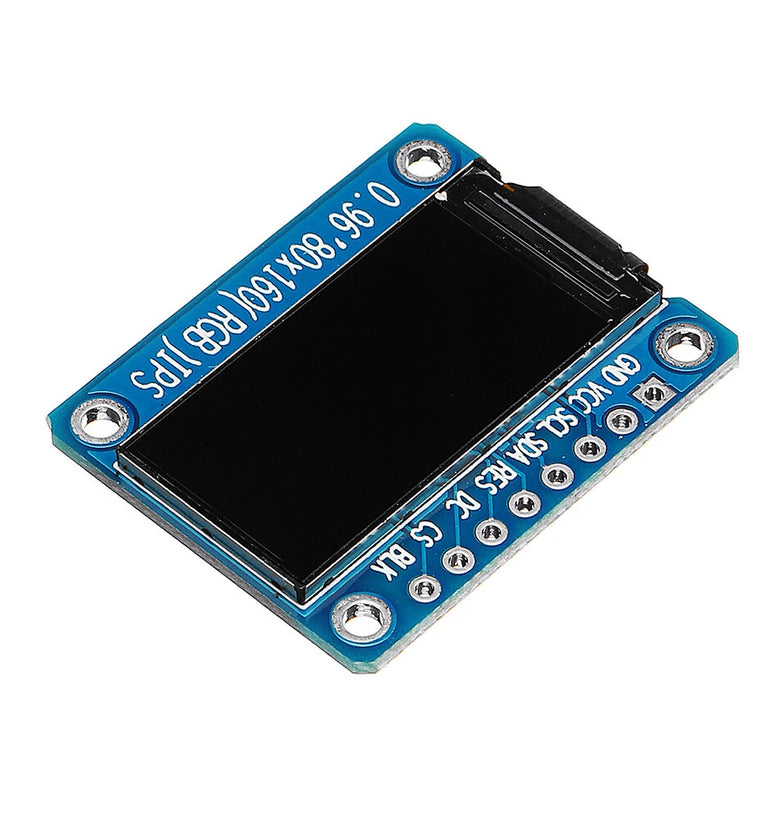

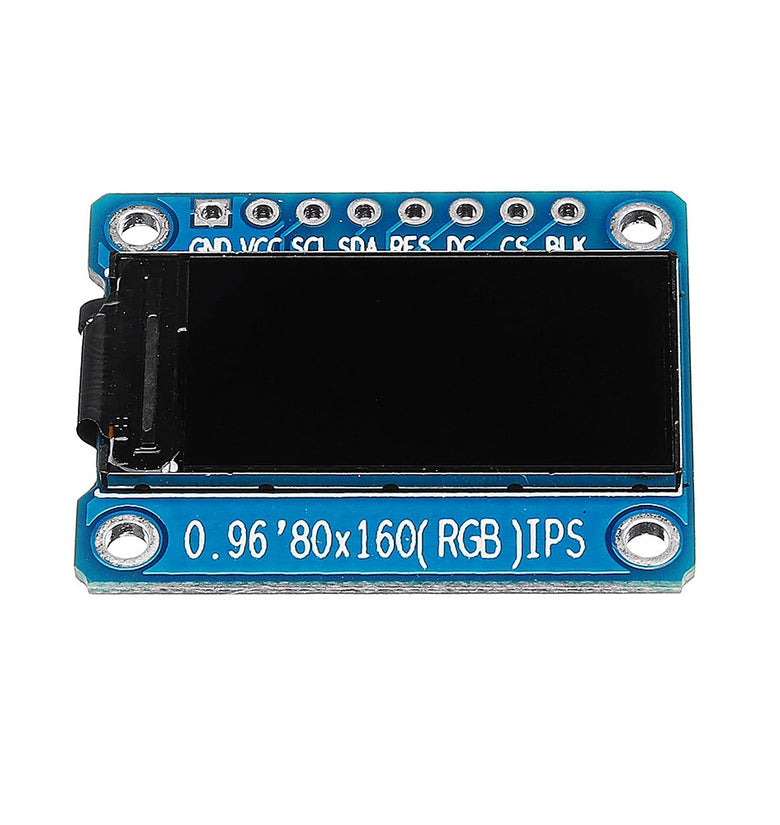

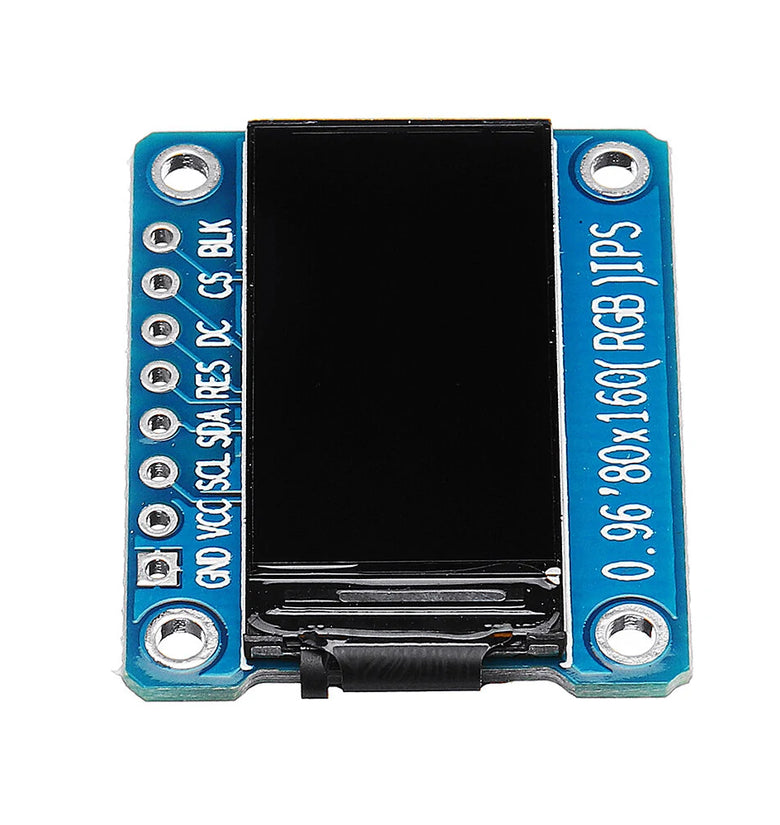

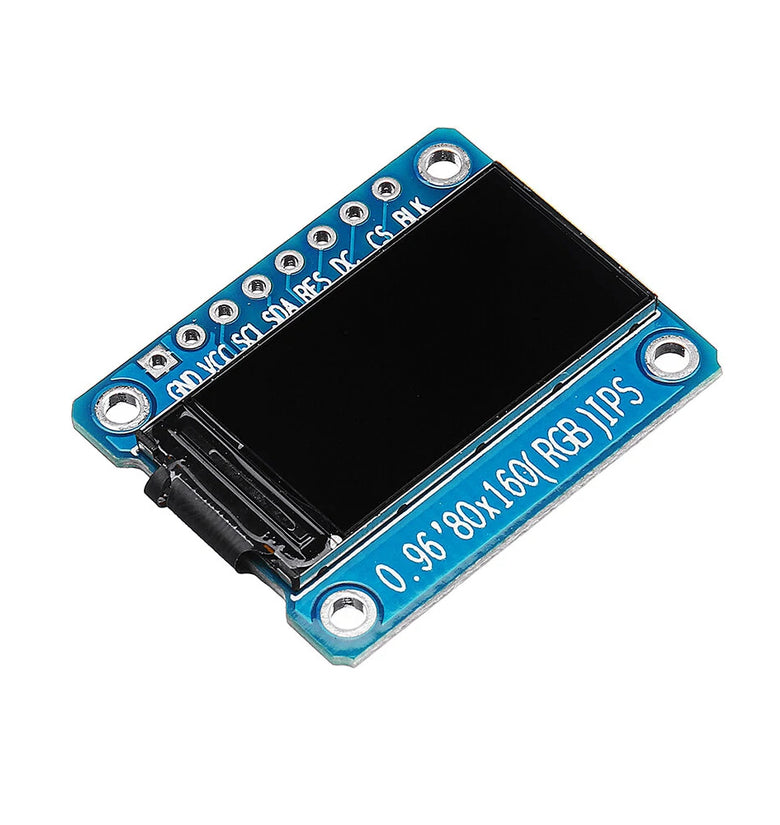

1 x 0.96 Inch HD Color IPS Screen Module
