Features:

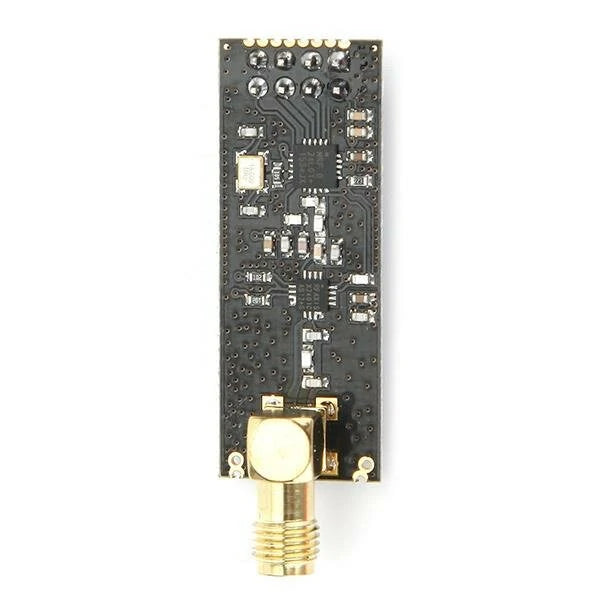

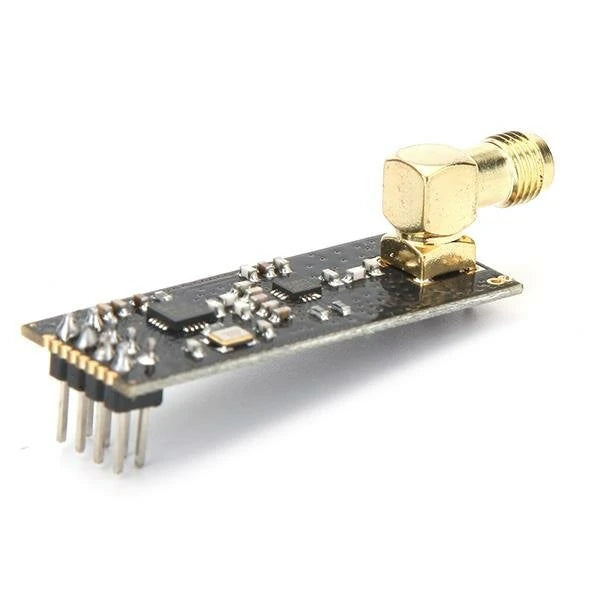

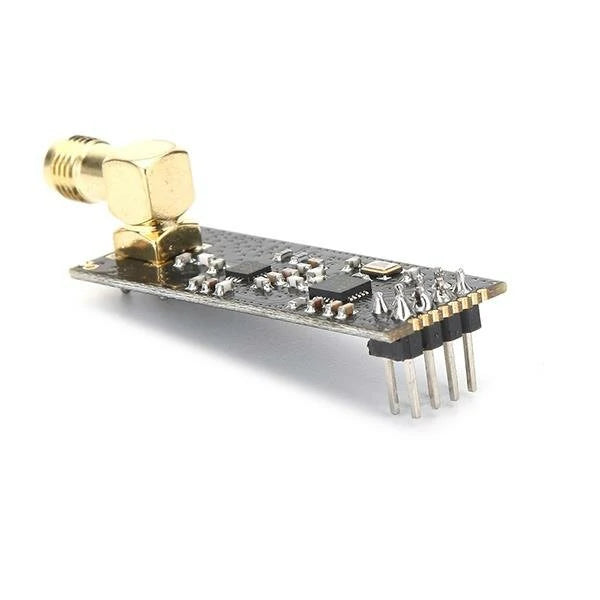

NRF24L01P + PA + LNA Division for the ultra-long-distance data transmission, specially developed high-power and high sensitivity wireless module 2.4G ISM band NRF24L01P + PA + LNA wireless module to work in the license-free that can be point-to-point applications or be composed of a star network.
Digital transmission chip NRF24L01+ with the Division of Professional Design professional full two-way RF power amplifier high power PA and LNA chip, RF switches and band pass filters, makes effective communication distance greatly expand.
RF part, it has been done a lot of optimization matching debugging. The emission efficiency to achieve the highest harmonic minimum and make NRF24L01P + PA + LNA wireless module of RF interference to the external equipment reaches minimum, while not susceptible to interference from other devices.
NRF24L01P + PA + LNA wireless module integration is extremely high, the size is 41mm x 15.5mm to make conveniently embedded.
Description:
Voltage: 3-3.6V
Max output power: +20 dBm
Working current in transmit mode: 115mA
Working current in receiver mode: 45mA
Current in mode: 4.2uA
Operating temperature: -20-70 degree
Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode
PA growth: 20dB
LAN growth: 10dB
LAN noise figure: 2.6dB
Antenna growth: 2dBI
2M rate: 520m

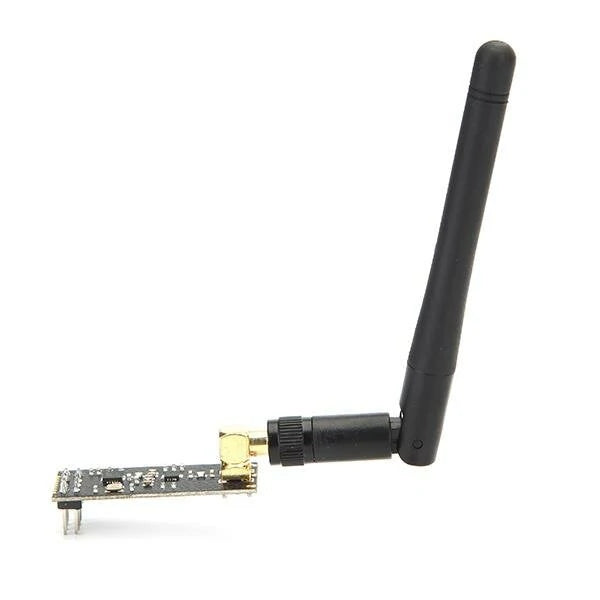

Package included:1/3/5/10/15 (optional) x 1100 Meter Long Distance NRF24L01+PA+LNA Wireless Module With Antenna
