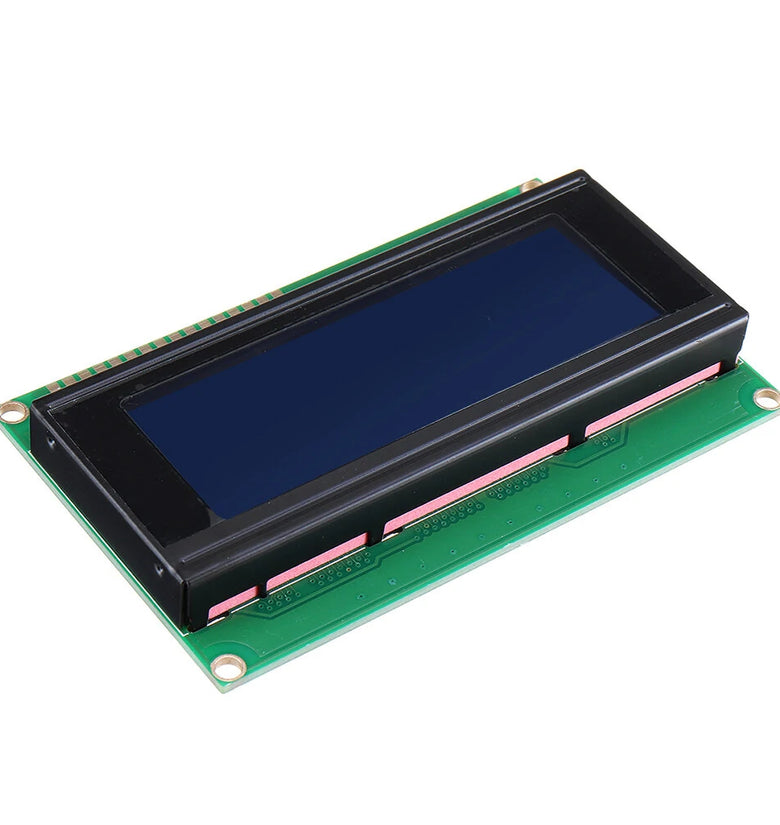

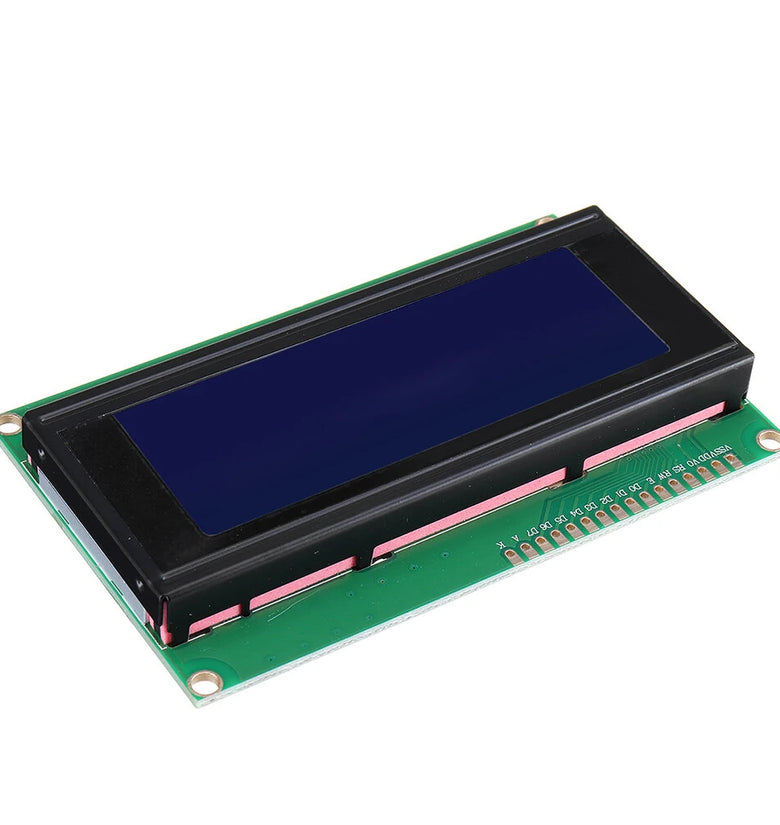

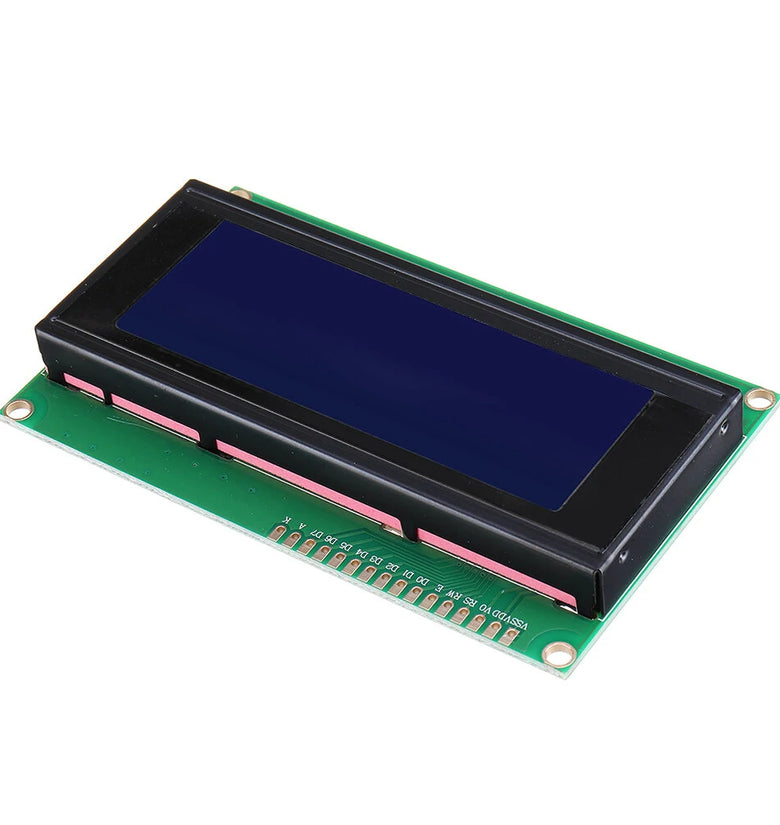

Description:The 2004A character LCD module is designed to display letters, numbers, symbols, dot matrix. It can display 4 lines of 20 characters. Support 4-bit and 8-bit data transfer mode. Offers 5x7 matrix + cursor display mode. Providing display data buffer DDRAM, character generator CGROM and CGRAM. CGRAM can be used to store up to eight 5x8 dot matrix character font data graphic own definition. Provides a rich instruction set: clear display, cursor back to origin, display on / off, cursor on / off, display character blink, cursor shift, display shift and so on.

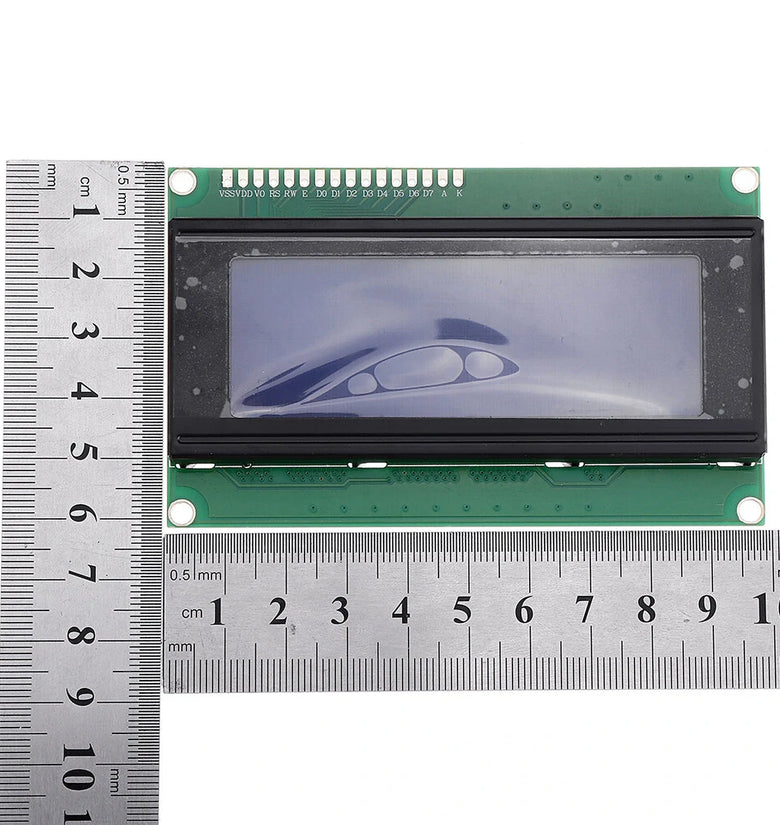

Specification:Module size(W x H x T): 98.0 x 60.0 x 14.0mmViewing area(W x H): 76.0 x 26.0mmCharacter size(W x H): 2.94 x 4.74mmDot size:(W x H): 0.54 x 0.54mmLCD type & color: STN(Blue), FSTNView angle: 6 o'clockDisplay type: positive / negative typeControl IC & package: KS0073 or EQV, COBOperating temperature: -20°C - +70°CStorage temperature: -30°C - 80°C
Package included:1/3/5/10 (optional) x 5V 2004A LCD display module
