Specification:

Supply voltage: DC 12V
Static current: ≤35MA, attract current ≤65MA
Output voltage: DC 12V
Output power: 20A relay

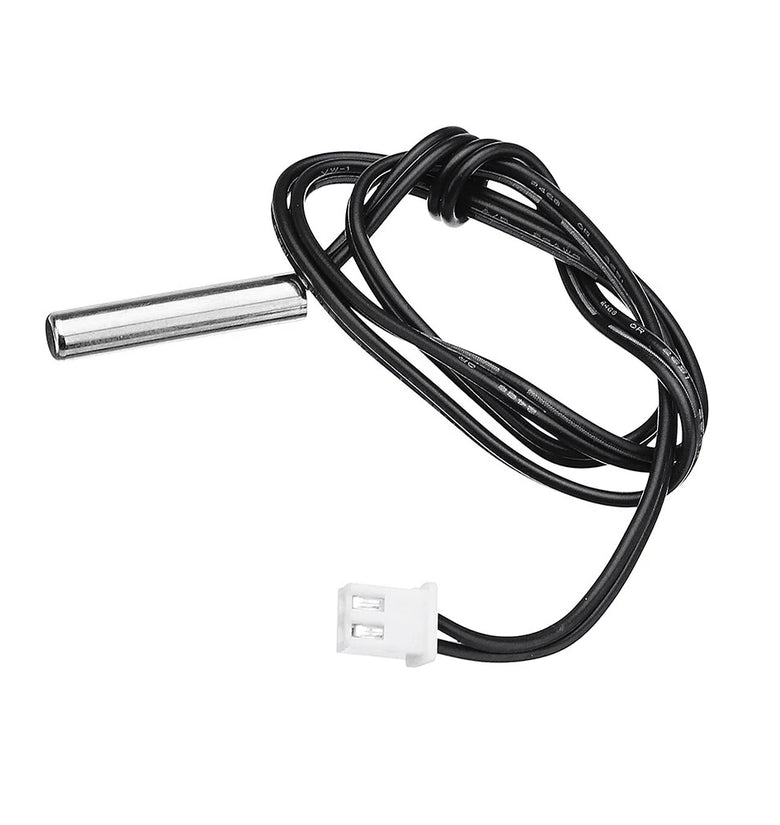

Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60℃, Humidity 20% ~ 85%
Dimensions: 48 x 40mm
Cable length: About 52 cm
Temperature control mode: ON / OFF
Temperature range: -50 ~ +110°C
Control accuracy: 0.1°C
Hysteresis  accuracy: 0.1°C
Refresh rate: 0.5S
High temperature protection: 0 ~ 110°C
Resolution: When temperature is 0.1°C, the resolution is -9.9~99.9, other temperature segment is 1°C

Relay: Due to different batches, the silk screen above is marked 20A 125VAC, and the load capacity is within 2500W. In the case of 250VAC, the maximum load is 10A

Package included:

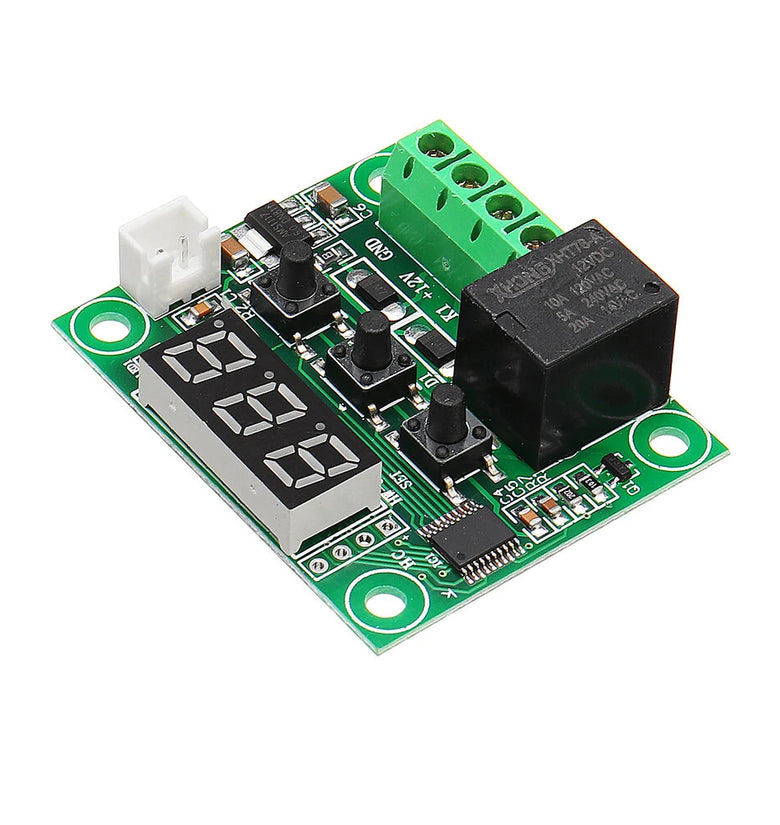

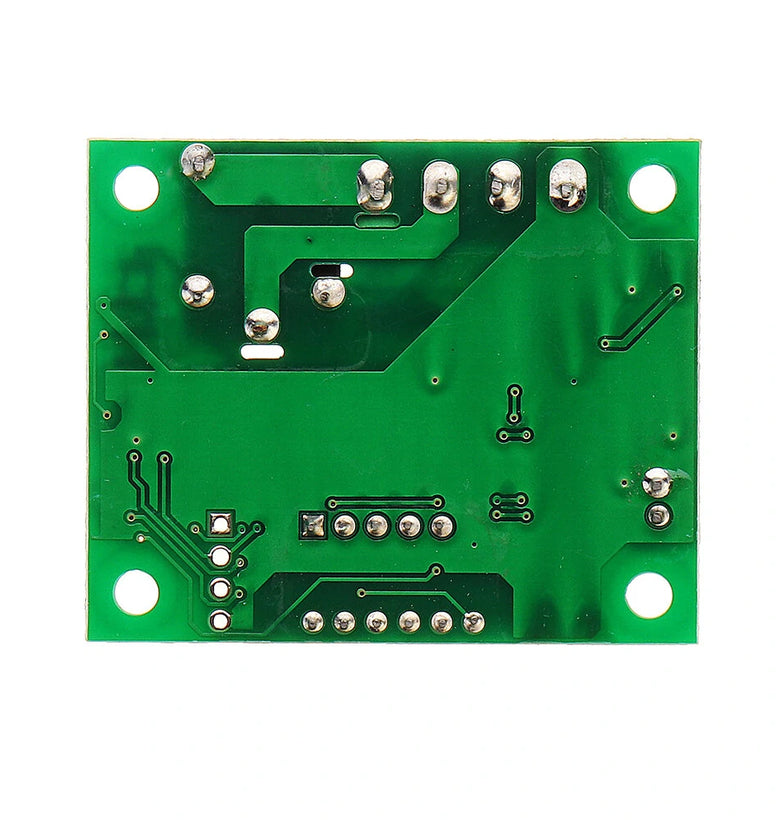

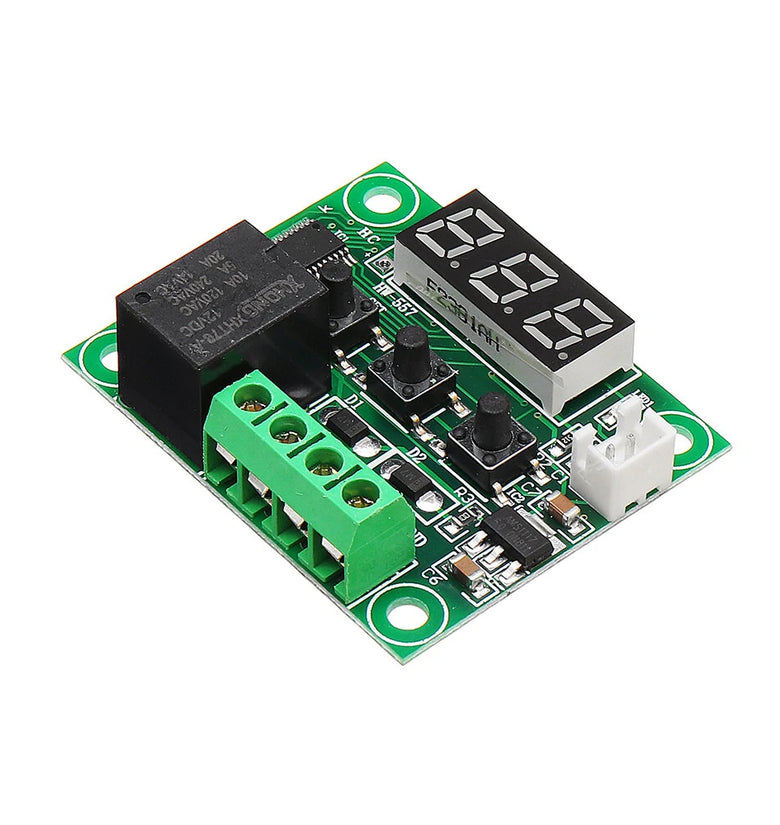

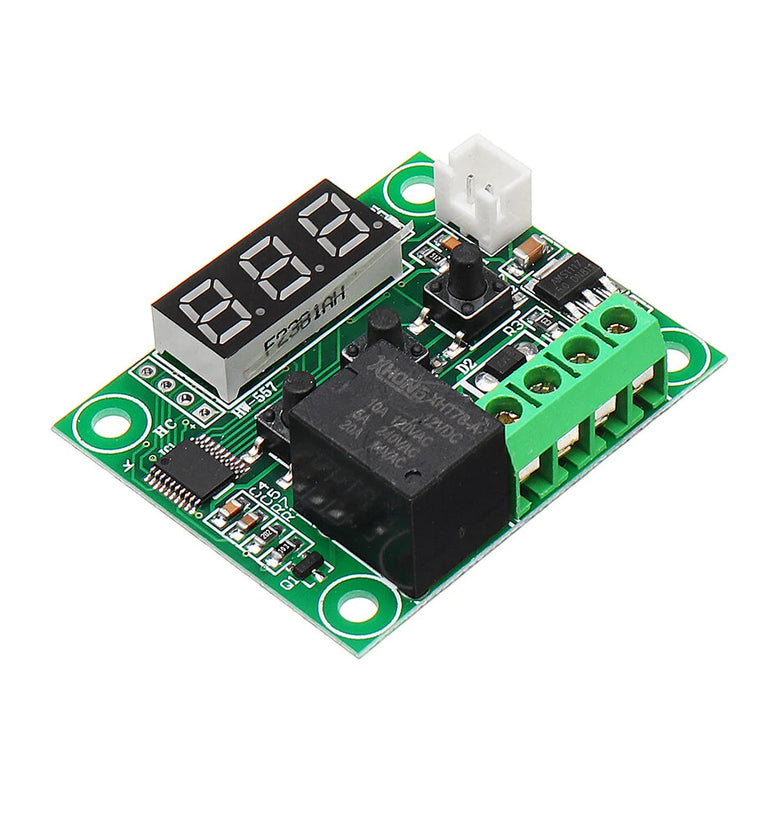

1 x Digital temperature control switch with cable
