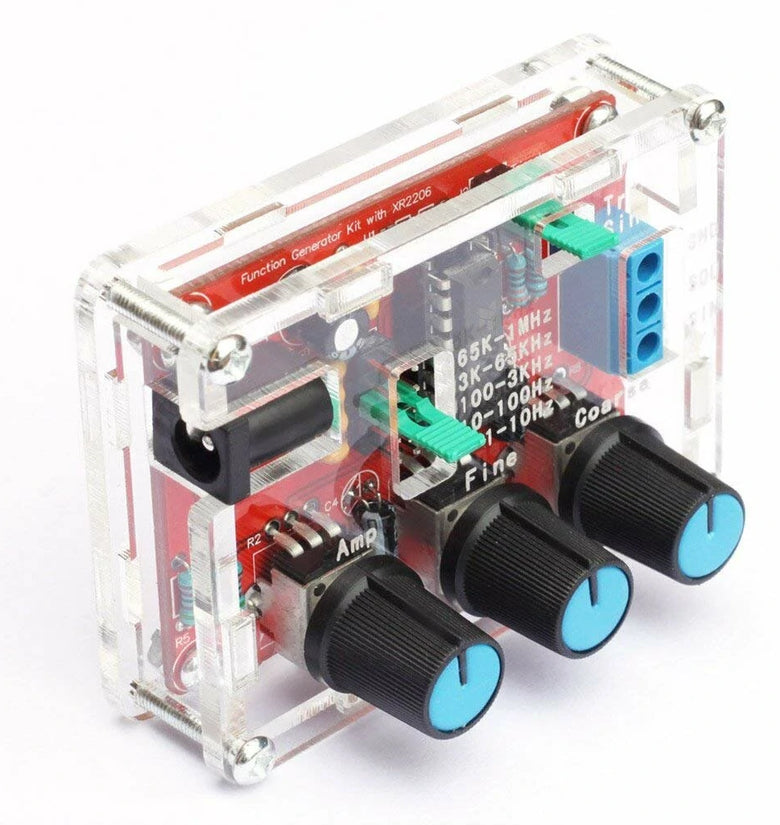

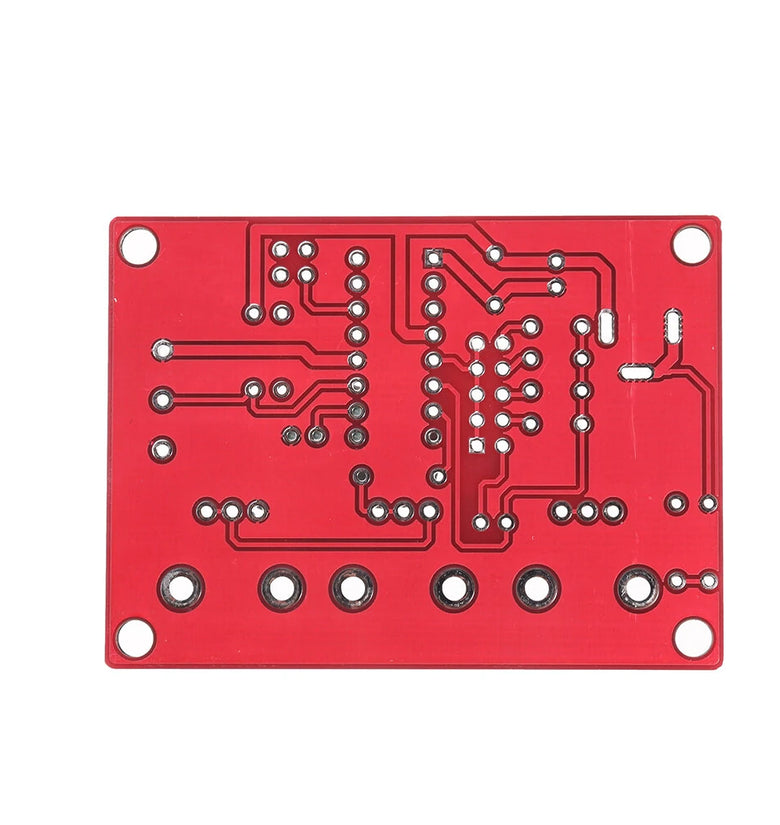

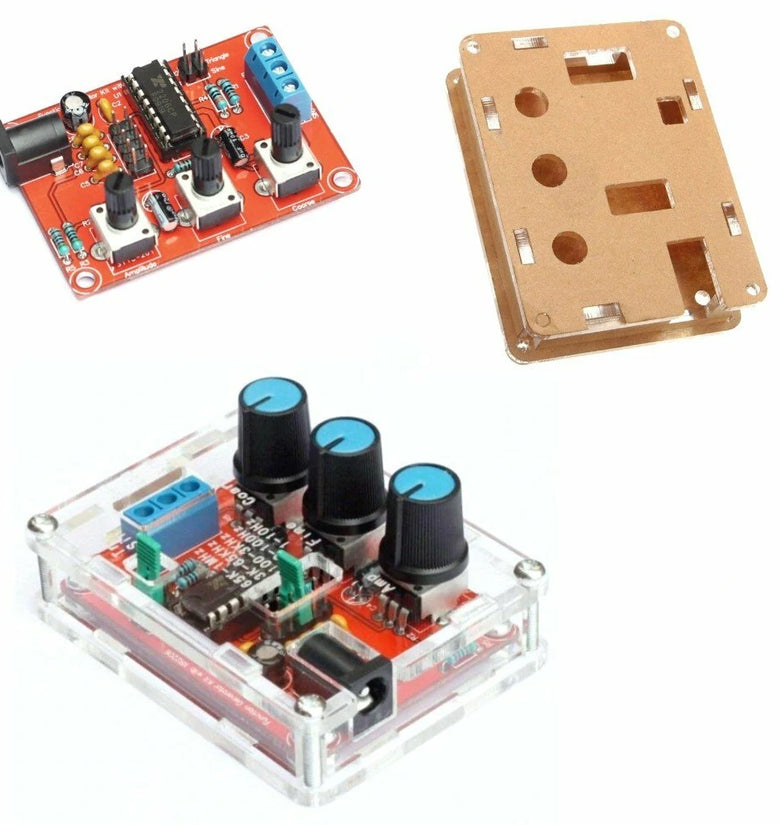

This XR2206 Function Signal Generator DIY Kit is perfect for anyone who needs a versatile and easy-to-use signal generator.
With its wide range of capabilities, this kit can create square, sine, and triangle waveforms with ease.
Its frequency range is 1Hz to 1MHz, and it has a flatness of +0.05dB and a linearity of less than 1%.
Specifications:
Voltage supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz
SINE wave:
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE wave:
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE wave:
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA
Instruction: Click to open

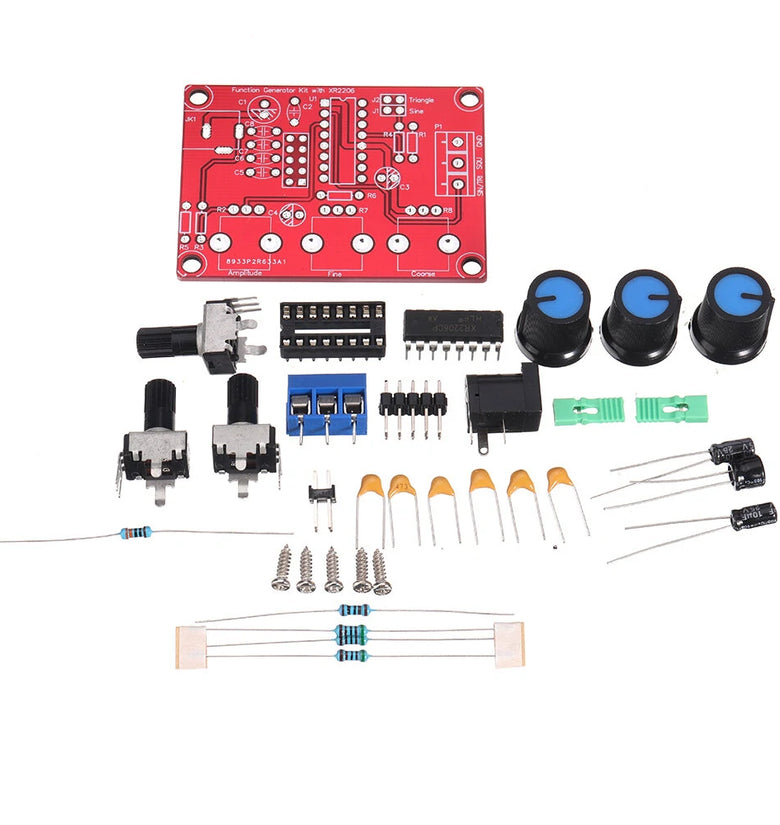

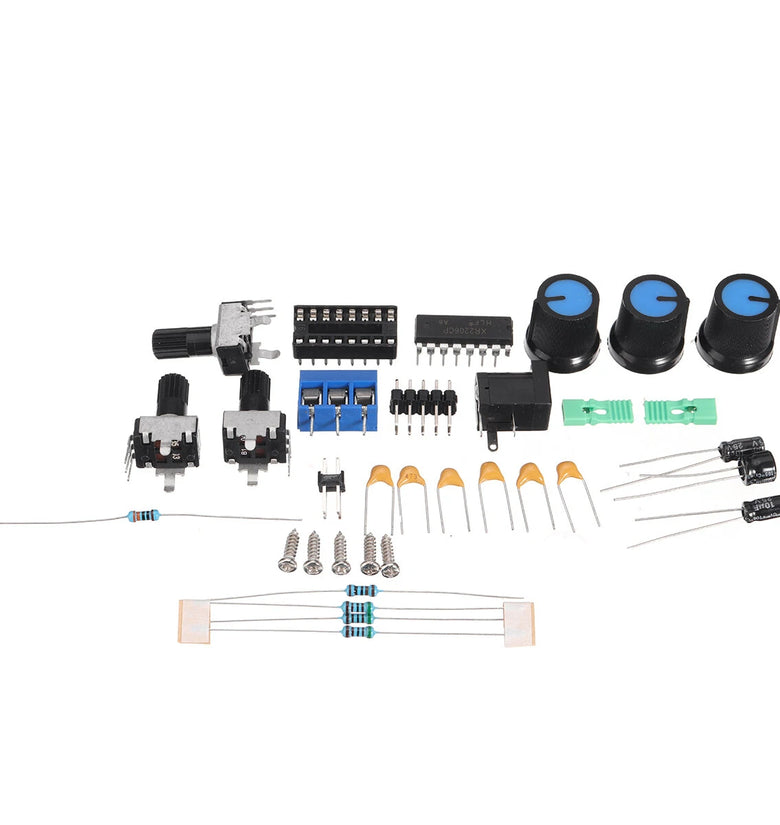

Package included:
1 x XR2206 Function Signal Generator DIY Kit
