Specifications:

>>>Manual: Click here to open<<<

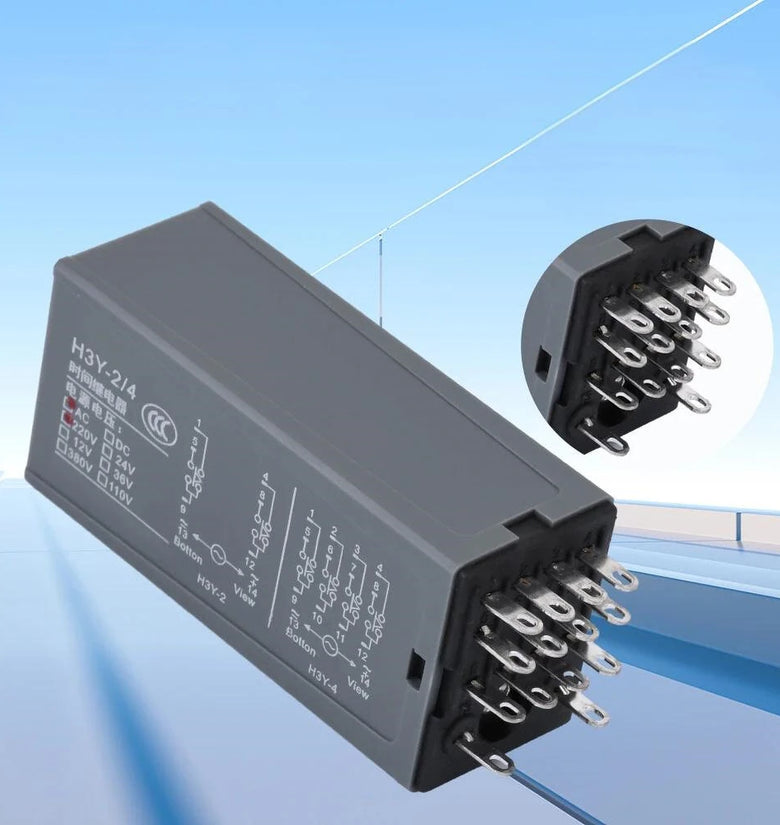

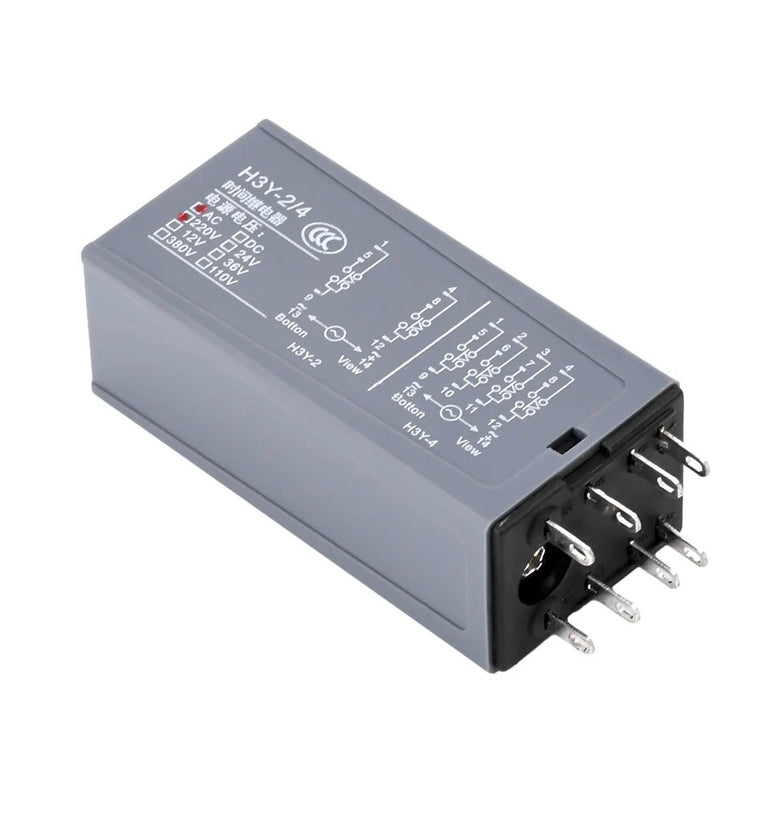

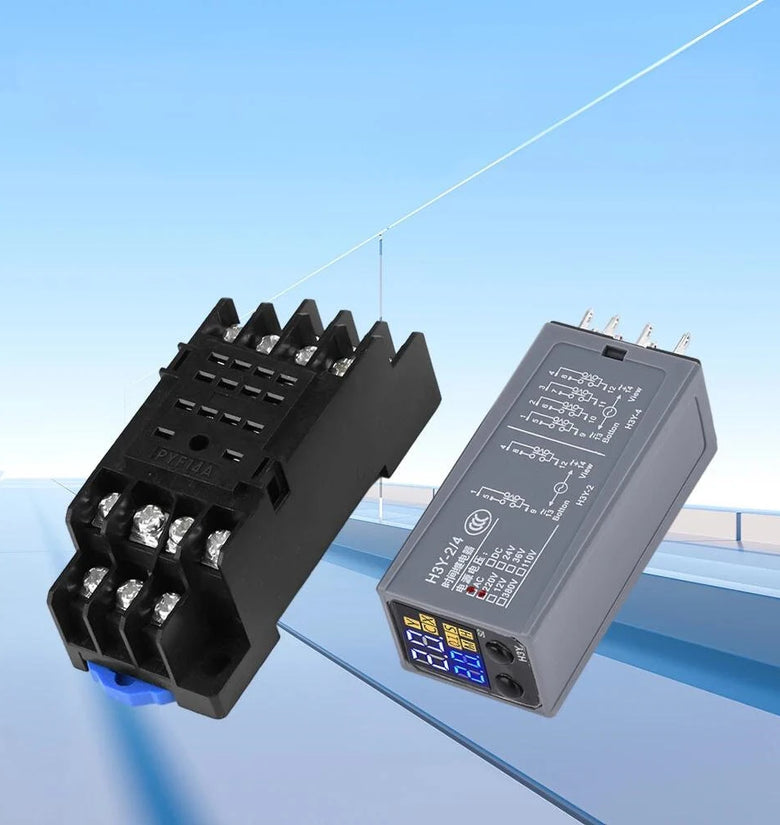

Product Name: Time Relay (14 Pin/4 Open/4 Close)

Model: H3Y-4

Voltage: DC 12V, 24V, 220V (optional)

Time Range: 0.1s-99h

Time Error: 1%

Power Consumption: Max. 1.5VA

Environmental Temperature: -25~75℃

Allowable Voltage Range: 90-110% of rated voltage

Working Modes:

Y: Power On Delay

C: Delayed Release

X: Loop Delay

Lc: Number of Cyclic Delays

Mode Setting:

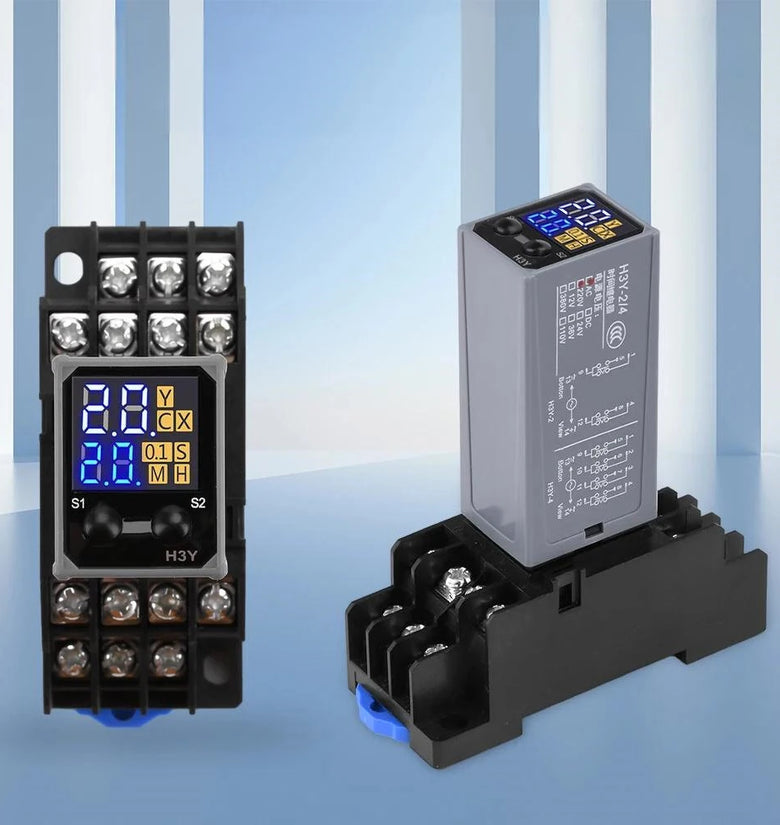

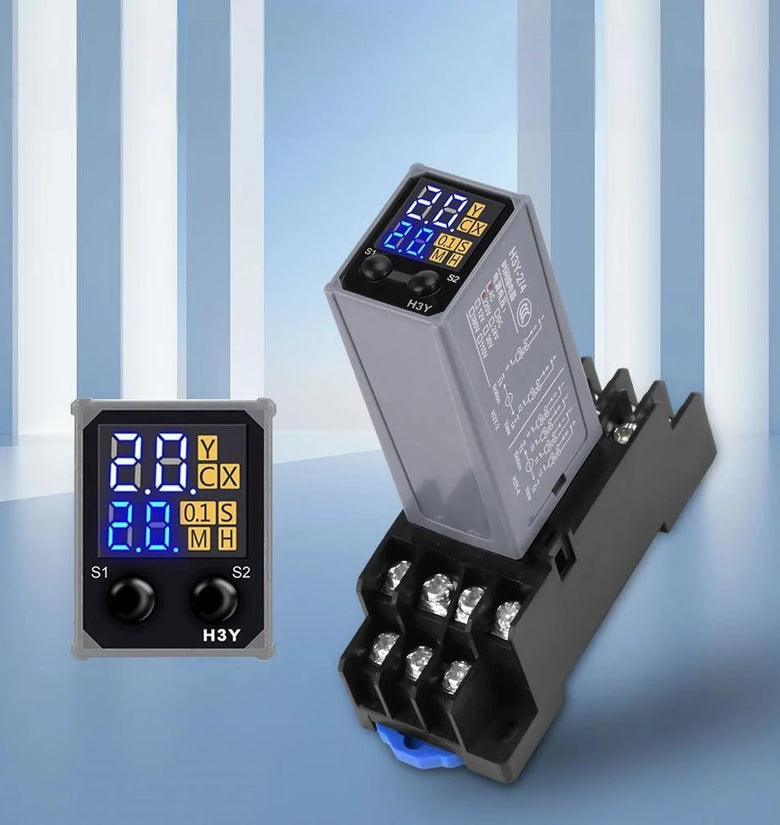

Long press the S1 button on the left for 3 seconds, and the mode will automatically switch in a loop after flashing. Stop at the desired mode and release the button. After 5 seconds, it will stop flashing and save the setting.

Time Base Setting:

Long press the S2 button on the right for 3 seconds, and the time base will automatically switch in a loop after flashing. Stop at the desired mode and release the button. After 5 seconds, it will stop flashing and save the setting.

Number Setting:

Left click to switch modes.
