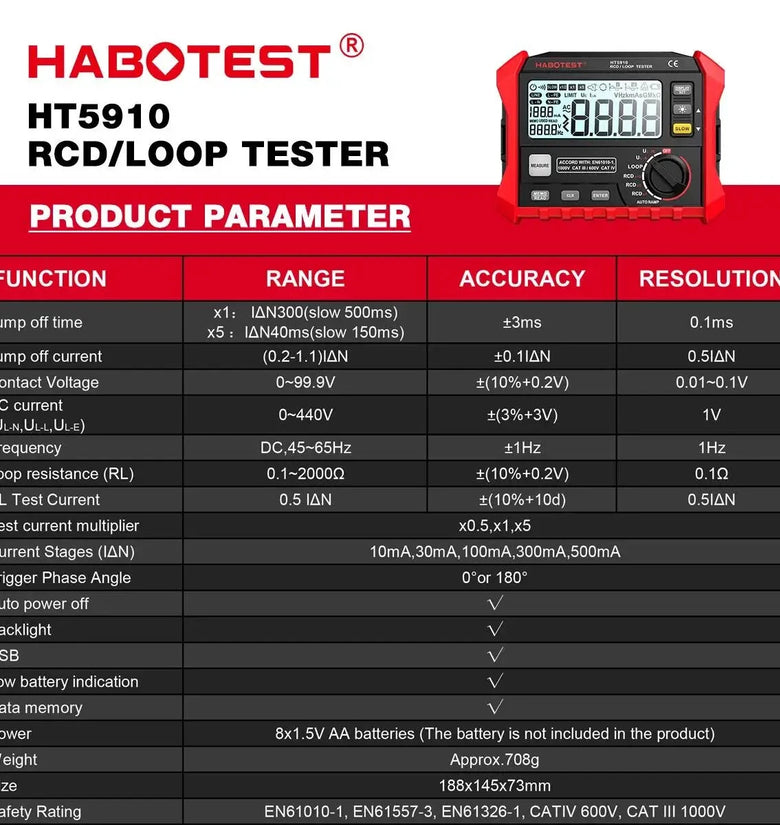

Specifications:
Jump-off time: x1: IΔN300 (slow 500ms), x5: IΔN40 (slow 150ms)
Jump-off current: 0.2–1.1 IΔN
Contact voltage range: 0–99.9V

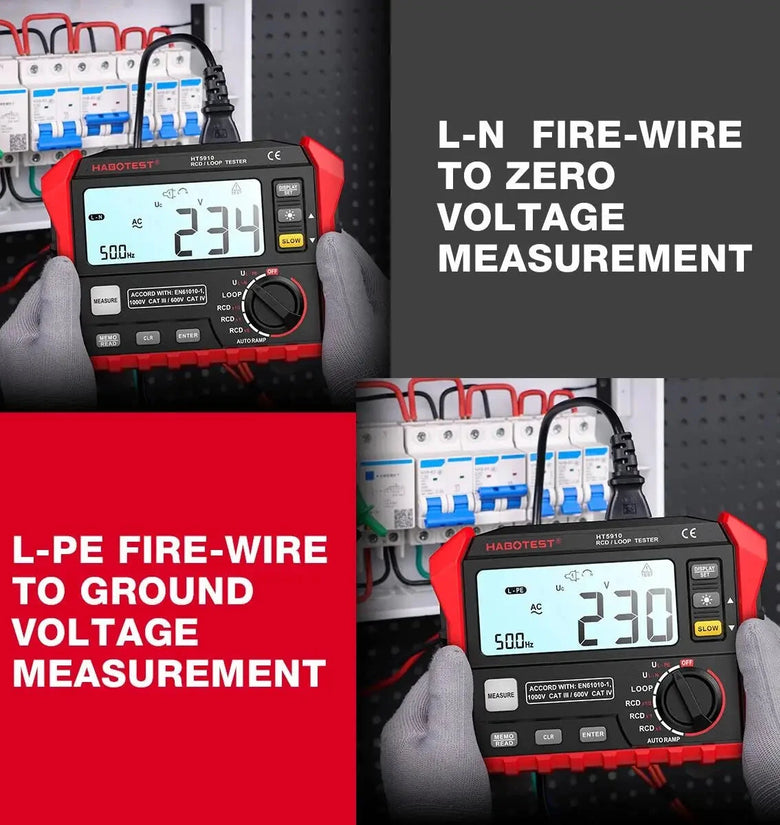

AC current range: 0–440V
Frequency range: DC, 45–65Hz
Loop resistance range (RL): 0.1–2000Ω
RL test current: 0.5 IΔN
Test current multiplier: x0.5, x1, x5
Current stages (IΔN): 10mA, 30mA, 100mA, 300mA, 500mA
Trigger phase angle: 0° or 180°

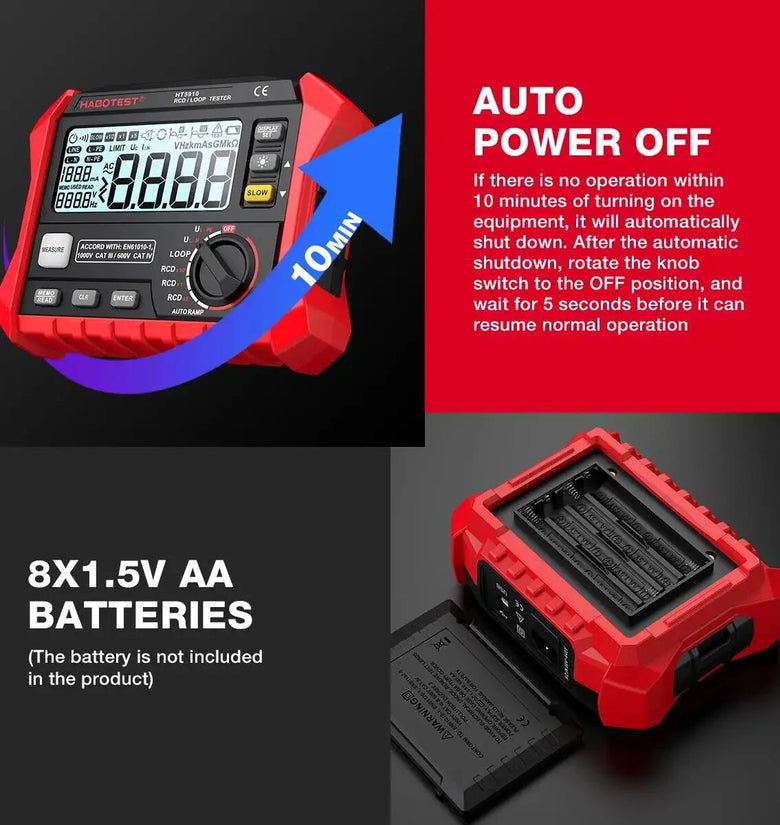

Power supply: 8 x 1.5V AA batteries (not included)
Low battery indication: Yes
Data memory: 1000 records
Backlight: Yes
USB connectivity: Yes
Safety certifications: EN61010-1, EN61557-3, EN61326-1, CAT III 600V, CAT III 1000V
Product size: 188 x 145 x 73 mm
Weight: Approx. 708g
Features:
1.Accurate current testing: Supports a wide range of current stages, including 10mA–500mA, ensuring precision for diverse applications.
2.Comprehensive measurement range: Measures loop resistance up to 2000Ω, and AC voltage ranges from 0–440V.

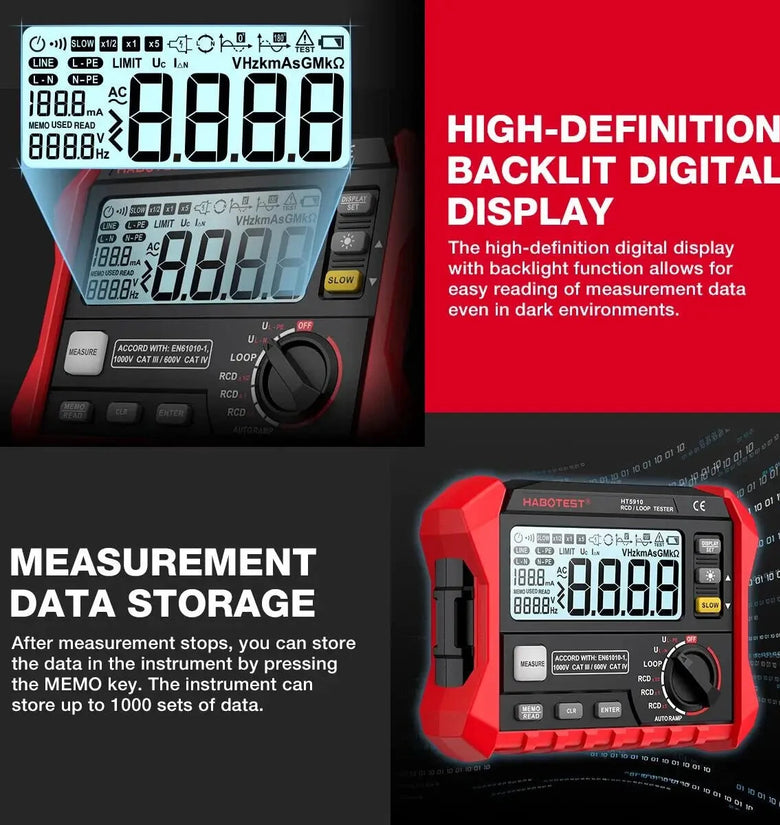

3.Large LCD screen: Provides clear, detailed readings with backlight support for low-light conditions.
4.Data storage: Records up to 1000 sets of measurement data, ideal for long-term tracking and analysis.
5.Certifications for enhanced safety: Complies with CAT III 600V/1000V and EN safety standards for professional-grade use.

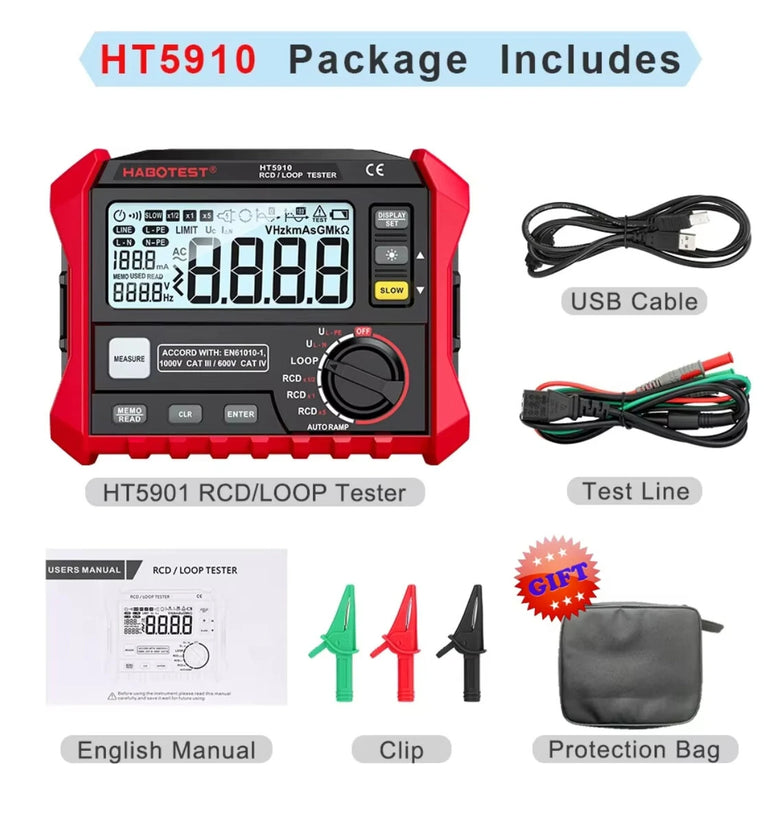

Package Included:

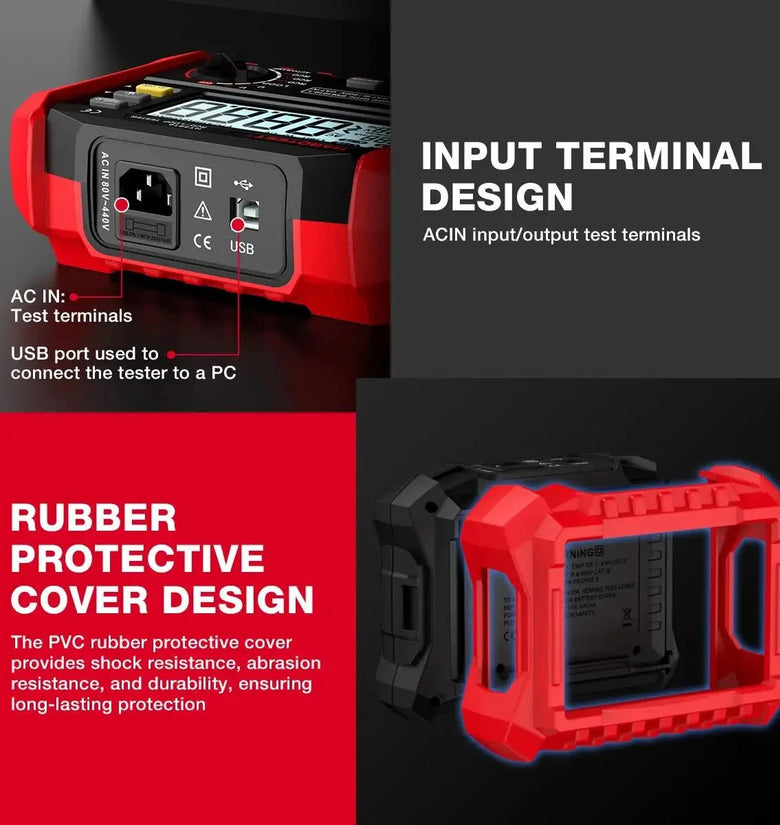

1 x HT5901 RCD/Loop Tester
1 x USB Cable
1 x Test Line
1 x English Manual
3 x Clips (red, green, black)
1 x Protection Bag
