Specifications:

Frequency Range: 1MHz-6GHz

Bandwidth: 20MHz

Accuracy: 8-bit ADC/DAC

Data Rate: 20Mbps

Maximum Transmit Power: 10dBm

Maximum Received Power: -5dBm (exceeding this value will damage the board)

64QAM Transmission EVM: 1.5%

Complex Sampling Bandwidth: 20MHz with circuit protection

Chipset: MAX2837

Features:

1.Wide Frequency Range: Capable of operating from 1MHz to 6GHz, this development board covers a broad spectrum, making it suitable for a variety of applications in modern radio technology.

2.High-Quality PCB Material: Utilizing premium PCB material, this board ensures stable and reliable performance, which is essential for both professional and experimental wireless communication projects.

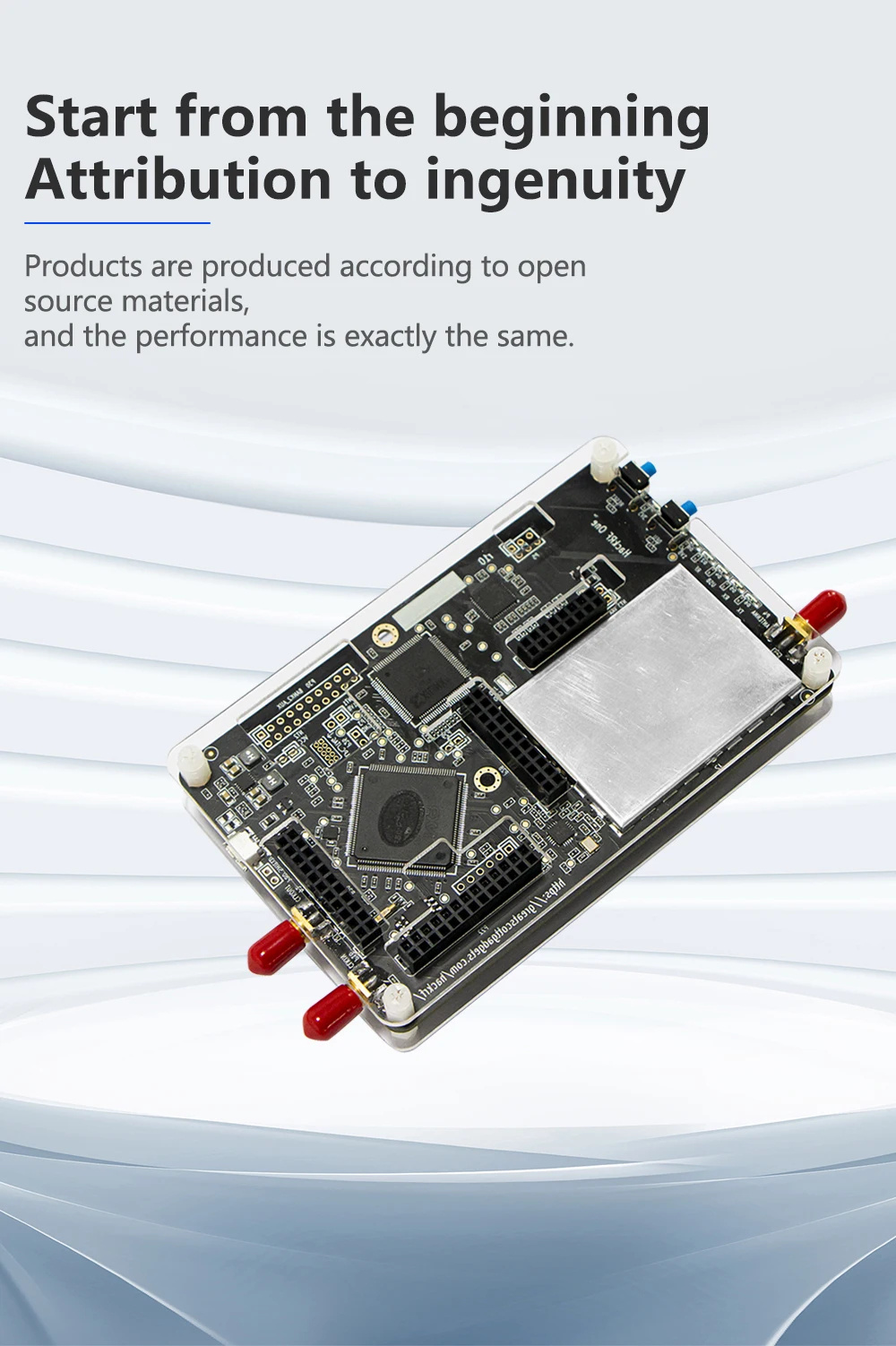

3.Open Source Compatibility: As an open-source hardware platform, this board supports community-driven improvements and customizations, providing flexibility for hobbyists, researchers, and developers.

4.Dual Mode Operation: This versatile development board can be used as a USB peripheral or programmed for stand-alone operation, catering to diverse user needs and project requirements.

5.Comprehensive Software Defined Radio (SDR) Capabilities: With its ability to both transmit and receive radio signals across a wide frequency range, this SDR board is an invaluable tool for those working on innovative radio communication technologies and signal processing.

Package Included:

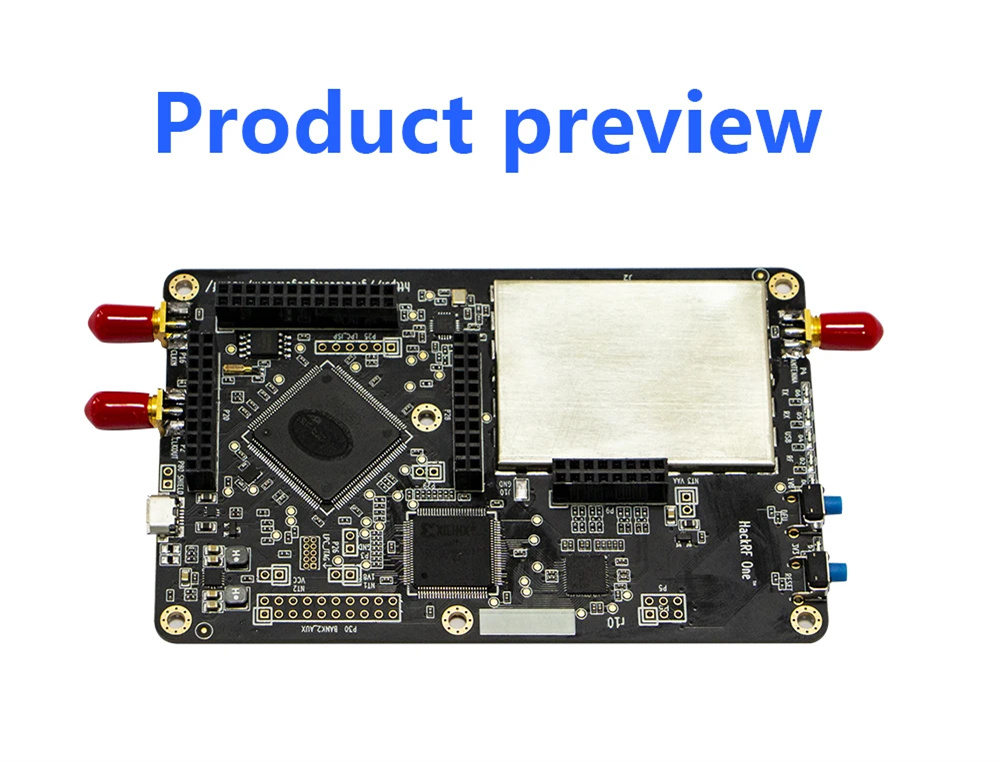

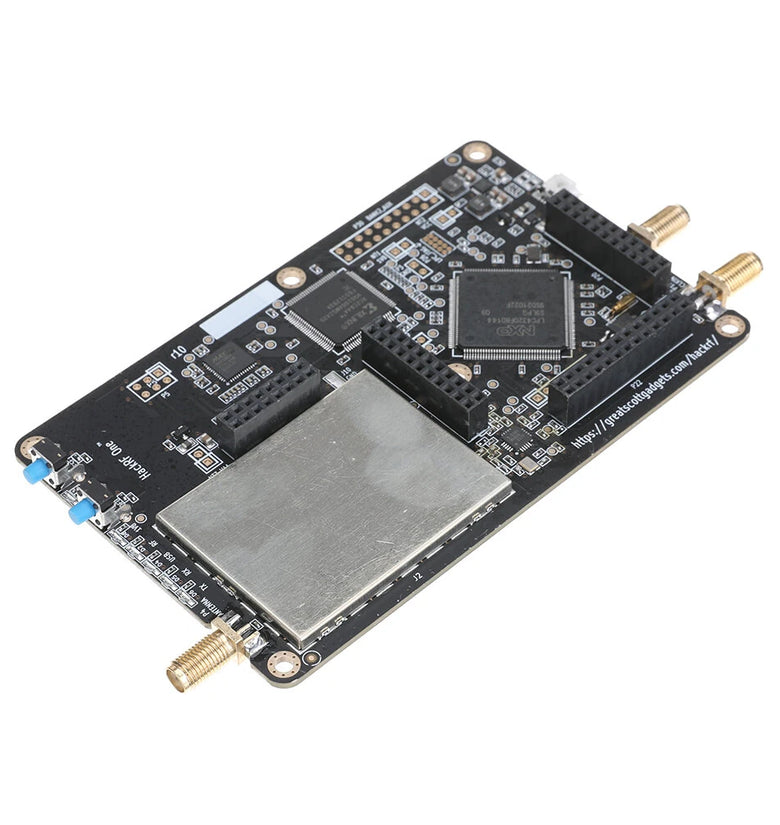

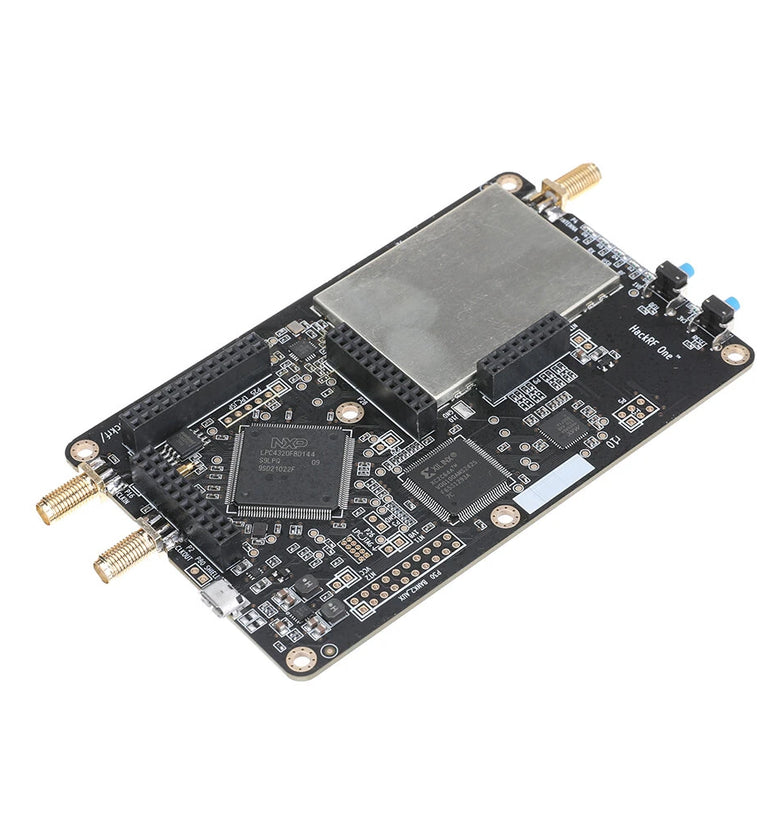

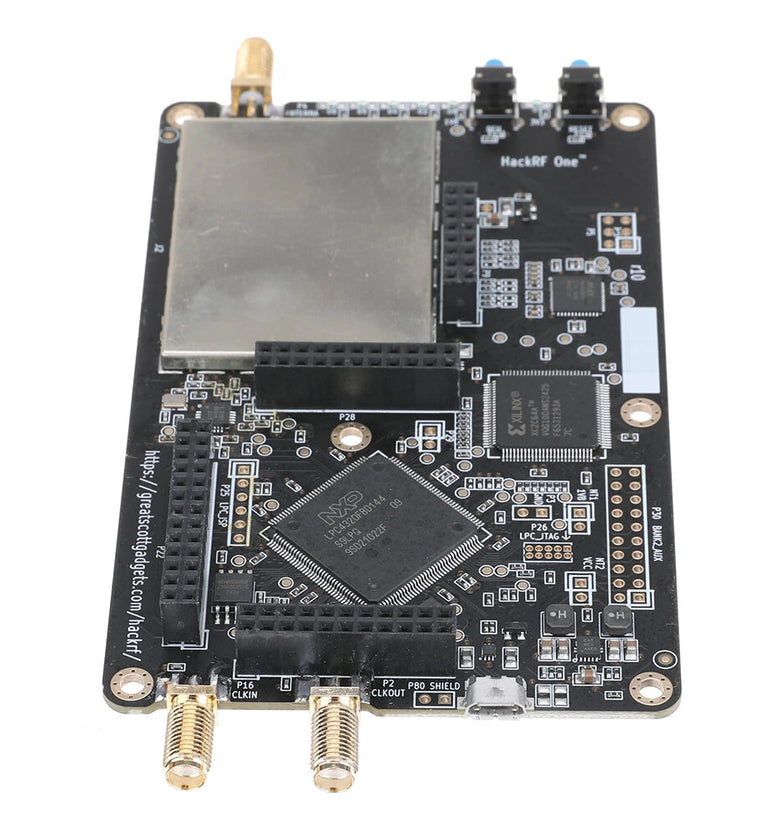

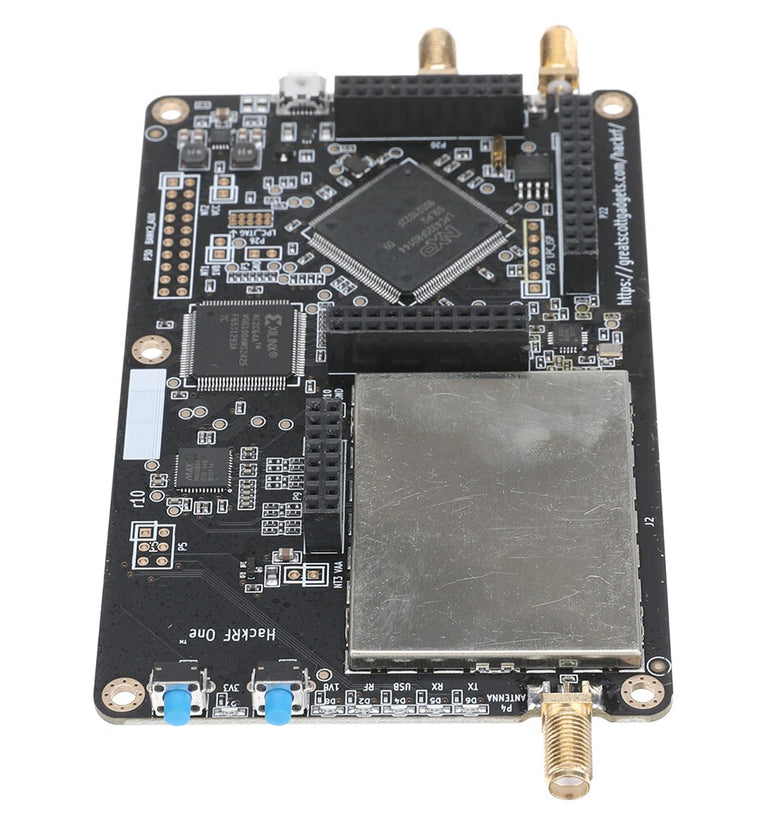

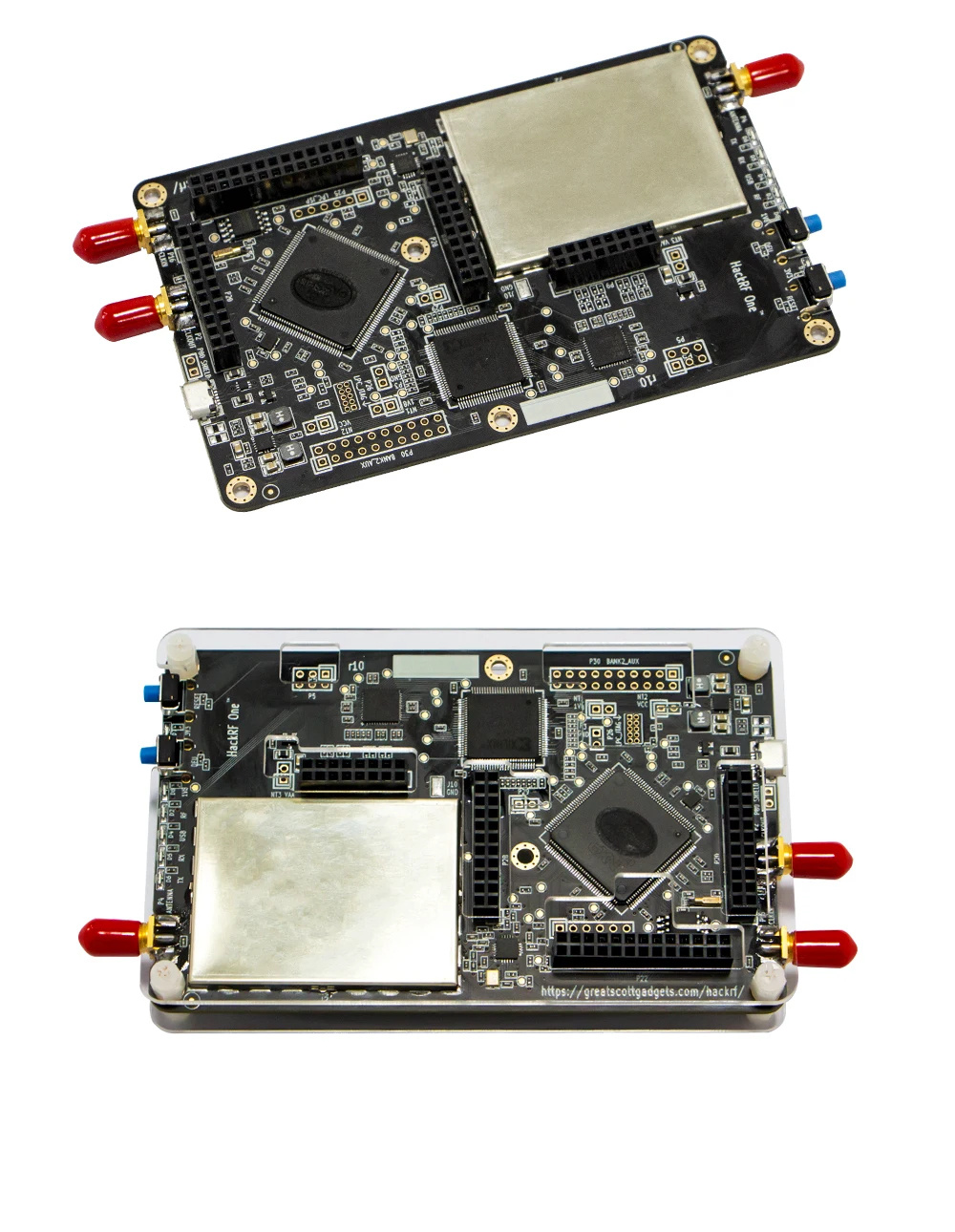

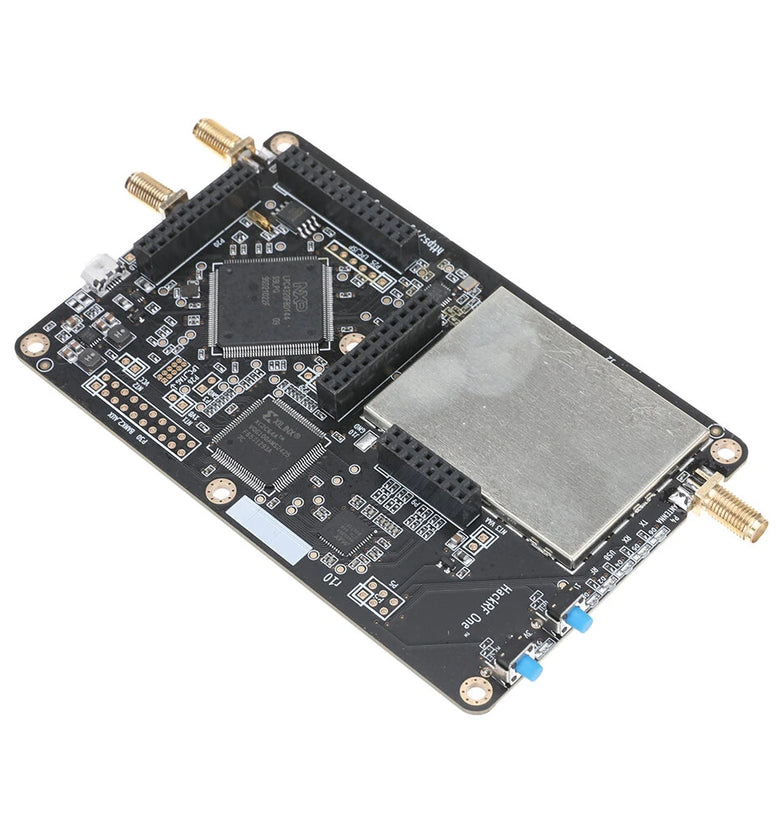

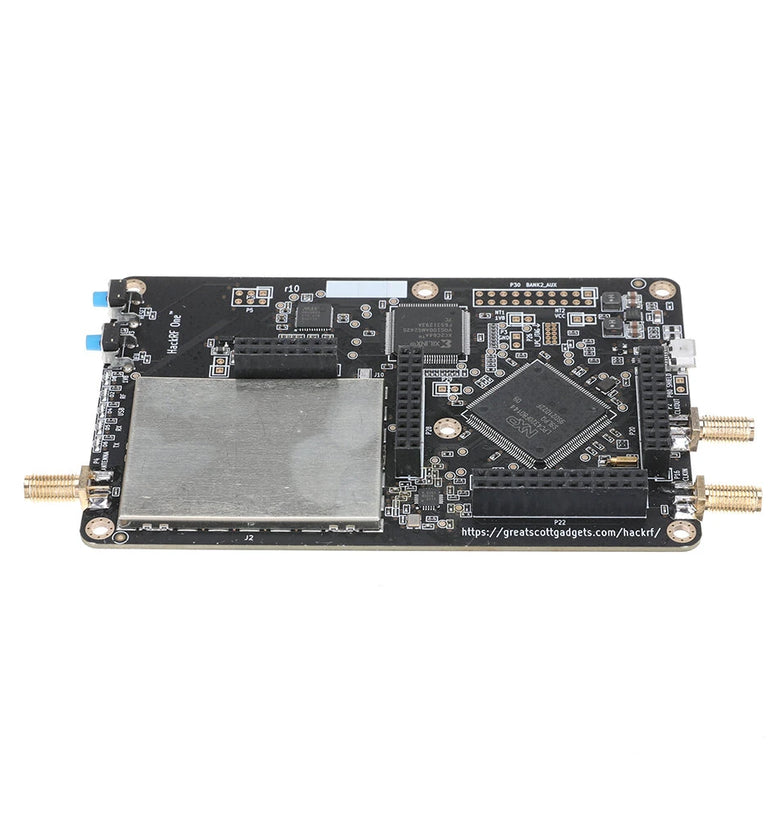

1 x HackRF One Development Board

Product precautions:

First. Pay attention to charging:1. The charger (adapter) must be charged with a brand 5V1A5W, and old chargers cannot be used.2. The power bank needs to use a 5V1A5W low current, good quality, and cannot use fast charging, poor quality, and old power banks.3. Avoid charging with batteries, the voltage is unstable.4. Do not use old USB data cables, it is best to use 5V2A microUSB data cables with data functions.5. Avoid using this product in a moving car.6. Do not use old, poor quality TF cards, the data reading speed does not meet the requirements.7. Never connect the antenna port directly to other machines, without transmitting signals through antenna communication, which is easy to damage the product, and too strong signals will directly damage the RF chip. The original design of the product is to receive signals through the antenna, and the signal interface cannot be directly connected with wires.Note: This development board and accessories are only for students' study, experiments in scientific research institutes, enterprises and institutions to use in compliance, and are not allowed to be used in violation of regulations. Please know before purchasing.Second, the use of precautions:1. Please turn off the power before plugging and unplugging the antenna.2. Stop receiving and transmitting the software first, and then turn off the power. Avoid unplugging the software and board directly when they are running.USB.3. Avoid water sticking. Avoid touching the chip with your hands.a4. When you use it for the first time, if you can't connect with the old USB, change one or two USB and try again.Down. Some of the old USB communication is no longer good.5. There is no sound when receiving or weak signal when transmitting, because the gain is not increased.6. Pay special attention not to excessively increase the RF Gain, and do not set the LNA gain too high, and do not exceed 38, which will easily burn the board. Don't overclock the board.7. When using this product, please observe the national laws and regulations, and do not use it illegally.8. The original design engineer of this development board is mainly used for further testing and development, and it is a wide-band board, so the sensitivity will be poor, and those who care need to consider it carefully before starting. After all, the price is here, and the slightly better SDR board basically starts at 3 K. So please understand. For demanding enthusiasts, it is not recommended to start.9. Don't use it next to WIFI or where there is a strong signal output. The strong signal will be direct.Reach LAN and burn the board. Pay special attention.10. When using, pay attention to develop, power off, plug and unplug the ports of microUSB and motherboard. When connect- ing,Finally, connect USB and computer. When disconnecting, after stopping running the program, disconnect USB and electricity first.Brain. It is better to plug and unplug the USB and motherboard, and it needs to be powered off. It's the same as turning off the power and plugging in the antenna.Special precautions:Please use the official Github software and tools, or use the software and tools shared by our network disk. Don't use the software and tools that are searched on the Internet or shared by others.Third, the scope of application of the product:

1. It's a gold plate.2. It can receive 4GLTE signals.3. The stored signal can be scanned.4. It can transmit signals.5. The received signal can be recorded.6. Can be a simple spectrum analyzer.7. Support windows,osMAC,Linux,Mushrom,Android,Apple mobile phone old system.
