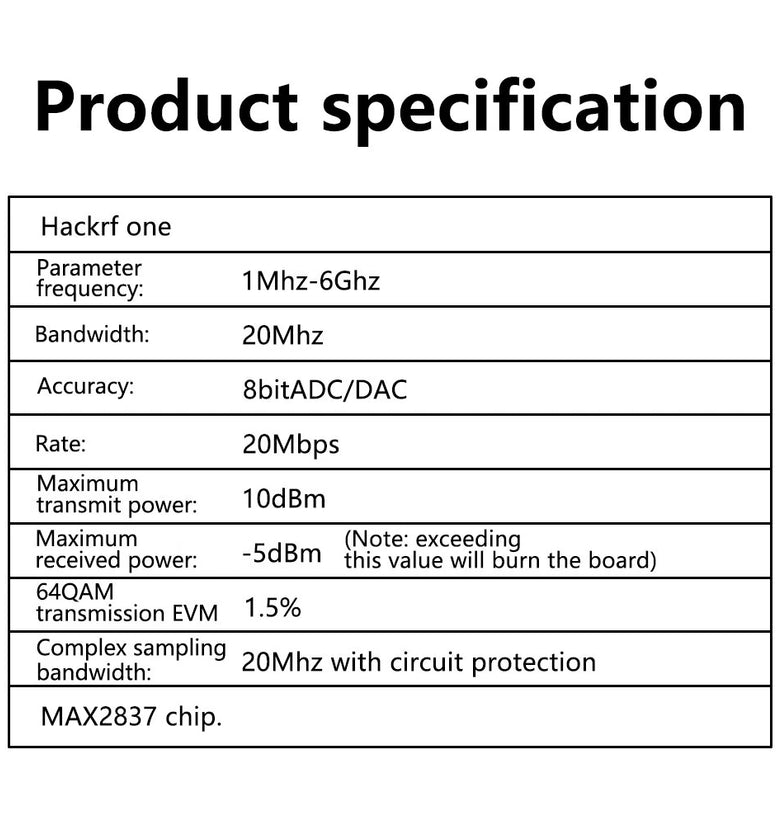

Specifications:

Parameter frequency: 1MHz-6GHz

Bandwidth: 20MHz

Accuracy: 8bitADC/DAC

Rate: 20Mbps

Maximum transmit power: 10dBm

Maximum received power: -5dBm (Note: exceeding this value will burn the board)

64QAM transmission EVM: 1.5%

Complex sampling bandwidth: 20MHz with circuit protection

Chip: MAX2837

Features:

Wide Frequency Range: Operates from 1MHz to 6GHz, supporting a diverse range of wireless communication protocols.

High Bandwidth: 20MHz bandwidth facilitates efficient data transmission for advanced wireless experimentation.

Accurate Data Handling: Utilizes 8bitADC/DAC for precise analog-to-digital and digital-to-analog conversion.

Robust Transmission Rate: Achieves data rates up to 20Mbps, optimizing performance for various SDR applications.

Enhanced Circuit Protection: Includes circuit protection to ensure stable and secure operation during complex sampling.

Package Included:

Type A:

1 x HackRF One

1 x USB Cable

Type B:

1 x HackRF One

1 x USB Cable

1 x Acrylic Shell

Type C:

1 x HackRF One

1 x USB Cable

1 x Acrylic Shell

3 x Antennas

Type D:

1 x HackRF One

1 x USB Cable

1 x Acrylic Shell

3 x Antennas

1 x TCXO Clock Module
