Specifications:
Brand: HamGeek
Radio Type: Mobile Radio
Transmission Frequency: 21–29.999MHz
Reception Frequency: 1–30MHz
Transmission Current: 500mA–7A (Max)
Input Voltage: 12.5–14.5V
Dimensions: 175mm × 190mm × 57mm
Weight: 850g
Transmit Power: 2–25W
Supported Modes: FM/AM/CW/SSB (USB/LSB)
Spurious Emissions: ≥40dBc
IF Bandwidth: SSB/CW: 2.7kHz; AM/FM: 15kHz
Receiving Sensitivity: SSB/CW ≈ -120dBm; FM ≈ -115dBm; AM ≈ -100dBm
Channel Modes: CH/VFO modes switchable
Channel Bands: A/B/C/D/E/F/G/H/I/J/K/L/M/N/O (40 channels per band)
Tuning Steps (VFO Mode): 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 10MHz

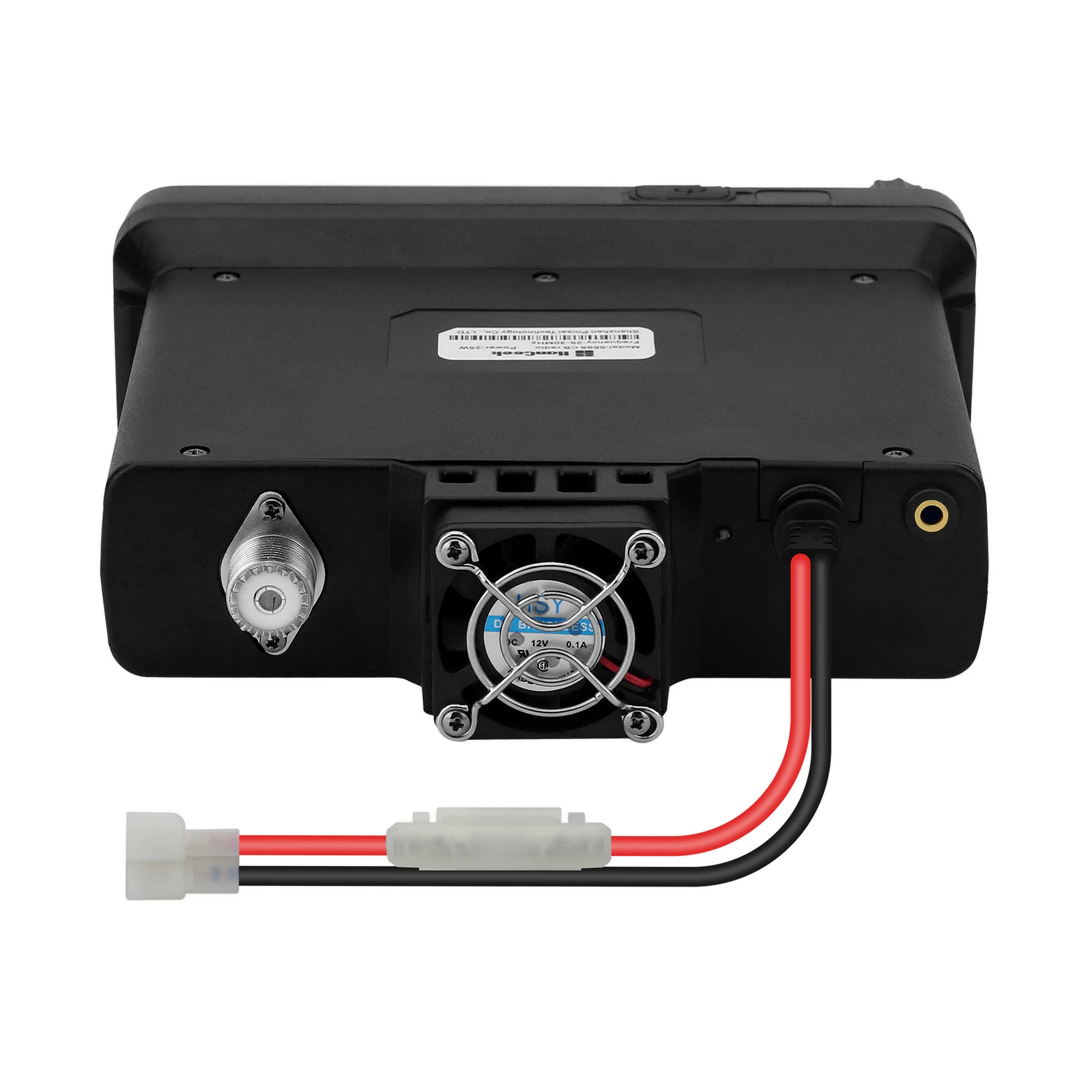

Antenna Impedance: 50Ω unbalanced (M-type connector)
Receiving Method: Superheterodyne
Dynamic Range: ≥ 90dB
Features:
Comprehensive mode support: Enables seamless communication with FM, AM, CW, and SSB (USB/LSB) modes, capturing a wide array of transmission types suited for various needs.
Adjustable transmission power: Offers flexibility to select power output ranging from 2W to 25W for tailored communication in diverse situations.
Wide frequency range: Allows reception across an extensive 1–30MHz spectrum, ensuring adaptability for numerous HF band operations.
Enhances signal clarity: Designed with spurious emissions ≥40dBc and an optimal IF bandwidth for minimized interference and precise signal reception.
Professional-grade design: Compact size (175mm × 190mm × 57mm) ensures easy installation in mobile environments, paired with robust performance perfect for on-the-go enthusiasts.
Package Included:

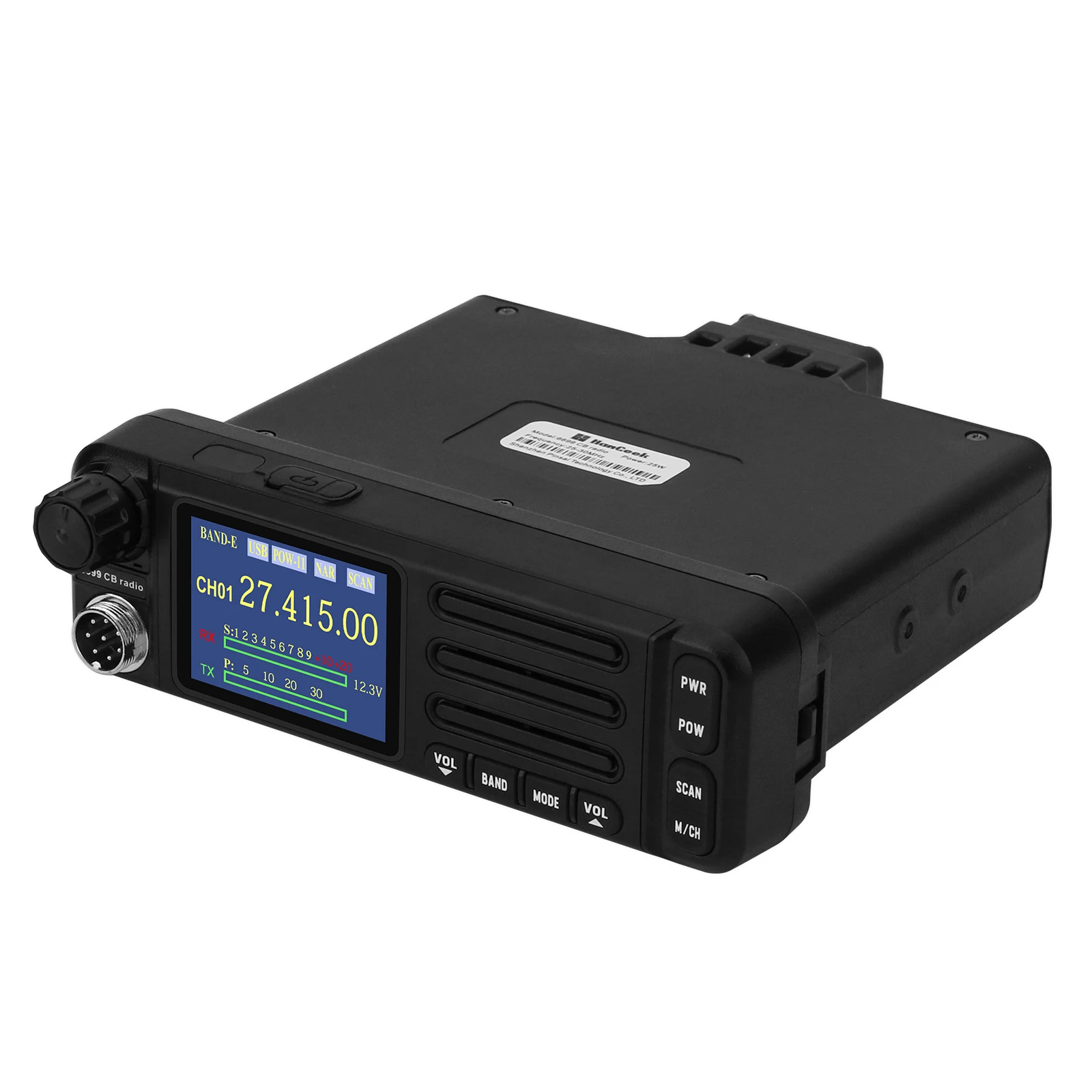

1 × HamGeek Transceiver with Microphone
