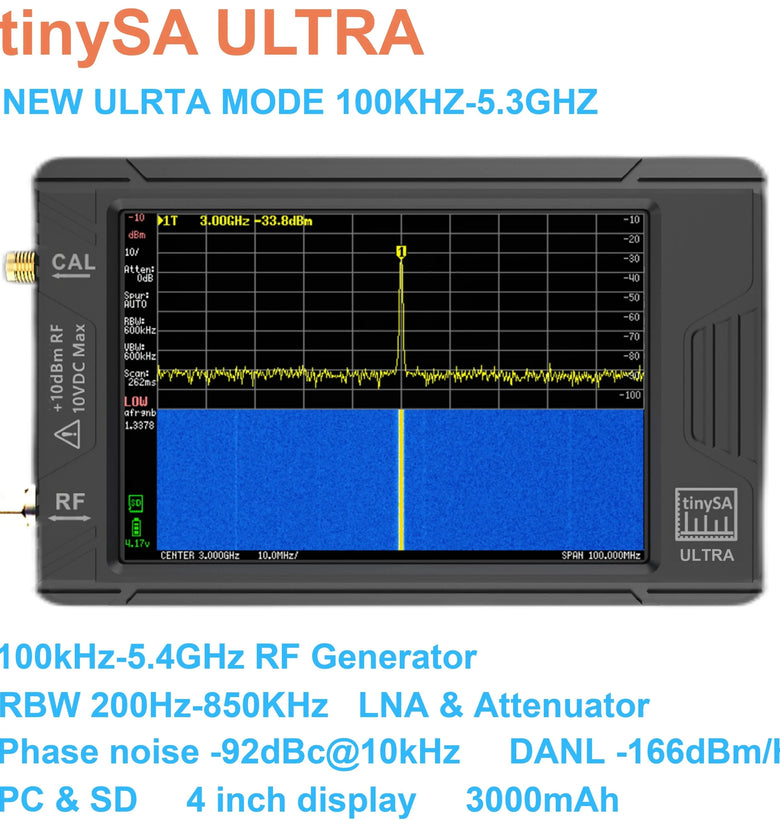

Features:

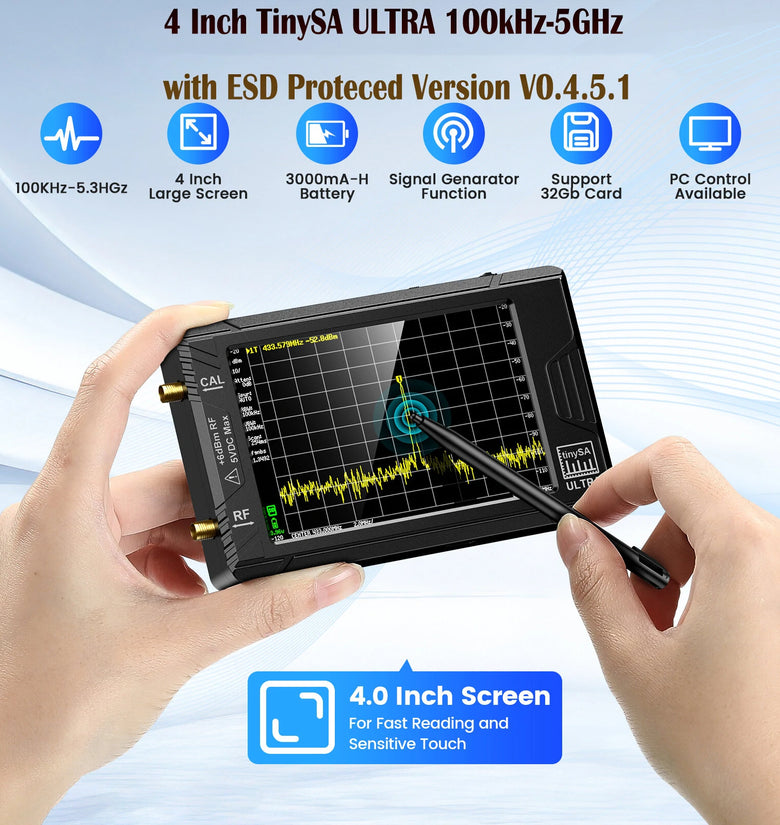

- Screen size 4 inch

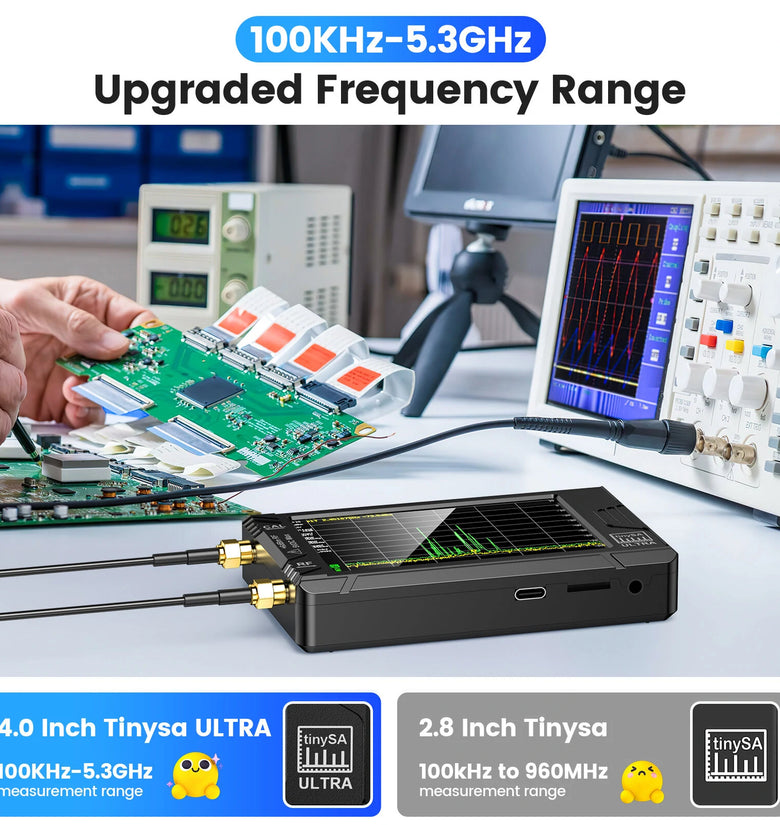

- Spectrum Analyzer for 0.1-800MHz or, with Ultra mode enabled, 0.1MHz-6GHz
- Signal Generator with sine wave output between 0.1-800MHz or dual tone output up to 4.4GHz when not used as Spectrum Analyzer.
- Switchable resolution bandpass filters for both ranges between 200Hz and 850kHz
- Built-in 20dB optional LNA
- Color display showing 450 scan points covering up to the full frequency range.
- Input Step attenuator from 0dB to 31dB (not in combination with LNA).
- A built-in calibration signal generator that is used for automatic self test and (low) input calibration.
- Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer or Signal Generator
- Rechargeable battery allowing a minimum of at least 2 hours portable use
- Max input level +10dBm. Do not destroy your tinySA
- Due to the low cost and very small form factor there are certain relevant tinySA limitations and tinySA Ultra limitations
Specification：
Parameter |
Specification |
Display size |
4” TFT LCD (480×320) |
Max low input frequency |
800MHz, 6GHz in Ultra mode |
Resolution filters in 1,3,10 steps |
from 200Hz to 850kHz |
Max output frequency |
Sinus up to 800MHz |
output level |
-104dBm to -16dBm |
Ultra mode |
Level calibrated up to 5.3GHz |
Internal LNA gain |
20dB up to 4GHz |
Displayed points per scan |
max 450 |
0-350MHz scan time |
165ms |
Shortest zero span time |
17ms |
DANL at 100MHz |
-153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On) |
DANL degrading in ultra mode |
10dB above 2.5GHz, 25dB above 5.3GHz |
Phase noise at 10kHz bias |
-92dBc/Hz |
Phase noise at 100kHz bias |
-110dBc/Hz |
Input 1dB compression level |
+0.5dBm (LNA Off) / -26.5dBm (LNA On) |
IIP3 without LNA |
+18dBm (at least 2MHz apart) / 0dBm (500Hz apart) |
IIP3 with LNA |
-8dBm (at least 2MHz apart) |
Frequency stability |
<1ppm ( -10℃ ~ +55℃) |

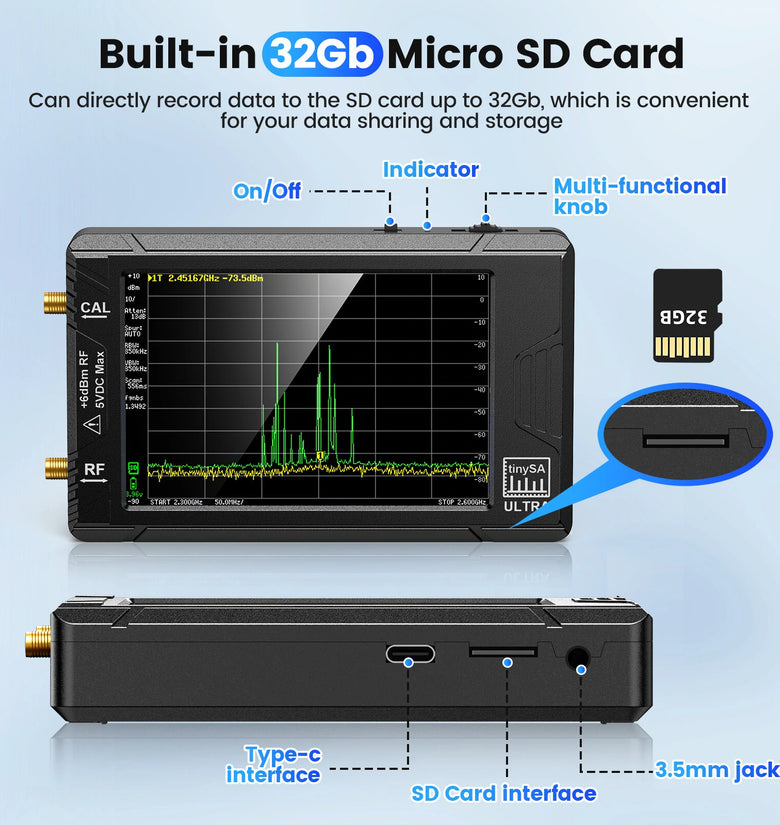

SD card slot |
micro SD card |
Audio out |
3.5mm headphone plug |
FW update mode activation |
Push jog button before switch on |
Maximum current consumption |
330mA |
Maximum charging current |
1300mA |
Battery |
Li-polymer 3.7V 3000mAh |
RF connectors |
SMA female |
Communication Interface |
USB-CDC(Type-C)，UART-TTL(2.54mm Connector) |
Appearance Size |
117x72x23mm (Excluding protruding parts) |
Package includes:
1 x Host
1 x USB Type-C data cable
