| Specification | IR07 | IR07A | IR07B |
|---|---|---|---|
| Maximum Temperature Range | -40°C to 1050°C -40°F to 1922°F |
-40°C to 1350°C -40°F to 2462°F |
-40°C to 1650°C -40°F to 3002°F |
|
Irradiation Accuracy (Applies to respective upper ranges) |
1°C to 800°C: ±1.5% + 2°C 801°C to 1200°C: ±3% |
1°C to 800°C: ±1.5% + 2°C 801°C to 1200°C: ±3% 1201°C to 1350°C: ±5%* |
1°C to 800°C: ±1.5% + 2°C 801°C to 1200°C: ±3% 1201°C to 1650°C: ±5% |
| Key Differentiator | Standard Range | Extended Range | Ultra-High Range |
Specifications:
Model Options: IR07, IR07A, IR07B
Temperature Range:
IR07: -40°C to 1050°C / -40°F to 1922°F
IR07A: -40°C to 1350°C / -40°F to 2462°F
IR07B: -40°C to 1650°C / -40°F to 3002°F
Display: VA Reflective Color Screen
Distance-to-Spot Ratio (D:S): 30:1
Spectral Response: 8–14µm
Resolution: 0.1°C / 0.2°F
Emissivity: Adjustable (0.10 to 1.00)
Laser Pointer: <1mW, 620–690nm Class 2
Response Time: <0.5 seconds
Auto Power Off: Approx. 35 seconds
Irradiation Accuracy:
-40°C to 0°C: ±3°C / ±6°F
1°C to 800°C: ±1.5% + 2°C
801°C to 1200°C: ±3%
1201°C to 1650°C: ±5%
K-Type Temperature Range: -40°C to 600°C / -40°F to 1112°F
K-Type Accuracy: ±1.5% + 2°C / ±4°F
Operation Conditions: 0°C to 50°C, 10%–90% RH
Storage Conditions: -20°C to 60°C
Dimensions: 173 × 102 × 54mm
Power Supply: 2 x 1.5V AA Batteries
Weight: Approx. 210g (without batteries)
Features:

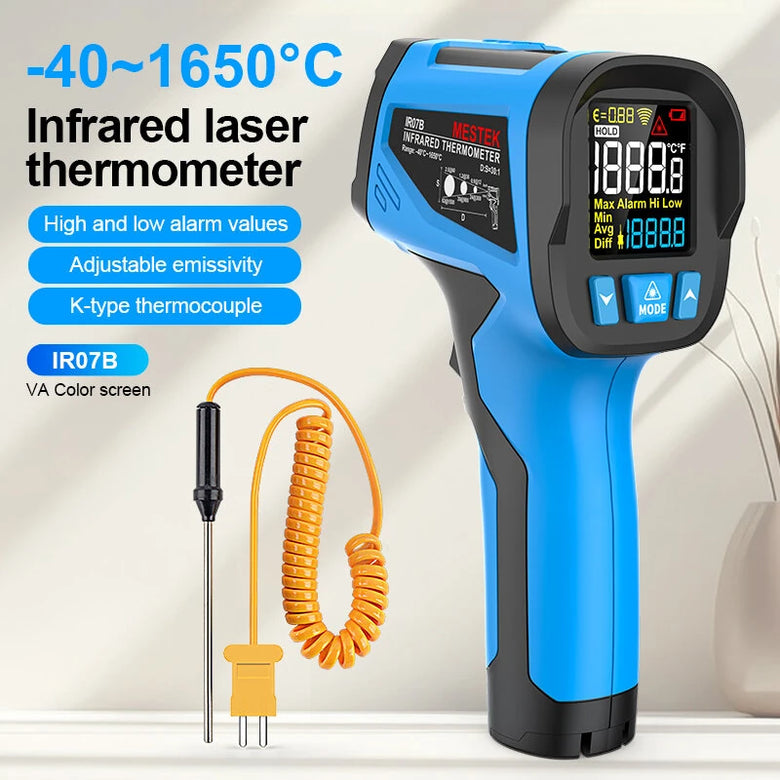

1.Wide Temperature Range: Available in three model options, covering temperature measurements from -40°C to a maximum of 1650°C (3002°F), suitable for industrial, environmental, and household applications.
2.High Measurement Precision: Features adjustable emissivity and high irradiation accuracy to ensure reliable readings, adapting to specific material surfaces and conditions.

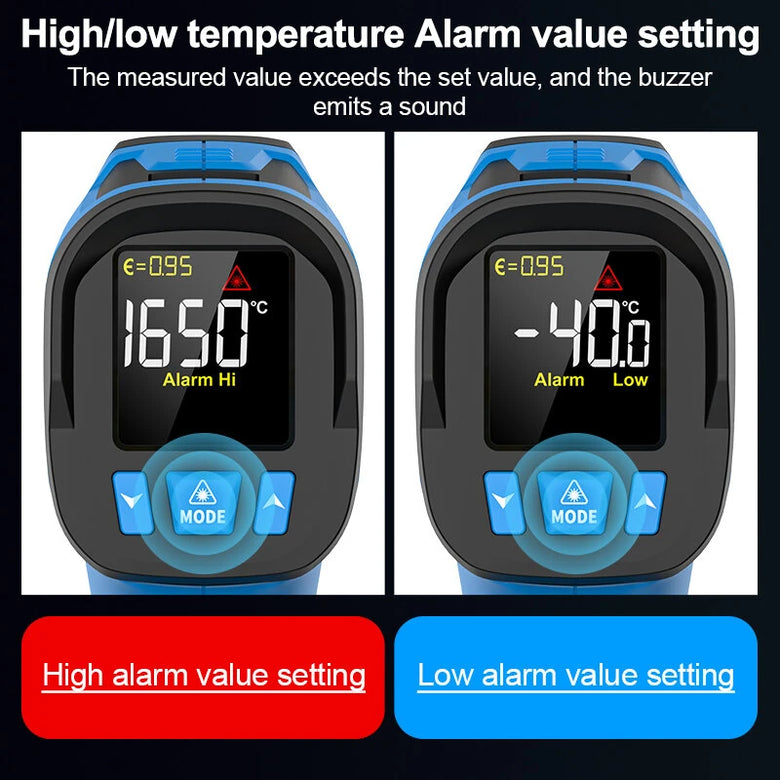

3.VA Reflective Color Screen: Enhanced readability with the bright display and data on max/min/average values, ensuring swift and precise interpretation of measurements.

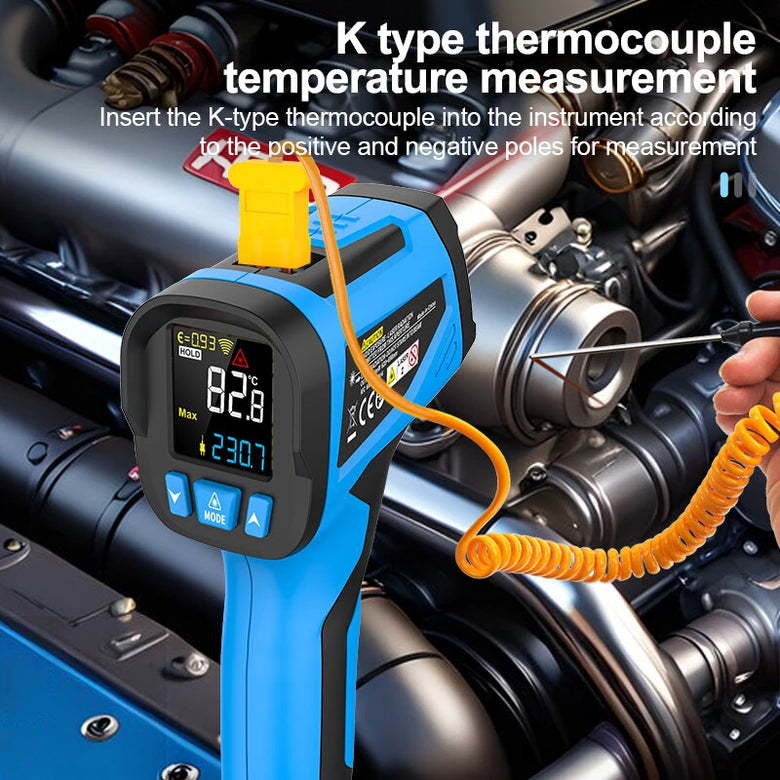

4.K-Type Thermocouple Compatibility: Includes a versatile thermocouple for measuring contact temperatures up to 600°C (1112°F), expanding its usability to more detailed applications.
5.Compact Ergonomic Design: Lightweight with user-friendly controls and a built-in laser pointer for better targeting, making it suitable for frequent use and extended sessions.
Package Included:
1 x Infrared Thermometer
1 x K-Type Thermocouple
1 x User Manual
1 x Instrument Storage Bag
1 x Color Box
