Features:

1. High-speed USB2.0 interface, up to 480Mb / s.

2. Large area array CMOS progressive scan image sensor.

3. Support for static and dynamic image capture.

4. Exposure time: any adjustable.

5. 8 bit uncompressed raw image data, software implementation Bayer color conversion plug and play installation.

6. Support Windows 2000, XP, WIN7 operating system.

7. The image is stable and reliable, after a long period of rigorous testing performance indicators.

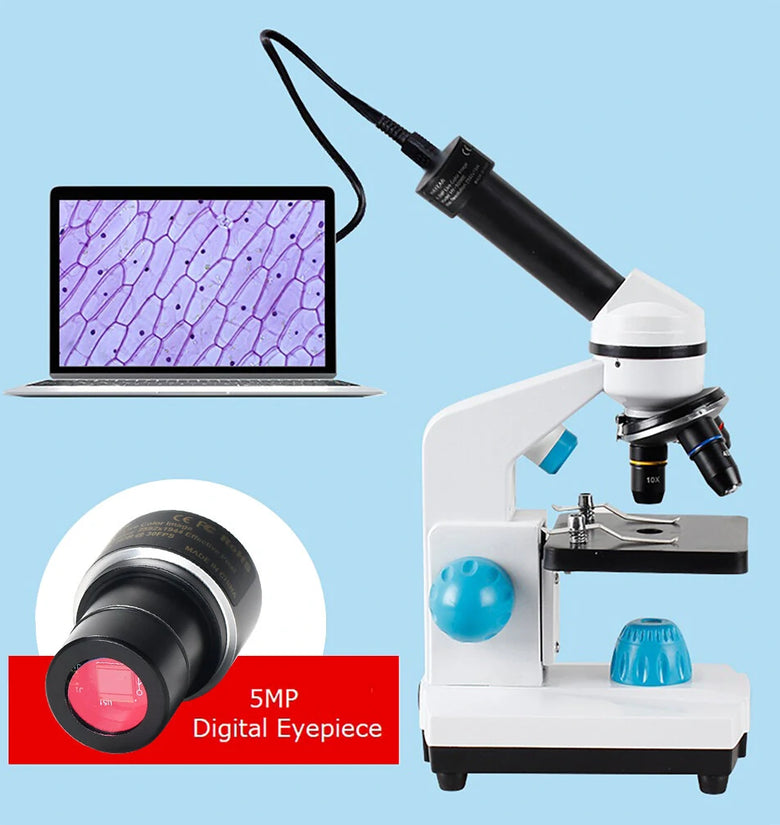

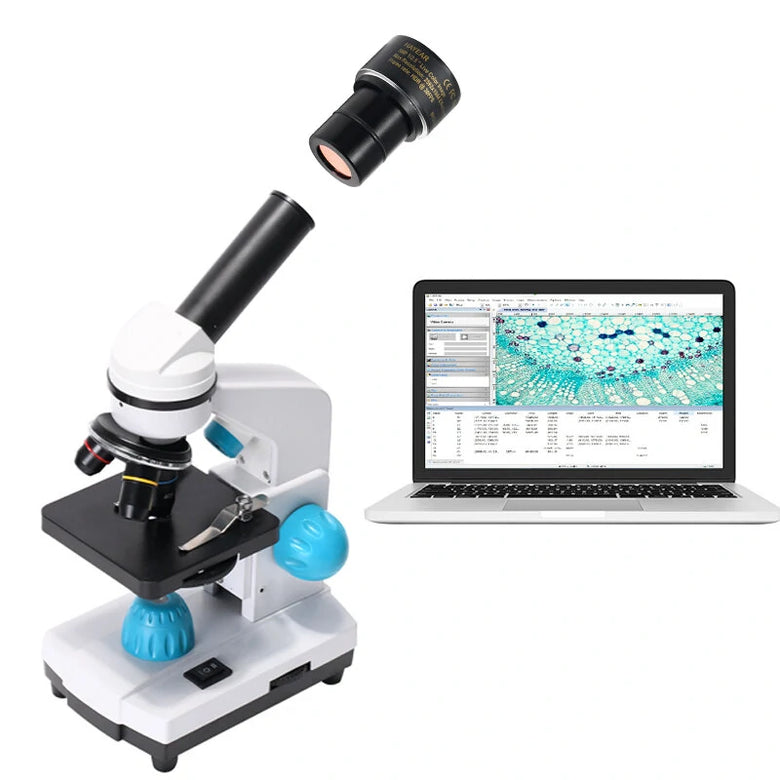

Can be widely used in pattern recognition, industrial testing, medical microscopy and traffic management and machine vision and other fields. More widely used in various fields of microscope and image acquisition of various occasions.

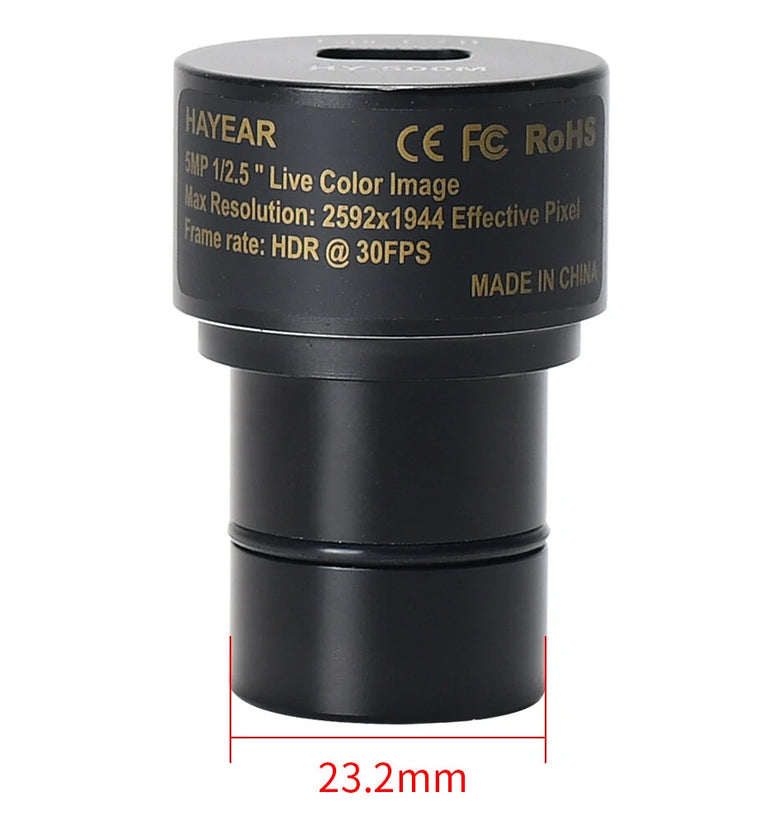

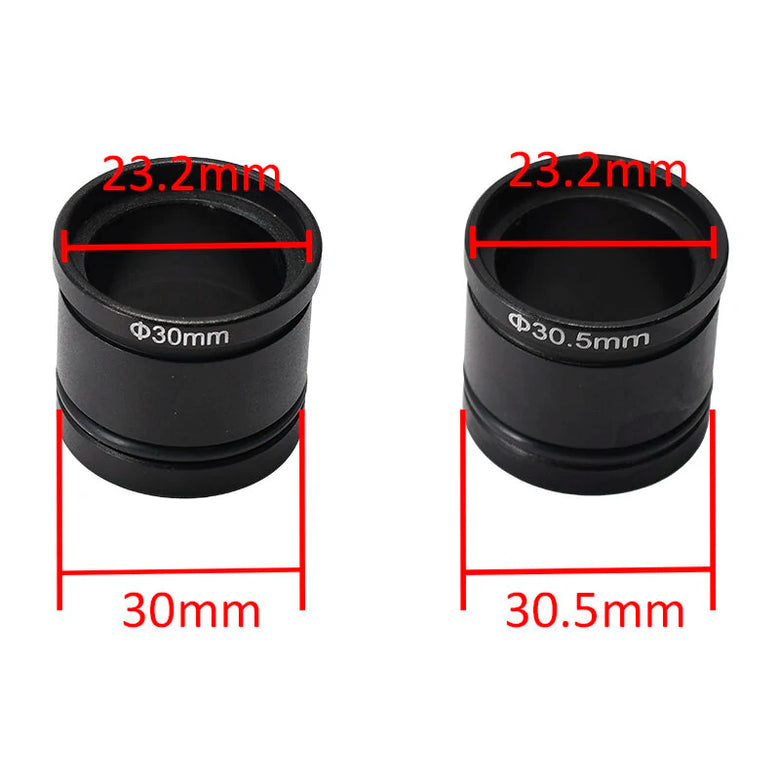

C mouth eyepiece interface (adapter), designed for the microscope . the under mouth is the 23.2mm 30mm 30.5mm straight inserted.

Specification:

-Image sensor: 1 / 2.5' color CMOS image sensor

-Pixels size: 2.2 μm × 2.2 μm

-The spectral response: 550nm

-Scan mode: progressive scan

-Pure hardware 5 megapixel image sensor, no compression, no interpolation

-Resolution:640X480@30fps,1280x1024@30fps,1600x1200@30fps,1920x1080@30fps 2048x1536@     30fps,2592x1944@ 30fps

-White Balance: Auto / Manual

-R.G.B value setting independent

-Auto Exposure Control: Auto / Manual

-Image output: USB2.0, 480Mb / s

-Operating temperature: 0 ° C ~ 50 °

-Working current: ≈200mA

-Application: Microscope imaging, General image acquisition, macro imaging, etc.

Support OTG to Android Phone (OTG Cable is not included)

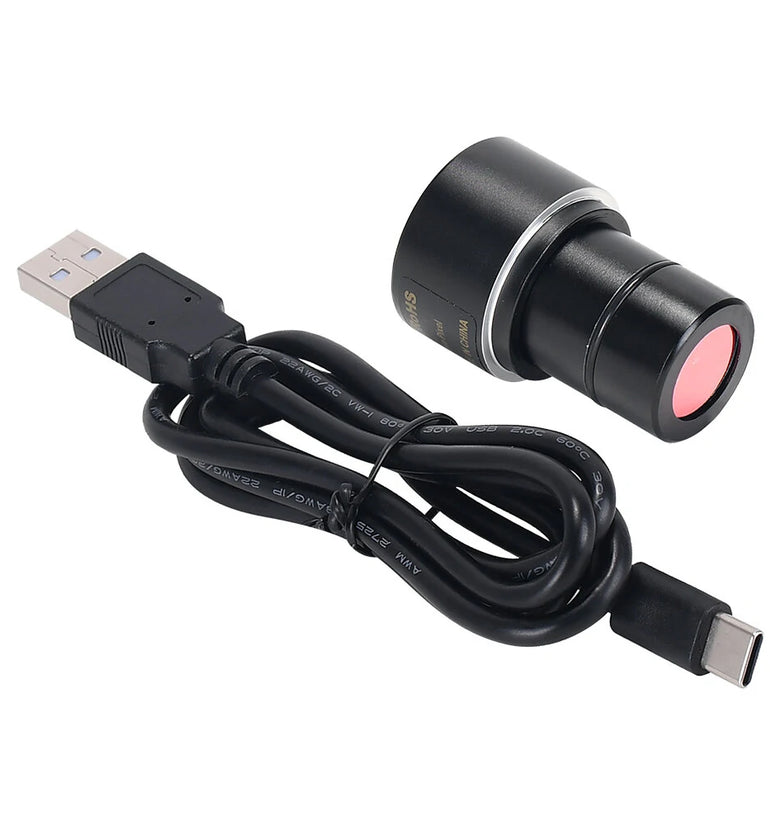

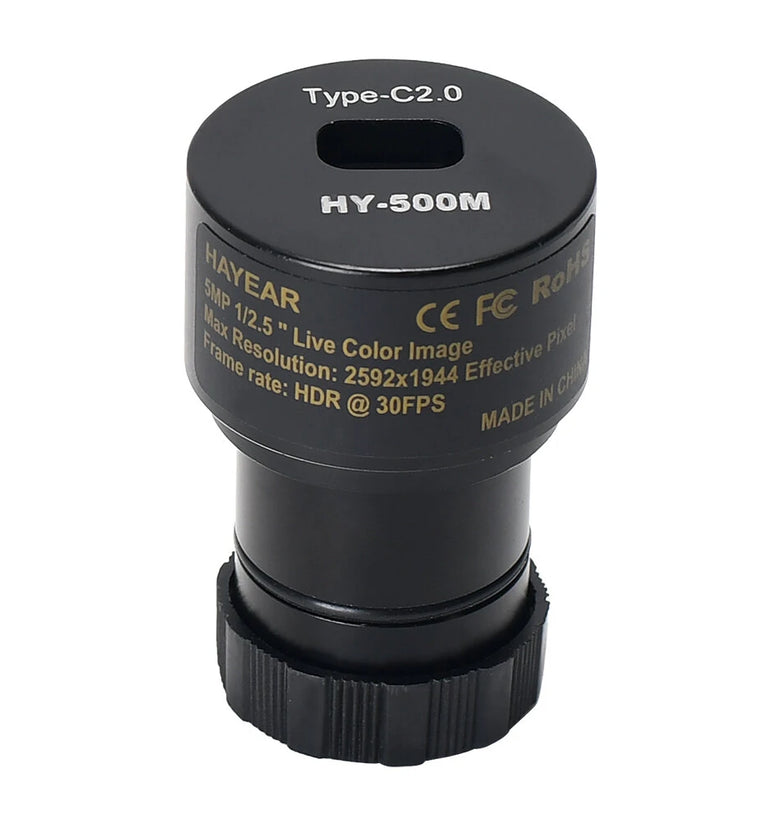

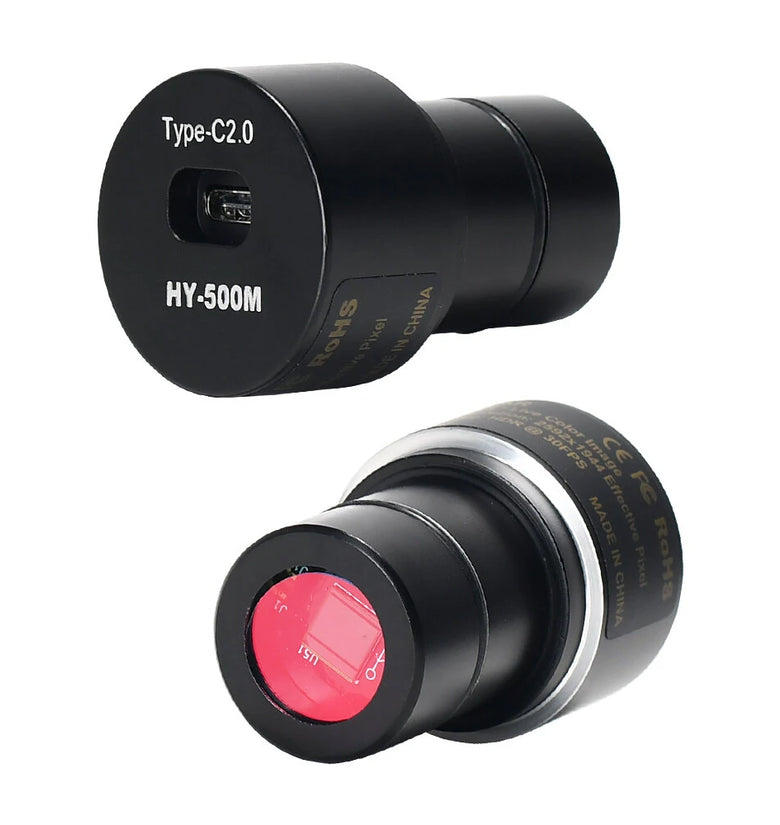

Mini USB and Type C interface version will be sent randomly. Except for different interfaces and slightly different appearances, the effects and usage are the same.

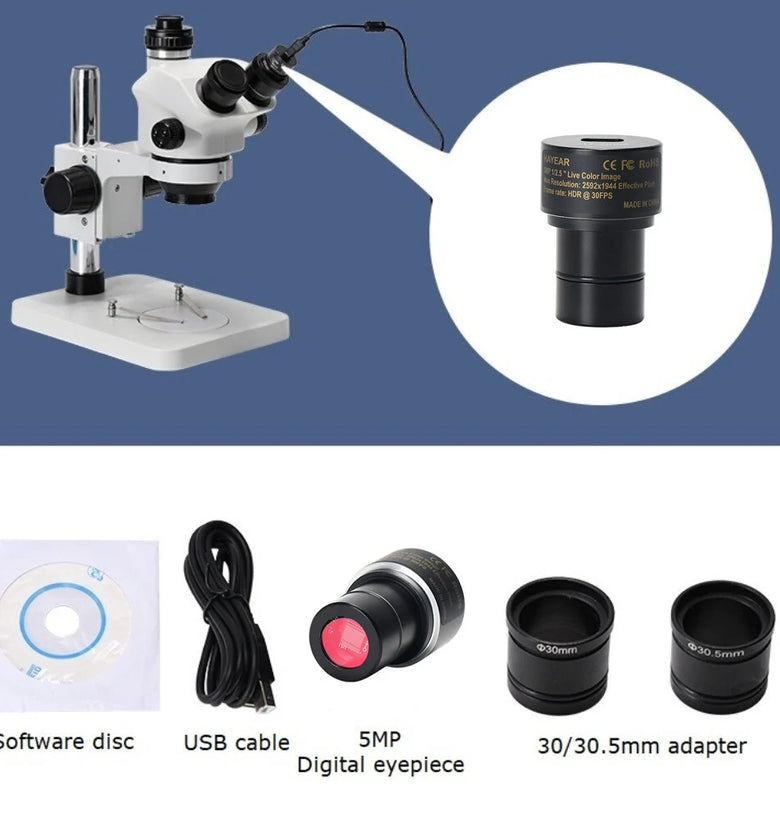

Package includes:

1 x Microscope camera
