Specifications:

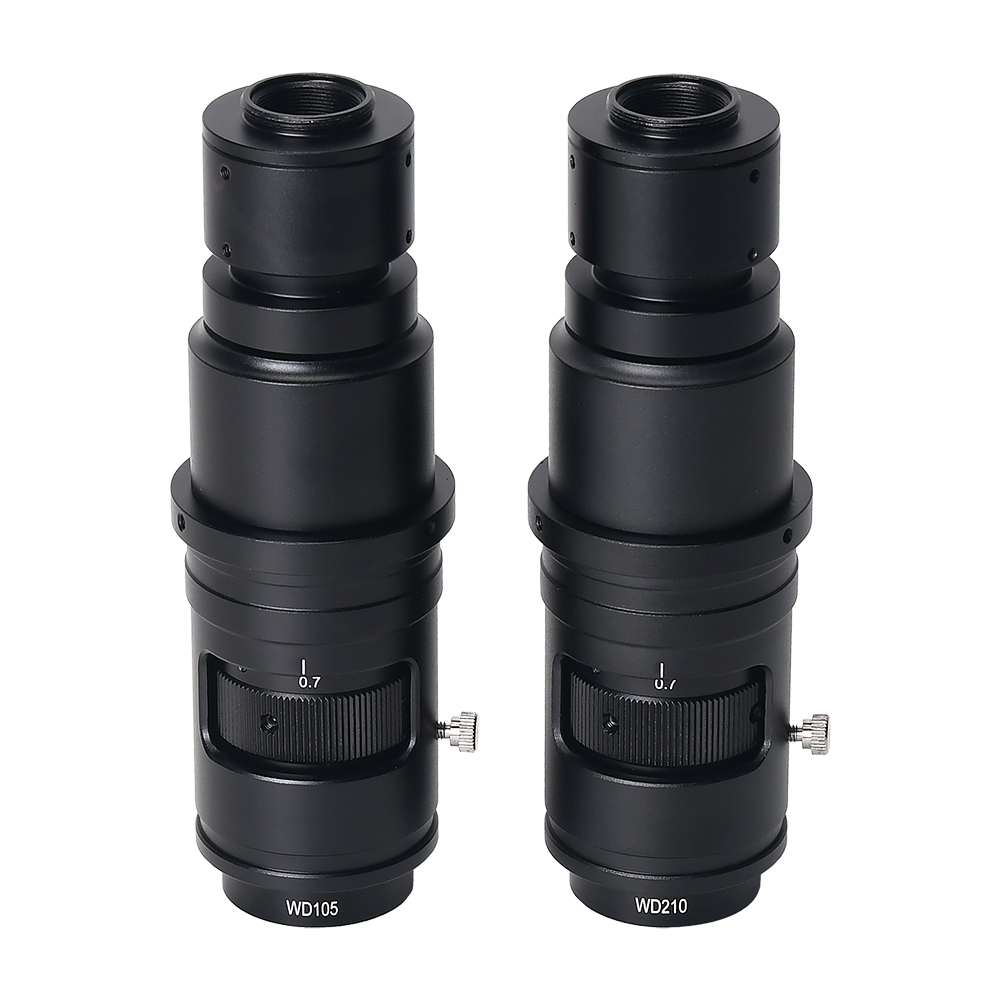

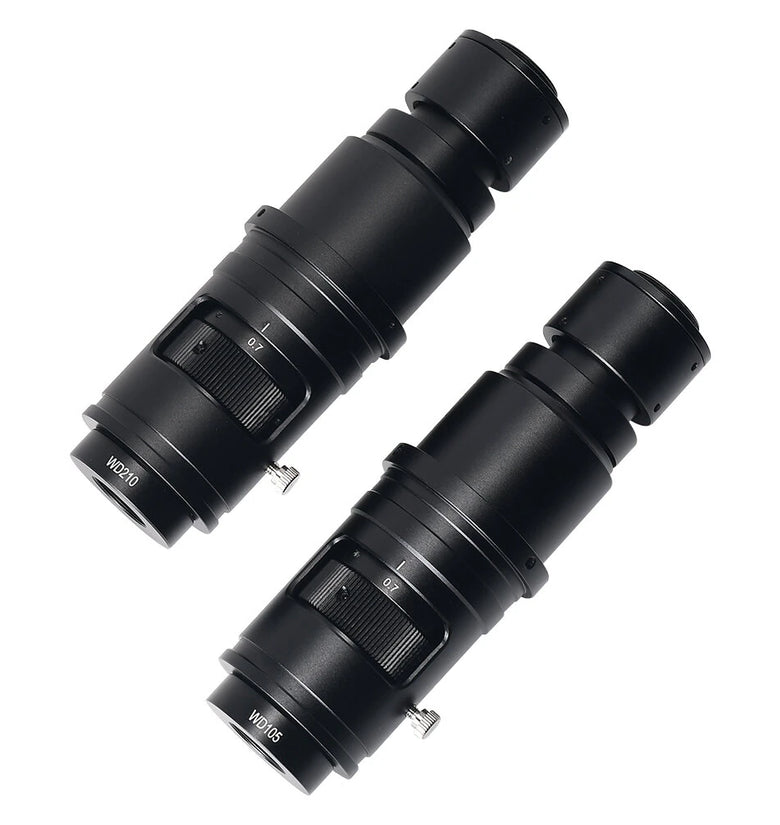

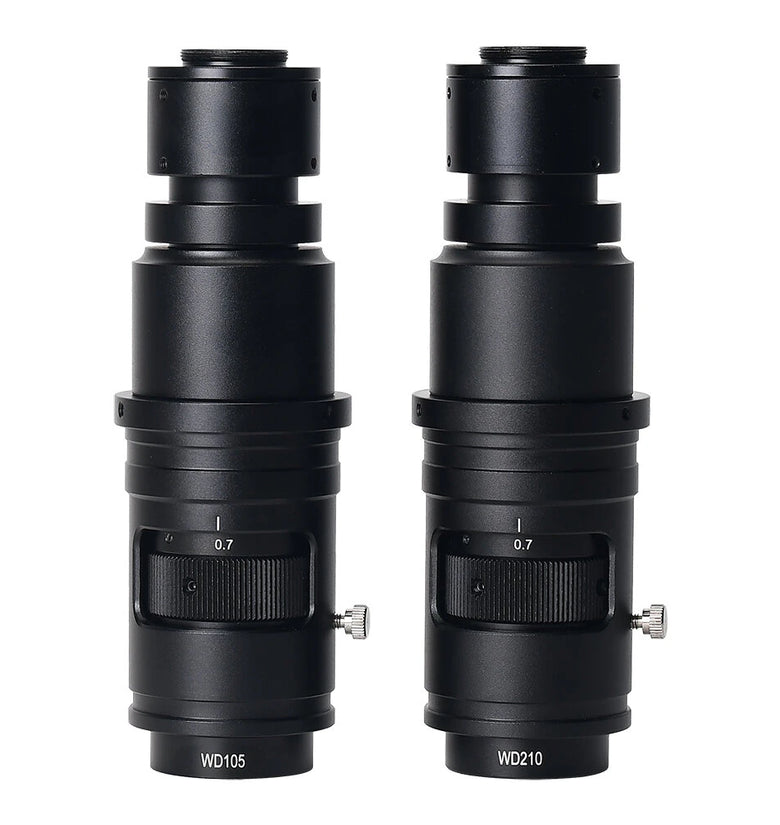

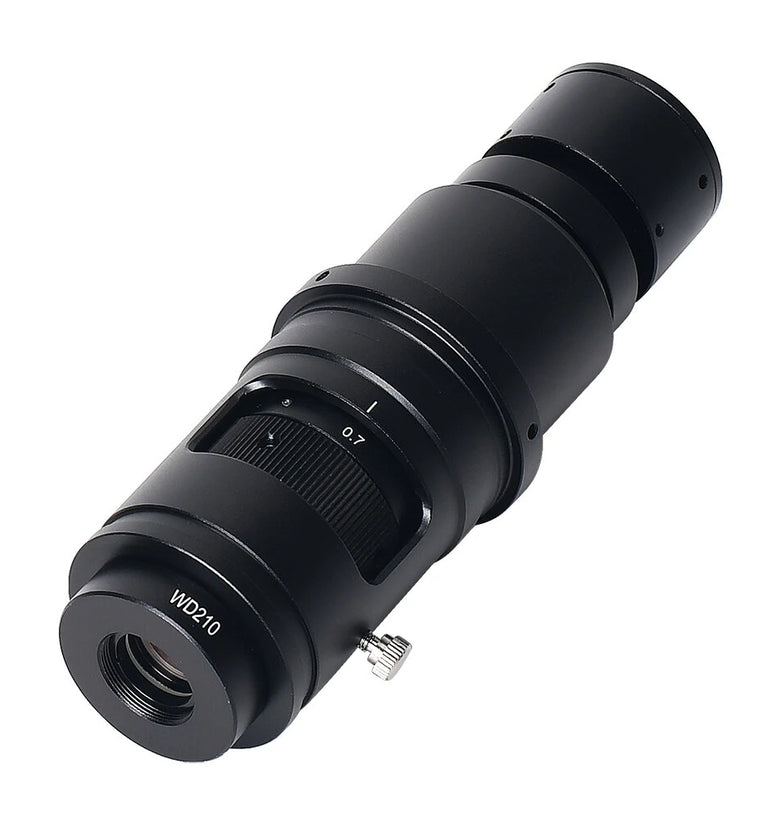

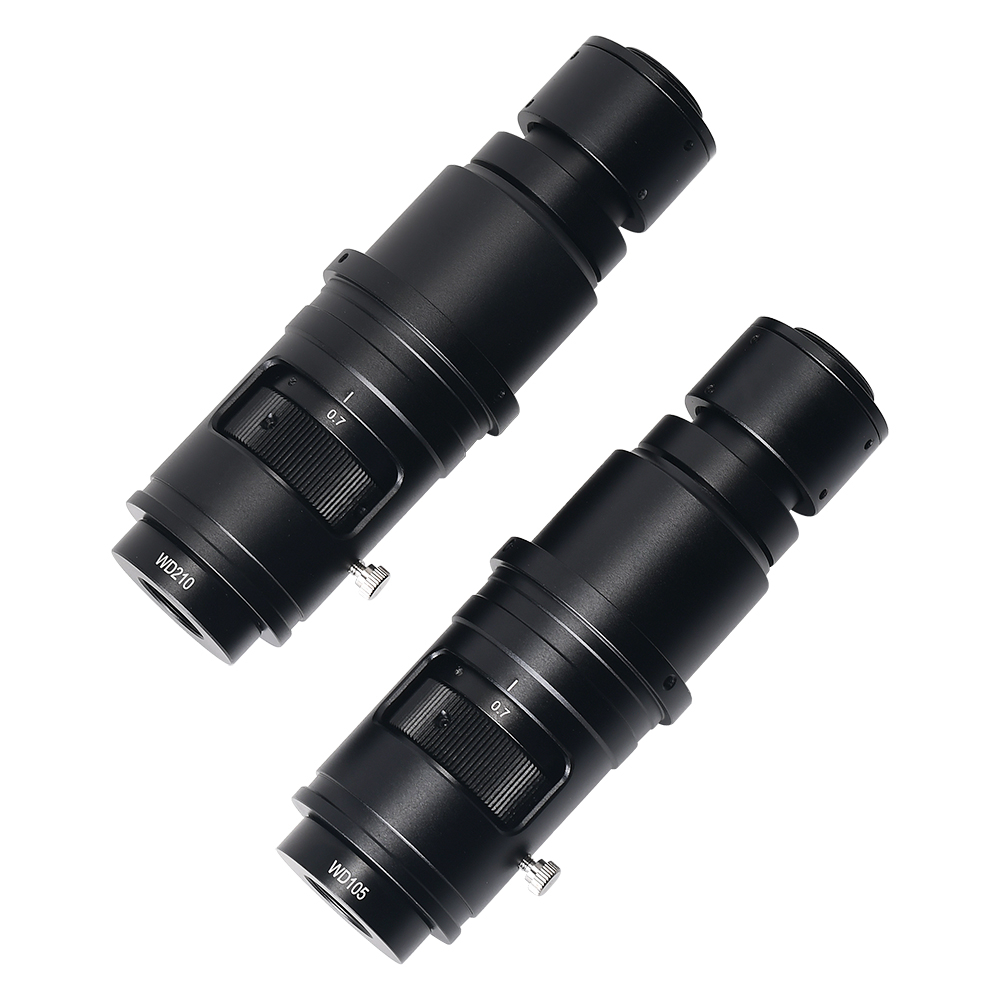

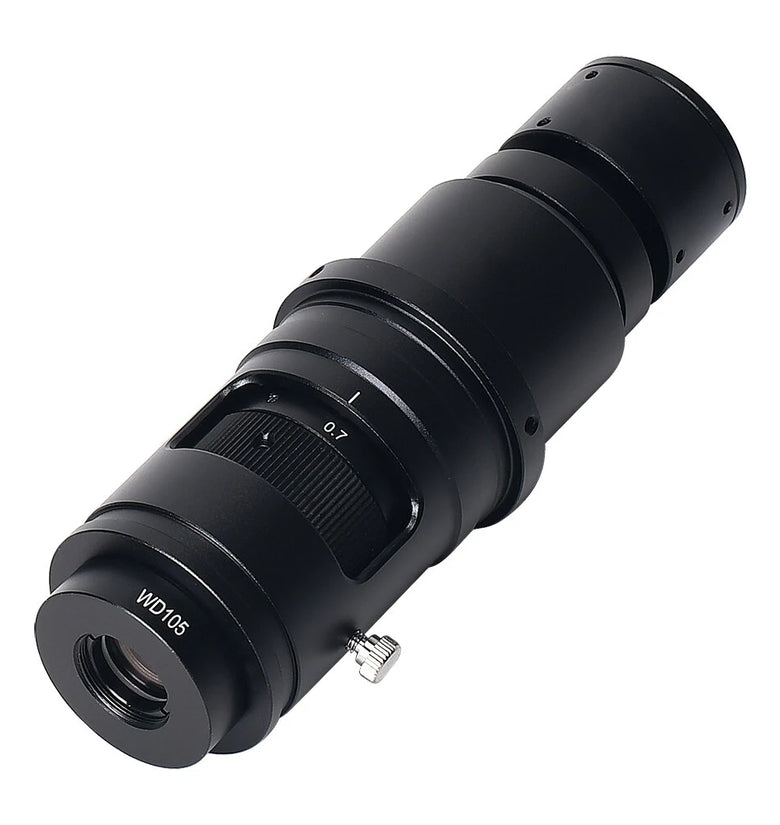

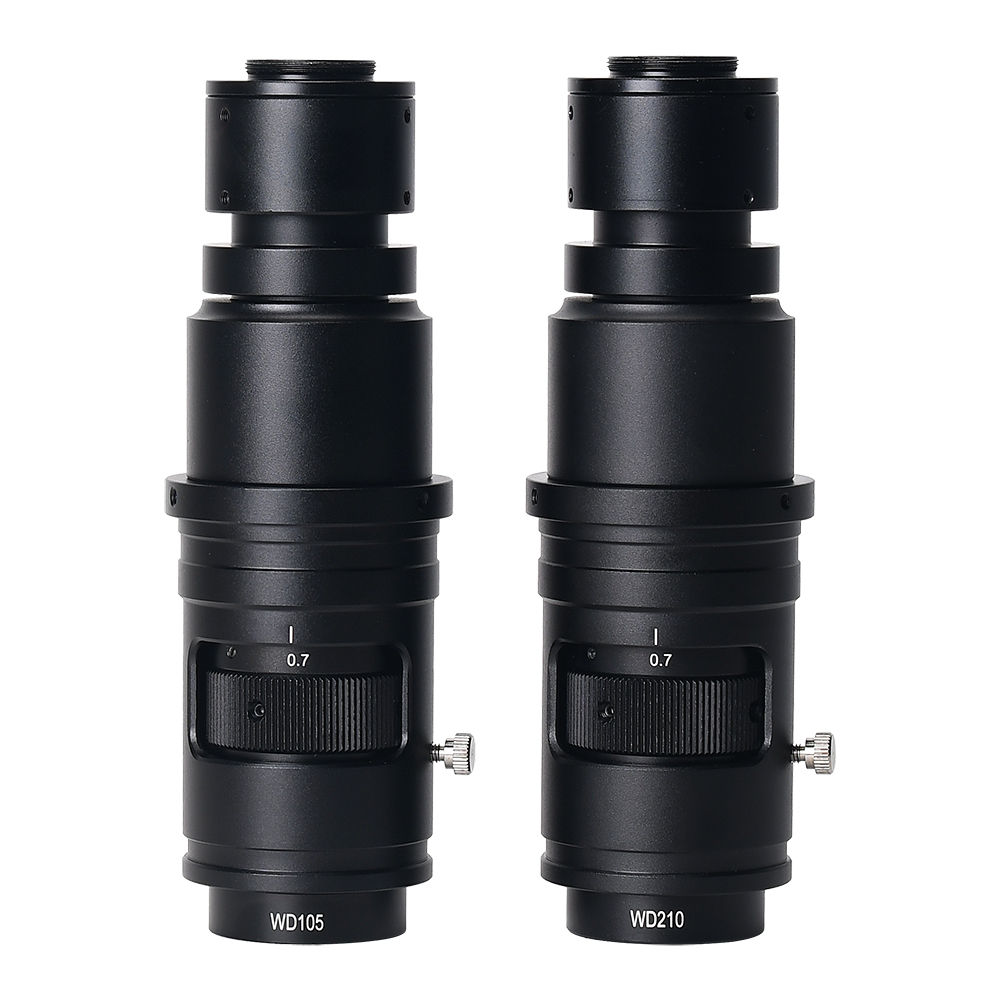

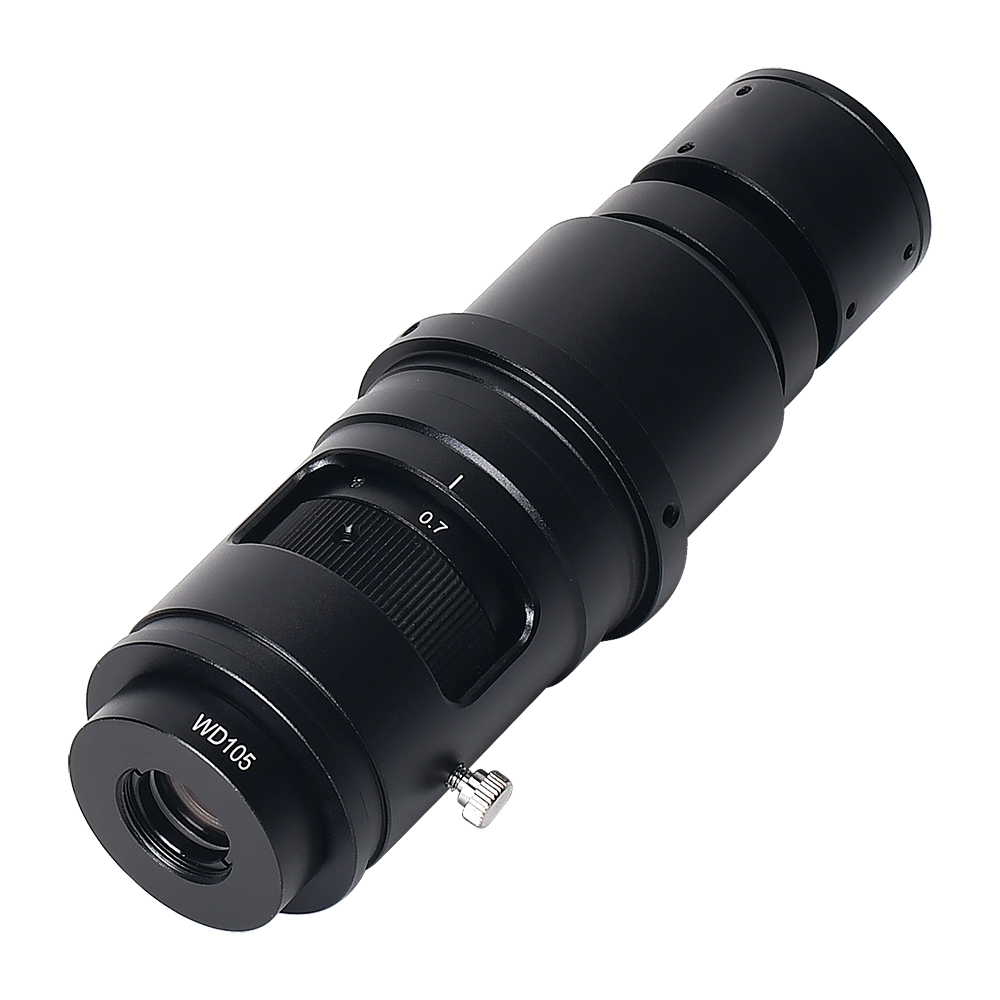

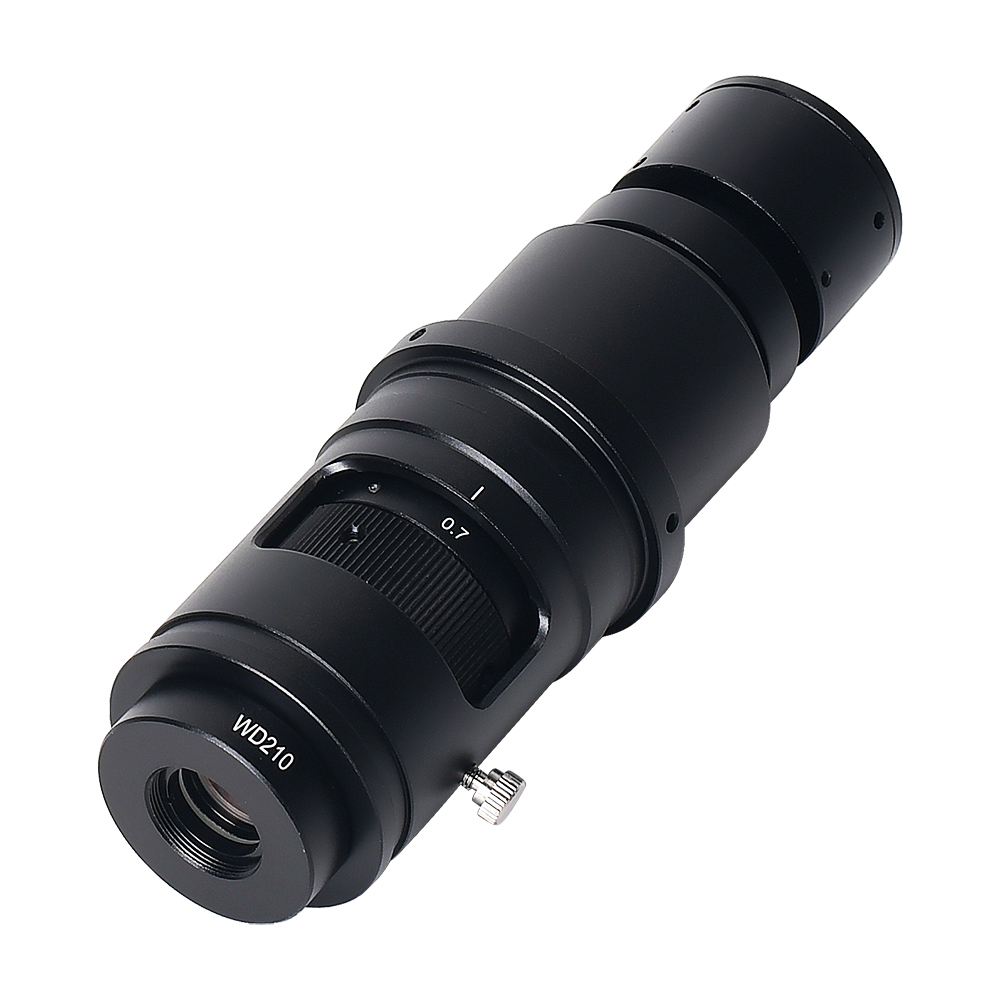

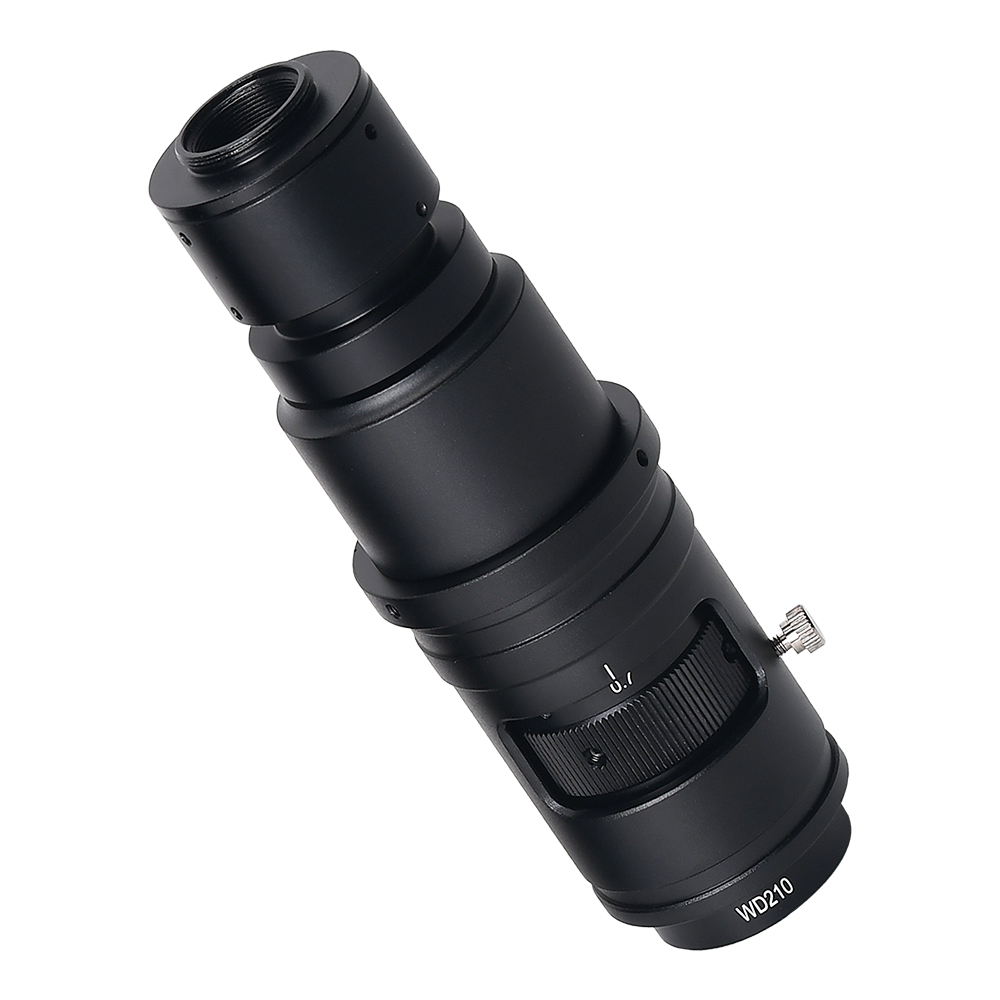

Model: WD105 / WD210
Working Distance: 105mm (WD105) / 210mm (WD210)
Maximum Magnification Area: 3x1.7mm (WD105) / 6x4mm (WD210)
Minimum Magnification Area: 35x20mm (WD105) / 46x26mm (WD210)

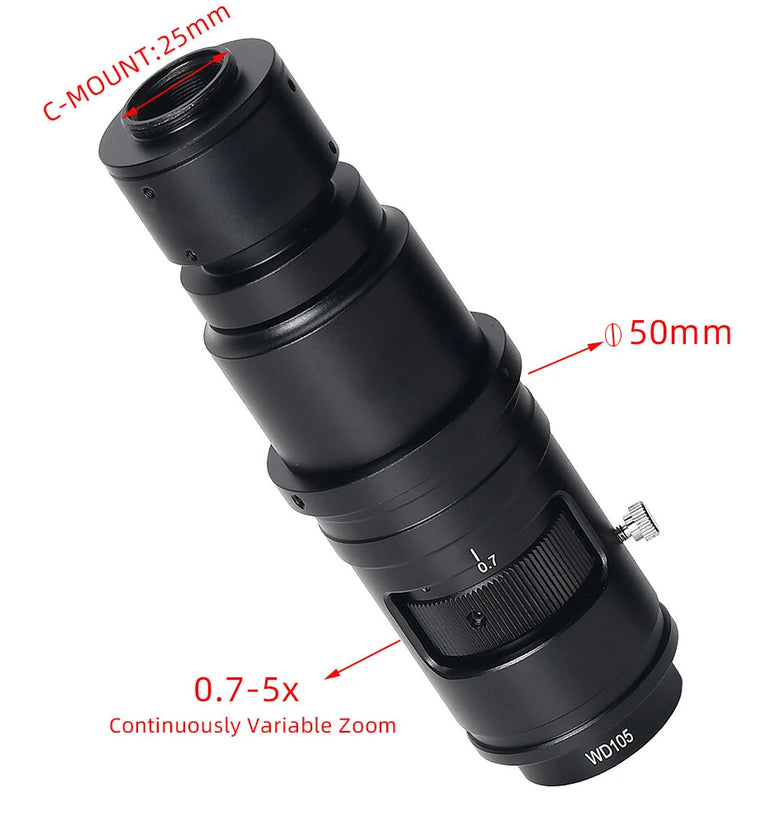

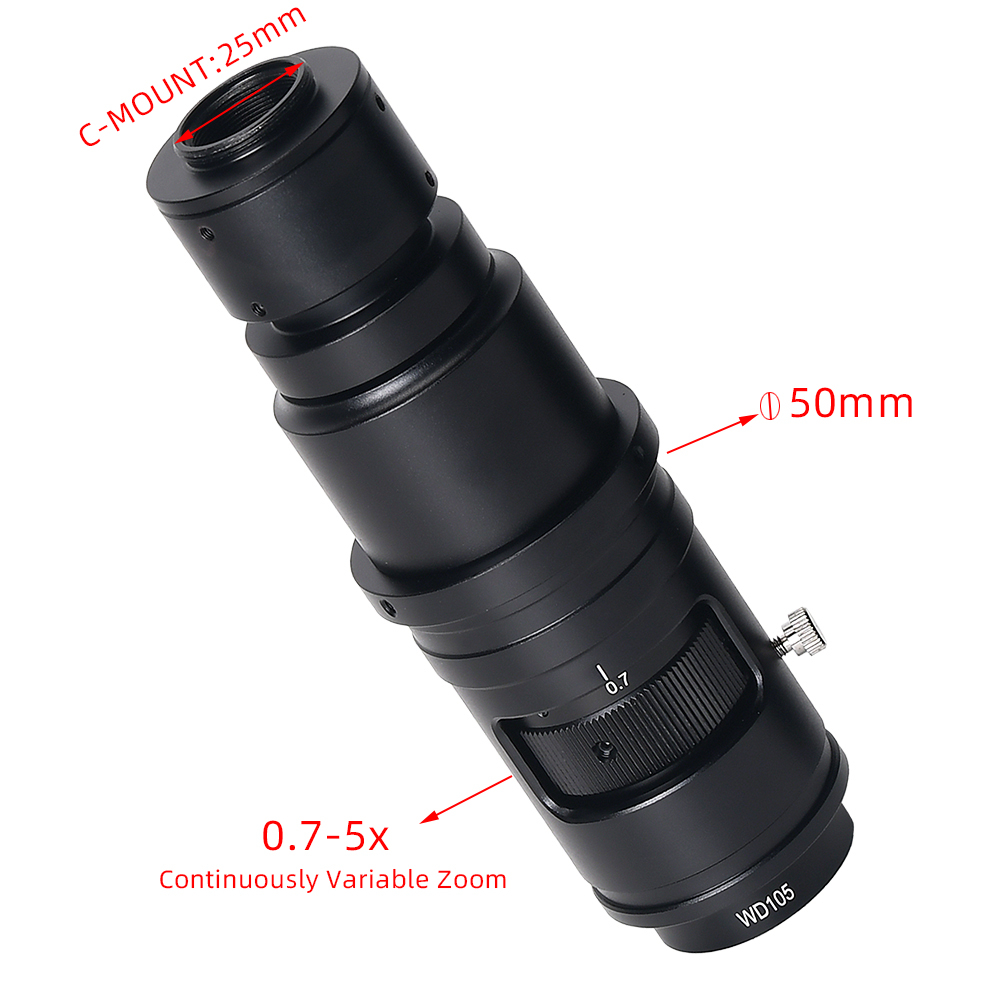

Connector: CS C Mount
Zoom Range: Continuously variable zoom from 0.7X to 5X
Objective Magnification: 0.7X - 5X
Eyepiece Lens Adapter Magnification: 0.4X
Fixed Position: 50mm
Locking Feature: 0.7X - 5X locking
Dimensions: 166mm(L) × 59mm(DIA)


Features:
1.Precision Continuously Variable Zoom
The zoom function allows seamless adjustment from 0.7X to 5X magnification, enabling users to focus on fine details or wider views effortlessly.
2.High Flexibility with Dual Working Distances
Two optional working distances (WD105: 105mm; WD210: 210mm) provide versatility suited for various tasks, such as electronic repair, soldering, and microscopy imaging.
3.CS C-Mount Compatibility
Compatible with CS C-Mount microscope cameras, offering seamless integration with various imaging systems for high-quality visuals.
4.Enhanced Optical Range
Effectively captures magnification ranges from intricate details (3x1.7mm or 6x4mm) to larger areas (35x20mm or 46x26mm), accommodating diverse application needs.
5.Compact and Reliable Design
With dimensions of 166mm(L) × 59mm(DIA), the lens is compact for a smooth workspace layout, making it suitable for precision tasks without occupying too much space.


Package Included:
1 × Depth of Field Lens
