MCU: ESP32-D0WDQ6

LoRa Chipset: SX1303 + SX1250

Multi-channel: Eight (8) uplink, one (1) downlink

Frequency: 863~870MHz, 902~928MHz, 470~510MHz

Max. Receiving Sensitivity: -139dBm

Max. TX Power: +27 ±2 dBm

Wi-Fi: 802.11 b/g/n

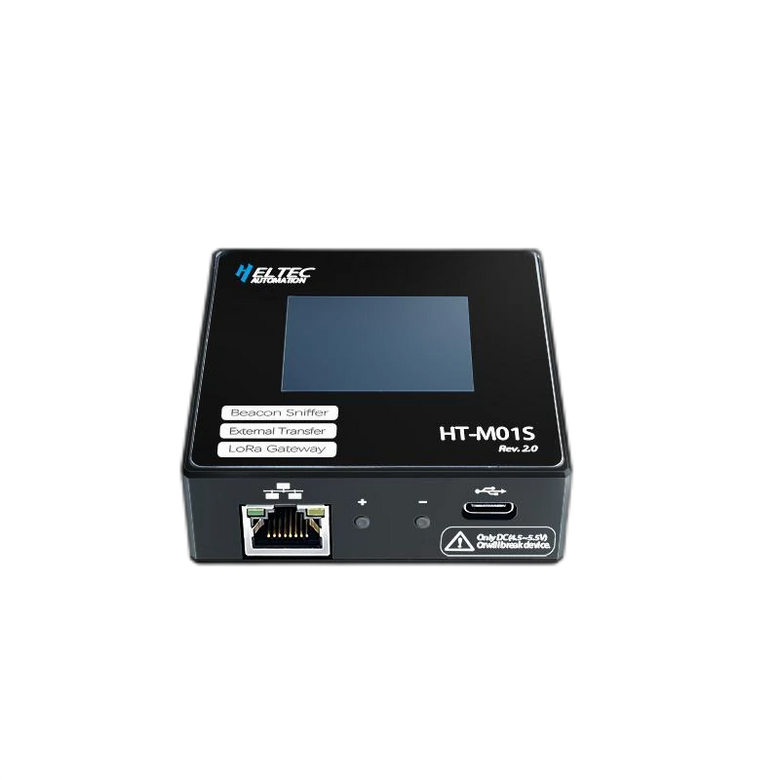

Ethernet: 100M RJ45

Power Consumption: Tx (Max) ≈ 550mA, Rx ≈ 120mA, standby 7.5mA

Operating Temperature: -20 ~ 70 ℃

Operating Humidity: 10%~90%, no-condensing

Dimensions: 70(+11) x 70 x 23 mm

Shell Material: Aluminum housing, tempered glass panel

Summary:HT-M01S (Rev. 2.0) represents a standard LoRaWAN gateway that is based on an ESP32 MCU. Unlike other gateways, HT-M01S (Rev. 2.0) does not require a Linux operating system on a high-performance CPU. This unique feature results in a significant reduction of the cost of a standard LoRaWAN gateway.In essence, HT-M01S (Rev. 2.0) offers three main features: first, it enables standard LoRaWAN gateway functionality; second, it is based on an ESP32 MCU; third, it reduces costs through the elimination of the need for a Linux operating system.Overall, HT-M01S (Rev. 2.0) is a compelling gateway option that offers valuable features while simultaneously reducing costs.- Can be used as a regular LoRaWAN gateway;- Can be used as Helium Beacon Sniffer;- Can be used as an external transfer of Heltec Indoor HotspotMain Features:Helium Beacon SnifferLoRa External Transceiver (Only for the Helium hotspot made by Heltec),Ready to use Normal LoRaWAN GatewayESP32 MCUWi-Fi and Ethernet supportedMaximum output: 27 ± 2 dBmSupport for LoRaWAN Class A, and Class C protocols,-20°C to 70°C maximum operating temperature range

1. Ready-to-use standard LoRaWAN gateway based on ESP32 MCU.

2. No Linux OS required, helping reduce the cost of a standard LoRaWAN gateway.

3. Works as a Helium Beacon Sniffer.

4. LoRa external transceiver (only for the Helium hotspot made by Heltec).

5. Wi-Fi and Ethernet supported; supports LoRaWAN Class A and Class C; max output +27 ± 2 dBm; -20°C to 70°C.

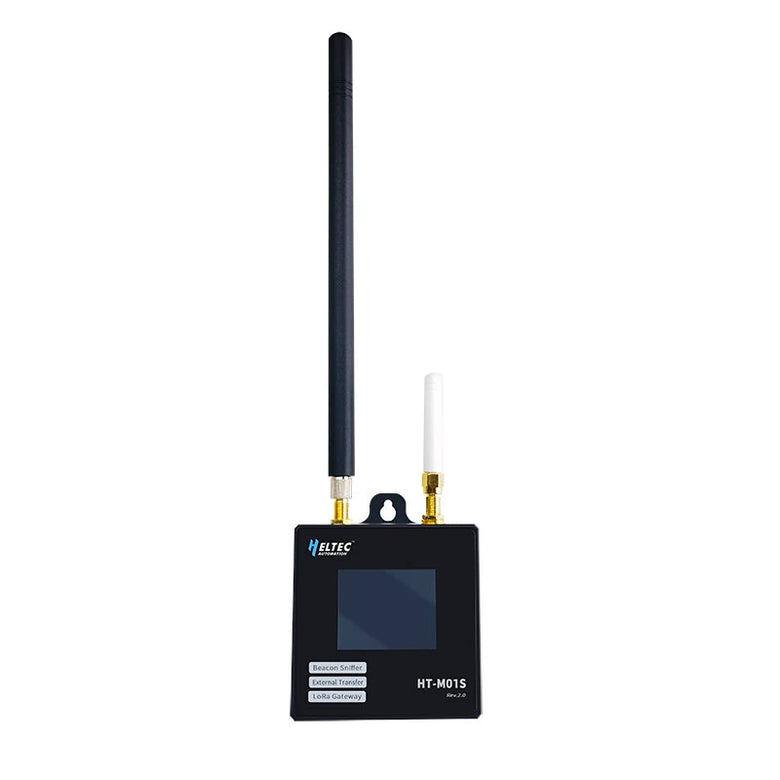

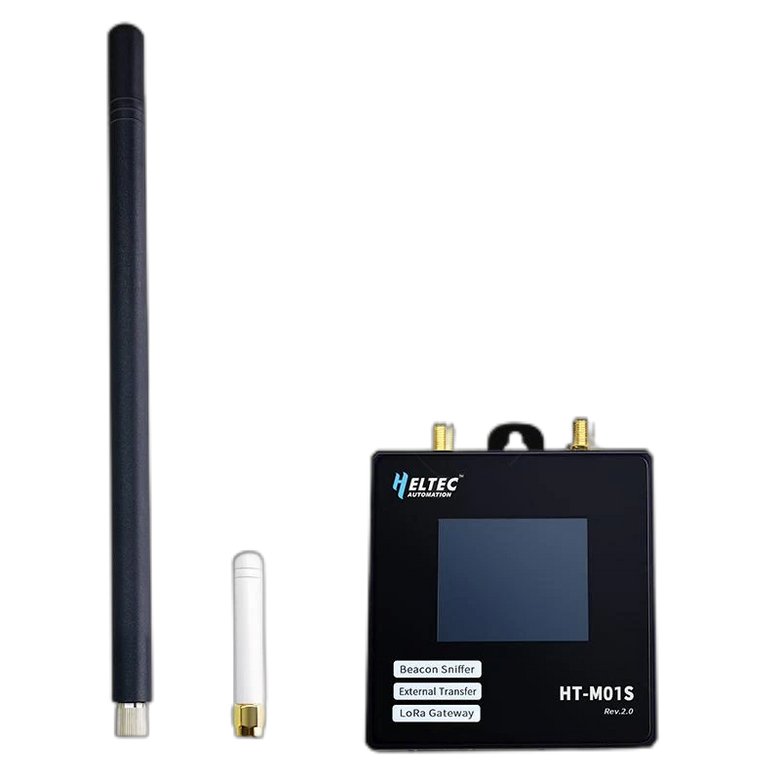

1 x HT-M01S Indoor LoRa Gateway (Rev. 2.0)
