Specification:
Model: Mesh Node T114 (V2.0)
Processor: nRF52840 MCU with Cortex-M4 CPU running at 64MHz
Wireless Communication: LoRa SX1262 chip supporting 470~510MHz
Bluetooth: Version 5 with low-energy capability for enhanced connectivity
Battery: Compatible with 3~4.2V LiPo battery and USB Type-C charging
Display: 1.14-inch TFT-LCD with 135(H)x240(V) resolution, 262K colors
Operating Temperature: -20°C to 70°C

Support 470-510mhz

Features:
1. Seamless integration with IoT cloud platforms for smart device applications.
2. Compatible with Meshtastic for enhanced software compatibility.
3. Low power consumption, only 11μA in deep sleep mode, allowing extended operational life.

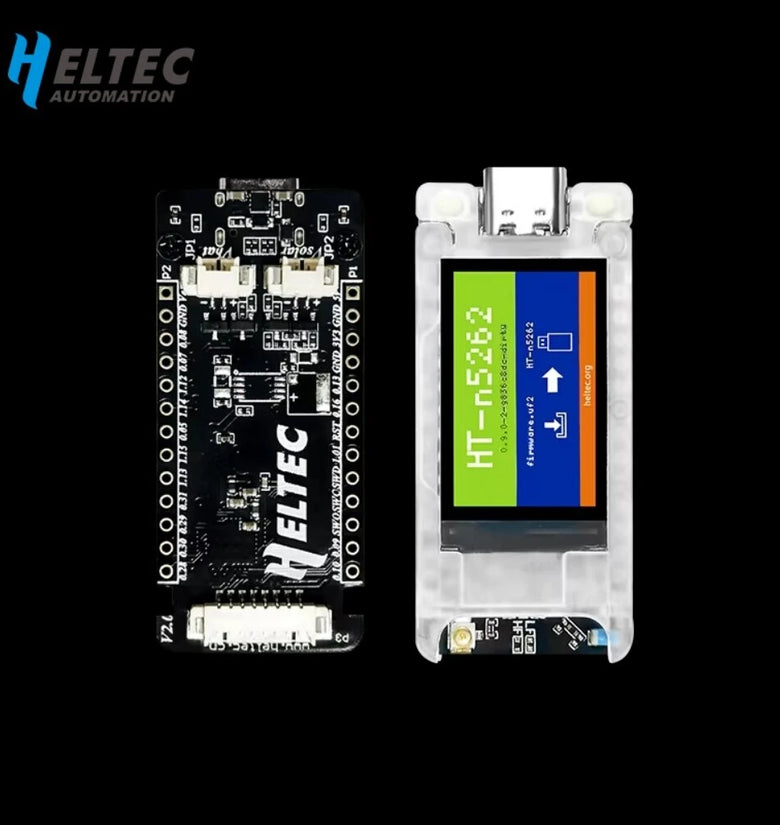

4. Updated 6-layer circuit board for improved signal transmission and electrical grounding.

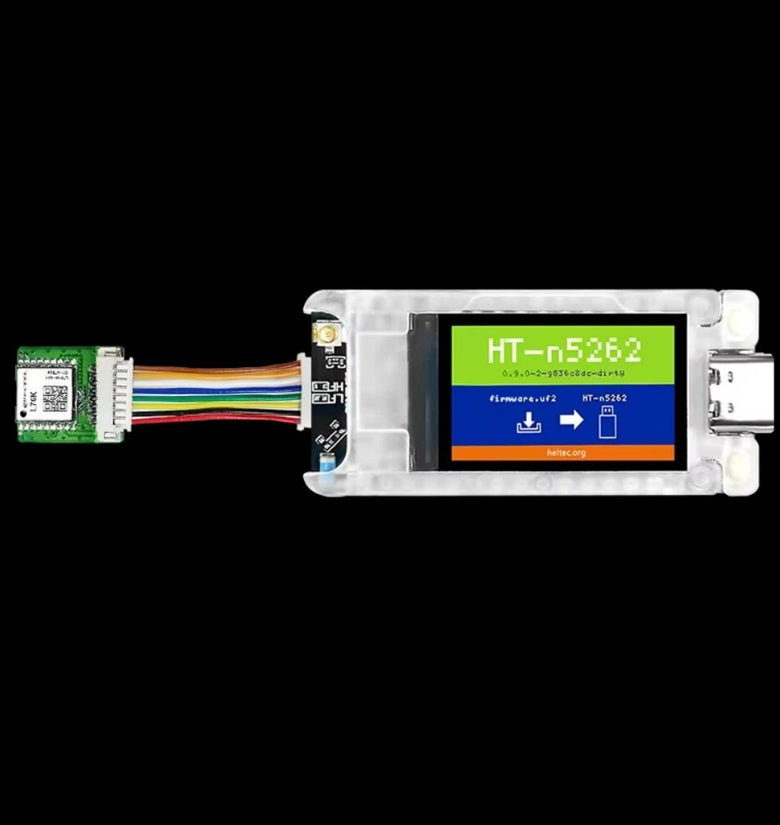

5. Advanced GNSS module L76K for multi-system positioning, perfect for precise location tracking.
6. Includes multiple interfaces such as 2x LiPo connectors, solar panel connectors, and GNSS module support.

Package Includes:

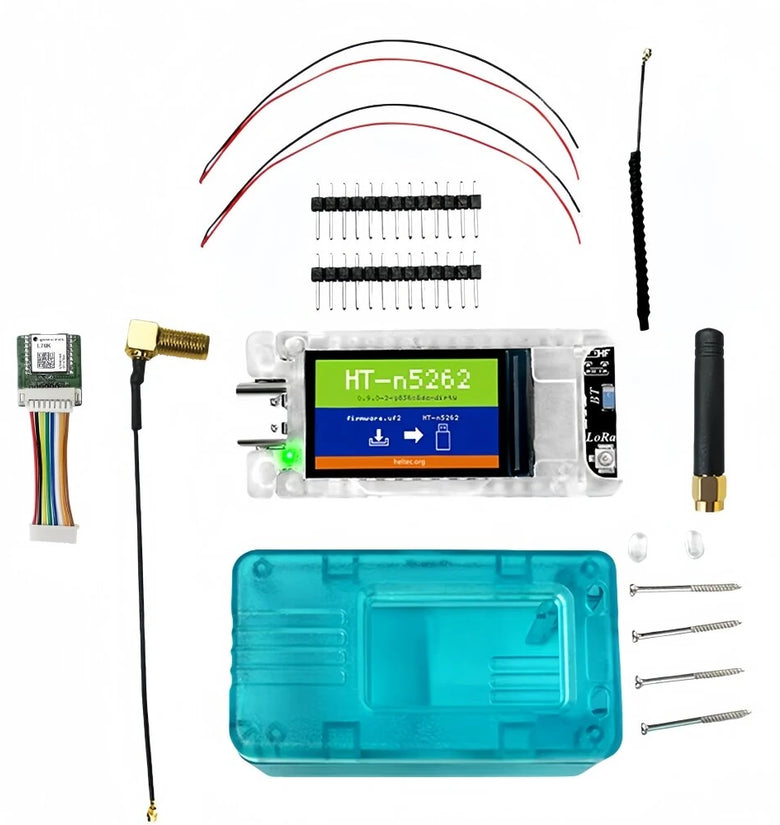

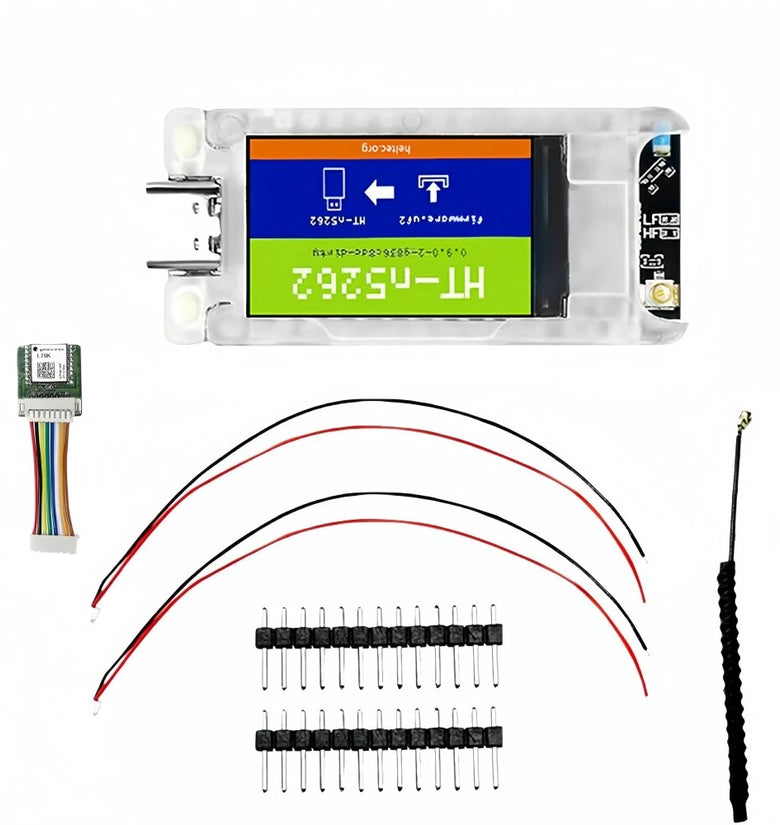

1x Mesh Node T114 (V2.0) Kit
