Specifications:
Frequency Range: 24G - 24.25GHz
Modulation Type: FMCW
Detection Range: Adjustable, 0.75m to 9m
Detection Angle: ±75°
Operating Voltage: 3.3V or 5V (minimum supply power >200mA)
Current Consumption: ~90mA (Typical)
Output Signal Voltage: 3.3V
Sweep Bandwidth: 250MHz (CE/FCC certified)
Operating Temperature: -40°C to +85°C
Dimensions: 11mm x 28mm
Features:
1. Wide range detection with adjustable distance settings, covering up to 9m for flexible applications.
2. Precise signal processing using FMCW technology to differentiate between static and moving objects.
3. Compact design enables easy integration into various smart application scenarios.
4. Wide temperature tolerance to ensure reliable performance across demanding environments (-40°C to +85°C).
5. Plug-and-play GPIO/UART interface supports rapid connectivity for diverse system setups.
Package Included:

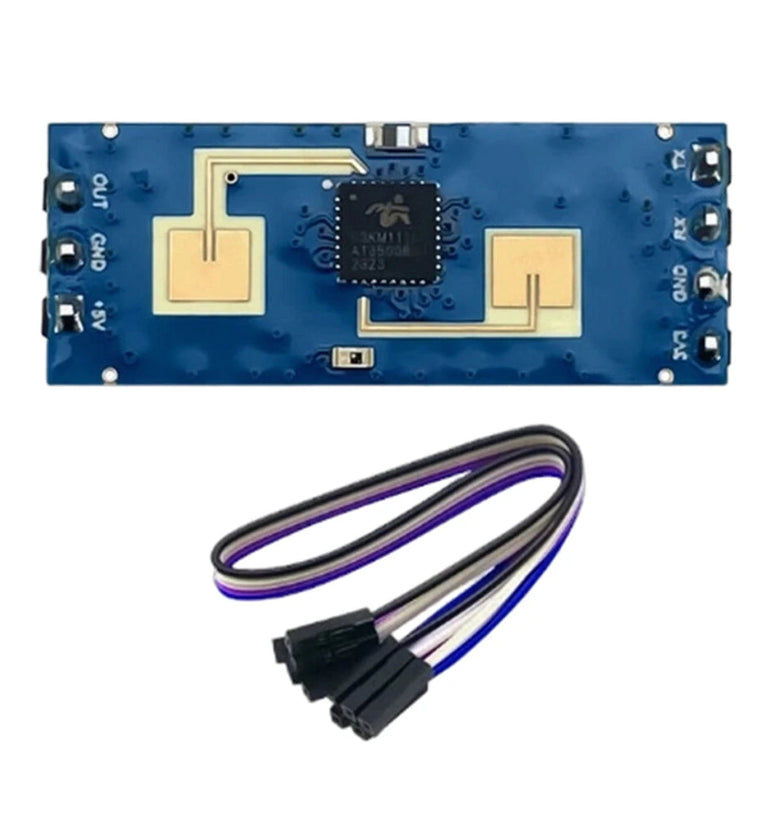

Set 1:

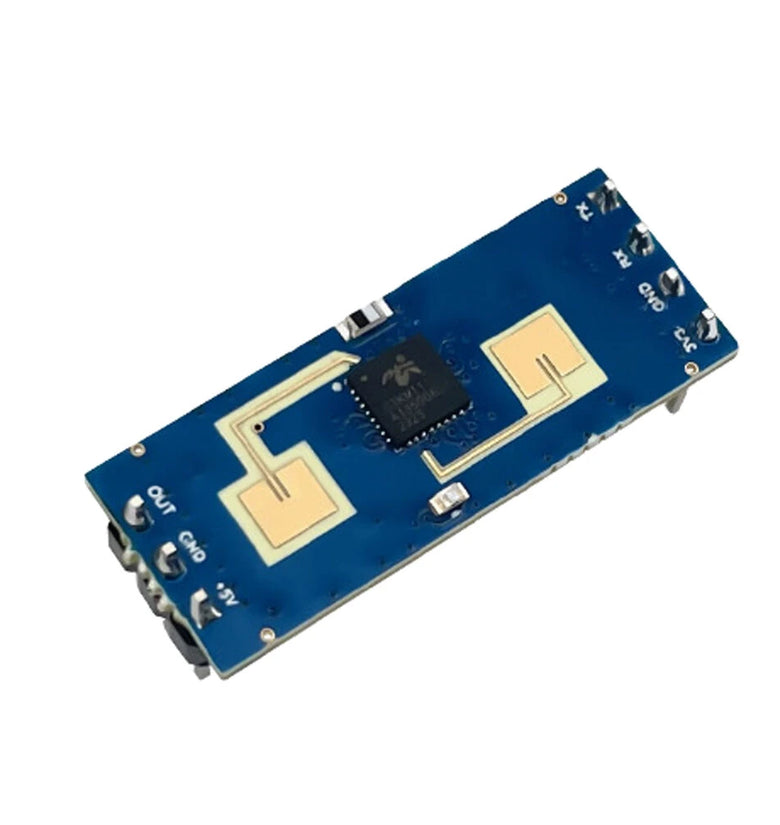

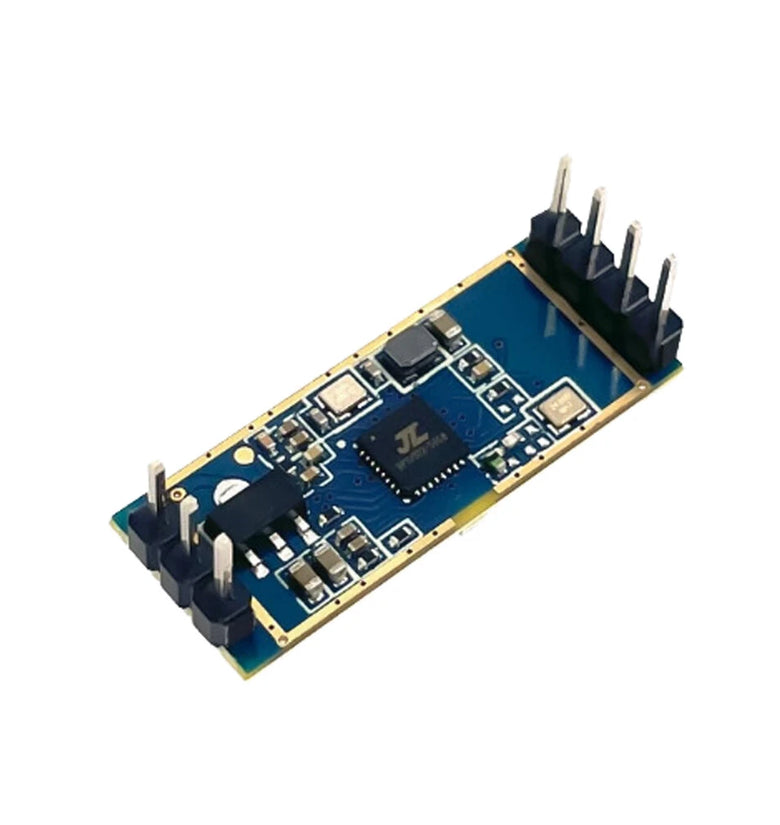

1 x LD2412S Radar Module
1 x 5-Pin DuPont Cable
or

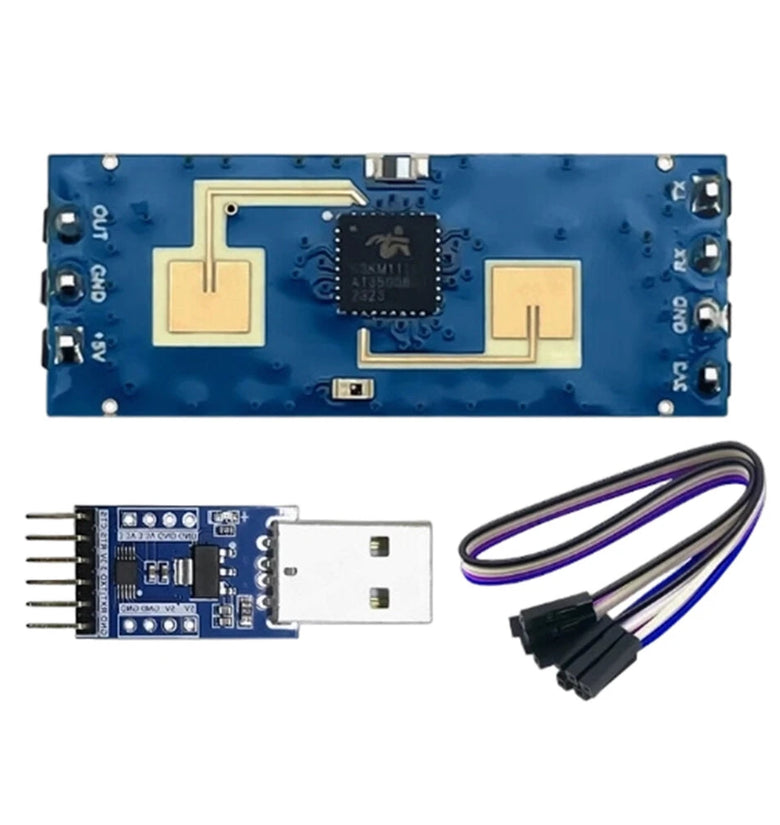

Set 2:
1 x LD2412S Radar Module
1 x CH340 Serial Adapter Board
1 x 5-Pin DuPont Cable
